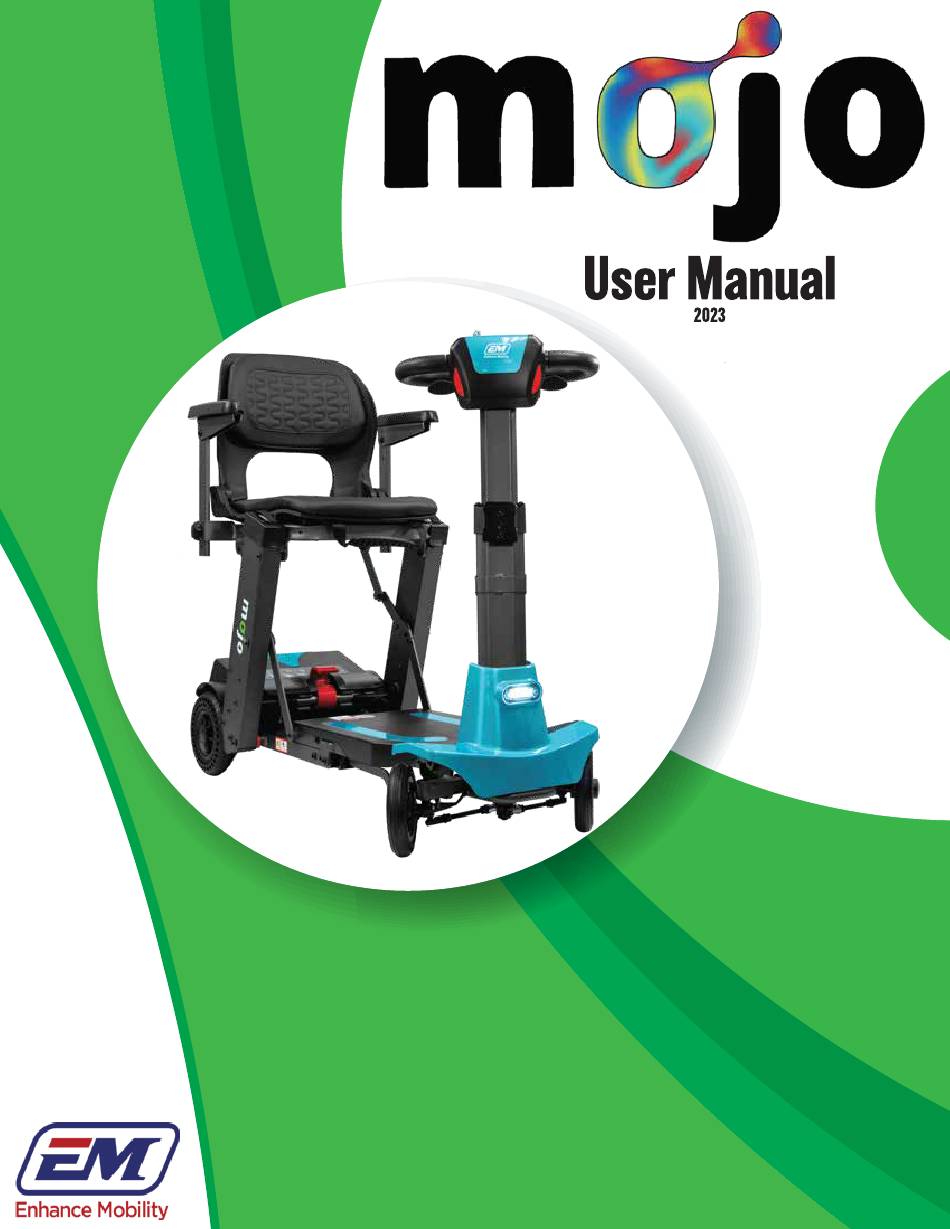

- Page 1 MOJO-MJ100 MOJO AutoFold-MJ101...
-
Page 2: Table Of Contents
Thank you for choosing the MOJO Folding Scooter. Please read this manual carefully before operating the MOJO. If you have any questions or need further assistance, please contact your MOJO Dealer or Enhance Mobility directly at 800-296-4151 Extension 2 or Service@EnhanceMobility.com. This manual covers the MOJO’s characteristics, components, functions, safety guidelines, battery, and maintenance. -
Page 3: Mojo Feature Guide
MOJO Feature Guide The MOJO is composed of the following parts: front and rear frame, handlebar controls, rear wheels, front wheels, front shroud, headlight, tiller, height adjust- ment lock lever, tiller tilt adjuster, foldable seat, seat supporting frame, deck, battery, charger port, armrests and remote bi-pass switch. 1. - Page 4 MOJO Specifications MOJO MOJO Auto-Fold MJ100 Model MJ101 40 Inches 40 Inches Overall Length 20.5 Inches 20.5 Inches Overall Width HoneyComb 6” Solid Tires HoneyComb 6” Solid Tires Front Tires HoneyComb 7” Solid Tires HoneyComb 7” Solid Tires Rear Tires Up to 3.75 MPH Up to 3.75 MPH Max Speed...
-
Page 5: Mojo Key Components
MOJO Key Components Handlebar Control Pod Battery Indicator Auto-Folding Switch Headlight Switch (MOJO AF ONLY) Horn Directional Controls Speed Control Keyed Ignition Steering Handle Knob The Handlebar Control Pod consists of the steering handle, LCD display with battery indica- tor, keyed ignition, directional controls, automatic folding switch, charging port, headlight switch, horn and speed control Always protect the MOJO Handlebar Controls from humidity and water. -
Page 6: Operating Instructions
Operating Instructions Turning on the Power Put key in ignition and turn clockwise to turn on. The LCD display will turn on when the scooter is on. Turn the key counterclockwise to power off. The LCD display will turn off when the scooter is off. Free Wheel Lever The Free Wheel Lever is located on the rear of the scooter on the left-hand side. -
Page 7: Operating Instructions Cont
Operating Instructions Cont... Automatic Folding Switch The Automatic Folding Switch is located on the handlebar control pod. The switch can be used instead of the remote control to open and close the scooter. To close the scooter, power on the MOJO, and press the Automatic Folding Switch toward the “II”... - Page 8 Operating Instructions Cont... Back up Alarm On/Off Switch The On/Off switch for the back up alarm is located just underneat the seat, and to the right. To turn the back up alarm ON, set the switch to the “O” position. To turn off your back up alarm, set the switch to the “I”...
-
Page 9: Folding And Unfolding The Mojo
Folding And Unfolding The Mojo Automatic Remote Control Operation (MOJO AF) To UNFOLD (open) the MOJO Scooter, with the MOJO is turned on, press and release the open button on the key fob. The scooter will open fully. To FOLD (close) the MOJO Scooter – with the MOJO powered on, press and release the fold button on the key fob. -
Page 10: Mojo Assembly/Disassembly
MOJO Assembly/Disassembly Use Caution when assembling and disassembling the MOJO Scooter. Attachment points may pinch hands and fingers. Be sure to read pinch point warnings on your MOJO Scooter prior to attempting. MOJO Disassembly Complete. Your To disassemble the Pull the Axle Group While the Axle Release MOJO is now MOJO scooter, locate... -
Page 11: Safety Requirements
Safety Requirements The MOJO has the best stability under normal driving conditions (dry, level ground with concrete or asphalt). Extra care must be taken when riding on other surfaces (grass, gravel, etc.) It is unsafe to drive the MOJO up steep inclines. Please read the manual instruction completely before operation. -
Page 12: Battery Maintenance & Charging
Battery Maintenance & Charging The MOJO Scooter is designed to use two maintenance free 24V/7.5 AH Lithium Batteries. It comes with an easy-to-use DC29V-2AH charger. • Charge the battery completely before the first operation. -Not doing so can cause damage to the battery. •... -
Page 13: Battery Faq
Battery FAQ Guide to a Safe and Long-Lasting Battery How does the charger work? When the battery voltage is low, the battery charger outputs a large current to charge the battery. When the battery voltage is near full, the battery charger outputs a small current. When the battery is full, the battery charger will output very little current. -
Page 14: Maintenance & Troubleshooting
Maintenance & Troubleshooting Maintenance With care and regular maintenance, the MOJO is designed to provide years of enjoyment. The following will keep your MOJO running at optimum levels. Battery • Make sure battery is fully charged. • Store the battery in a dry environment. •... -
Page 15: Troubleshooting Cont
The MOJO has detected an excess of voltage to the controller. Please check all battery connections. 10 Beeps If you continue to have trouble with your MOJO, contact Enhance Mobility at 800-296-4151 – Option 2 or your authorized MOJO dealer. - Page 16 Acts of Nature *Enhance Mobility is not liable for damages caused by shipping. Enhance Mobility will ship the parts directly to the customer or to the service center of their choice. Enhance Mobility will provide technical assistance and documentation to ensure the scooter is repaired properly.
- Page 17 Thank you again for your recent purchase of a MOJO Scooter! We are excited to welcome you to our Enhance Mobility family, and are honored that you entrusted Enhance Mobility for such an important purchase. We hope you are loving your new MOJO...
- Page 18 Contact Us Service Team Service@Enhancemobility.com 1-800-296-4151 Service: Ext. 2 15380 County Rd 565A, Groveland, FL 34736 Enhance Mobility...
