Protech Systems PA-3222 Quick Reference Manual

PA-3222
Quick
Reference
Guide
Specifications
CPU Support
Memory
Network
Power Supply
System
Audio
System Weight
Dimension
O.S. Support
Storage
SATA
USB
Serial Ports
LAN
I/O Ports
VGA
Cash Drawer
DC IN
Customer Display
Printer
Peripheral
MSR & iButton
Fingerprint
LCD
Resolution
Display
Brightness
Touch Screen
Tilt Angle
EMC & Safety
Operating Temp.
Environment
Storage Temp.
Humidity
All Rights Reserved. Copyright 2017
All Rights Reserved. Copyright 2017
PA-3222
® ®
Intel Celeron J1900 CPU
1 x DDR3L SO-DIMM slot (up to 8GB)
10/100/1000Mbps Base-T Fast Ethernet
60~90 Watt Power Adapter
2W Speaker
with power adaptor approx. 4 kg
300 x 299 x 135 mm
WIN10 / WIN8.1 / POSReady7 / Android 4.4
1 x 2.5" HDD or SSD
3 x USB2.0 +1 x USB3.0 on rear, 1 x USB2.0 on side bezel
3 x RJ45 (support +5V/12V selectable) + 1 (optional) x DB9
1 x RJ45
1 x DB15
1+1(option, with Y cable) x RJ11 (+12V or +24V selectable)
1 x 4-pin DC Power Jack
VFD, 20 columns and 2 lines, each column is 5 x 7 dots
2" or 3" easy loading thermal printer with Auto cutter
JIS I,II , ISO Track1+2+3 (PS/2 interface)
8-bit grayscale, reader
10.1" TFT LCD
1280 x 800
400 cd/m²
10.1" Capacitive Touch panel, USB I/F (EETI controller)
24 ~ 30 degree
CE / FCC
0°C ~ 35°C (32°F ~ 95°F)
-5°C ~ 60°C (23°F ~ 140°F)
20% ~ 90%
Packing Checklist
If you discover any item below was damaged
or lost, please contact your vendor .
PA-3222
This Quick Reference Guide
AC Power Cord (Optional)
Driver DVD
MSR Card Reader (Optional)
i-Button + MSR Card Reader (Optional)
Wireless LAN (IEEE 802.11 b+g) (Optional)
VFD (Optional)
Ver. Q1

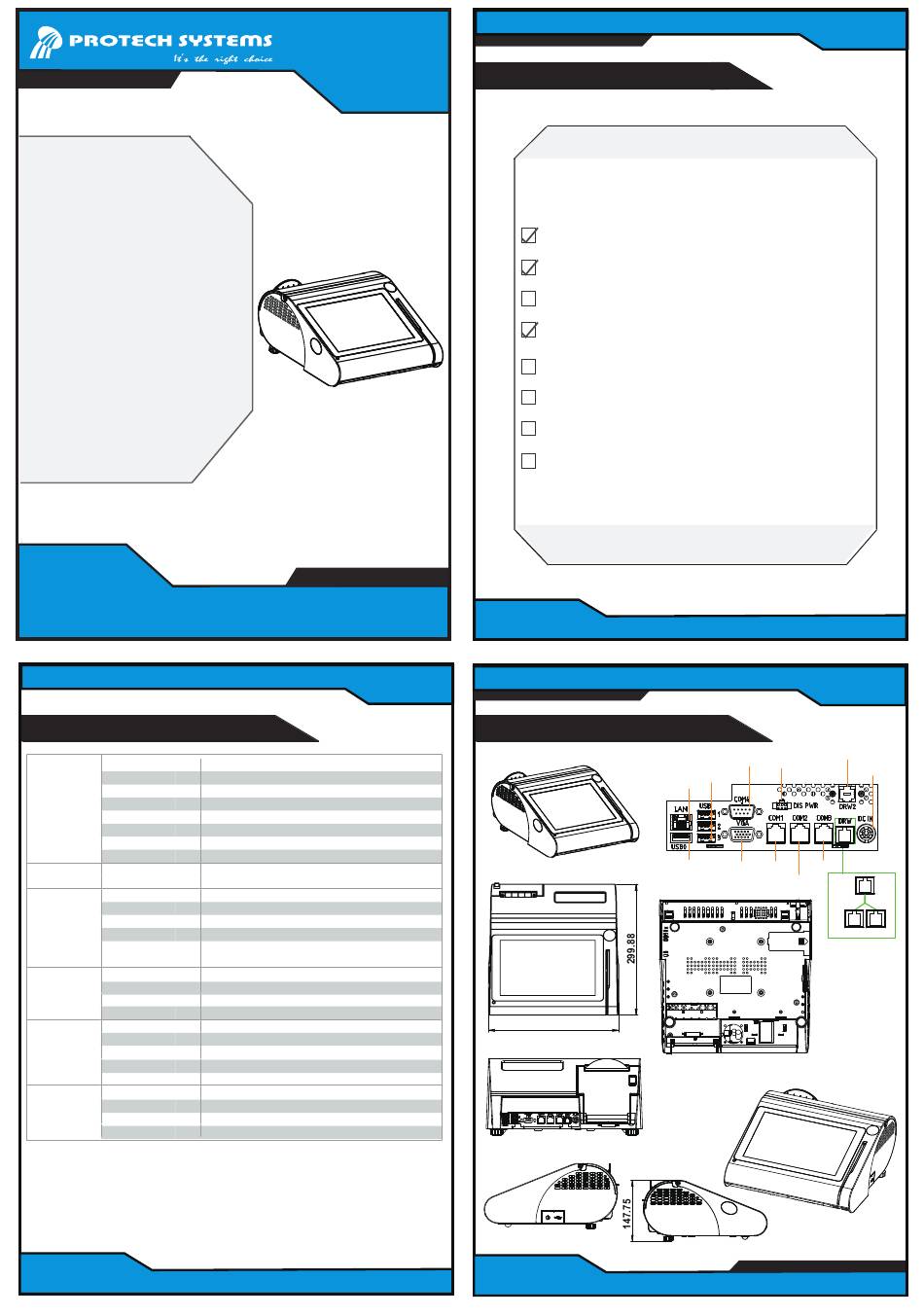

System View
Front View
Top View
298.29
Rear View
Side View
PA-3222
PA-3222
PIP1230 PA-3122
DRW2
I/O View
COM4
(Option 2)
DIS PWR
USB (Option 1)
1/2/3
LAN
VGA
USB0
COM1 COM3
COM2
Bottom View
extended with
Y cable
Quarter View
X 1
X 1
X 1
X 1
X 1
X 1
X 1
X 1
DC IN
DRW1
(Option 3)
DRW1
DRW1-1 DRW1-2
