Protech Systems PA-3170 Quick Reference Manual

PA-3170
Quick
Reference
Guide

Specifications

System
CPU Support Intel 2 Core
® nd
Intel Pentium
®
Intel Celeron
®
Chipset Intel H61
®
Memory 1 x DDR3 SO-DIMM slot (up to 8GB)
O.S. Support Windows POSReady7/2009, WES7/2009
Network 10/100/1000 Base-T Fast Ethernet
Power Adapter 120~150 Watt DC-in
System Weight 4.5 kg
Dimension (WxHxD) 300 x 299 x 135 mm
Certificate FCC/CE
Storage
HDD 1 x 2.5" SATA HDD
SD/MMC 1 x SATA half-slim SSD
I/O Ports
USB 5 x USB 2.0 (one on the side bezel)
Serial Port 2 x DB-9 (COM2/3), 1 x RJ45 (COM1), 5V/12V selectable
PS/2 1 x PS/2 port (default at keyboard)
LAN 1 x RJ45
VGA 2 x DB-15 VGA interface
Cash Drawer 1 x RJ11 (12V/24V selectable, default at 12V)
Printer 2" or 3" easy loading thermal printer with auto cutter
Option 1 x DB-25 printer port
Display
LCD & Tilt Angle 10.4" TFT, 24~30°
Max. Resolution 1024 x 768; 800 x 600
Brightness 300 cd/m 2 ; 230 cd/m
Touch Screen 5-wire Analog resistive
Environment
Operating Temp. Operating: 0~35°C; Storage: -20~60°C
Humidity 20 ~ 90%
All Rights Reserved. Copyright 2014
PA-3170
i3-2120 3.3 GHz, L2 Cache-3MB
TM
G850 2.9GHz, L2 Cache-3MB
®
G530 2.4GHz, L2 Cache-2MB
®
2

Packing Checklist

If you discover any item below damaged or lost,
please contact your vendor.
PA-3170
This Quick Reference Guide
AC Power Adaptor
Manual/Driver CD
Ver. Q3

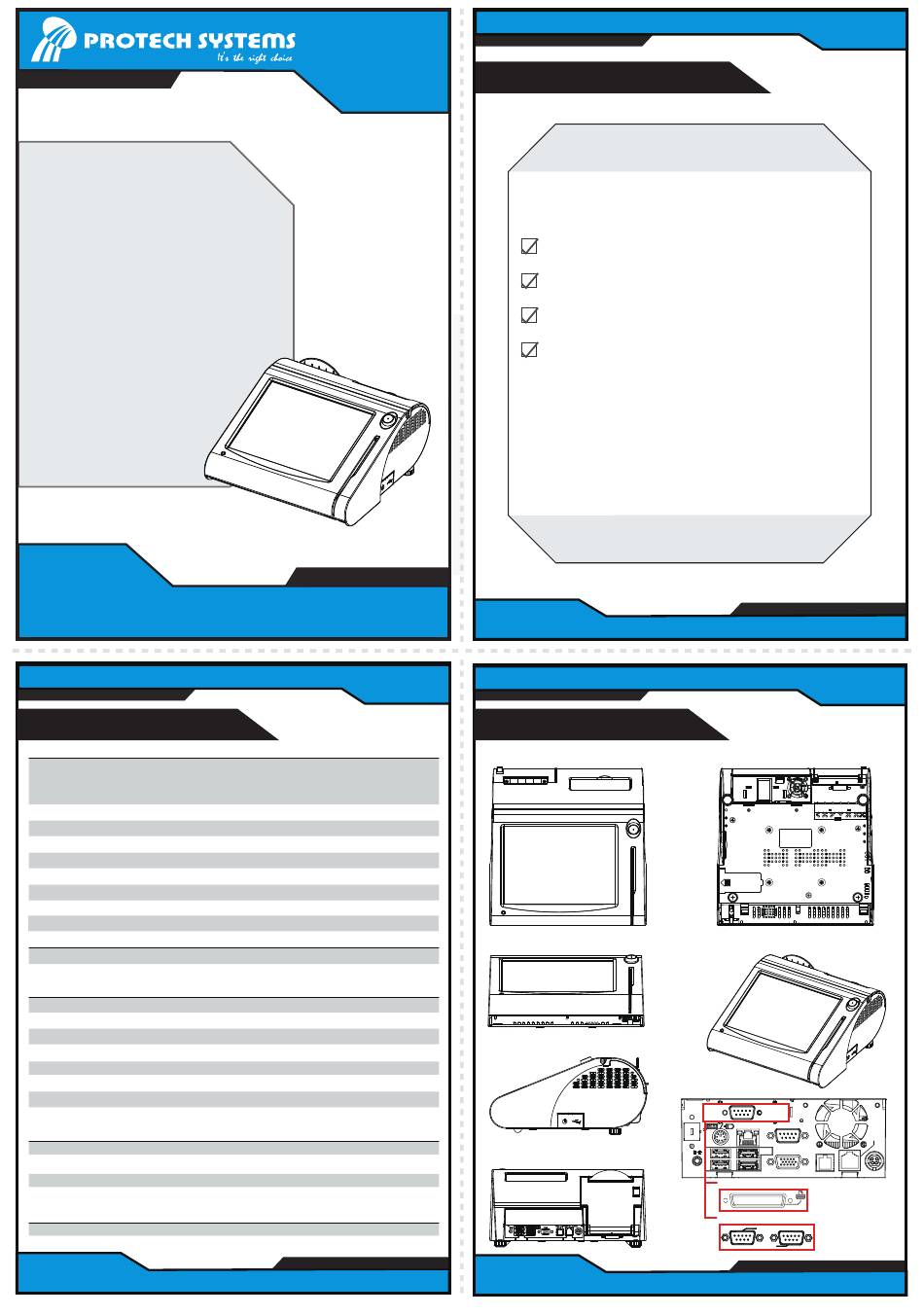

System View

Top View
Front View
Side View
Rear View
PA-3170
x1
x1
x1
x1
PA-3170
Bottom View
Quarter View
I/O View
DWR2 COM 3
COM 2
LAN
USB DWR1
VGA
2
0
1
3
Option 1
(LPT, D-sub 25-pin)
Option 2
COM4
COM3 (2 x RS232, D-sub 9-pin)
COM1
DC IN
