Protech Systems PA-3350 Quick Reference Manual

PA-3350
Quick
Reference
Guide
Specifications
System
® nd
CPU Support Intel 2 Gen.Core™ i3-2120 3.3 GHz, L2 Cache-3MB
®
Intel Pentium
Intel ® Celeron
Chipset Intel ® H61
Memory 1 x DDR3 SO-DIMM slot (up to 4GB)
O.S. Support Windows POSReady 7/2009, WES 7/2009
BIOS AMI SPI BIOS
Audio 1 x 2W speaker
Power Adapter 120~150 Watt DC-in
System Weight 7.5 kg
Dimension (WxHxD) 369 x 301 x 356 mm
Certificate FCC/CE
Storage
HDD 1 x 2.5" SATA HDD
SD/MMC 1 x SATA half-slim SSD
I/O Ports
USB 5 x USB 2.0 (one on the front bezel)
Serial Port 2 x DB-9 (COM2/3), 1 x RJ45 (COM1), 5V/12V selectable
PS/2 1 x PS/2 port
LAN 1 x RJ45
VGA 2 x DB-15 VGA interface
Display
LCD & Tilt Angle 15" TFT XGA; 30~40°
Max. Resolution 1024 x 768
Brightness 250 cd/m 2
Touch Screen Flat 5-wire analog resistive
Projected-capacitive (Optional)
Environment
Operating Temp. Operating: 0~35°C; Storage: -20~60°C
Humidity 20 ~ 90%
All Rights Reserved. Copyright 2014
PA-3350
®
G850 2.9GHz, L2 Cache-3MB
® G530 2.4GHz, L2 Cache-2MB
Packing Checklist
If you discover any item below damaged or lost,
please contact your vendor.
PA-3350
This Quick Reference Guide
AC Power Adaptor
Manual/Driver CD
Ver. Q1

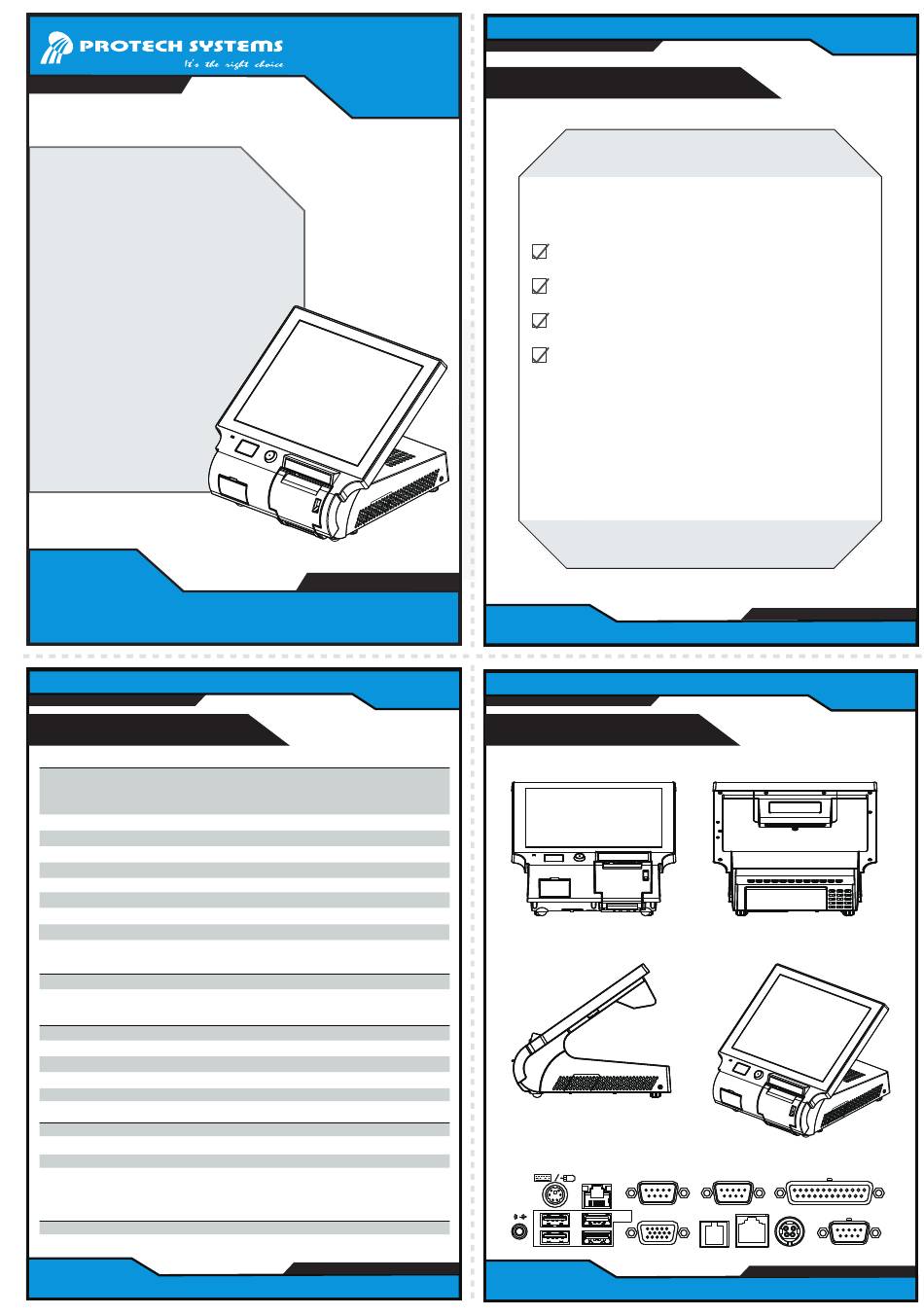

System View
Front View
Side View
I/O View
0 2
1 3
Rear View

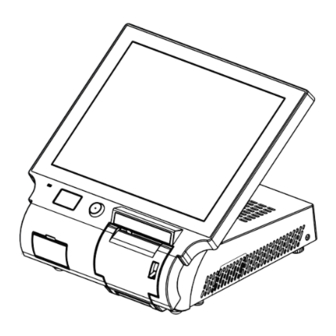

Quarter View
COM2 COM3
LAN
COM1
VGA DWR1
USB
PA-3350
x1
x1
x1
x1
PA-3350
(Optional)
LPT
DC IN
(Optional)
COM4
