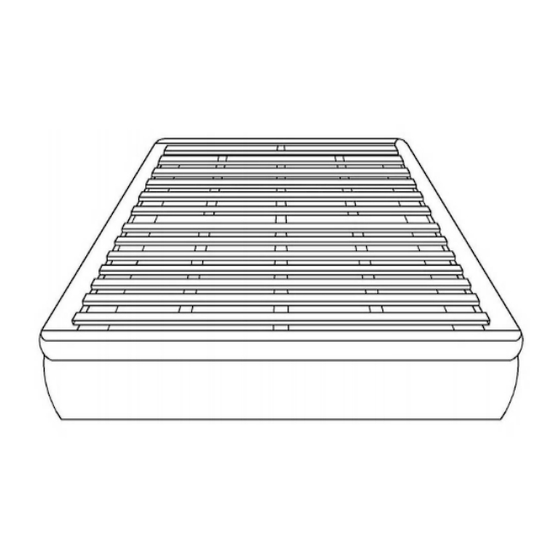

Jenavive Bedframe
Assembly Instructions
TOOLS REQUIRED BUT NOT INCUDED:
Phillips head screwdriver / drill

WARNINGS:

Do not throw away packing materials and carton until after assembly.
Assemble all parts on a clean smooth surface

CARE INSTRUCTIONS:

Avoid direct exposure to sunlight.
Do not place over heat or air conditioning vents.
Adjust levelers so that the furniture sits flat on uneven floors.
Blot spills do not rub, with a clean white cloth.
Do not use harsh chemicals.
Before cleaning any part test a small spot in a hidden area.
You may need to re-tighten all bolts after initial use.

PARTS INCLUDED:

A) Headboard / Footboard
x2
D) Middle Legs
x3
H) Corner Brace
x4
L) Screw
[Φ4 x 30mm] x51
EXCLUSIVE AND CONFIDENTIAL PROPERTY OF URBAN OUTFITTERS, INC.
© 2017 UO, Inc. All rights reserved, including all applicable copyright, design and patent rights.
Any unauthorized reproduction, adaptation, distribution or other infringement will be prosecuted.
B) Side Rail
E) Middle Legs
x3
I) Bolt
[5/16'' x 30mm] x28
M) Allen Key
[M5 x 80mm] x1
x2
F) Side Legs
x4
J) Spring Washer
[Φ14mm] x28
URBAN OUTFITTERS
C) Center Rail
x1
G) Slat Roll
x1
K) Flat Washer
[Φ16mm] x28
Page 1 of 5
