JONES BOOKSHELF

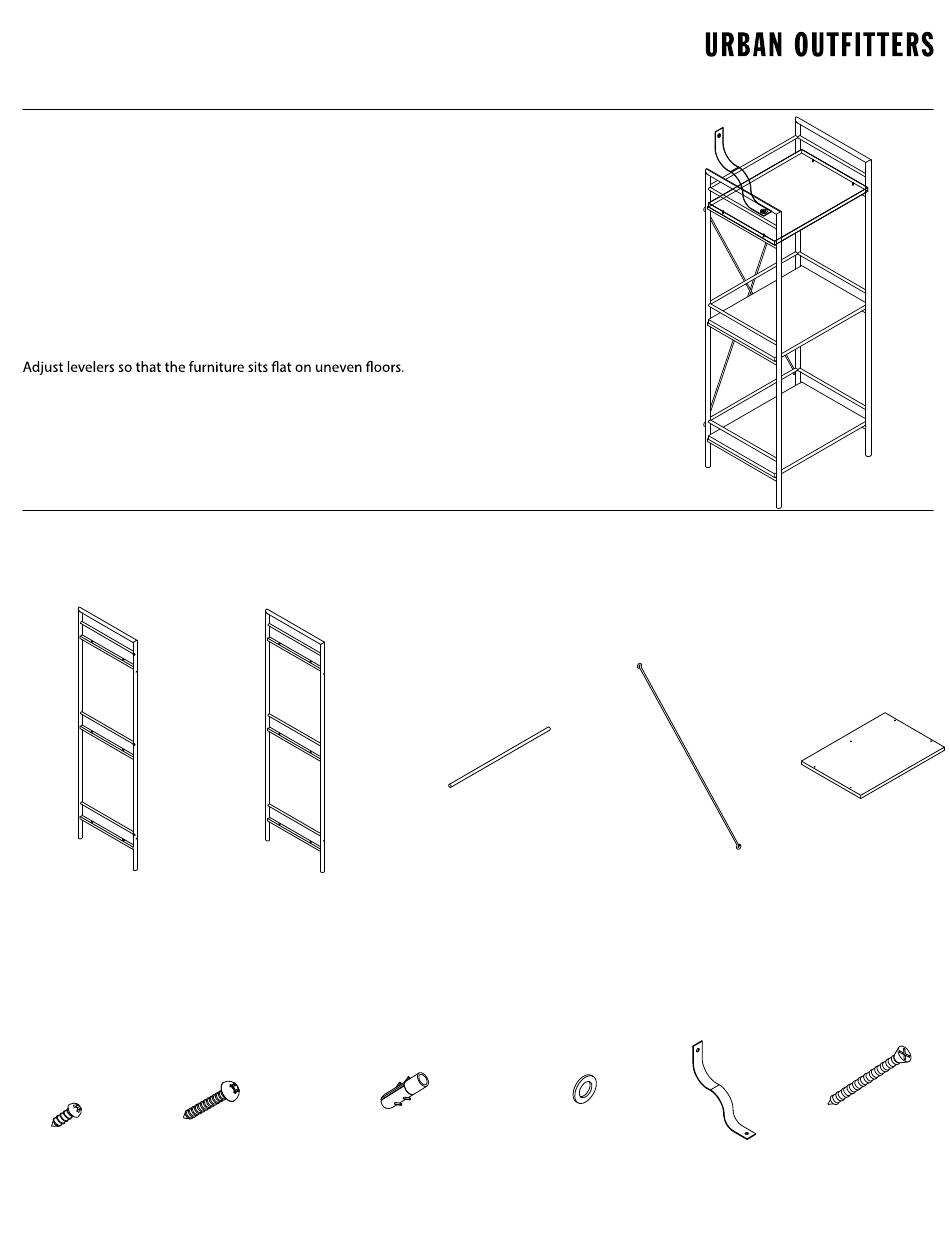

Assembly Instructions
TOOLS REQUIRED BUT NOT INCLUDED:
Phillips-Head screwdriver
Do not throw away packing materials and carton until after assembly.
Assemble all parts on a clean, smooth surface
CARE INSTRUCTIONS:
Avoid direct exposure to sunlight. Do not place over heat or air conditioning vents.
Blot spills, do not rub, with a clean, white cloth.
Do not use harsh chemicals.
Before cleaning any part, test a small spot in a hidden area.
You may need to re-tighten all bolts after initial use.
PARTS INCLUDED
AX1
(a) Screw
[M4x22mm] x12pcs
[M4x12mm] x5pcs
EXCLUSIVE AND CONFIDENTIAL PROPERTY OF URBAN OUTFITTERS, INC.
© 2017 UO, Inc. All rights reserved, including all applicable copyright, design and patent rights.
Any unauthorized reproduction, adaptation, distribution or other infringement will be prosecuted.
BX1
( c ) Anchor
(b) Screw
[ø6x30mm] x1pc
CX3
(d) Washer
[ø12xø5mm] x2pcs
DX2
(e) Strap
(f ) Screw
[white] x 1pc
[M4x30mm] x1pc
EX3
