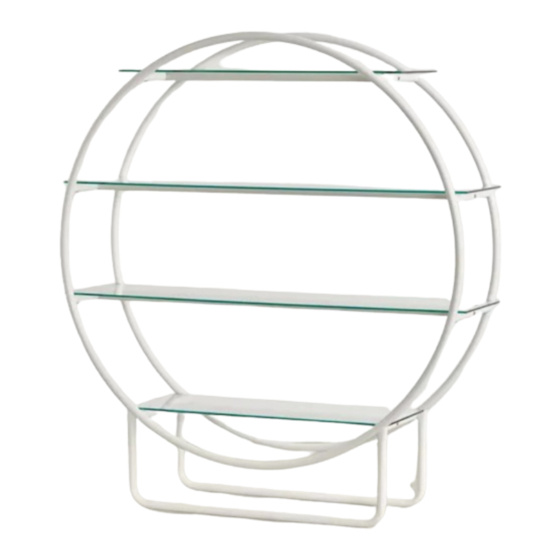

SELENE CIRCLE SHELF
Assembly Instructions
TOOLS REQUIRED BUT NOT INCLUDED:
*REQUIRED TWO PEOPLE WHILE ASSEMBLING*
Do not throw away packing materials and carton until after
assembly. Assemble all parts on a clean smooth surface
CARE INSTRUCTIONS:
Avoid direct exposure to sunlight. Do not place overheat or air conditioning vents.
Adjust levelers so that the furniture sits flat on uneven floors.
Blot spills do not rub, with a clean white cloth.
Do not use harsh chemicals.
Before cleaning any part test a small spot in a hidden
area. You may need to re-tighten all bolts after initial
use.
PARTS INCLUDED
A) Metal Frame x2
E) Glass (S) x1
I) Bolt [M6 x 10mm] x16
M) Plastic Anchor x2
EXCLUSIVE AND CONFIDENTIAL PROPERTY OF URBAN OUTFITTERS, INC.
© 2017 UO, Inc. All rights reserved, including all applicable copyright, design and patent
rights. Any unauthorized reproduction, adaptation, distribution or other infringement will be
t d
B) Side Cross rail x8
F) Glass (L) x2
(J) Suction cup x16
N) Wall Screws x2
C) Long Cross Rail x2
(G) Glass (M) x1
(K) Hex Keyx1
D) Short Cross Rail x2
(H) Bolt [M6x44mm]x8
(L) W all Strap x2
Page 1 of 5
Advertisement
Table of Contents
Related Manuals for URBAN OUTFITTERS Selene 81120321
Summary of Contents for URBAN OUTFITTERS Selene 81120321
- Page 1 (K) Hex Keyx1 N) Wall Screws x2 M) Plastic Anchor x2 EXCLUSIVE AND CONFIDENTIAL PROPERTY OF URBAN OUTFITTERS, INC. © 2017 UO, Inc. All rights reserved, including all applicable copyright, design and patent Page 1 of 5 rights. Any unauthorized reproduction, adaptation, distribution or other infringement will be...
- Page 2 (D) with the side cross rail (B). Insert bolts (H) and tighten with supplied hex key (K). EXCLUSIVE AND CONFIDENTIAL PROPERTY OF URBAN OUTFITTERS, INC. © 2017 UO, Inc. All rights reserved, including all applicable copyright, design and patent Page 2 of 5 rights.
- Page 3 Once all bolts are inserted, tighten fully with supplied hex hey (K). Flip assembled shelf frame over onto its base. EXCLUSIVE AND CONFIDENTIAL PROPERTY OF URBAN OUTFITTERS, INC. © 2017 UO, Inc. All rights reserved, including all applicable copyright, design and patent Page 3 of 5 rights.
- Page 4 Assembly Instructions STEP 3 Gently lay all the glass (E), (F), (G) on assembled shelf. EXCLUSIVE AND CONFIDENTIAL PROPERTY OF URBAN OUTFITTERS, INC. © 2017 UO, Inc. All rights reserved, including all applicable copyright, design and patent Page 4 of 5...
- Page 5 Carefully hammer in the plastic anchors (M). Attach wall straps (L) into the hole, using wall screw (N) as shown. EXCLUSIVE AND CONFIDENTIAL PROPERTY OF URBAN OUTFITTERS, INC. © 2017 UO, Inc. All rights reserved, including all applicable copyright, design and patent Page 5 of 5 rights.
