SINGLE LENS LUMINAIRES /
360LF
Version V1
VALIDATION: 18/05/17
DN41085500-A
Robert Juliat S.A.S. 32, rue de Beaumont, F 60530 Fresnoy-en-Thelle - phone : +33 (0)3 44 26 51 89 - fax : +33 (0)3 44 26 90 79 - info@robertjuliat.fr
360LF & 360CLF
VARIABLE BEAM ANGLE LED WASH LIGHT /
PROJECTEUR A LED TYPE WASH
MANUAL / POLE OPERATED
COMMANDES MANUELLES / COMMANDES A PERCHE
www.robertjuliat.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Robert Juliat ZEP 360CLF
Summary of Contents for Robert Juliat ZEP 360CLF
- Page 1 COMMANDES MANUELLES / COMMANDES A PERCHE 360LF Version V1 VALIDATION: 18/05/17 DN41085500-A Robert Juliat S.A.S. 32, rue de Beaumont, F 60530 Fresnoy-en-Thelle - phone : +33 (0)3 44 26 51 89 - fax : +33 (0)3 44 26 90 79 - info@robertjuliat.fr www.robertjuliat.com...
-
Page 2: Table Of Contents
Exploded view / Spare parts list ........................ 20 6 Troubleshooting ..............................21 Robert Juliat reserve the right to change or alter any of the items detailed on this page, to increase or improve manufacturing techniques without prior notice. -
Page 3: User's Instructions
1 User’s instructions GENERAL INSTRUCTIONS Not for residential use. These fixtures must only be serviced by a qualified technician. In addition to the instructions indicated on this page, relevant health and safety requirements of the appropriate EU Directives must be adhered to at all times. This fixture is in compliance with section 17 - Lighting appliance for theatre stages, television, cinema and photograph studios. -
Page 4: Presentation

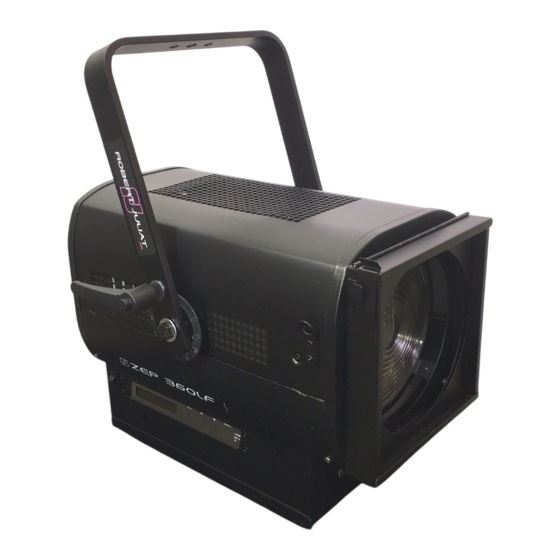

2 Presentation 360LF – Manually operated Functions : Hanging yoke 10. Handle Accessories and colour filter runners 11. Safety cable attachment point Accessories and colour filter runners locking 12. Focus adjustment system 13. Data connectors (IN and OUT) Fresnel lens 14. -
Page 5: Identification Plate
Identification plate Units : - Dimensions = metre (m) millimetre (mm). - Weight = kilogram (kg). - Intensity = Ampere (A). = Volt (V). - Voltage = Hertz (Hz). - Frequency - Temperature = degree Celsius (°C). Description 1. MOD. : Model 2. -
Page 6: Optional Accessories
Optional accessories " Reference Description CF1000 4 Rotating leaves on a rotating barndoor (without safety cable) G1000 215 x 215 mm safety grid 40 x 10 mm with 28 mm screw clamp for Ø 35 to 50 mm pipes 40 x 10 mm with 28 mm screw clamp for Ø 50 to 63 mm pipes Safety cable (length = 600 mm) - 4 -... -
Page 7: Set-Up
3 Set-up Mechanics 3.1.1 Operating positions 3.1.2 Minimum distance between a flammable material and the lighting unit 0.35 m 3.1.3 Operating conditions Minimum : Maximum : 5°C 40°C 41°F 104°F Indice de Protection international: IP20 – Utilisation intérieure uniquement 3.1.4 Hanging Ensure fixture is correctly mounted on an appropriate support. -
Page 8: Safety Cable
3.1.5 Safety cable When hung or flown, the fixture must be • secured by an additional hanging accessory (such as a safety bond or cable) of suitable length. The combined weight of both the fixture and • the accessories must be considered when choosing the load-bearing capability of safety cable or bond. -
Page 9: Data
Power cable Mains Cable Power cable Connector Cable type Wiring plug length Live: Brown Standard FJUC000112 CEE7/7 3 meters Neutral: Blue version Neutrik Earth:Yellow/Green PowerCon Live: Black True1 North American FJUC000113 1.5 meter Neutral: White version Earth : Green Power up 3.2.3 DATA DATA... - Page 10 Integrated terminal plug: If no XLR connector is detected on DMX OUT connector, a 120Ω terminal plug is automatically activated. Additional terminal plug on the last unit is not necessary. Wireless DMX option Protocol: Wireless Solution W-DMX • Refer to the OEM User’s manual for general •...
-
Page 11: Accessories
Accessories 3.3.1 Gel frame " The filter holder includes perforations designed for stapling to keep the gel in position. - 9 -... -
Page 12: Barndoors
3.3.2 Barndoors Movable accessories (barndoors, scroller, etc.) must also be secured with a suitable safety • cable or bond at the front of the fixture. " Front accessories safety cable attachment point Filter frame slot Barndoors slot - 10 -... -
Page 13: Operation
4 Operation Light intensity 4.1.1 Range 100 % 4.1.2 Control Remotely with DMX512-A protocol Locally DMX512-A DMX Console HTP mode (Highest Takes Precedence): Light output is the highest value of DMX512 command or local control Focus mode : when standby screen displayed, Push Exit Light output = 100% for 1 minute 2x times Exit... -
Page 14: Strobe
Curve : Linear / square • Linear square Strobe 4.2.1 Range 55 Hz 0 = OFF 1 Hz 4.2.2 Control Remotely with DMX512-A protocol DMX512-A DMX Console - 12 -... -
Page 15: Beam Size Adjustment
Beam size adjustment 4.3.1 Range Beam angle Field angle 12° 27° 100% Beam angle Field angle 64° 93° 100% - 13 -... -
Page 16: Control - Manually Operated
4.3.2 Control – Manually operated 4.3.3 Control – Pole operated Colour Function Yellow Focus - 14 -... -
Page 17: Orientation
Orientation 4.4.1 Range Range Function Manual Pole operated 0 & 360° 0 & 360° TILT 0 & 360° 0 & 45° 4.4.2 Control – Manually operated 4.4.3 Control – Manually operated Colour Function White TILT Blue - 15 -... -
Page 18: Colour
Colour One fixed colour • Any standard colour / effect filter gel • See 3.3.1 for installation • Size: • - 16 -... -
Page 19: Beam Shaping With Barndoors Option
Beam shaping with barndoors option 4.6.1 Range Examples: Open Triangle Square Line 4.6.2 Control - 17 -... -
Page 20: Control Board
Control 4.7.1 Display and Controls ˜ exit select ERROR DATA Function Display Exit the current menu option and/or go back Scrolls through menus and/or Decrease blinking data value Scrolls through menus and/or Increase blinking data value Enter the current menu option and/or valid Hard CPU reset DMX and system LED feedback 4.7.2 Menus and parameters... -
Page 21: Reset
4.7.4 Reset Reset to default settings: • Menu: Fixture Reset & press Select & Yes & press Select to validate 4.7.5 Feedback information DMX and system LED feedback 7 : • ) Green= DMX512 frame detected ) Red = Problem on DMX512 frame and/or system default – details available in the fixture status If DMX512 data lost, the following message is displayed : •... -
Page 22: Led Source
5.1.5 Optics The cleaning of optical parts (lenses) shall be carried out with solutions containing alcohol. Analysis If there is still a problem after the troubleshooting procedures (see section 6), contact RJ distributor with the following information: Model, version and serial number of the product. •... -
Page 23: Troubleshooting
6 Troubleshooting SYMPTOMS POSSIBLE REASONS SOLUTIONS Display switches on Display auto off mode Check the AUTO-OFF display in the fixture when button activated setup is pressed Check : Display OFF Display still • power supply off when No power • thermal protection button is •...
