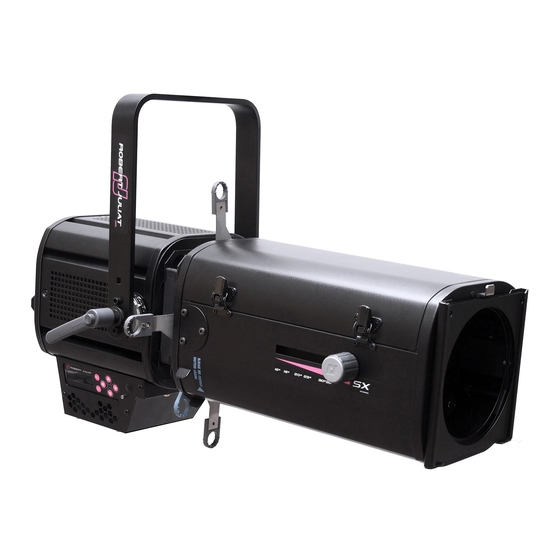

LED PROFILE SPOT
V1
- FIRMWARE: V3.0
- RJ-LED2 FIRMWARE PLATFORM (Node Mode) full manual is
available for download at robertjuliat.com/LED/PDF_PAGE
VALIDATION : 24/03/22
DN41201900-A (EN)
Robert Juliat S.A.S. 32, rue de Beaumont, F 60530 Fresnoy-en-Thelle - phone : +33 (0)3 44 26 51 89 - fax : +33 (0)3 44 26 90 79 - info@robertjuliat.fr
115 W LED
REF
28 - 54°
16 - 35°
11 - 26°
www.robertjuliat.com
Standard
North American
653SX
653CSX
654SX
654CSX
651SX
651CSX
Advertisement
Table of Contents
Related Manuals for Robert Juliat Sully 650SX
Summary of Contents for Robert Juliat Sully 650SX
- Page 1 VALIDATION : 24/03/22 DN41201900-A (EN) Robert Juliat S.A.S. 32, rue de Beaumont, F 60530 Fresnoy-en-Thelle - phone : +33 (0)3 44 26 51 89 - fax : +33 (0)3 44 26 90 79 - info@robertjuliat.fr www.robertjuliat.com...
-
Page 2: Table Of Contents
6.4 Firmware update ..................................................37 6.5 Factory defaults ................................................... 38 6.5.1 Modes ........................................................... 38 6.5.2 Control ..........................................................38 Robert Juliat reserve the right to change or alter any of the items detailed on this page, to increase or improve manufacturing techniques without prior notice. -
Page 3: User's Instructions
1 User’s instructions GENERAL INSTRUCTIONS Not for residential use. These fixtures must only be serviced by a qualified technician. In addition to the instructions indicated on this page, relevant health and safety requirements of the appropriate EU Directives must be adhered to at all times. This fixture is in compliance with section 17 - Lighting appliance for theatre stages, television, cinema and photograph studios. -
Page 4: Presentation
2 Presentation 2.1 Functions Description Identification plates 11. Shutter locking system Data connector (IN and OUT) 12. Lens tube rotation locking button Power connector (IN and OUT) 13. Lens tube access RJ45 network connector 14. Focus adjustment Handle 15. Front slot for accessories and gel frame holder Safety cable attachment point 16. -
Page 5: Label On Lighting Unit
2.2.2 Label on lighting unit Description 1. Model beam angles 2. Net weight (kg) without LED compartment 3. Serial number 4. Class 1 product label 5. Read manual first label 6. European conformity label 7. WEEE directive label 8. Operating positions 9. -
Page 6: Accessories
2.4 Accessories Reference Description CAV 600A Double slot front cassette for 180 x 180 mm accessories CAV 600AE Double slot front cassette for 185 x 185 mm accessories PCP1716A 16A blue 2P+E 6h IEC60309 power connector PF600M2 185 x 185 mm (7.28 x 7.28 in) metal filter holder G500 180 x 180 mm safety grid IWSX755... -
Page 7: Set-Up
3 Set-up 3.1 Mechanics 3.1.1 Operating positions 90° 90° 3.1.2 Minimum distance between a flammable material and the lighting unit 0,80 m / 2.6 ft 5°C 40°C 3.1.3 Instructions for use Minimum : Maximum : 40°F 104°F IP20 - Indoor use only 3.1.4 Hanging •... -
Page 8: Safety Cable
3.1.5 Safety cable • When hung or flown the fixture must be secured by an additional hanging accessory (such as a safety bond or cable) of suitable length. • The combined weight of both the fixture and the accessories must be considered when choosing the load-bearing capability of safety cable or bond. -
Page 9: Data
Power cable Power cable Connector Mains plug Cable type Cable length Wiring Live: Brown Standard 3G1.5 CEE7/7 Neutral: Blue version H07RNF 9.8 ft ® Neutrik powerCON Ground: Yellow/Green TRUE1 TOP North 14AWG Live: Black NAC3FX-W-TOP 1.5 m American SJ TYPE Neutral: White 4.9 ft version... -
Page 10: Art-Net / Sacn
3.3.2 Art-Net / sACN Protocol Input connector Output connector Art-Net RJ45 sACN Daisy chain: Fixture Fixture Fixture Art-Net sACN Network switch* Lighting desk interface (*) A 1000 base-T switch that supports IGMP (Internet Group Management Protocol) is necessary if the unit is connected to a network switch to control multiple devices. -
Page 11: Accessories
3.4 Accessories 3.4.1 Front filter holder For filter dimensions, see section 4.6 The filter holder includes perforations designed for stapling to keep the gel in position. 3.4.2 Double-condenser set Only possible with LED version (not with halogen) For full procedure, see page EN-36 EN - 9 -... -
Page 12: Internal Filter Holder
3.4.3 Internal filter holder For filter dimensions, see section 4.6 3.4.4 Gobo holder / Iris EN - 10 -... -
Page 13: Shutters
3.4.5 Shutters Step 1 Step 2 Step 3 EN - 11 -... -
Page 14: Operations
4 Operations 4.1 Light intensity 4.1.1 Range 100% 4.1.2 Control compatible device DMX512-A interface Remotely with DMX512-A / T Set through RDM protocol or Locally, when equipped with Art-Net / sACN protocols. web interface this option HTP mode (Highest Takes Precedence): Light output is the highest value of DMX512 command or local control Focus mode: when standby screen displayed, Push Exit f<or 3 secs →... -
Page 15: Set Maximum Position
4.1.3.3 Set maximum position T Set through RDM protocol, web interface or local control (option) 100% ----> Maximum (80%) 100% 4.1.3.4 Dimming mode T Set through RDM protocol, web interface or local control (option) Mode Result Without PWM Flicker-Free, perfect for filming PWM 17 kHz Good dimming quality (Default Value) PWM 3,2 kHz... -
Page 16: Strobe
4.2 Strobe 4.2.1 Range Strobe duration 255 = 20ms 0 = OFF 1 = 1ms Strobe speed 0 = 0.1Hz 255 = 10Hz 4.2.2 Control T Remotely with DMX512-A / Art-Net / sACN protocols. Mode 3 – 4 DMX512-A 4.3 Response time 4.3.1 Range X ms DMX 0 = 0 ms... -
Page 17: Beam Size Adjustment
4.4 Beam size adjustment 4.4.1 Range Field angle Model Minimum angle Maximum angle 653SX / 653CSX 28° 54° 654SX / 654CSX 16° 35° 651SX / 651CSX 11° 26° 4.4.2 Control Zoom Focus 4.5 Orientation 4.5.1 Range Function Range 0 T 360° TILT TU = 0 T 63°... -
Page 18: Control
4.5.2 Control TILT Index 4.6 Colour Fixed colour: Location 1. Front filter holder 2. Internal filter holder Type Standard coloured gel filter Frosted or dichroic glass Dimensions Installation See 3.4.1 See 3.4.2 EN - 16 -... -
Page 19: Beam Shaping
4.7 Beam shaping 4.7.1 Range 4.7.2 Control Locking shutter system Locked Unlocked See 3.4 Accessories for gobo, iris and additional shutters installation EN - 17 -... -
Page 20: Beam Rotation
4.8 Beam rotation 4.8.1 Range Function Range Gobo Shutters 4.8.2 Control EN - 18 -... -
Page 21: Gobos
4.9 Gobos Location Type Metal / Glass A-size Position 1 Position 2 Installation EN - 19 -... -
Page 22: Controls And Parameters
5 Controls and parameters 5.1 Web interface 5.1.1 Control Ethernet connection The fixture must be connected to a compatible network or directly to a computer using an ethernet cable. 5.1.2 Default IP address By defaut : DHCP = OFF Address = 2.XXX.XXX.XXX Mask = 255.0.0.0 T If IP address unknown (due to a previous modification), a hard reset must be done (see 6.5 Factory defaults). -
Page 23: Cct Selection
After updating your device with firmware V3.0, we strongly recommend that you update the source type (CCT) either to CW (Cold White) or WW (Warm White) by following the procedure described in the section below: 5.1.5 CCT selection 5.1.5 CCT selection Until now, the CCT of the LED source was not taken into account. -
Page 24: Leds Feedback
5.2 LEDs Feedback 5.2.1 Trouble shooting • During unit initialisation (power up) – up to 5 seconds: Description DMX OUT DMX IN Network Unit OFF Unit error Unit has been reset successfully RDM protocol activated • After initialisation - Node mode "OFF": DMX OUT DMX IN Network... -
Page 25: Dmx512 - A Remote Control
5.3 DMX512 - A remote control 5.3.1 Protocol E1.11 – 2008, USITT DMX512-A 5.3.2 Configuration Set mode through web interface Set mode through RDM protocol Locally, when equipped with this option compatible device 1 - Set DMX address 2 - Set personality mode (see 5.3.4. DMX chart) Data Mode Protocol DATA MODE... -
Page 26: Parameters
5.3.3 Parameters 5.3.3.1 DMX Hold T Set through RDM protocol, web interface or local control (option) DMX512-A If data not detected Hold last values Reset DMX values Default value (Standalone value) EN - 24 -... -
Page 27: Dmx Chart
5.3.4 DMX chart Mode 1: Mode 2: Mode 3: Mode 4: DMX Channel Dimmer8B Dimmer16B Profile8B Profile16b Dimmer Dimmer Dimmer Dimmer Dimmer fine Strobe duration Dimmer fine Strobe speed Strobe duration Response time Strobe speed Control mode Response time Control mode 5.3.5 DMX ranges 5.3.5.1 Strobe duration Range min... -
Page 28: Rdm Remote Control
5.4 RDM remote control 5.4.1 Protocol ANSI E1.20 – 2010 / ANSI E1.37 - 1 For more information about RDM protocol: http://www.rdmprotocol.org/ 5.4.2 Functions 115W LED PROFILE Function description Queued Message Network Management DISCOVERY_UNIQUE_BRANCH DISCOVERY_MUTE DISCOVERY_UNMUTE COMMUNICATION_STATUS Status Collection QUEUED_MESSAGE STATUS_MESSAGES STATUS_ID_DESCRIPTION CLEAR_STATUS_ID... - Page 29 115W LED PROFILE Function description Queued Message Control IDENTIFY_DEVICE RESET_DEVICE PERFORM_SELFTEST SELF_TEST_DESCRIPTION RDMnet Management LIST_INTERFACES INTERFACE_LABEL INTERFACE_HARDWARE_ADRESS_TYPE1 IPV4_DHCP_MODE IPV4_CURRENT_ADDRESS IPV4_STATIC_ADDRESS INTERFACE_RELEASE_DHCP INTERFACE_APPLY_CONFIGURATION IPV4_DEFAULT_ROUTE DNS_IPV4_NAME_SERVER DNS_HOSTNAME PID Manufacturer SELFTEST_RESULT CURRENT_IP_ADDRESS CURRENT_NETMASK CURRENT_DRIVER_STATUS CUSTOM_RESPONSE_TIME_DESCRIPTION CUSTOM_RESPONSE_TIME_VALUE DATA_MODE_DESCRIPTION DATA_MODE_VALUE STANDALONE_VALUE_DESCRIPTION STANDALONE_VALUE SACN_UNIVERSE_VALUE_DESCRIPTION SACN_UNIVERSE_VALUE ARTNET_UNIVERSE_VALUE_DESCRIPTION ARTNET_UNIVERSE_VALUE SERIAL_DESCRIPTION SERIAL...
-
Page 30: Art-Net Remote Control
5.5 Art-Net remote control 5.5.1 Protocol Artistic Licence Art-Net v3. For more information about Art-Net protocol: http://art-net.org.uk/ 5.5.2 Configuration Locally, when equipped with this option Set mode through web interface (see 5.1 Web interface) 1 - If necessary, change IP settings 2 - Set Art-Net Universe 3 - Set DMX address 2 - Set personality mode (see 5.3.4. -
Page 31: Local Set-Up
5.5.3 Local set-up Caution: (*) Activate Art-Net in protocol mode beforehand. step 1 DATA MODE Data Mode step 2 Protocol press OK press OK DATA MODE STATUS SETUP FAC PROTOCOL PERSONALITY DMX ADDI Press OK to validate to validate to enter step 2 step 1 DATA MODE... -
Page 32: Sacn Remote Control
5.6 sACN remote control 5.6.1 Protocol ANSI E1.31 – 2009 sACN (Streaming-ACN) 5.6.2 Configuration Set mode through web interface Locally, when equipped with this option (see 5.1 Web interface) 1 - If necessary, change IP settings 2 - Set sACN universe 3 - Set DMX address 2 - Set personality mode (see 5.3.4. -
Page 33: Local Set-Up
5.6.3 Local set-up Caution: (*) Activate sACN in protocol mode beforehand. step 1 DATA MODE Data Mode step 2 Protocol press OK press OK DATA MODE STATUS SETUP FAC PROTOCOL PERSONALITY DMX ADDI Press OK to validate to validate to enter step 2 step 1 DATA MODE... -
Page 34: Local Display And Controls (Option)
5.7 Local display and controls (option) 5.7.1 Display Function Exit the current menu option and/or go back Press for 3 secs to enter Focus mode Enter the current menu option and/or valid Scroll through menus and/or Increase data value Scroll through menus and/or Decrease data value Scroll through menus and/or Increase data value Scroll through menus and/or Decrease data value EN - 32 -... -
Page 35: Menus
5.7.2 Menus DATA FACTORY STATUS SETUP BOOT MODE DEFAULT Reset to factory settings. PROTOCOL DISPLAY • DMX • INTENSITY SELFTEST • RDM • AUTO OFF • ARTNET • SACN • STANDALONE SYSTEM ID DATA SETUP • SERIAL NUMBER • DMX HOLD PERSONALITY •... -
Page 36: Parameters
5.7.3 Parameters Selection in SETUP/DISPLAY MODE menu → Display Mode Description 000% Always ON Main display (home screen) always ON NODE MASTER SETUP DISPLAY INTENSITY Adjust the intensity of the screen Intensity Intensity : 4 To change value, press buttons : press OK Intensity Auto-Off... -
Page 37: Service
6 Service 6.1 Preventive maintenance 6.1.1 Frequency General maintenance should be performed at least once a year or more frequently if the equipment is operated in adverse conditions (smoke, heat, humidity, touring, etc.). 6.1.2 General cleaning Remove dust from the unit. Front glasses can be cleaned with solutions containing alcohol. -
Page 38: Analysis
How to remove the Sully LED compartment for cleaning: 1. We recommend you place your luminaire on a flat clean surface. Disconnect from the mains before servicing. 2. Unlock the quarter turn screw with a flat screwdriver. 3. Remove the two screws with a flat screwdriver. 4. -
Page 39: Electronic Thermal Management System
6.3 Electronic thermal management system In case of overheating, light intensity will be reduced by the system. Power reduction and temperature values are available by using a RDM protocol compatible device. 6.4 Firmware update After updating your device with firmware V3.0, we strongly recommend that you update the source type (CCT) either to CW (Cold White) or WW (Warm White) by following the procedure described in the section below: CCT selection CCT selection... -
Page 40: Factory Defaults
6.5 Factory defaults 6.5.1 Modes Mode Description Restart Software reset – all user parameters are kept Factory defaults Set all user parameters to factory default value 6.5.2 Control Set to factory defaults / Set to factory defaults / Set to factory defaults / reset through web interface reset through RDM protocol reset through local control,...
