Summary of Contents for eltherm ELTC-14P
- Page 1 OPERATION- MANUAL ELTC-14P & ELTC-24P Ambient temperature controller up to 99°C for wall- or DIN rail mounting eltherm GmbH P.: +49 2736 4413-0 BU-112 F.: +49 2736 4413-50 Ernst-Heinkel-Strasse 6 -10 Revision 3 57299 Burbach, Germany info@eltherm.com www.eltherm.com...
-
Page 2: Table Of Contents
PARAMETERS AND THEIR MEANING PARAMETER CONTENTS HOUSING CONSTRUCTION ELTC-14P DOWNLOADS NOTES For proper and safe use of the ELTC-14P and ELTC-24P tem- perature controller, please follow these instructions. Please keep these instructions for future reference (e.g. in the system documentation). RESERVATION Subject to technical changes. -
Page 3: Introduction

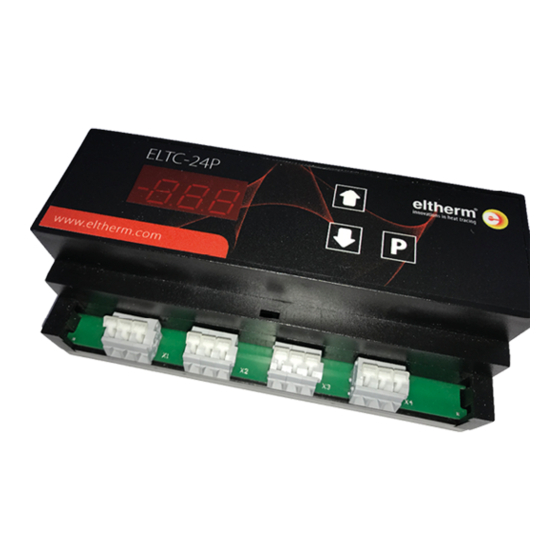

Revision 3 INTRODUCTION The electronic temperature controller of the ELTC series is a controller with digital display for wall mounting (ELTC-14P) or DIN rail mounting (ELTC-24P). The wall-mounted ELTC-14P is equipped with cable glands and terminals for electrical connection. The device is supplied in a splash-proof plastic housing with a transparent housing cover including accessories. -
Page 4: Functional Description & Technical Data
In operation the TU is continuously calculated and adapted to the current ambient conditions. TECHNICAL DATA Controller type ELTC-14P (Art. 0620010) ELTC-24P (Art. 0620011) Nominal voltage 90 to 260 VAC, 50/60 Hz 90 to 260 VAC, 50/60 Hz Power consumption max. -
Page 5: Dimensions
Operation manual BU-112 ELTC-14P & ELTC-24P Revision 3 Dimensions ELTC-14P eltherm ELTC-14P www.eltherm.com Alarm PT100 PE PE PE 130 mm 70 mm 115 mm ELTC-24P 59 mm 153 mm Contact us: +49 2736 4413-0 • info@eltherm.com www.eltherm.com... -
Page 6: Connection Plan
CONNECTION PLAN ELTC-14P Terminal Connection X1.1 X1.2 Common connection neutral (N) X1.3 X2.1 Mains supply input (L) ELTC-14P X2.2 Heater connection A X2.3 Heater connection B X3.1 Common connection protective earth X3.2 (PE) X3.3 X4.1 Alarm relay COM X4.2 Alarm relay NC X4.3... -
Page 7: Special Notes
2014/35/EU, 2014/30/EU and 2011/65/EU. If you need a detailed declaration of conformity, please contact us. The temperature control device and the temperature sen- sor(s) should be calibrated against the factory setting during commissioning if necessary. Contact us: +49 2736 4413-0 • info@eltherm.com www.eltherm.com... -
Page 8: Operation
OPERATION OPERATING PANEL LEDs in Display "1" = Control relay ON "2" = 2-Point control "3" = Proportional control "4" = Alarm relay activated (=switched OFF) A flashing of the LEDs indicates a function delay. Keys " " = Increase values "... -
Page 9: Parameters And Their Meaning
0,067 Cooling times 2 = TU 60 s Perlite expanded 0,067 3 = TU 120 s Polyisocyanurate 0,027 Polyurethane foam rigid 0,023 65 to 130 %, 5 %-Steps; [100 %] Power correction Contact us: +49 2736 4413-0 • info@eltherm.com www.eltherm.com... - Page 10 P52: Insulation thickness Material thickness Material thickness Material thickness Material thickness 4,76 mm / 3/16" 16 mm / 5/8“ 45 mm / 1 ¾“ 114 mm / 4 ½“ 17 mm 50 mm 120 mm 5 mm / 1/5“ 6,25 mm / 1/4“ 17,5 mm / 11/16“...
-
Page 11: Housing Construction Eltc-14P
ELSR-x M20, from connection set ELVB-ELP ELP-x M12 and O-ring 3-6,5mm Temperature sensor M20, O-ring and locknut 6 - 12 mm Connection cable alarm contact *dependent on the respective separate connection set Contact us: +49 2736 4413-0 • info@eltherm.com www.eltherm.com... -
Page 12: Downloads
You can find helpful downloads for this or other products under the following link: https://eltherm.com/downloads NOTES Parameter Own settings Parameter Own settings eltherm GmbH Headquarters Ernst-Heinkel-Straße 6 -10 57299 Burbach. Germany P.: +49 2736 4413-0 F.: +49 2736 4413-50 info@eltherm.com www.eltherm.com...
