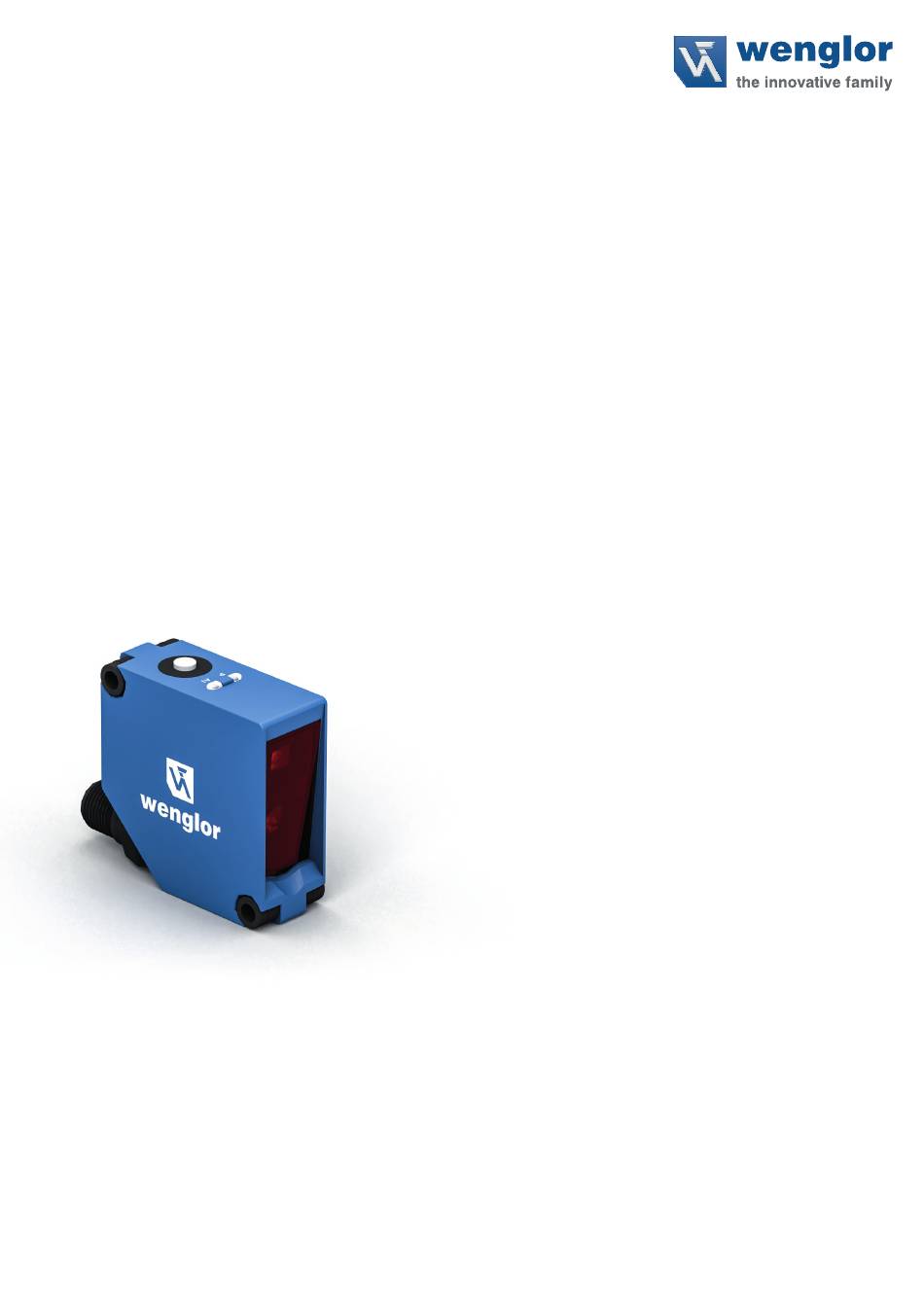

- Page 1 P1PMxxx Reflex Light Barrier Operating Instructions Translation of the original operating instructions Subject to change without notice Available as PDF file only Version 1.0.0 As of: 10/24/2023 www.wenglor.com...
-
Page 2: Table Of Contents
Table of Contents 1. General ............................3 1.1 Information Concerning these Instructions .....................3 1.2 Explanation of Symbols ..........................3 1.3 Limitation of Liability ..........................4 1.4 Copyrights ...............................4 2. For Your Safety ........................5 2.1 Use for Intended Purpose ........................5 2.2 Use for Other than the Intended Purpose ....................5 2.3 Personnel Qualifications .........................6 2.4 Modification of Products ........................6 2.5 General Safety Precautions ........................6... -
Page 3: General
• The product is subject to further technical development, and thus the information contained in these operat- ing instructions may also be subject to change. The current version can be found at www.wenglor.com in the product’s separate download area. NOTE! The operating instructions must be read carefully before using the product and must be kept on hand for later reference. -
Page 4: Limitation Of Liability
• wenglor assumes no liability for printing errors or other inaccuracies contained in these operating instruc- tions unless wenglor was verifiably aware of such errors at the point in time at which the operating instruc- tions were prepared. -
Page 5: For Your Safety
• The product is not suitable for use in potentially explosive atmospheres. • The product may be used only with accessories supplied or approved by wenglor, or in combination with approved products. A list of approved accessories and combination products can be found at www.wenglor. -
Page 6: Personnel Qualifications
• In the event of possible changes, the respectively current version of the operating instruc- tions can be accessed at www.wenglor.com in the product’s separate download area. • Read the operating instructions carefully before using the product. -
Page 7: Technical Data
3. Technical Data 3.1 Technical Data Optical Data Service life (ambient temp. = 25 °C) 100,000 h Max. permitted ambient light 10,000 lux Electrical Data IO-Link supply voltage 18…30 V DC Switching output voltage drop < 2 V Switching output switching current 100 mA Switching output residual current <... -
Page 8: Light Spot Diameter
Order No. P1PM Technical Data Teach-in on static Teach-in on moving Teach-in mode background background Range 1000 mm Reference background white, 90% remission Switching hysteresis < 5% Light source Red light Risk group (EN 62471) Light spot diameter See table 1 Supply voltage 15...30 V DC Current consumption (operating voltage = 24 V) -
Page 9: Complementary Products
3.2 Complementary Products wenglor can provide you with suitable connection equipment for your product. Suitable mounting technology no. Suitable connection equipment no. IO-Link master wTeach2 software DNNF005 3.3 Layout 1 = emitter diode 2 = receiver diode 3 = wrench width 7 M4 screw = 0.5 Nm... -
Page 10: Control Panel
3.4 Control Panel 06 = teach-in key 30 = switching status indicator / contamination warning 68 = supply voltage indicator 3.5 Scope of Delivery • Sensor • Safety precautions • BEF-SET-14 • Z1PE002 4. Transport and Storage 4.1 Transport Upon receipt of shipment, the goods must be inspected for damage in transit. In the case of damage, con- ditionally accept the package and notify the manufacturer of the damage. -
Page 11: Installation And Electrical Connection
5. Installation and Electrical Connection 5.1 Installation • Protect the product from contamination during installation. • Observe all applicable electrical and mechanical regulations, standards, and safety rules. • Protect the product against mechanical influences. • Make sure that the sensor is mounted in a mechanically secure fashion. •... - Page 12 The following must be observed when installing reflex light barriers Background Colors Highly glossy, reflective and uneven back- grounds For reliable detection, there must be a clear contrast between the object and the taught-in reference back- In the case of highly reflective, glossy or uneven ground.
-
Page 13: Electrical Connection
5.2 Electrical Connection Legend Encoder A/A (TTL) Platinum measuring resistor Encoder B/B (TTL) Supply Voltage + not connected Encoder A Supply Voltage 0 V Test Input Encoder B Supply Voltage (AC Voltage) Test Input inverted Digital output MIN Switching Output (NO) Trigger Input Switching Output... -
Page 14: Diagnosis
5.3 Diagnosis Causes triggering the contamination warning (flashing LED): Display LED Diagnosis/Cause Elimination Contamination Carefully clean the optic cover with a cloth Continuous flashing Aged emitter diode Replace the sensor at approx. 2.5 Hz • Increase the sensor’s switching distance Unreliable working range •... -
Page 15: Settings
• Shut down the machine. • Analyze and eliminate the cause of error with the aid of the diagnostics information. • If the error cannot be eliminated, please contact wenglor’s support department • Do not operate in case of indeterminate malfunctioning. -
Page 16: Teach-In On A Moving Background (Default P1Pm103/P1Pm104)
6.2 Teach-in on a moving background (default P1PM103/P1PM104) Object detection in front of moving reference background such as moving conveyors The sensor is taught in such that, depending on the application, minimal thresholds can be set in order to detect smallest possible parts by means of this process. -
Page 17: Functions Overview
7. Functions Overview Further settings can be entered into the sensor via the IO-Link. 7.1 Teach-In Mode Both operating modes can be set via IO-Link for reliable object detection against a static or moving backg- round. This allows both modes to be tested to optimally adapt the sensor to the application. Setting two sepa- rate teach-in modes offers the advantage that extremely flexible and simple teach-in of reflex light barriers is possible. - Page 18 Dynamic Readjustment Continuous readjustment of the switching threshold of the sensor. The time interval for readjustment can be set on the interface. This function is activated upon shipment from the factory. Intensity of Light beginning contamination Teach-In process Switching The switching threshold is readjusted treshold continuous in order that the distance between signal and threshold stays...
-
Page 19: Pin E/A2 Function
7.2 Pin E/A2 Function The function of E/A2 can be configured either as an output or an input. 7.2.1 External Teach-in Input Teach in output A1 via the teach-in input. 1. Set the function pin E/A2 to external teach-in input. With Ub setting active (default): 2. -
Page 20: Additional Functions And Settings
• The product must be protected against contamination during initial start-up. 10. Proper Disposal wenglor sensoric GmbH does not accept the return of unusable or irreparable products. The national waste disposal regulations currently in force apply to product disposal. IO-Link... -
Page 21: Appendix
11.2 Change Index for the Operating Instructions Version Date Description/Changes 1.0.0 10/24/2023 Initial version of the operating instructions 11.3 Declarations of Conformity Declarations of conformity can be found on our website at www.wenglor.com in the product’s separate down- load area. Reflex Light Barrier...
