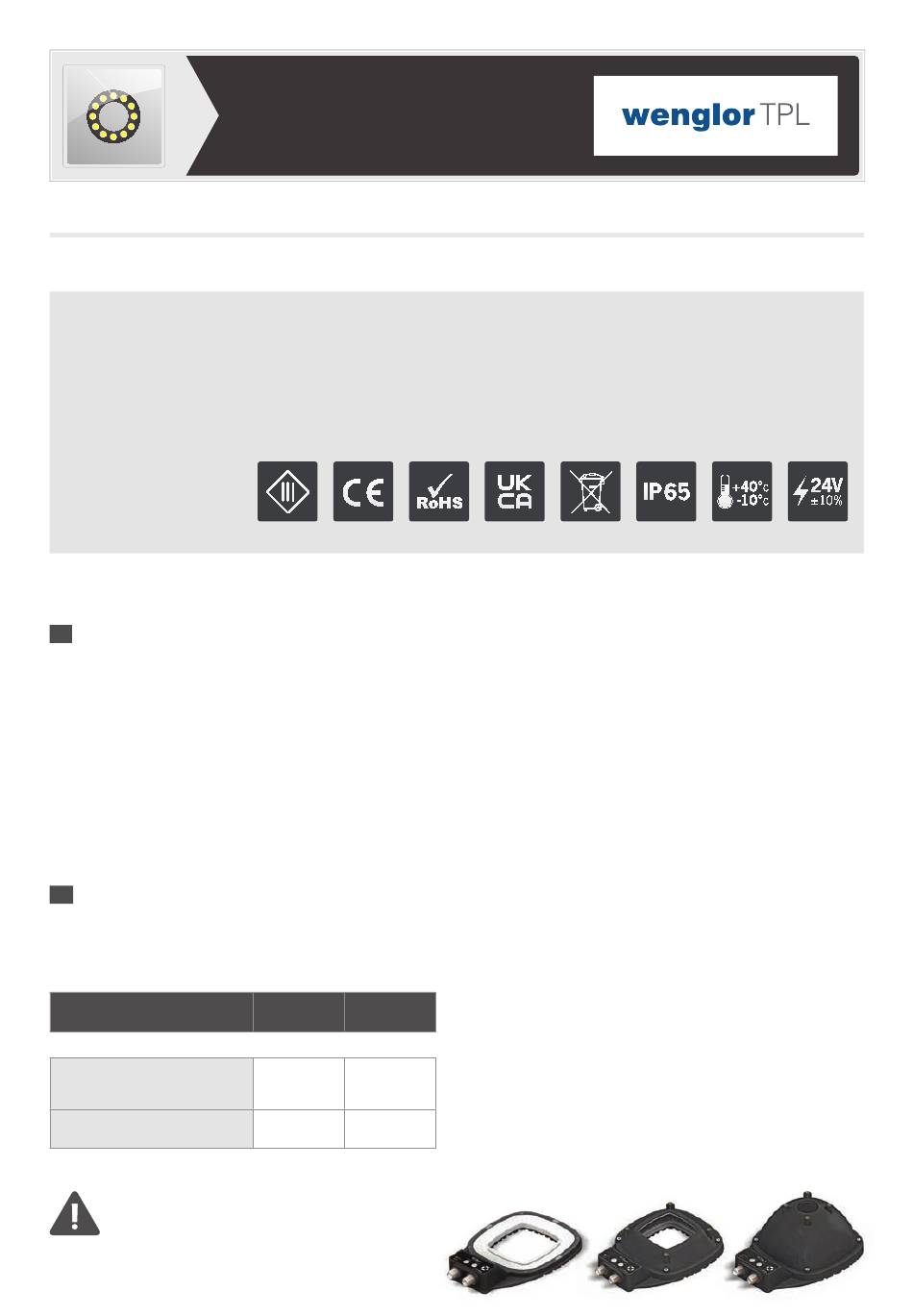

IntroductIon
This User Guide contains warnings and guidance for correct and safe operation of the product. These instructions
must be followed at all times. wenglorTPL will not be held responsible for problems caused by using the product
contrary to these instructions and the Warranty will be deemed invalid.
unpackIng
This product is packed at the factory using suitable materials for safe transport. To open the package, do not use
any cutting blade to avoid damaging the product(s). Please use the delivered accessories if needed. (Do not use any
other products or equivalents to replace the delivered accessories).
In the event of damage occurring during shipping, it must be reported to the carrier at time of delivery (including
noting the damage in writing on the delivery documents). It is also your responsibility to notify wenglorTPL in wri-
ting of the damage within 24 hours of receipt of the package. If these instructions are not followed, wenglorTPL
reserves the right not to accept requests for return and exchange of damaged products.
rISk claSS
The applicable Standard EN-62471 classifies LED Lighting into 4 classes according to their degree of hazard severity.
The table below summarises the risks associated with our standard products.
Color
White WHI, Red
625 nm, Cyan 505 nm
IR 860 nm
Beware: infrared light is invisible to the eye.
Please refer to LED Indicators on the product
to determine if it is operating.
lMdXxxx
operatIng InStructIonS
Class
risk
0
none
1
low
wenglorTPL can provide guidance notes to minimise
photo-biological risks, including the nominal mini-
mum operating distance. Please contact wenglorTPL
through your usual representative for this information.
wenglorTPL recommends the use of protection glasses.
Advertisement
Table of Contents
Related Manuals for Wenglor LMDX Series
Summary of Contents for Wenglor LMDX Series
- Page 1 lMdXxxx operatIng InStructIonS IntroductIon This User Guide contains warnings and guidance for correct and safe operation of the product. These instructions must be followed at all times. wenglorTPL will not be held responsible for problems caused by using the product contrary to these instructions and the Warranty will be deemed invalid.
- Page 2 lMdXxxx operatIng InStructIonS P2/12 dIMenSIonS Total length Width Height Total length Width Height rING LOw aNGLe (mm) (mm) (mm) (mm) (mm) (mm) LMRX1xx LMLX1xx 34.75 LMRX2xx LMLX2xx 45.25 * with connectors: 31 mm. FIXIng During the set up, the light has to be switched off and unplugged.
-
Page 3: Led Indicators
P3/12 led IndIcatorS Operating mode Strobe electrIcal connectIon M12 – 5 MaLe pINS M12 – 8 MaLe pINS n SeCtOr CONtrOL n pOwer SuppLy n COLOr CONtrOL n StrOBe n OverDrIve eNaBLING n DIMMING n LOCk keypaD... -
Page 4: Remote Control
lMdXxxx operatIng InStructIonS P4/12 CoNNECTIoN: M12 8 MaLe pINS CoNNECToR SeCtOr CONtrOL COLOr CONtrOL OverDrIve eNaBLING LOCk keypaD reMote control (connectIon) active overdrive ➞ connect to 24VDC grey Change colors ➞ default color: 1 (if not connected) ➞ color 2 if connected to 24 VDC pink yellow blue... -
Page 5: Strobe Mode
P5/12 CoNNECTIoN: M12 5 MaLe pINS CoNNECToR pOwer SuppLy StrOBe DIMMING M12 Connector 5 male pins STROBE STROBE grey + 24 V + 24 V DIM 0-10V black blue STROBE Ground Ground Dim 0-10V Dim 0-10V white brown STROBE + 24 V CONTINUOUS MODE : + 24 V... - Page 6 lMdXxxx operatIng InStructIonS P6/12 Strobe tIMIng lIMItS • Standard version: MINIMUM PULSE DURATIoN µs D max 100 % t max 50 000 Hz frequency • D: duty cycle • t: pulse duration • CW: continuous working FREqUENCy • Overdrive version: MINIMUM PULSE DURATIoN µs D max...
- Page 7 P7/12 StrobIng the lIght vIa pnp or npn behavIour Standard Mode Entrée Déclenchement Triggering input pNp/NpN Active Overdrive 5 µs - CW 2 ms max overdrive Overdrive Mode LeD current Courant Led 24 V Active Overdrive 10 µs 10 µs 2 ms max Sortie Éclairage Light...
- Page 8 lMdXxxx operatIng InStructIonS P8/12 StrobIng the lIght vIa color & Sector Input behavIour To control the LED Color and illuminated Sector, the PNP or NPN trigger signal should be enabled in addition to the Sector or Color control signal(s). Timing diagrams below illustrate rise, fall and delay times. If PNP and sectors are connected to 24V and if you strobe colors, there can be some delays between the trigger signal and the LED current.
-
Page 9: Dimming Control
P9/12 dIMMIng control 100% Dimming between 0 & 10 v. With 0V applied to the Dimming pin, the product is at 100% of its lighting power. With 10V applied, it is reduced to 30% of lighting power. VOLTS power Supply 24 V at the light input ( ± 10%) Operational voltage absolute Maximum voltage 30 V at the light input... -
Page 10: Keypad Control
lMdXxxx operatIng InStructIonS P10/12 keypad control The LMDXxxx works in manual control and continuous working (CW) mode by default. To use the remote control, you need to connect the 8 pin cable and apply PNP signals to the relevant pins. The LMDXxxx has Teach Color selection and Run mode. - Page 11 P11/12 uSer SaFety Do not modify or dismantle all or part of the product. respect the power supply voltages and the connection terminals. ensure power supply is switched off whilst connecting product and turn on only once product is fully connected. Failure to do this may damage the product and invalidate the warranty Do not stare at the lighting source directly.
-
Page 12: Product Lifetime
