Wenglor OPT2408 Operating Instructions

INTRODUCTION

This Technical User Guide contains warnings and guidance for correct and safe operation of the product. These
instructions must be followed at all times. wenglorTPL will not be held responsible for problems caused by using
the product contrary to these instructions and the Warranty will be deemed invalid.

UNpaCkINg

This product is packed at the factory using suitable materials for safe transport. To open the package, do not use
any cutting blade to avoid damaging the product(s). Please use the delivered accessories if needed. (Do not use
any other products or equivalents to replace the delivered accessories). In the event of damage occurring during
shipping, it must be reported to the carrier at time of delivery (including noting the damage in writing on the delivery
documents). It is also your responsibility to notify wenglorTPL in writing of the damage within 24 hours of receipt of
the package. If these instructions are not followed, wenglorTPL reserves the right not to accept requests for return
and exchange of damaged products.

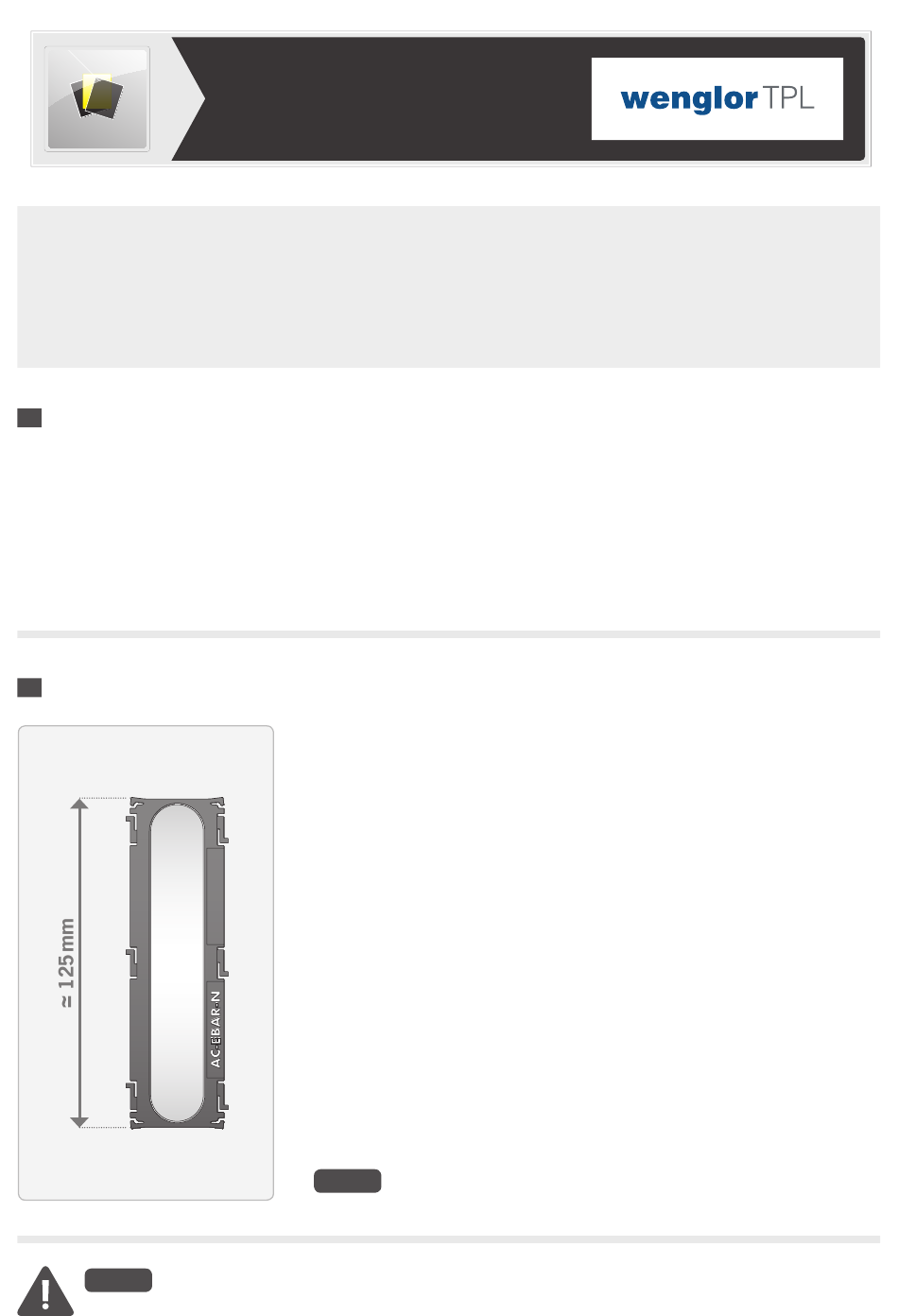

DesCRIpTION

nOte : this accessory only increase the angle of the light.
They cannot focus the light more than that provided by the embedded lens.
OpT2408
OpeRaTINg INsTRUCTIONs
This accessory will widen the beam of your Bar light product.
References available:
n OPt2408 (AC-EBAR-N) : Narrow Beam, ± 10°,
n OPt2409 (AC-EBAR-M) : Medium Beam, ± 17°,
n OPt2410 (AC-EBAR-W) : Wide Beam, ± 25°,
n OPt2411 (AC-EBAR-L) : Line light effect, ± 9-16° elliptical,
n OPt2412 (AC-EBAR-N-P1) : Narrow Beam, ± 10°, Polarised,
n OPt2413 (AC-EBAR-M-P1) : Medium Beam, ± 17°, Polarised,
n OPt2414 (AC-EBAR-W-P1) : Wide Beam, ± 25°, Polarised,
n OPt2415 (AC-EBAR-L-P1) :
n OPt2416 (AC-EBAR-POL1) : Polarised only,
n OPt2417 (AC-EBAR-T) : This is a transparent window. This has no effect on
the illumination angle. It is used to fill in spaces if you are creating multiple
illumination angles along the length of your bar light (eg. Curve effect).
nOte :
1 accessory per 125mm of bar light.
2417
➔
Line light effect, ± 9-16° elliptical, Polarised,
