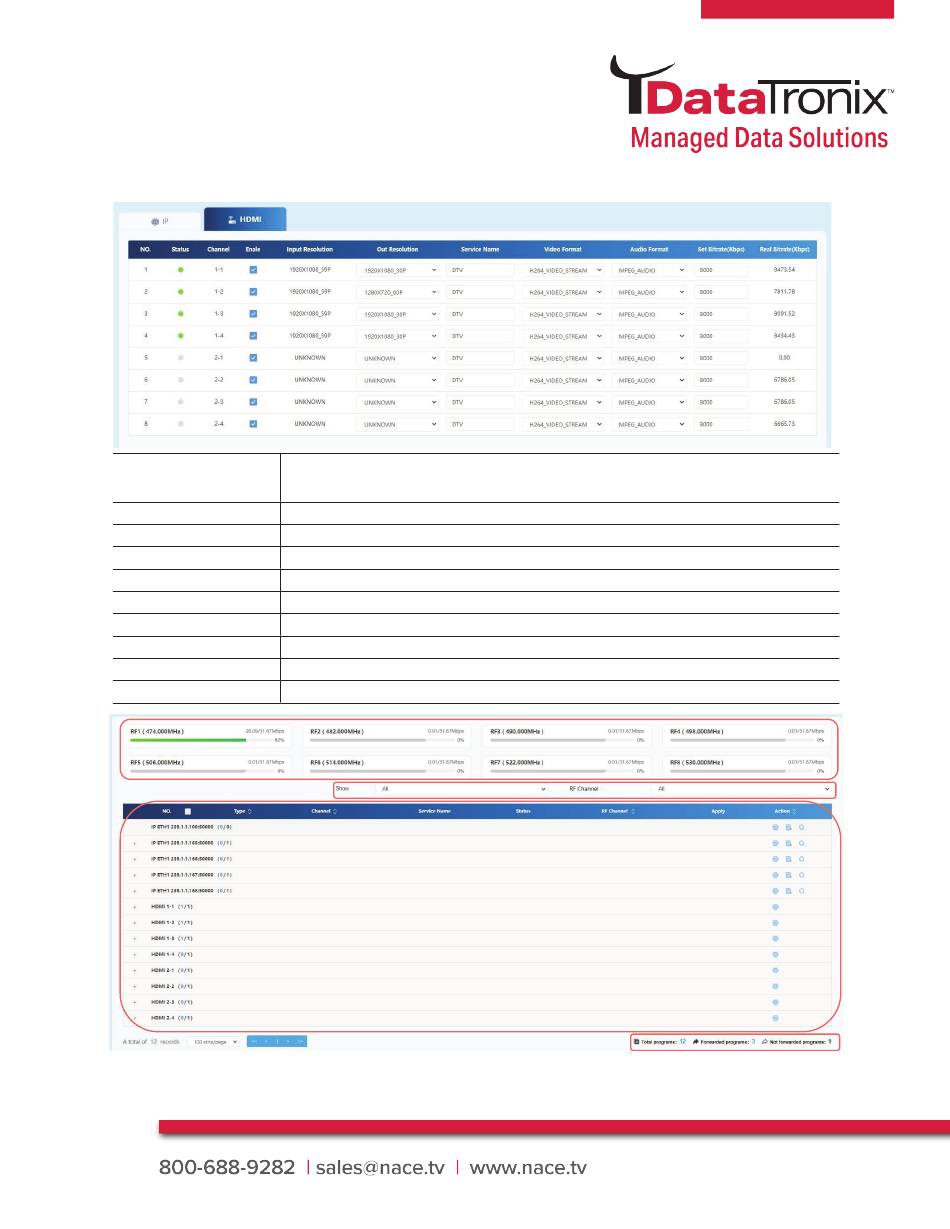

HDMI Signal
Green light indicates normal working conditions. Greyed out indicates either the port
Status
is unused, or input is not detected.
Channel 1-1 means the first HDMI port in the first card
Enable Enable and disable the HDMI input port
Input Resolution
Display the input resolution
Output Resolution Downscale the input resolution
Service Name Input the service name here
Video Format
For this device, it only supports H.264
Audio Format Select from MPEG and AAC
Set Bitrate Set the output bit rate here. And the maximum rate is 20,000Kbps.
Real Bitrate
The real output bit rate
1
The router setting is the most important in this modulator. This is where you are able to view all
input channels, and forward to output frequencies
3
DT-QAM-ENCMOD-8 Manual
