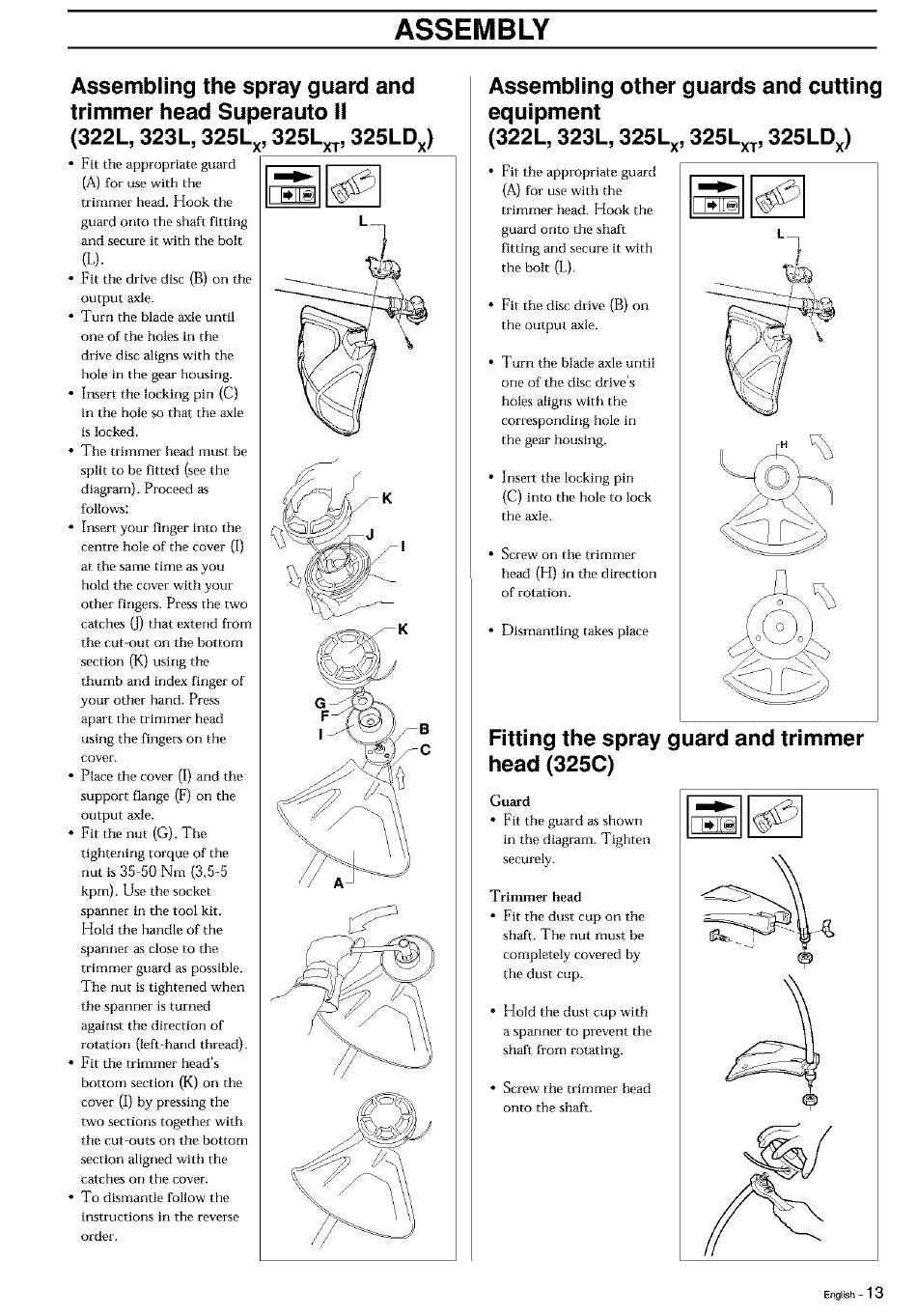

ASSEMBLY
Assembling the spray guard and
trimmer head Superauto II
(322L, 323L, 325Lx, 325LxT , 325LDx)
• Fit the appropriate guard
(A) for use with the
trimmer head. Hook the
guard onto the shaft fitting
and secure it with the bolt
(L).
• Fit the drive disc
(B)
on the
output axle.
• Turn the blade axle until
one of the holes in tile
drive disc aligns with the
hole in the gear housing.
• Insert the locking pin (C)
in the hole so that the axle
is locked.
• The trimmer head must be
split to be fitted (see the
diagram). Proceed as
follows:
• Insert your finger into the
centre hole of the cover (I)
at the same time as you
hold the cover with your
other fingers, Press the two
catches (J) that extend from
the cut-out on the bottom
section (14_) u sing the
thumb and index finger of
your other hand. Press
apart the trimmer head
using the fingers on the
cover.
• Place the cover (I) and the
support flange (P) on the
output axle.
• Fit the nut (G). The
tightening torque of the
nut is 35-50 Nm (3.5-5
kpm). Use the socket
spanner in the tool kit.
Hold the handle of the
spanner as close to the
trimmer guard as possible.
The nut is tightened when
the spanner is turned
against the direction of
rotation (left-hand thread).
• Fit the trimmer head's
bottom section (K) on the
cover (I) by pressing the
two sections together with
the cut-outs on the bottom
section aligned with the
catches on the cover.
• To dismantle follow the
instructions in the reverse
order.
L
Assembling other guards and cutting
equipment
(322L, 323L, 325Lx, 325LxT , 325LDx)
• Fit the appropriate guard
(A) for use with the
trimmer head. Hook the
guard onto the shaft
fitting and secure it with
the bolt (L).
• Fit the disc drive (B) on
the output axle.
• Turn tile blade axle until
one of the disc drive's
holes aligns with the
corresponding hole in
the gear housing.
• Insmt the locking pin
(C) into the hole to lock
the axle.
• Screw on the trimmer
head (H) in the direction
of rotation.
• Dismantling takes place
>-,_ \
Fitting the spray guard and trimmer
head (325C)
Guard
• Fit the guard as shown
in the diagram, Tighten
securely,
Trimmer head
• Fit the dust cup on the
shaft. The nut must be
completely covered by
the dust cup.
• Hold the dust cup with
a sparmer to prevent the
shaft from rotating.
• Screw tile trimmer head
onto the shaft,
®
®
English - 1
