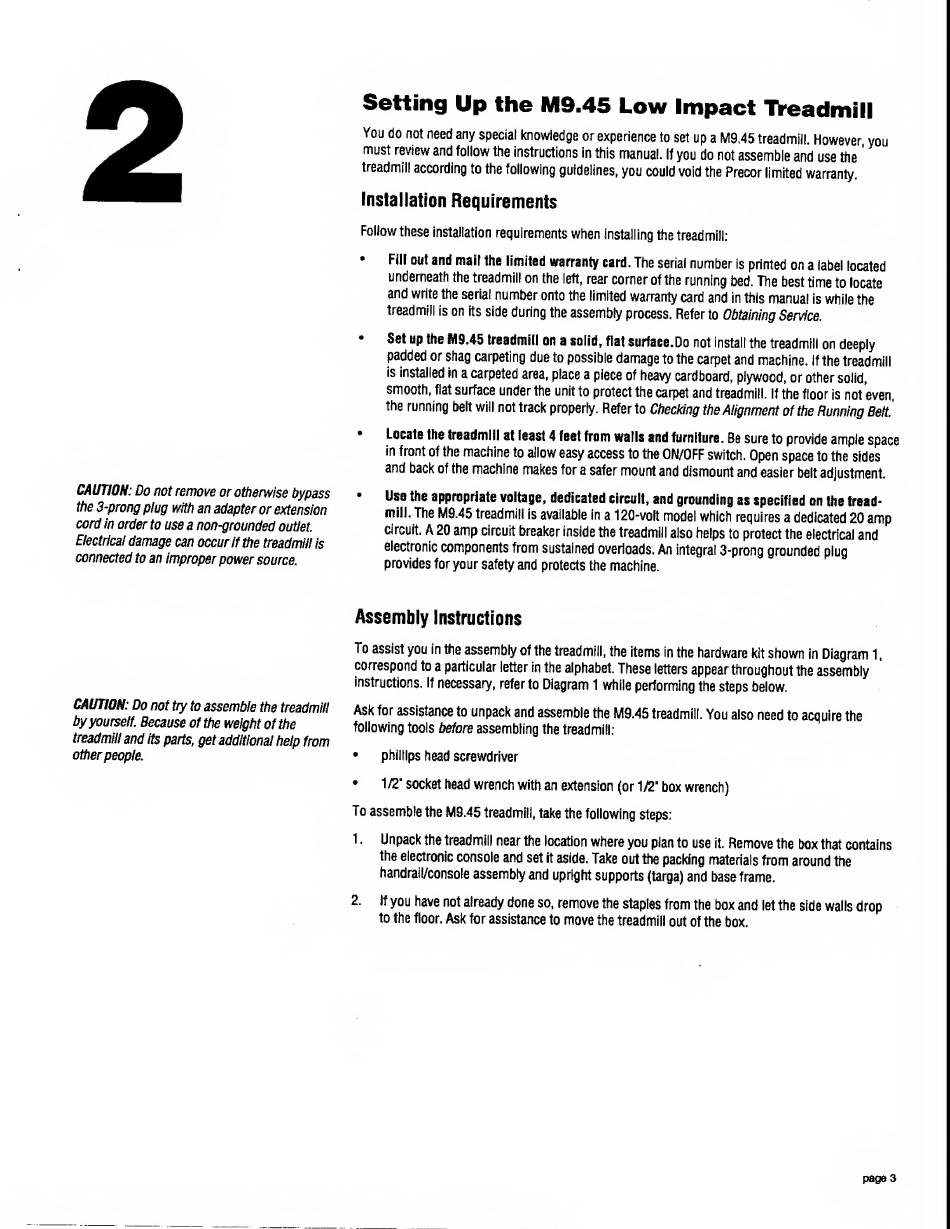

Setting Up the M9.45 Low Impact Treadmill
You do not need any special knowledge or experience to set up a M9.45 treadmill. However, you
must review and follow the instructions in this manual. If you do not assemble and use the
treadmill according to the following guidelines, you could void the Precor limited warranty.
Installation Requirements
CAUTION: Do not remove or otherwise bypass
the 3-prong plug with an adapter or extension
cord in order to use a non-grounded outlet.
Electrical damage can occur if the treadmill is
connected to an improper power source.
Follow these installation requirements when installing the treadmill:
•
Fill out and mail the limited warranty card. The serial number is printed on a label located
underneath the treadmill on the left, rear corner of the running bed. The best time to locate
and write the serial number onto the limited warranty card and in this manual is while the
treadmill is on its side during the assembly process. Refer to
Obtaining Service.
•
Set up the M9.45 treadmill on a solid, flat surface.Do not install the treadmill on deeply
padded or shag carpeting due to possible damage to the carpet and machine. If the treadmill
is installed in a carpeted area, place a piece of heavy cardboard, plywood, or other solid,
smooth, flat surface under the unit to protect the carpet and treadmill. If the floor is not even,
the running belt will not track properly. Refer to
Checking the Alignment of the Running Beit.
•
Locate the treadmill at least 4 feet from walls and furniture. Be sure to provide ample space
in front of the machine to allow easy access to the ON/OFF switch. Open space to the sides
and back of the machine makes for a safer mount and dismount and easier belt adjustment.
Use the appropriate voltage, dedicated circuit, and grounding as specified on the tread¬
mill. The M9.45 treadmill is available in a 120-volt model which requires a dedicated 20 amp
circuit. A 20 amp circuit breaker inside the treadmill also helps to protect the electrical and
electronic components from sustained overloads. An integral 3-prong grounded plug
provides for your safety and protects the machine.
Assembly Instructions
CAUTION: Do not try to assemble the treadmill
by yourself. Because of the weight of the
treadmill and its parts, get additional help from
other people.
To assist you in the assembly of the treadmill, the items in the hardware kit shown in Diagram 1,
correspond to a particular letter in the alphabet. These letters appear throughout the assembly
instructions. If necessary, refer to Diagram 1 while performing the steps below.
Ask for assistance to unpack and assemble the M9.45 treadmill. You also need to acquire the
following tools
before
assembling the treadmill;
•
phillips head screwdriver
•
1/2" socket head wrench with an extension (or 1/2" box wrench)
To assemble the M9.45 treadmill, take the following steps:
1.
Unpack the treadmill near the location where you plan to use it. Remove the box that contains
the electronic console and set it aside. Take out the packing materials from around the
handrail/console assembly and upright supports (targa) and base frame.
2.
If you have not already done so, remove the staples from the box and let the side walls drop
to the floor. Ask for assistance to move the treadmill out of the box.
page 3
