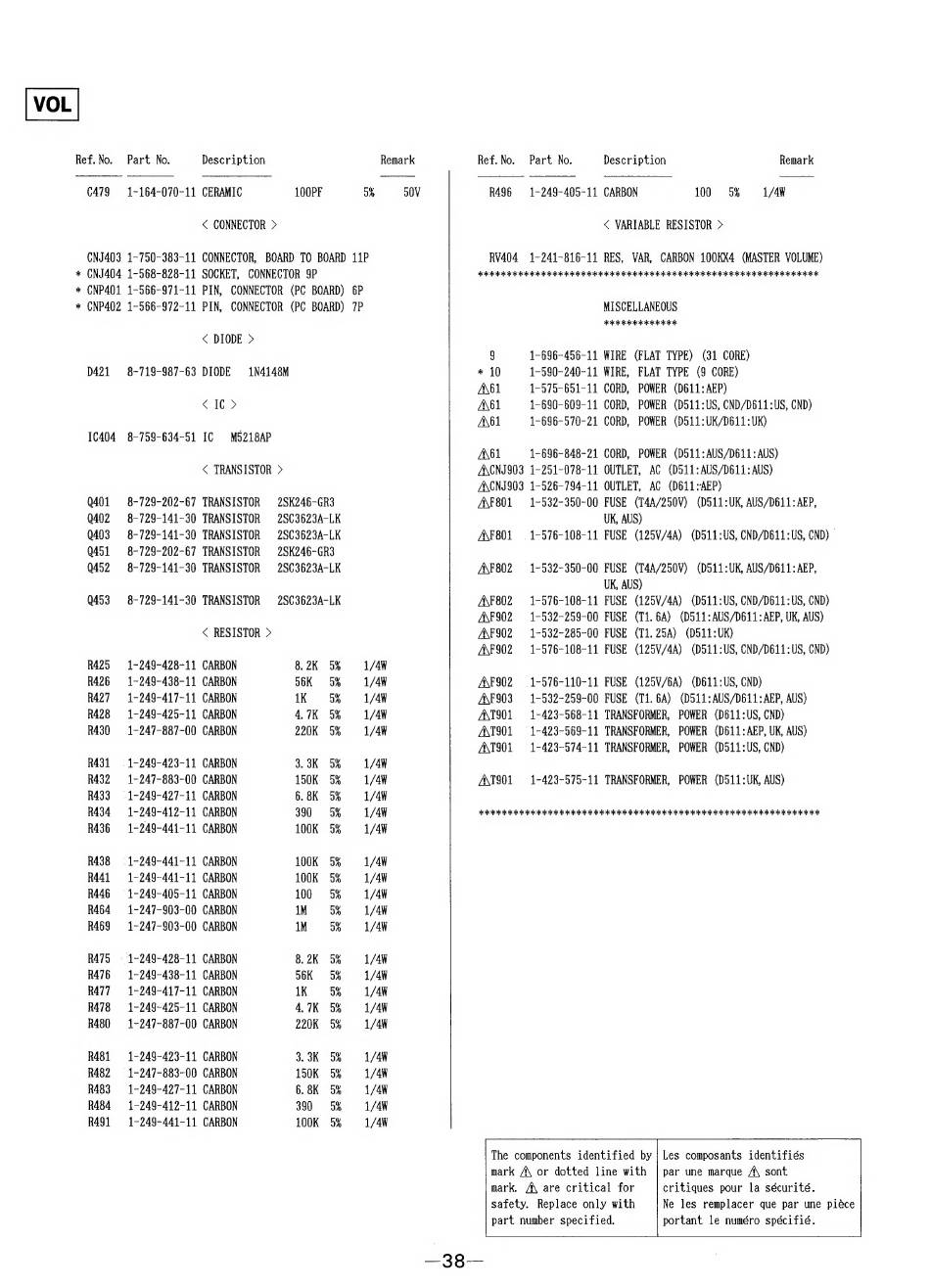

Sony STR-D511 Service Manual page 25

VOL
Ref. No. Part No. Description Remark Ref.No. Part No. Description Remark
C479 =1-164-070-11 CERAMIC 100PF om 50V R496 = 1-249-405-11 CARBON 100% 1/4
< CONNECTOR > < VARIABLE RESISTOR >
CNJ403 1-750-383-11 CONNECTOR, BOARD TO BOARD 11P RV404 1-241-816-11 RES, VAR, CARBON 100KX4 (MASTER VOLUME)
* CNJ404 1-568-828-11 SOCKET, CONNECTOR 9P SEIS Oo IO OGG IO IGO IOI ICICI GO IAGO IOI OR AOI OK
* CNP401 1-566-971-11 PIN, CONNECTOR (PC BOARD) 6P
* CNP402 1-566-972-11 PIN, CONNECTOR (PC BOARD) 7P MISCELLANEOUS
Foloidoioioiiojotok ok
< DIODE >
9 1-696-456-11 WIRE (FLAT TYPE) (31 CORE)
D421 =8-719-987-63 DIODE 1N4148M * 10 1-590-240-11 WIRE, FLAT TYPE (9 CORE)
AG1 1-575-651-11 CORD, POWER (D611: AEP)
< IC > AG1 1-690-609-11 CORD, POWER (D511:US, CND/D611:US, CND)
A\61 1-696-570-21 CORD, POWER (D511:UK/D611:UK)
10404 8-759-634-51 IC M5218AP
Ab1 1-696-848-21 CORD, POWER (D511:AUS/D611: AUS)
< TRANSISTOR > ANCNJ9O3 1-251-078-11 OUTLET, AC (D511:AUS/D611: AUS)
A\CNJ903 1-526-794-11 OUTLET, AC (D611 :AEP)
Q401 8-729-202-67 TRANSISTOR 2SK246-GR3 A\F801 —1-532-350-00 FUSE (T4A/250V) (D511:UK, AUS/D611: AEP,
Q402 8-729-141-30 TRANSISTOR 2SC3623A-LK UK, AUS)
Q403 8-729-141-30 TRANSISTOR 2SC3623A-LK A\F801 © 1-576-108-11 FUSE (125V/4A) (D511:US, CND/D611:US, CND) ©
Q451 8-729-202-67 TRANSISTOR 2SK246-GR3
Q452 8-729-141-30 TRANSISTOR 2SC3623A-LK A\MF802 = 1-532-350-00 FUSE (T4A/250V) (D511:UK, AUS/D611: AEP,
UK, AUS)
Q453 8-729-141-30 TRANSISTOR 2SC3623A-LK AMF802 =1-576-108-11 FUSE (125V/4A) (D511:US, CND/D611:US, CND)
ANF902 1-532-259-00 FUSE (T1. 6A) (D511:AUS/D611: AEP, UK, AUS)
< RESISTOR > ANF902 1-532-285-00 FUSE (T1.25A) (D511:UK)
A\F902 1-576-108-11 FUSE (125V/4A) (D511:US, CND/D611:US, CND)
R425 1-249-428-11 CARBON 8.2K 5% 1/4W
R426 =1-249-438-11 CARBON 36K 5% 1/4W ANF902 = 1-576-110-11 FUSE (125V/6A) (D611:US, CND)
R427 = 1-249-417-11 CARBON 1K 5% 1/4W A\F903 — 1-532-259-00 FUSE (T1.6A) (D511:AUS/D611:AEP, AUS)
R428 1-249-425-11 CARBON 4.7K 5% 1/4W A\T901 — 1-423-568-11 TRANSFORMER, POWER (D611:US, CND)
R430 1-247-887-00 CARBON 220K 5% 1/44 ANT901 = 1-423-569-11 TRANSFORMER, POWER (D611: AEP, UK, AUS)
ANT901 = 1-423-574-11 TRANSFORMER, POWER (D511:US, CND)
R431 = 1-249-423-11 CARBON 3. 3K 5% 1/4W
R432 = 1-247-883-00 CARBON 150K 5% 1/4W ANT901 = 1-423-575-11 TRANSFORMER, POWER (D511:UK, AUS)
R433 =: 1-249-427-11 CARBON 6.8K 5% 1/4W
R434 1-249-412-11 CARBON 390 385% 1/4W FEISS OOO SI CSCI ECO IO SSIS OCS ACG SOIC SSI aE a IO RIGOR tokkak
R436 1-249-441-11 CARBON 100K 5% 1/4W
R438 = 1-249-441-11 CARBON 100K 5% 1/4W
R441 1-249-441-11 CARBON 100K 5% 1/4W
R446 = 1-249-405-11 CARBON 100 5% 1/4W
R464 1-247-903-00 CARBON iM 5% 1/40
R469 1-247-903-00 CARBON IM 5% 1/4W
R475 =: 1-249-428-11 CARBON 8.2K 5% 1/4W
R476 =1-249-438-11 CARBON 56K = 5% 1/4W
R477: 1-249-417-11 CARBON 1K ob 1/4W
R478 =1-249-425-11 CARBON 4.7K 5% 1/4W
R480 1-247-887-00 CARBON 220K 5% 1/4W
R481 =1-249-423-11 CARBON 3.3K 5% 1/4W
R482 = 1-247-883-00 CARBON 150K 5% 1/4W
R483 1-249-427-11 CARBON 6.8K 5% 1/4W
R484 1-249-412-11 CARBON 390 5% 1/4W
R491 1-249-441-11 CARBON 100K 5% 1/4W
The components identified by | Les composants identifiés
mark A\ or dotted line with | par une marque A\ sont
mark, A\ are critical for critiques pour la sécurité.
safety. Replace only with Ne les remplacer que par une piéce
part number specified. portant le numéro spécifié.
—38—
