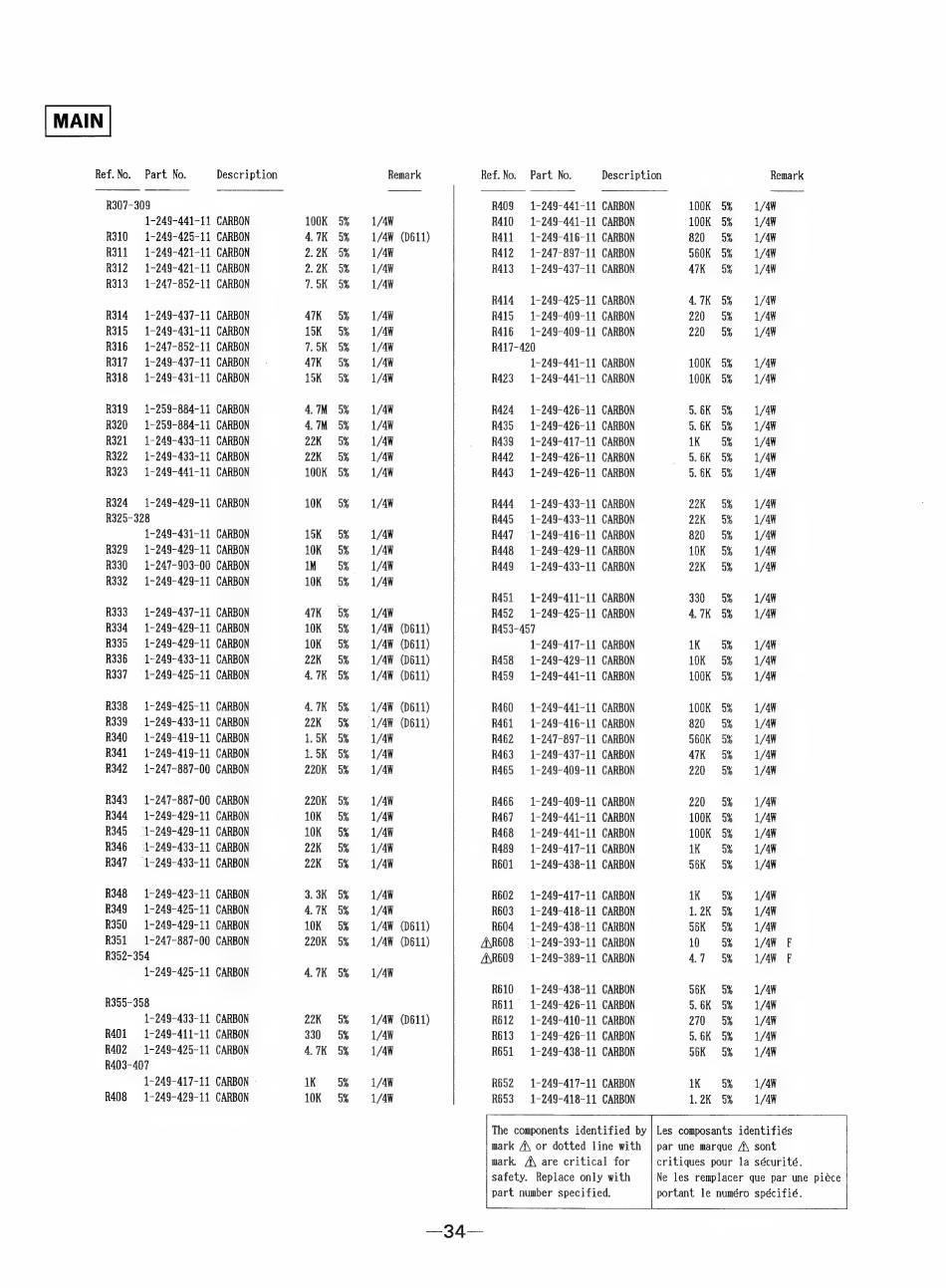

Sony STR-D511 Service Manual page 21

Ref. No. Part No. Description Remark Ref.No. Part No. Description Remark
R307-309 R409 1-249-441-11 CARBON 100K 5% 1/4W
1-249-441-11 CARBON 100K 5% 41/4W R410 1-249-441-11 CARBON 100K 5% 1/4¥
R310 1-249-425-11 CARBON 4.7K 5% 1/48 (D611) R411 1-249-416-11 CARBON 820 5% 1/4W
R311 1-249-421-11 CARBON 2.2K 5% 1/4W R412 1-247-897-11 CARBON 560K 5% 41/4W
R312 1-249-421-11 CARBON 2.2K 5% 1/4W R413 1-249-437-11 CARBON 4iK 5% =1/4W
R313 1-247-852-11 CARBON 7.5K 5% 1/4W
R414 1-249-425-11 CARBON 4.7K 5% 1/4W
R314 1-249-437-11 CARBON 47K 5% 1/4W R415 1-249-409-11 CARBON 220 5% 8 1/4W
R315 1-249-431-11 CARBON 15K 5% 1/4W R416 1-249-409-11 CARBON 220 5% =. /4W
R316 1-247-852-11 CARBON 7.5K 5% 1/4W R417-420
R317. 1-249-437-11 CARBON 47K 5% 1/4W 1-249-441-11 CARBON 100K 5% 41/4W
R318 1-249-431-11 CARBON 15K 5% 41/4W R423 1-249-441-11 CARBON 100K 5% 41/4W
R318 1-259-884-11 CARBON 4.7™ 5% 1/4W R424 1-249-426-11 CARBON 5.6K 5% 1/46
R320 1-259-884-11 CARBON 4.7™ 5% 1/4W R435 1-249-426-11 CARBON 5.6K 5% 1/4W
R321 1-249-433-11 CARBON 22K 5% ~= 1/4W _ R439 1-249-417-11 CARBON 1K 5% 41/4W
R322 1-249-433-11 CARBON 22K 45% ~=-1/4W R442 1-249-426-11 CARBON 5.6K 5% = 1 /4¥
R323. 1-249-441-11 CARBON 100K 5% 1/4W R443 1-249-426-11 CARBON 5.6K 5% 1/4W
R324 1-249-429-11 CARBON 10K 5% 1/4W R444 1-249-433-11 CARBON 22K «45% ~=-:1/4W
R325-328 R445 1-249-433-11 CARBON 22K 425% = (1 /4W
1-249-431-11 CARBON 15K 5% 1/40 R447 =: 1-249-416-11 CARBON 820 5% 41/4W
R329 1-249-429-11 CARBON 10K 5% # 1/4W R448 1-249-429-11 CARBON 10K 5% 1/48
R330 1-247-903-00 CARBON IM 5% ~~ O1/4W R449 = 1-249-433-11 CARBON 22K 45% ~~) oO /4W
R332 1-249-429-11 CARBON 10K 5% 1/4W
R451 1-249-411-11 CARBON 330 5% 1/48
R333 1-249-437-11 CARBON 47K 5% 1/4 R452 1-249-425-11 CARBON 4.7K 5% 1/4W
R334 =1-249-429-11 CARBON 10K 5% 1/4W (D611) R453-457
R335 = 1-249-429-11 CARBON 10K 5% 1/4W (D611) 1-249-417-11 CARBON 1K 5% 8 1/4W
R336 =1-249-433-11 CARBON 22K 5% 1/4W (D611) R458 1-249-429-11 CARBON 10K 5% 1/4W
R337 = 1-249-425-11 CARBON 4.7K 5% 1/4W (D611) R458 1-249-441-11 CARBON 100K 5% 1/4W
R338 1-249-425-11 CARBON 4.7K 5% 1/4 (D611) R460 1-249-441-11 CARBON 100K 5% 1/4W
R339 = 1-249-433-11 CARBON 22K 5% =. 1/4W (D611) R461 1-249-416-11 CARBON 820 5% 1/4W
R340 =1-249-419-11 CARBON 1.5K 5% 1/4W R462 1-247-897-11 CARBON 560K 5% 1/4W
R341 1-249-419-11 CARBON 1.5K 5% 1/4W R463 1-249-437-11 CARBON 47K 5% 1/4W
R342 1-247-887-00 CARBON 220K 5% 1/4W R465 1-249-409-11 CARBON 220 5% 1/4W
R343 = 1-247-887-00 CARBON 220K 5% 1/48 R466 1-249-409-11 CARBON 220 5% 8 1/4W
R344 =1-249-429-11 CARBON 10K 5% 861 /4W R467 1-249-441-11 CARBON 100K 5% 41/4W
R345 =: 1-249-429-11 CARBON 10K 5% = 1/4W R468 1-249-441-11 CARBON 100K 5% 1/4W
R346 =: 1-249-433-11 CARBON 22K 45%) = 1 /4W R489 1-249-417-11 CARBON 1K 5% 8 1/4W
R347 ~—- 1-249-433-11 CARBON 22K 5%) 1 /4W R601 1-249-438-11 CARBON 56K 5% 1/4W
R348 =1-249-423-11 CARBON 3.3K 5% 1/4W R602 1-249-417-11 CARBON 1K 5% AW
R34$ 1-249-425-11 CARBON 4.7K 5% 1/4W R603 1-249-418-11 CARBON 1.2K 5% 1/4W
R350 1-249-429-11 CARBON 10K 5% 1/4W (D611) R604 1-249-438-11 CARBON 56K 5% 1/4W
R351 1-247-887-00 CARBON 220K 5% 1/4W (D611) A\R608 =: 1-249-393-11 CARBON 10 «5% /AW SOF
R352-354 A\R609 =: 1-249-389-11 CARBON 4.7 5% 1/4¥ F
1-249-425-11 CARBON 4.7K 5% 1/4W
R610 1-249-438-11 CARBON 56K 5% 1/4W
R355-358 R611 1-249-426-11 CARBON 5.6K 5% 1/4W
1-249-433-11 CARBON 22K 5% 1/4W (D611) R612 1-249-410-11 CARBON 270 «45% = 1/4
R401 1-249-411-11 CARBON 330 5% = 1 /4W R613 1-249-426-11 CARBON 5.6K 5% 1/48
R402 = 1-249-425-11 CARBON 4.7K 5% 1/4W R651 1-249-438-11 CARBON 56K 5% 1/44
R403-407
1-249-417-11 CARBON - 1K 5% /AW R652 1-249-417-11 CARBON 1K 5% 1/4W
R408 1-249-429-11 CARBON 10K 5% 1/4W R653 1-249-418-11 CARBON 1.2K 5% 1/4W
