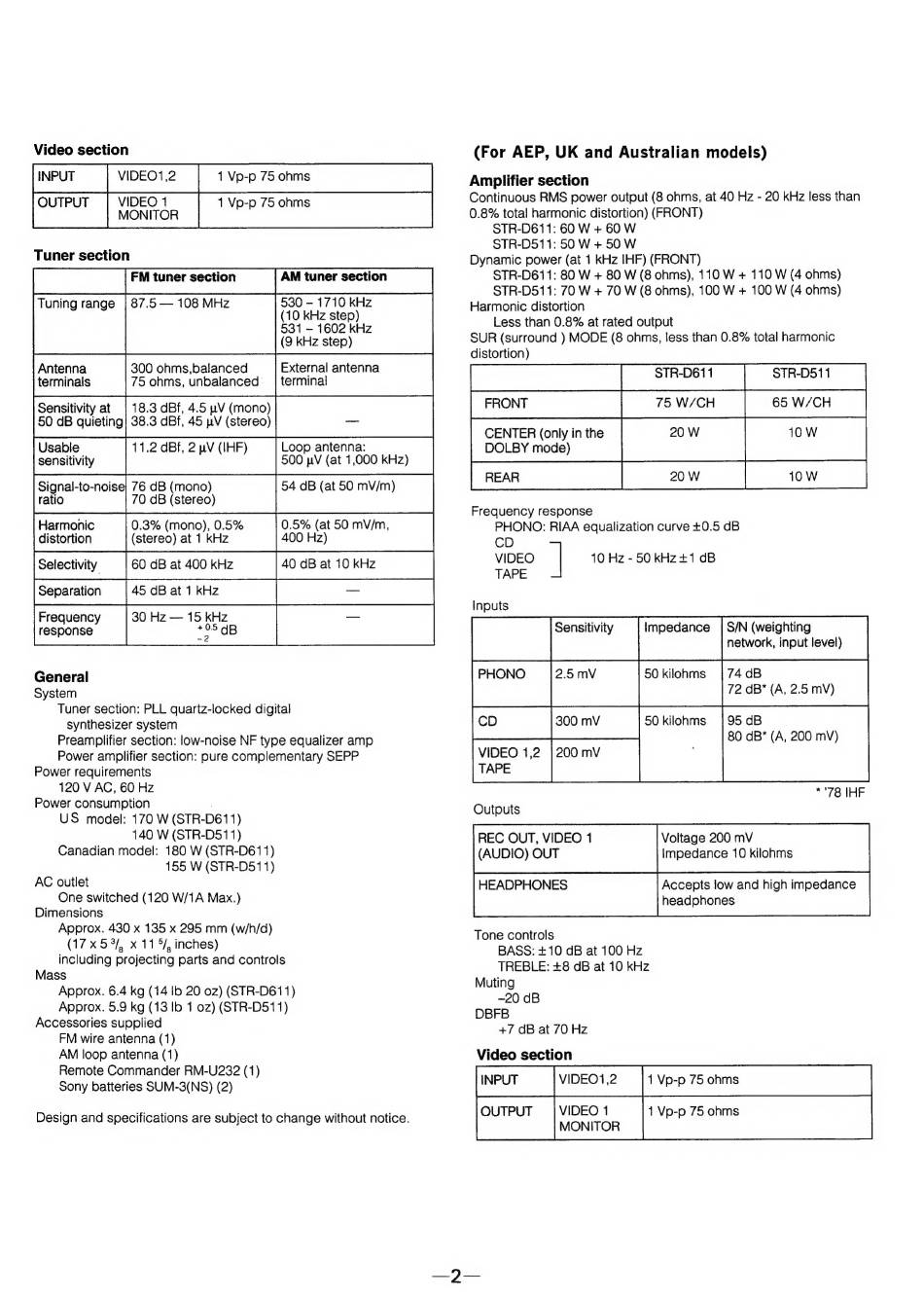

Sony STR-D511 Service Manual page 2

Video section
INPUT VIDEO1,2 1 | Vp-p 75ohms | Vp-p 75ohms 75 ohms
OUTPUT VIDEO 1 1 Vp-p 75 ohms
MONITOR
Tuner section
| CL tuner section AM tuner section
a range | 87.5 — 108 MHz 530 —- 1710 KHz
(10 kHz step)
531 - 1602 kHz
(9 kHz step)
Antenna 300 ohms,balanced External antenna
terminals 75 ohms, unbalanced _ | terminal
Sensitivity at | 18.3 dBf, 4.5 pV (mono)
50 dB quieting} 38.3 dBf, 45 pV (stereo)
Usable 11.2 dBf, 2 pV (IHF) Loop antenna:
sensitivity 500 pV (at 1,000 kHz)
hagas noise} 76 dB (mono) 54 dB (at 50 mV/m)
ratio 70 dB (stereo)
Harmonic 0.3% (mono), 0.5% a ig Ss 50 mvV/m,
distortion (stereo) at 1 kHz
oe 60 dB at 400 kHz 40 dB at 10 kHz
45 dB at 1 kHz
General
System
Frequency 30 Hz — 15 kHz
response ane
Tuner section: PLL quartz-locked digital
synthesizer system
Preamplifier section: low-noise NF type equalizer amp
Power amplifier section: pure complementary SEPP
Power requirements
120 V AC, 60 Hz
Power consumption
US model: 170 W (STR- D611)
140 W (STR-D511)
Canadian model: 180 W (STR-D611)
155 W (STR-D511)
AC outlet
One switched (120 W/1A Max.)
Dimensions
Approx. 430 x 135 x 295 mm (w/h/d)
(17x5%, x 11 */, inches)
including projecting parts and controls
Mass
Approx. 6.4 kg (14 Ib 20 oz) (STR-D611)
Approx. 5.9 kg (13 Ib 1 0z) (STR-D511)
Accessories supplied
FM wire antenna (1)
AM loop antenna (1)
Remote Commander RM-U232 (1)
Sony batteries SUM-3(NS) (2)
Design and specifications are subject to change without notice.
(For AEP, UK and Australian models)
Amplifier section
Continuous RMS power output (8 ohms, at 40 Hz - 20 kHz less than
0.8% total harmonic distortion) (FRONT)
STR-D611: 60 W + 60 W
STR-D511: 50 W + 50 W
Dynamic power (at 1 KHz IHF) (FRONT)
STR-D611: 80 W + 80 W (8 ohms), 110 W + 110 W (4 ohms)
STR-D511: 70 W + 70 W(8 ohms), 100 W + 100 W (4 ohms)
Harmonic distortion
Less than 0.8% at rated output
SUR (surround ) MODE (8 ohms, less than 0.8% total harmonic
distortion)
FRONT 75 W/CH 65 W/CH
CENTER (only in the 20 W 10 W
DOLBY mode)
Frequency response
PHONO: RIAA equalization curve +0.5 dB
CD
VIDEO | 10 Hz - 50 kHz +1 dB
TAPE
Inputs
Sensitivity Impedance | S/N (weighting
network, input level)
PHONO 2.5 mV 50 kilohms {74 dB
72 dB* (A, 2.5 mV)
joo |s00mv mV 50 kilohms |95 dB
80 dB* (A, 200 mV)
Sea 1,2 aa mV
TAPE
*'78 IHF
Outputs
REC OUT, VIDEO 1
(AUDIO) OUT
HEADPHONES
Tone controls
BASS: +10 dB at 100 Hz
TREBLE: +8 GB at 10 kHz
Muting
-20 dB
DBFB
+7 dB at 70 Hz
Voltage 200 mV
Impedance 10 kilohms
Accepts low and high impedance
headphones
Video section
INPUT VIDEO1,2 1 Vp-p 75 ohms
OUTPUT VIDEO 1 1 Vp-p 75 ohms
MONITOR
