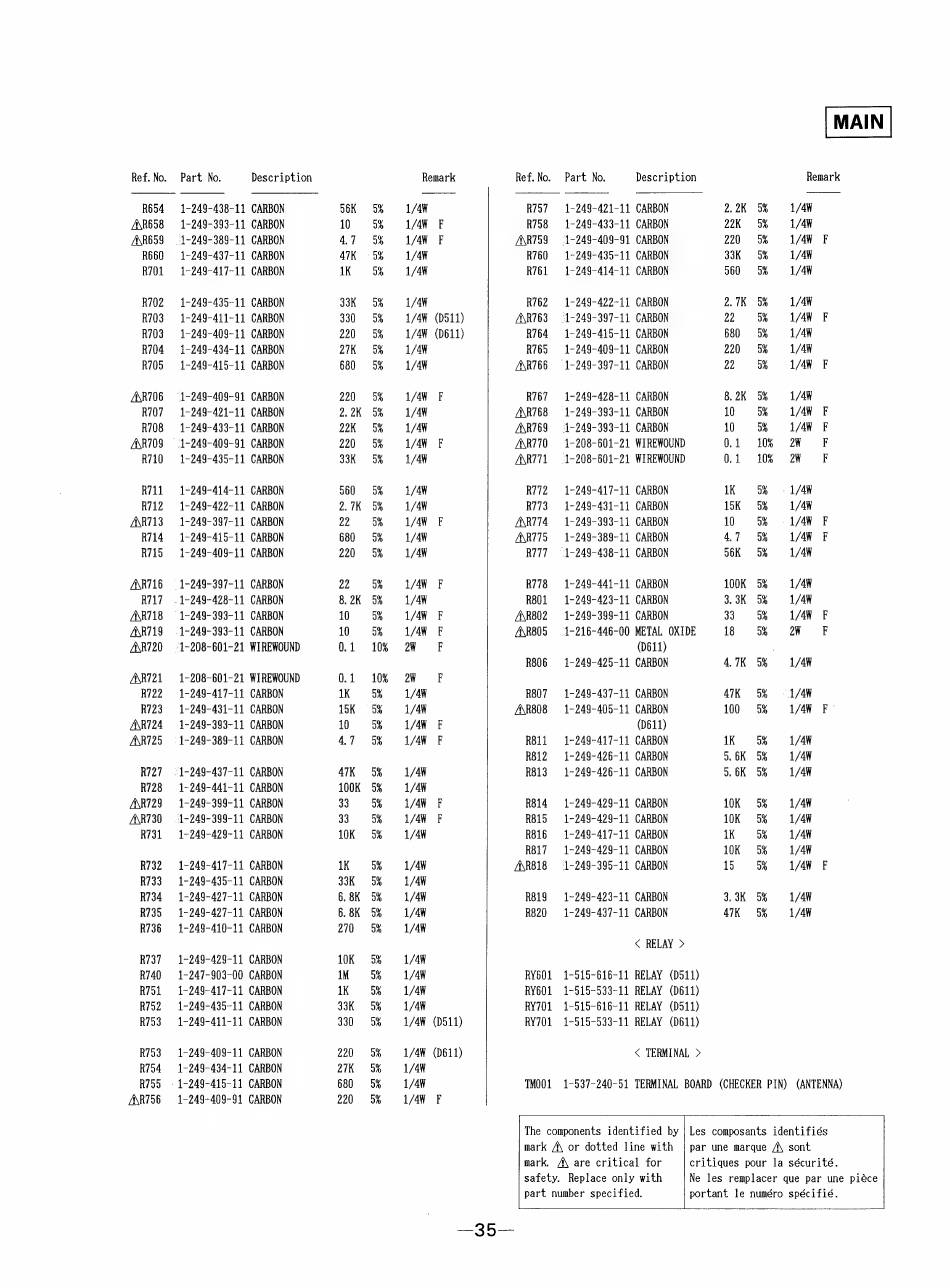

Sony STR-D511 Service Manual page 22

Ref. No. Part No. Description Remark Ref.No. Part No. Description Remark
R654 =1-249-438-11 CARBON 56K 5% 1/4W R757 =1-248-421-11 CARBON 2.2K 5% 1/4W
AXR658 = 1-249-393-11 CARBON 10 5% 1/4W F R758 1-249-433-11 CARBON 22K 465%) /4W
A\R659 =: 1-249-389-11 CARBON 4.7 5% 1/4W F A\R759 =: 1-249-409-91 CARBON 220 5% 1/4W F
R660 1-249-437-11 CARBON ATK = 5% 1/4W R760 1-249-435-11 CARBON 33K 5% 8=— 1 /4W
R701 1-249-417-11 CARBON 1K oD 1/4¥ R761 1-249-414-11 CARBON 560 5% 1/48
R702 1-249-435-11 CARBON 33K 5% 1/4W R762 1-249-422-11 CARBON 2.7K 5% 1/4¥
R703 = 1-249-411-11 CARBON 330 = 5% 1/4W (D511) A\R763 =: 1-249-397-11 CARBON 22 5m 1/4W F
R703 1-249-409-11 CARBON 220 5% 1/4W (D611) R764 1-249-415-11 CARBON 680 =a 1/4¥
R704 1-249-434-11 CARBON 27K 5% 1/4W R765 1-249-409-11 CARBON 220 5% 1/4W
R705 1-249-415-11 CARBON 680 5% 1/4W A\R766 = 1-249-397-11 CARBON 22 5% 1/4¥ F
A\R706 =: 1-249-409-91 CARBON 220 5% 1/4W F R767 =1-249-428-11 CARBON 8.2K 5% 1/44
R707 =1-249-421-11 CARBON 2.2K 5% 1/4W A\R768 = 1-249-393-11 CARBON 10 5% 1/4W F
R708 1-249-433-11 CARBON 22K 5% 1/4W A\R769 =: 1-249-393-11 CARBON 10 5% «=o /4W SOF
A\R709 =: 1-249-409-91 CARBON 220 5% 1/4W F A\R770 ~—-1-208-601-21 WIREWOUND 0.4 10% Ww F
R710 1-249-435-1141 CARBON 33K 5% 1/4¥ A\R771. ~~: 1-208-601-21 WIREWOUND 0.1 10% WwW F
R711 1-249-414-11 CARBON 560 5% 1/4W R772 1-249-417-11 CARBON 1K 865% = 1/4W
R712 1-249-422-11 CARBON 2.7K 5% 1/4¥ R773 1-249-431-11 CARBON 15K 5% 1/4W
A\R713—-1-249-397-11 CARBON 22 5% 1/4W F A\R774 ~—-1-249-393-11 CARBON 10 5% ©6 1/4W SOF
R714 1-249-415-11 CARBON 680 5% 1/4W A\R775 ~—-1-249-389-11 CARBON 4.7 5% 1/4W F
R715 1-249-409-11 CARBON 220 5% 1/4W R777 —- 1-249-438-11 CARBON 56K = 1/4W
A\R716 = 1-249-397-11 CARBON 22 5% 1/4W F R778 1-249-441-11 CARBON 100K 5% 1/4W
R717 = 1-249-428-11 CARBON 8.2K 5% 1/4W R801 1-249-423-11 CARBON 3.3K 5% 1/4W
A\RT18 = 1-249-393-11 CARBON 10 Hy 4 1/4W F A\R802 = 1-249-399-11 CARBON 33 5% 1/4¥ F
A\R719 — 1-249-393-11 CARBON 10 5% 1/4W F A\R805 =: 1-216-446-00 METAL OXIDE 18 85% QW F
A\R720 =: 1-208-601-21 WIREWOUND 0.1 10% 2W F (D611)
R806 1-249-425-11 CARBON 4.7K 5% 1/4W
A\R721 ~—-1-208-601-21 WIREWOUND 0.1 10% 2 F
R722 1-249-417-11 CARBON 1K =o 1/4¥ R807 =1-249-437-11 CARBON 47K 5% 8 8=6- 1 /4W
R723 =1-249-431-11 CARBON 15K = % 1/4W A\R808 = 1-249-405-11 CARBON 100 5% 1/4W F
A\R724 ~—-1-249-393-11 CARBON 10 Hy 4 1/4W F (D611)
A\R725 = 1-249-385-11 CARBON 4.7 5% 1/4W F R811 = 1-249-417-11 CARBON 1K 5% 8 1/4W
R812 1-249-426-11 CARBON 5.6K 5% 1/4W
R727 =: 1-249-437-11 CARBON 47K 5% 1/4 R813 = 1-249-426-11 CARBON 5.6K 5% 1/4W
R728 1-249-441-11 CARBON 100K 5% 1/4W
A\R729.—- 1-249-399-11 CARBON 33 Hy 4 1/4W F R814 1-249-429-11 CARBON 10K = % 1/4¥
A\R730 =: 1-249-399-11 CARBON 33 5% 1/4W F R815 1-249-429-11 CARBON 10K 65% 1/4¥
R731 1-249-429-11 CARBON 10K 95% 1/4W R816 =1-249-417-11 CARBON 1K = 1/4W
R817: 1-249-429-11 CARBON 10K «5% 1/4¥
R732 1-248-417-11 CARBON 1K oD% 1/4W A\R818 =: 1-249-395-11 CARBON 15 5% 1/4W F
R733. 1-249-435-11 CARBON 33K = 5% 1/4¥
R734 1-249-427-11 CARBON 6.8K 5% 1/4W R819 1~-249-423-11 CARBON 3.3K 5% 1/4W
R735 1-249-427-11 CARBON 6.8K 5% 1/4W R820 1-249-437-11 CARBON 47K 5% 1/4W
R736 1-249-410-11 CARBON 270 5% 1/4W
< RELAY >
R737 = 1-249-429-11 CARBON 10K 5% 1/4W
R740 1-247-903-00 CARBON IM 5% 1/4W RY601 1-515-616-11 RELAY (D511)
R751 1-249-417-11 CARBON 1K oD% 1/4W RY601 1-515~-533-11 RELAY (D611)
R752 1-249-435-11 CARBON 33K = o% 1/44 RY701 1-515~-616-11 RELAY (D511)
R753 1-249-411-11 CARBON 330% 1/4W (D511) RY701 1-515-533-11 RELAY (D611)
R753 1-249-409-11 CARBON 220 5% 1/4W (D611) < TERMINAL >
R754 1-249-434-11 CARBON 27K «65% 1/4W
R755. 1-249-415-11 CARBON 680 5% 1/4 TM001 1-537-240-51 TERMINAL BOARD (CHECKER PIN) (ANTENNA)
A\R756—s-1-249-409-91 CARBON 220 5% i/4W¥ F
The components identified by | Les composants identifiés
mark A\ or dotted line with | par une marque A\ sont
mark. A\ are critical for critiques pour la sécurité.
safety. Replace only with Ne les remplacer que par une piéce
part number specified. portant le numéro spécifié.
