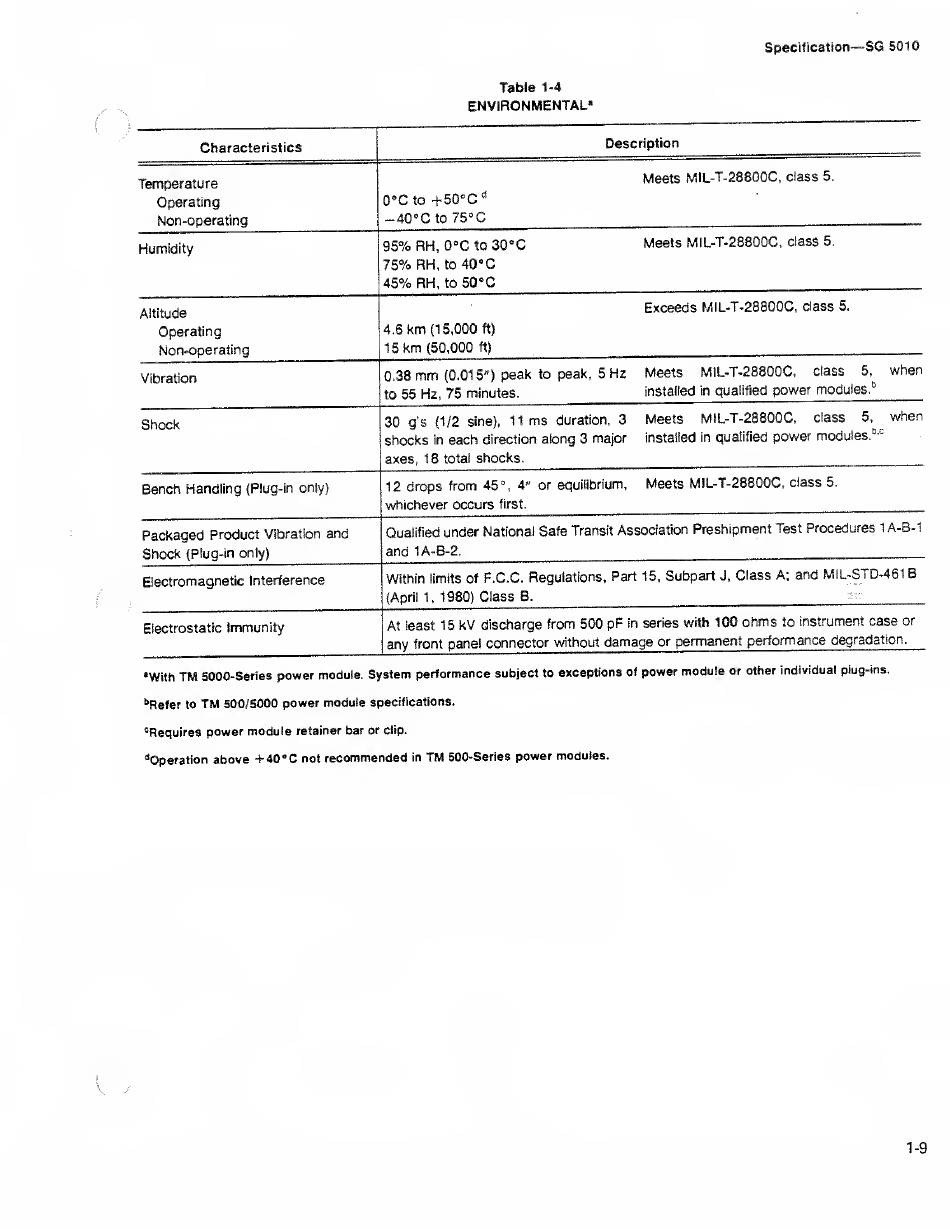

Tektronix SG 5010 Instruction Manual page 13

Specification—SG 5010
Table 1-4
ENVIRONMENTAL-
Characteristics
Description
Temperature
Operating
Non-operating
Meets MIL-T-28800C, class 5.
crc to +50°Cd
— 40°C to 75°C
Humidity
95% RH, 0°C to 30°C Meets MIL-T-28800C, class 5.
75% RH, to40°C
45% RH, to 50°C
Altitude
Operating
Non-operating
Exceeds MIL-T-28800C, class 5.
4.6 km (15,000 ft)
15 km (50,000 ft)
Vibration
0.38 mm (0,015") peak to peak, 5 Hz Meets MIL-T-28800C, class 5, when
to 55 Hz, 75 minutes. installed in qualified power modules.0
Shock
30 g's (1/2 sine), 11 ms duration, 3 Meets MIL-T-28800C, class 5, when
shocks in each direction along 3 major installed in qualified power modules.0 c
axes, 18 total shocks.
Bench Handling (Plug-in only)
12 drops from 45°, 4" or equilibrium, Meets MIL-T-28800C, class 5.
whichever occurs first.
Packaged Product Vibration and
Shock (Plug-in only)
Qualified under National Safe Transit Association Preshipment Test Procedures 1A-B-1
and 1A-B-2.
Electromagnetic Interference
Within limits of F.C.C. Regulations, Part 15, Subpart J, Class A; and MIL-STD-461B
(April 1, 1980) Class B.
Electrostatic Immunity
At least 15 kV discharge from 500 pF in series with 100 ohms to instrument case or
any front panel connector without damage or permanent performance degradation.
•With TM 5000-Series power module. System performance subject to exceptions of power module or other individual piug-ins.
bRefer to TM 500/5000 power module specifications.
cRequires power module retainer bar or clip.
^Operation above +40°C not recommended in TM 500-Series power modules.
1-9
