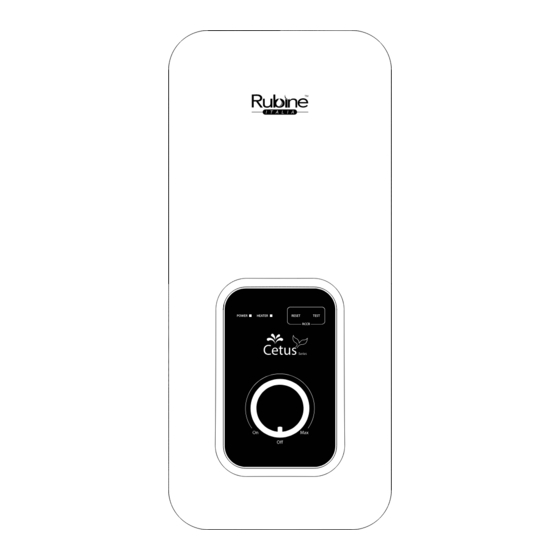

- Page 1 Engery Saving Inverter DC Silent Pump Penjimatan Tenaga Pam Senyap Inverter DC WATER HEATER / PEMANAS AIR USER MANUAL / PANDUAN PENGGUNA MODEL / MODEL CETUS SERIES (CE521D / CE520N)
-
Page 2: Safety Precaution
Please read this manual thoroughly and understand the content before use. Sila baca panduan ini dengan teliti dan memahami isi kandungannya sebelum penggunaan. SAFETY PRECAUTION LANGKAH–LANGKAH KESELAMATAN Do not install reverse INLET & OUTLET and Stop Valve of heater. Jangan memasang “INLET & OUTLET” dan Injap Hentian pemanas dalam keadaan songsang. - Page 3 Engage qualified electrician for installation. Gunakan juruelektrik yang berkelayakan untuk pemasangan. Test water temperature with hand before using the shower. Uji suhu air dengan menggunakan tangan sebelum menggunakan pemanas air . 10. Check the RCCB once a month (please refer to the Test Run of Heater) and consult professional for repair if there is any malfunction.
- Page 4 1. WATER HEATER PARTS IDENTIFICATION PENGENALAN BAHAGIAN – BAHAGIAN PEMANAS AIR EXTERNAL PARTS IDENTIFICATION PENGENALAN BAHAGIAN LUARAN ABS Front Cover Penutup Hadapan ABS Heater LED (Red) LED Pemanas (Merah) Power LED (Green) LED Kuasa (Hijau) RCCB Reset Button Butang Reset RCCB RCCB Test Button Inverter Pump Control Knob Tombol Uji RCCB...
- Page 5 SHOWER SET ACCESSORIES IDENTIFICATION PENGENALAN AKSESORI PANCURAN 1. BLACK ACCESSORIES AKSESORI HITAM Wall Bracket Pendakap dinding Hand Shower Alat pancuran Shower Holder Pemegang alat pancuran Sliding Rail Bar mandian Wall Bracket Pendakap dinding 150mm Flexible Hose Hos fleksibel 150mm...
- Page 6 2. RAIN SHOWER SET - 3 IN 1 DIVERTER (For selected model only) SET PANCURAN MANDIAN HUJAN Screw right Screw left 400mm 200mm 17mm 55mm 105mm 247mm 750~970mm 30mm 600mm 19mm 40mm 1500mm 750mm...
-
Page 7: General Information
2. GENERAL INFORMATION MAKLUMAT UMUM INSTALLATION PEMASANGAN CAUTION: AWAS: THIS APPLIANCE MUST BE EARTHED PERKAKAS INI MESTI DIBUMIKAN All the plumbing work should be completed before proceeding to electrical wiring connection. (Table 1) Semua pemasangan paip perlu diselesaikan sebelum memulakan kerja-kerja penyambungan wayar elektrik. -
Page 8: Installation Procedures
Electrical loading Table 1: Pendawaian elektrik Jadual 1: 15.8 Instantaneous water heater shall be equipped with a 2-pole control switch and own residual current device. Pemanas air segera hendaklah dilengkapi dengan kawalan suis 2-kutub dan memiliki peranti arus berbaki. Water heaters exceeding 3kW shall be permanently connected to a 20A/30A rated circuit breaker/fuse with an isolator switch and residual current device. - Page 9 3. Mounting position Lift upward Penetapan tapak pemanas Buka ke atas • Remove screw at the bottom of the heater Keluarkan skru dari bawah pemanas • Lift the plastic cover upward (Refer Diagram 2) Buka penutup plastik pemanas dari bahagian bawah.
-
Page 10: Important Note
Electrical Connection Penyambungan elektrik SWITCH OFF THE MAIN SUPPLY BEFORE ELECTRICAL WORK IMPORTANT NOTE ! PADAMKAN SUIS UTAMA SEBELUM MELAKUKAN KERJA-KERJA NOTA PENTING ! PENDAWAIAN ELEKTRIK a) Insert electrical cable through the rubber grommet as (Diagram 5). Masukkan kabel elektrik melalui grommet getah seperti yang ditunjukkan pada (Rajah 5). b) Connect the cable to the terminal block and fully tighten as below : Sambungkan kabel ke blok terminal dan ketatkan sepenuhnya seperti berikut: Ensure all wiring... - Page 11 4. OPERATION PROCEDURES / TEST RUN OF HEATER TATACARA OPERASI / PENGUJIAN PEMANAS Turn on stop valve (anti - clockwise). Hidupkan injap hentian (arah lawan jam). Stop Valve knob position during off Posisi injap hentian ketika dipadamkan Make sure water flow starts after stop valve had been turned on.
- Page 12 Test the ELCB by pressing “TEST” button. The unit should be tripped. “POWER” LED light and “TEST” button “HEATER” LED light would turn off. Butang “TEST” Uji ELCB dengan menekan butang “TEST”. Unit akan diputuskan bekalan kuasa. “POWER” dan “HEATER” LED akan terpadam. “RESET”...
-
Page 13: General Maintenance
Switch off the heater and main power supply when not in use. Padamkan suis pemanas dan bekalan kuasa apabila tidak menggunakannya. Knob position during off 5. GENERAL MAINTENANCE PENYELENGGARAN AM damp cloth Kain lembap Agen Agen penghakis penghakis & & alkohol alkohol stop... -
Page 14: Technical Specifications
6. TECHNICAL SPECIFICATIONS SPESIFIKASI TEKNIKAL Electrical loading / Muatan elektrik 4.25kW 240V 50/60Hz Other loading / Muatan lain Please refer Electrial loading table Rujuk jadual pendawaian elektrik RCCB sensitivity / Sensitiviti RCCB 15 mA Operating condition / Keadaan berfungsi Open system (Open outlet) / Sistem terbuka 15mm (1/2”... - Page 15 NON-PUMP (CE520N） TANPA PAM Relay Triac Live Hidup Neutral Neutral Heating Element Earth Bumi Elemen Pemanas Temperature Control Kawalan Suhu RCCB Flow Sensor Sensor Aliran Test / Reset Thermal Cut Out Pemotong Haba...
-
Page 16: Our Warranty
Years Warranty Warranty mths Warranty Extension Pendaftaran Di Laman Web Online Registration 1. Log on to www.rubine.com.my 1. Layari www.rubine.com.my 2. Click on ‘Support’, followed by ‘Product 2. Klik pada ‘Support’,diikuti dengan Warranty Registration’to proceed. You’re ‘Product Warranty Registration’. required to sign up as a member.
