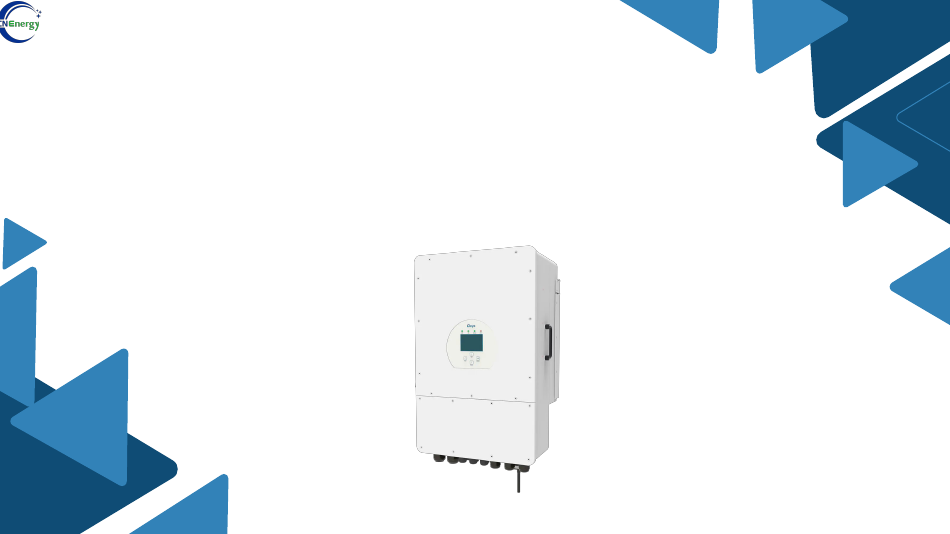

- Page 1 Inverter Operation Guide Deye-SUN-10K-SG04LP3-EU Editing Software ： WPS-11.1.0 Shanghai Energy Electronic Science and Technology Ltd.
- Page 2 Contents Scenario Connection Configuration...
- Page 3 PCS Control Panel ① ② ③ The LCD is touchscreen, below screen shows the overall information of the inverter. Key elements ① Invter : Deye-SUN-10K-SG04LP3-EU ② Interconnection cable：Standard network cable ③ Battery：The Li-ion Battery Pack composed of 16 strings of cells...
- Page 4 PCS Interfaces and Connection PCS Interfaces Battery access terminals Communication and functional interface PV\ACInput terminals A:Inputminals B:GEN PORT Connection Between PCS and BMS PIN1 RS485-B PIN1 RS485-B RS485-A RS485-A PIN2 PIN2 PIN3 PIN3 CAN-H CAN-H PIN4 PIN4 CAN-L CAN-L PIN5 PIN5 PIN6 RS485-GND...
- Page 5 Matching Setting of Inverter and BMS-1 • Check system connection conforms Turn on the AC power switch • ① ④ Click Basic Setting and check time Syncs、Beep、Auto D (Click the touch screen to select the setting item, the physical Tap the touchscreen settings button Down and up can add or subtract the value, click the button to enter the settings menu touch screen check to confirm the saving of the setting...
- Page 6 Matching Setting of Inverter and BMS-2 Click the screen down button, (1) column to set the charging SOC; (2) To set the charging column, Grid Charg, Grid Signal must be checked; √ (3) 24H means it won't be closed all the time. Gen Down Time: Indicates the √...
- Page 7 Matching Setting of Inverter and BMS-3 Select Selling first ⑧ Follow the local grid code and select the appropriate grid standard ⑨...
- Page 8 App Connection Settings-1 ① ④ ② ③ Open the software and Choose according to the Waiting for location Set the power station click on the upper right actual situation confirmation name and installed corner to add a power capacity station...
- Page 9 App Connection Settings-2 ⑤ ⑥ ⑦ ⑧ ADD A 2.4GWIFI Scan the SN code of WiFi network test Add collector after the corresponding creation collector...
- Page 10 App Connection Settings-3 ⑪ ⑨ ⑩ Connect to the collector WIFI Waiting for the configuration Exit the configuration to complete interface when complete...
