Deye SUN-5K-SG01HP3-EU-AM2 User Manual

Hybrid inverter

Hide thumbs Also See for SUN-5K-SG01HP3-EU-AM2:

Manual (64 pages)

User manual (52 pages)

User manual (52 pages)

page of 54

/ 54
Bookmarks

Quick Links

Download this manual

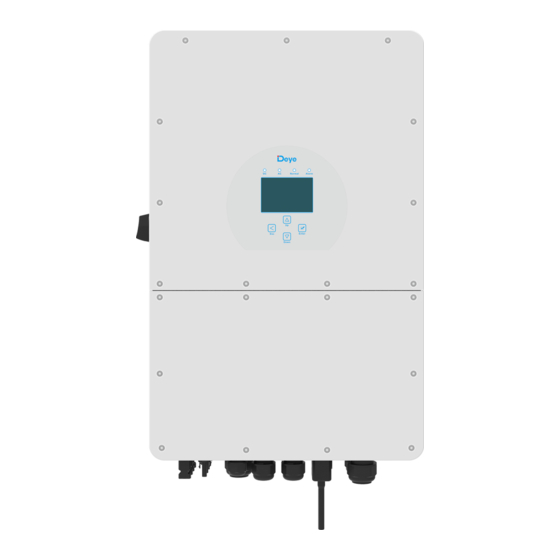

Hybrid Inverter

SUN-5K-SG01HP3-EU-AM2

SUN-6K-SG01HP3-EU-AM2

SUN-8K-SG01HP3-EU-AM2

SUN-10K-SG01HP3-EU-AM2

SUN-12K-SG01HP3-EU-AM2

SUN-15K-SG01HP3-EU-AM2

SUN-20K-SG01HP3-EU-AM2

SUN-25K-SG01HP3-EU-AM2

User Manual

05/28/2019 15:34:40

8.30

-3.00

25%

-2.00

3.00

Need help?

Do you have a question about the SUN-5K-SG01HP3-EU-AM2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Deye SUN-5K-SG01HP3-EU-AM2

Page 1 Hybrid Inverter SUN-5K-SG01HP3-EU-AM2 SUN-6K-SG01HP3-EU-AM2 SUN-8K-SG01HP3-EU-AM2 SUN-10K-SG01HP3-EU-AM2 05/28/2019 15:34:40 8.30 -3.00 -2.00 3.00 SUN-12K-SG01HP3-EU-AM2 SUN-15K-SG01HP3-EU-AM2 SUN-20K-SG01HP3-EU-AM2 SUN-25K-SG01HP3-EU-AM2 User Manual...
Page 2 Contents 1. Safety Introductions ………………………………………………… 2. Product instructions 02-05 ………………………………………………… 2.1 Product Overview 2.2 Product Size 2.3 Product Features 2.4 Basic System Architecture 2.5 Product handling requirements 3. Installation 05-24 …………………………………………………………… 3.1 Parts list 3.2 Mounting instructions 3.3 Battery connection 3.4 Grid connection and backup load connection 3.5 PV Connection 3.6 CT Connection...
Page 3 Documents must be stored carefully and be available at all �mes. Contents may be periodically updated or revised due to product development. The informa�on in this manual is subject to change without no�ce. The latest manual can be acquired via service@deye.com.cn 1. Safety Introduc�ons Safety signs...
Page 4 2. Product Introduc�ons This is a mul�func�onal inverter, combining func�ons of inverter, solar charger and ba�ery charger to oﬀer uninterrup�ble power support with portable size. Its comprehensive LCD display oﬀers user conﬁgurable and easy accessible bu�on opera�on such as ba�ery charging, AC/solar charging, and acceptable input voltage based on diﬀerent applica�ons.
Page 5 2.2 Product Size Inverter Size - 03 -...
Page 6 2.3 Product Features - 230V/400V Three phase Pure sine wave inverter. - Self-consump�on and feed-in to the grid. - Auto restart while AC is recovering. - Programmable supply priority for ba�ery or grid. - Programmable mul�ple opera�on modes: On grid, oﬀ grid and UPS. - Conﬁgurable ba�ery charging current/voltage based on applica�ons by LCD se�ng.
Page 7 2.5 Product handling requirements Two people stand on both sides of the machine, holding one handles to li� the machine. transport 3. Installa�on 3.1 Parts List Check the equipment before installa�on. Please make sure nothing is damaged in the package. You should have received the items in the following package: Stainless steel an�-collision Parallel communica�on...
Page 8 3.2 Moun�ng instruc�ons Installa�on Precau�on This Hybrid inverter is designed for outdoor use(IP65), Please make sure the installa�on site meets below condi�ons: · Not in direct sunlight · Not in areas where highly ﬂammable materials are stored. · Not in poten�al explosive areas. ·...
Page 9 ≥500mm ≥500mm For proper air circula�on to dissipate heat, allow a clearance of approx. 50cm to the side and approx. 50cm above and below the unit. And 100cm to the front. Moun�ng the inverter Remember that this inverter is heavy! Please be careful when li�ing out from the package. Choose the recommend drill head(as shown in below pic) to drill 4 holes on the wall, 62-70mm deep.
Page 10 3.3 Ba�ery connec�on For safe opera�on and compliance, a separate DC over-current protector or disconnect device is required between the ba�ery and the inverter. In some applica�ons, switching devices may not be required but over-current protectors are s�ll required. Refer to the typical amperage in the table below for the required fuse or circuit breaker size.
Page 11 b) Crimping metal terminals with crimping pliers as shown in picture 3.4. Pic 3.4 Crimp the contact pin to the wire c) Insert the contact pin to the top part of the connector and screw up the cap nut to the top part of the connector.
Page 12 3.3.2 Func�on port deﬁni�on Inverter Meter Parallel_1 Parallel_2 BMS1 BMS2 RS485 1 2 3 4 5 6 7 8 9 10 1112 1 2 3 4 5 6 7 8 9 10 1112 SHUT DOWN Meter: for energy meter communica�on. Parallel_1: Parallel communica�on port 1.
Page 13 3.4 Grid connec�on and backup load connec�on · Before connec�ng to the grid, a separate AC breaker must be installed between the inverter and the grid, and also between the backup load and the inverter. This will ensure the inverter can be securely disconnected during maintenance and fully protected from over current.
Page 14 Be sure that AC power source is disconnected before a�emp�ng to wire it to the unit. 3. Then, insert AC output wires according to polari�es indicated on the terminal block and �ghten terminal. Be sure to connect corresponding N wires and PE wires to related terminals as well. 4.
Page 15 3.5.1 PV Module Selec�on: When selec�ng proper PV modules, please be sure to consider below parameters: 1) Open circuit Voltage (Voc) of PV modules can not exceed max. PV array open circuit voltage of inverter. 2) Open circuit Voltage (Voc) of PV modules should be higher than min. start voltage. 3) The PV modules used to connected to this inverter shall be Class A ra�ng cer�ﬁed according to lEC 61730.
Page 16 Safety Hint: Please use approved DC cable for PV system. Cross section（mm ） Cable type Range Recommended value Industry generic PV cable 2.5-6 6(10AWG) (model: PV1-F) (12~10AWG) Chart 3-6 The steps to assemble the DC connectors are listed as follows: a) Strip oﬀ...
Page 17 Please use its own DC power connector from the inverter accessories. Do not interconnect the connectors of diﬀerent manufacturers.Max. DC input current should be 20A. if exceeds, it may damage the inverter and it is not covered by Deye warranty. - 15 -...
Page 18 3.6 CT Connec�on GRID Inverter 1 2 3 4 5 6 7 8 9 10 1112 Black wire White wire Arrow pointing inverter Grid *Note：when the reading of the load power on the LCD is not correct, please reverse the CT arrow. - 16 -...
Page 19 3.6.1 Meter Connec�on GRID Inverter Meter Parallel_1 Parallel_2 Three-Phase Smart Meter RS485A Grid RS485B Three-Phase Smart Meter (1,4,7,10) (3,6,9,10) RS 485 CHINT meter CHNT DTSU666 GRID Inverter Meter Parallel_1 Parallel_2 RS485B RS485A 1 2 3 4 5 6 7 8 Eastron Grid (1,2,3,4)
Page 20 GRID Inverter Meter Parallel_1 Parallel_2 AC Breaker RS485A RS485B Home Load AC Breaker Three-Phase Smart Meter Grid Blue line White line Blue line White line Blue line Note: the arrow direc�on towards the inverter White line 6 9 10 13 14 16 17 19 21 (3,6,9,10) Three-Phase Smart Meter...
Page 21 GRID Inverter Meter Parallel_1 Parallel_2 AC Breaker Home Load AC Breaker NA LA L1 L2 L3 N Grid S1 S2 S1 S2 S1 S2 Black line Red line Black line Red line Black line Note: the arrow direc�on Red line towards the inverter 9 1 0 11 1 2 1 3 1 4 1 5 1 6 1 7 1 8 1 9 2 0 Eastron...
Page 22 Note: When the inverter is in the oﬀ-grid state, the N line needs to be connected to the earth. Note: In ﬁnal installa�on,breaker cer�ﬁed according to IEC 60947-1 and IEC 60947-2 shall be installed with the equipment. 3.7 Earth Connec�on(mandatory) Ground cable shall be connected to ground plate on grid side this prevents electric shock if the original protec�ve conductor fails.
Page 23 3.9 Wiring System for Inverter - 21 -...
Page 24 3.10 Wiring diagram - 22 -...
Page 25 L wire N wire PE wire BMS1 BMS2 Inverter Ground ①DC Breaker Battery pack ②AC Breaker ③AC Breaker CT1 CT2 Grid ④AC Breaker Home Load ① DC Breaker for battery SUN 5K-SG-EU: 80A DC breaker Backup Load SUN 6K-SG-EU: 80A DC breaker SUN 8K-SG-EU: 80A DC breaker SUN 10K-SG-EU: 80A DC breaker SUN 12K-SG-EU: 80A DC breaker...
Page 26 3.11 Typical applica�on diagram of diesel generator L wire N wire PE wire Remotely control signal line coil relay open contact Generator ③AC Breaker GS (diesel generator startup signal) G-start (1,2): dry contact signal for startup the diesel generator. 1 2 3 4 5 6 7 8 9 10 1112 SHUT DOWN BMS1 BMS2...
Page 27 3.12 Three phase parallel connec�on diagram Note: The func�on of Mul�ple units work in parallel mode will be avaiable in Q1 2023. For the parallel system, the lead-acid ba�ery is not supported. Please use Deye approved lithium ba�ery. L wire...
Page 28 4. OPERATION 4.1 Power ON/OFF Once the unit has been properly installed and the ba�eries are connected well, simply press On/Oﬀ bu�on(located on the le� side of the case) to turn on the unit. When system without ba�ery connected, but connect with either PV or grid, and ON/OFF bu�on is switched oﬀ, LCD will s�ll light up(Display will show OFF), In this condi�on, when switch on ON/OFF bu�on and select NO ba�ery,system can s�ll working.
Page 29 5. LCD Display Icons 5.1 Main Screen The LCD is touchscreen, below screen shows the overall informa�on of the inverter. 12/08/2022 15:34:40 0.00 8.61 -8.12 0.00 1.The icon in the center of the home screen indicates that the system is Normal opera�on. If it turns into "comm./F01~F64"...
Page 30 5.1.1 LCD opera�on ﬂow chart Solar Page Solar Graph Grid Page Grid Graph Inverter Page Main Screen Battery Page BMS Page Load Page Load Graph Battery Setting System Work Mode Grid Setting System Setup Gen Port Use Basic Setting Advanced Function Device info - 28 -...
Page 31 5.2 Solar Power Curve Solar This is Solar Panel detail page. ① Solar Panel Genera�on. ② PV1-V: 286V PV1-I: 5.5A PV1-P: 1559W Voltage, Current, Power for each MPPT. ② PV2-V: 286V PV2-I: 5.5A PV2-P: 1559W ③ Daily and total PV produc�on. ③...
Page 32 Li-BMS Mean Voltage:170.0V Charging Voltage :180.0V Batt Total Current:37.00A Discharging Voltage :160.0V Data Mean Temp :23.5C Charging current :30A Total SOC :38% Discharging current :25A Battery 1 Stand by Dump Energy:57Ah Details Data U:170V I:2.04A Li-BMS Power: 101W Charge Volt Curr Temp Energy...
Page 33 5.4 System Setup Menu System Setup This is System Setup page. System Work Mode Battery Setting Gen Port Grid Setting Basic Advanced Device Info. Setting Function 5.5 Basic Setup Menu Basic Setting Factory Reset: Reset all parameters of the inverter. Lock out all changes: Enable this menu for se�ng Time Syncs Beep...
Page 34 5.6 Ba�ery Setup Menu Battery Setting Ba�ery capacity: it shows your ba�ery bank size to Deye hybrid inverter. Batt Mode Use Ba� V: Use Ba�ery Voltage for all the se�ngs (V). Lithium Batt Capacity Batt Use Ba� %: Use Ba�ery SOC for all the se�ngs (%).
Page 35 12/08/2022 15:34:40 This page tells the PV and diesel generator power the load and ba�ery. 0.00 8.61 Signal -8.12 0.00 Generator This page tells generator output voltage, frequency, power. And, how much energy is used from generator. Power: 6000W Today=10 KWH Total =10 KWH P_L1: 2KW V_L1: 230V...
Page 36 5.7 System Work Mode Setup Menu System Work Mode Work Mode Selling First: This Mode allows hybrid inverter to sell 12000 back any excess power produced by the solar panels to Selling First Max Solar Power the grid. If �me of use is ac�ve, the ba�ery energy also Work Zero Export To Load Solar Sell...
Page 37 Time of use: it is used to program when to use grid or generator to charge the ba�ery, and when to discharge the ba�ery to power the load. Only �ck "Time Of Use" Time Of Use then the follow items (Grid, charge, �me, power etc.) Time Power Batt...
Page 38 5.8 Grid Setup Menu Grid Setting/Grid code selection Grid Mode:General Standard、UL1741 & IEEE1547、 CPUC RULE21、SRD-UL-1741、CEI 0-21、Australia A、 Grid Mode General Standard 0/10 Australia B、Australia C、EN50549_CZ-PPDS(>16A)、 Phase Type Grid Frequency 50HZ Grid NewZealand、VDE4105、OVE-Direc�ve R25. Set1 0/120/240 60HZ Please follow the local grid code and then choose the 0/240/120 corresponding grid standard.
Page 39 Grid Setting/F(W) FW: this series inverter is able to adjust inverter output power according to grid frequency. F(W) Droop F: percentage of nominal power per Hz Over frequency Droop F %PE/Hz For example, “Start freq F＞50.2Hz, Stop freq F＜51.5, Grid Set4 Stop freq F Start freq F...
Page 40 5.9 Generator Port Use Setup Menu GEN PORT USE Generator input rated power: allowed Max. power from diesel generator. Mode GEN connect to grid input: connect the diesel generator to the Generator Input GEN connect to Grid input grid input port. PORT Rated Power Smart Load Output: This mode u�lizes the Gen input connec�on...
Page 41 Advanced Function Ex_Meter For CT: when using zero-export to CT mode, the hybrid inverter can select EX_Meter For CT func�on Modbus SN Parallel and use the diﬀerent meters.e.g.CHNT and Eastron. Master Paral. Set3 Slave EX_Meter For CT Meter Select No Meter CHNT Eastron 5.11 Device Info Setup Menu...
Page 42 Mode III: With Smart-Load AC cable DC cable Solar Backup Load On-Grid Home Load Grid Battery Smart Load Mode IV: AC Couple On-Grid+AC couple AC cable DC cable Solar Backup Load On-Grid Home Load Grid Battery On-Grid Inverter The 1st priority power of the system is always the PV power, then 2nd and 3rd priority power will be the ba�ery bank or grid according to the se�ngs.
Page 43 Error code Description Solutions 1，Check the PV input polarity DC_Inversed_Failure 2，Seek help from us, if can not go back to normal state. 1，The BUS voltage can t be built from PV or battery. DC_START_Failure 2，Restart the inverter, If the fault still exists, please contact us for help 1.
Page 44 Error code Description Solutions BUS over current. 1, Check the PV input current and battery current setting Tz_HV_Overcurr_fault 2. Restart the system 2~3 times. 3. If the fault still exists, please contact us for help. Remotely shutdown Tz_EmergStop_Fault 1, it tells the inverter is remotely controlled. Leakage current fault 1.
Page 45 Error code Description Solutions Grid frequency out of range 1. Check the frequency is in the range of specification or not; AC_OverFreq_Fault 2. Check whether AC cables are firmly and correctly connected; 3. Seek help from us, if can not go back to normal state. Grid frequency out of range 1.
Page 46 Under the guidance of our company, customers return our products so that our company can provide service of maintenance or replacement of products of the same value. Customers need to pay the necessary freight and other related costs. Any replacement or repair of the product will cover the remaining warranty period of the product.
Page 47 8. Datasheet SUN-5K-SG01HP3- SUN-6K-SG01HP3- SUN-8K-SG01HP3- SUN-10K-SG01HP3- Model EU-AM2 EU-AM2 EU-AM2 EU-AM2 Battery Input Date Ba�ery Type Li-Ion Ba�ery Voltage Range(V) 160~700 Max. Charging Current(A) Max. Discharging Current(A) Number of ba�ery input Charging Strategy for Li-lon Ba�ery Self-adap�on to BMS PV String Input Data Max.
Page 48 Certiﬁcations and Standards VDE4105,IEC61727/62116,VDE0126,AS4777.2,CEI 0 21,EN50549-1, Grid Regula�on G98,G99,C10-11,UNE217002,NBR16149/NBR16150 IEC62109-1/-2, NBT32004-2018, EN61000-6-1,EN61000-6-2, EMC/Safety Regula�on EN61000-6-3, EN61000-6-4 General Data Opera�ng Temperature Rande(℃) -40~60℃, >45℃ Dera�ng Cooling Smart cooling Noise(dB) ≤55 dB Communica�on with BMS RS485; CAN Weight(kg) 30.5 Cabinet size(mm) 408W×638H×237D (Excluding connectors and brackets) Protec�on Degree IP65 Installa�on Style...
Page 49 SUN-12K-SG01HP3- SUN-15K-SG01HP3- SUN-20K-SG01HP3- SUN-25K-SG01HP3- Model EU-AM2 EU-AM2 EU-AM2 EU-AM2 Battery Input Date Ba�ery Type Li-Ion Ba�ery Voltage Range(V) 160~700 Max. Charging Current(A) Max. Discharging Current(A) Number of ba�ery input Charging Strategy for Li-lon Ba�ery Self-adap�on to BMS PV String Input Data Max.
Page 50 Certiﬁcations and Standards VDE4105,IEC61727/62116,VDE0126,AS4777.2,CEI 0 21,EN50549-1, Grid Regula�on G98,G99,C10-11,UNE217002,NBR16149/NBR16150 IEC62109-1/-2, NBT32004-2018, EN61000-6-1,EN61000-6-2, EMC/Safety Regula�on EN61000-6-3, EN61000-6-4 General Data Opera�ng Temperature Rande(℃) -40~60℃, >45℃ Dera�ng Cooling Smart cooling Noise(dB) ≤55 dB Communica�on with BMS RS485; CAN Weight(kg) 30.5 Cabinet size(mm) 408W×638H×237D (Excluding connectors and brackets) Protec�on Degree IP65 Installa�on Style...
Page 51 9. Appendix I Deﬁni�on of RJ45 Port Pin for BMS1 1 2 3 4 5 6 7 8 BMS1 Port RS485 Pin 485_B 485_A GND_485 CAN-H1 CAN-L1 GND_485 485_A 485_B Deﬁni�on of RJ45 Port Pin for BMS2 BMS2 Port RS485 Pin 485_B 485_A GND_485...
Page 52 Deﬁni�on of RJ45 Port Pin for RS485 1 2 3 4 5 6 7 8 RS485 Pin RS485 Port Modbus-485_B Modbus-485_A GND_485 GND_485 Modbus-485_A Modbus-485_B RS232 WIFI/RS232 D-GND 12Vdc WIFI/RS232 This RS232 port is used to connect the wiﬁ datalogger - 50 -...
Page 53 10. Appendix II 1. Split Core Current Transformer (CT) dimension: (mm) 2. Secondary output cable length is 4m. Lead Outside Ver: 2.2, 2023-05-23 - 51 -...
Page 54 Add: No.26 South YongJiang Road, Daqi, Beilun, NingBo, China. Tel: +86 (0) 574 8622 8957 Fax: +86 (0) 574 8622 8852 E-mail: service@deye.com.cn Web: www.deyeinverter.com...
