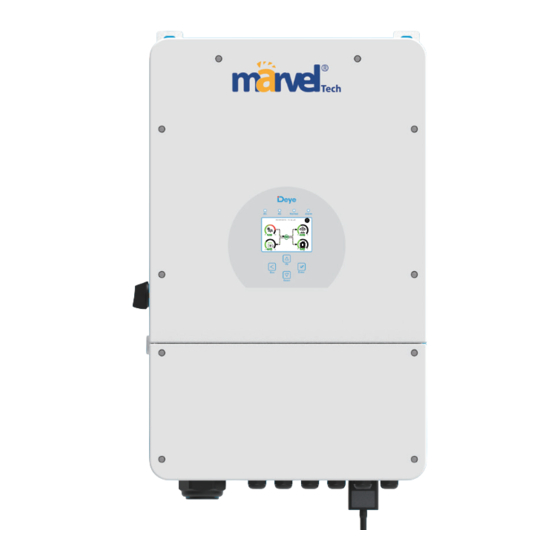

Hybrid Inverter
SUN-10K-SG02LP1-EU-AM3
SUN-12K-SG02LP1-EU-AM3
User Manual
R
/
05/28/2019 15:34:40
0
8.30
12
KW
ON
25%
0
-2.00
8
KW
0
-3.00
8
KW
0
3.00
8
KW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the marvelTech SUN-10K-SG02LP1-EU-AM3 and is the answer not in the manual?

Questions and answers

Related Manuals for Deye marvelTech SUN-10K-SG02LP1-EU-AM3

Summary of Contents for Deye marvelTech SUN-10K-SG02LP1-EU-AM3

  • Page 1 Hybrid Inverter SUN-10K-SG02LP1-EU-AM3 SUN-12K-SG02LP1-EU-AM3 User Manual 05/28/2019 15:34:40 8.30 -3.00 -2.00 3.00...

  • Page 2: Table Of Contents

    Contents 1. Safety Introductions ………………………………………………… 01 2. Product instructions 02-04 ………………………………………………… 2.1 Product Overview 2.2 Product Size 2.3 Product Features 2.4 Basic System Architecture 3. Installation 05-24 …………………………………………………………… 3.1 Parts list 3.2 Mounting instructions 3.3 Battery connection 3.4 Grid connection and backup load connection 3.5 PV Connection 3.6 CT Connection 3.6.1 Meter Connection...

  • Page 3: Safety Introductions

    Documents must be stored carefully and be available at all �mes. Contents may be periodically updated or revised due to product development. The informa�on in this manual is subject to change without no�ce. The latest manual can be acquired via service@deye.com.cn 1. Safety Introduc�ons Safety signs...

  • Page 4: Product Overview

    2. Product Introduc�ons This is a mul�func�onal inverter, combining func�ons of inverter, solar charger and ba�ery charger to offer uninterrup�ble power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible bu�on opera�on such as ba�ery charging, AC/solar charging, and acceptable input voltage based on different applica�ons.

  • Page 5: Product Size

    2.2 Product Size Inverter Size - 03 -...

  • Page 6: Product Features

    2.3 Product Features - Self-consump�on and feed-in to the grid. - Auto restart while AC is recovering. - Programmable supply priority for ba�ery or grid. - Programmable mul�ple opera�on modes: On grid, off grid and UPS. - Configurable ba�ery charging current/voltage based on applica�ons by LCD se�ng. - Configurable AC/Solar/Generator Charger priority by LCD se�ng.

  • Page 7: Parts List

    3. Installa�on 3.1 Parts List Check the equipment before installa�on. Please make sure nothing is damaged in the package. You should have received the items in the following package: Stainless steel an�-collision Parallel communica�on Hybrid inverter bolt M8×80 cable x1 User manual L-type Hexagon wrench...
  • Page 8 3.2 Moun�ng instruc�ons Installa�on Precau�on This Hybrid inverter is designed for outdoor use(IP65), Please make sure the installa�on site meets below condi�ons: · Not in direct sunlight · Not in areas where highly flammable materials are stored. · Not in poten�al explosive areas. ·...
  • Page 9 ≥500mm ≥500mm For proper air circula�on to dissipate heat, allow a clearance of approx. 50cm to the side and approx. 50cm above and below the unit. And 100cm to the front. Moun�ng the inverter Remember that this inverter is heavy! Please be careful when li�ing out from the package. Choose the recommend drill head(as shown in below pic) to drill 4 holes on the wall, 82-90mm deep.
  • Page 10 12 mm ( 0.47 in.) 82~90mm [(3.23 in.)to(3.54 in.)] 3.3 Ba�ery connec�on For safe opera�on and compliance, a separate DC over-current protector or disconnect device is required between the ba�ery and the inverter. In some applica�ons, switching devices may not be required but over-current protectors are s�ll required.
  • Page 11 All wiring must be performed by a professional person. Connec�ng the ba�ery with a suitable cable is important for safe and efficient opera�on of the system. To reduce the risk of injury, refer to Chart 3-2 for recommended cables. Please follow below steps to implement ba�ery connec�on: 1.
  • Page 12 3.3.2 Func�on port defini�on Inverter 1 2 3 4 5 6 7 8 9 10 ATS_240V BMS 485/CAN DRMs Meter Parallel_A Parallel_B BMS 485/CAN: for ba�ery communica�on. Meter: for energy meter communica�on. Parallel A: Parallel communica�on port 1 Batt Temp Sensor （CAN interface）.
  • Page 13 3.3.3 Temperature sensor connec�on for lead-acid ba�ery Temp. sensor - 11 -...
  • Page 14 3.4 Grid connec�on and backup load connec�on · Before connec�ng to the grid, a separate AC breaker must be installed between the inverter and the grid, and also between the backup load and the inverter.This will ensure the inverter can be securely disconnected during maintenance and fully protected from over current. For the 10/12kW model, the recommended AC breaker for backup load is 100A.
  • Page 15 LOAD GRID GEN PORT GRID GEN PORT LOAD - 13 -...

  • Page 16: Pv Connection

    Be sure that AC power source is disconnected before a�emp�ng to wire it to the unit. 3. Then, insert AC output wires according to polari�es indicated on the terminal block and �ghten terminal. Be sure to connect corresponding N wires and PE wires to related terminals as well. 4.
  • Page 17 3.5.1 PV Module Selec�on: When selec�ng proper PV modules, please be sure to consider below parameters: 1) Open circuit Voltage (Voc) of PV modules not exceeds max. PV array open circuit voltage of inverter. 2) Open circuit Voltage (Voc) of PV modules should be higher than min. start voltage. 3) The PV modules used to connected to this inverter shall be Class A ra�ng cer�fied according to lEC 61730.

  • Page 18: Ct Connection

    3.6 CT Connec�on Inverter White wire Black wire Arrow pointing inverter Grid The primary side of the CT needs to be clamped on the If the data read by the CT is wrong, you can try to point Grid live line. the direction of the CT to the grid.
  • Page 19 Inverter Breaker Meter Parallel_A Parallel_B System connec�on diagram for the Eastron meter Input Output RS 485 230V/2T 230V/2T Grid 1+COM 1+COM RS485A RS485B EASTRON SDM230 Pic 7.1 EASTRON meter Note: When the inverter is in the off-grid state, the N line needs to be connected to the earth.

  • Page 20: Earth Connection(Mandatory)

    3.7 Earth Connec�on(mandatory) Ground cable shall be connected to ground plate on grid side, this prevents electric shock if the original protec�ve conductor fails. Model Wire Size Cable(mm ) Torque value(max) 10/12kW 5AWG 1.2Nm 3.8 WIFI Connec�on For the configura�on of Wi-Fi Plug, please refer to illustra�ons of the Wi-Fi Plug. The Wi-Fi Plug is not a standard configura�on, it's op�onal.

  • Page 21: Wiring System For Inverter

    3.9 Wiring System for Inverter This diagram is an example for grid systems without special requirements on electrical wiring connec�on. Note: The back-up PE line and earthing bar must be grounded properly and DC Breaker effec�vely. Otherwise the back-up func�on may be abnormal when the grid fails. AC Breaker Load Battery...

  • Page 22: Typical Application Diagram Of Diesel Generator

    3.10 Typical applica�on diagram of diesel generator L wire N wire PE wire G-start (7,8): dry contact signal for startup the diesel generator. Inverter Inverter coil relay open contact GS (diesel generator startup signal) Ground Remotely control signal line ① DC Breaker Generator Battery pack...

  • Page 23: Single Phase Parallel Connection Diagram

    3.11 Single phase parallel connec�on diagram L wire N wire PE wire Inverter No.3 Parallel A Parallel B (slave) Ground Inverter ①②③ DC Breaker for battery ④ Inverter SUN-10K-SG-EU: 300A DC breaker ① DC No.2 SUN-12K-SG-EU: 300A DC breaker Breaker ⑤...
  • Page 24 L wire N wire PE wire Inverter No.3 Parallel A Parallel B (slave) Ground Inverter ① DC Breaker ④ Inverter ①②③ DC Breaker for battery No.2 ⑤ (slave) SUN-10K-SG-EU: 300A DC breaker SUN-12K-SG-EU: 300A DC breaker ② DC ⑤⑦⑨ AC Breaker for gen port ⑥...

  • Page 25: Three Phase Parallel Inverter

    3.13 Three phase Parallel Inverter - 23 -...
  • Page 26 - 24 -...

  • Page 27: Operation

    4. OPERATION 4.1 Power ON/OFF Once the unit has been properly installed and the ba�eries are connected well, simply press On/Off bu�on(located on the le� side of the case) to turn on the unit. When system without ba�ery connected, but connect with either PV or grid, and ON/OFF bu�on is switched off, LCD will s�ll light up(Display will show OFF), In this condi�on, when switch on ON/OFF bu�on and select NO ba�ery,system can s�ll working.

  • Page 28: Lcd Display Icons

    5. LCD Display Icons 5.1 Main Screen The LCD is touchscreen, below screen shows the overall informa�on of the inverter. 05/28/2019 15:34:40 8.30 -3.00 -2.00 3.00 1.The icon in the center of the home screen indicates that the system is Normal opera�on. If it turns into "comm./F01~F64"...
  • Page 29 5.1.1 LCD opera�on flow chart Solar Page Solar Graph Grid Page Grid Graph Inverter Page Main Screen Battery Page BMS Page Load Page Load Graph Battery Setting System Work Mode Grid Setting System Setup Gen Port Use Basic Setting Advanced Function Device info - 27 -...

  • Page 30: Solar Power Curve

    5.2 Solar Power Curve This is Solar Panel detail page. Solar ① Solar Panel Genera�on. ① ② ② Grid Tie Power: when there’s a string inverter Power: 2923W Grid Tie Power: 2923W AC couple at the grid or load side of hybrid inverter PV1-V: 0V PV2-V: 0V PV3-V: 0V...

  • Page 31: Curve Page-Solar & Load & Grid

    Li-BMS Mean Voltage:50.34V Charging Voltage :53.2V Batt Total Current:55.00A Discharging Voltage :47.0V Data Mean Temp :23.5C Charging current :50A Total SOC :38% Discharging current :25A Stand-by Dump Energy:57Ah Details SOC: 36% Data Request Force Charge U:50.50V Request Force Charge: It indicates the I:-58.02A BMS requests hybrid inverter to charge Power: -2930W...

  • Page 32: System Setup Menu

    5.4 System Setup Menu System Setup This is System Setup page. System Work Mode Battery Setting Gen Port Grid Setting Basic Advanced Device Info. Setting Function 5.5 Basic Setup Menu Basic Setting Factory Reset: Reset all parameters of the inverter. Lock out all changes: Enable this menu for se�ng Time Syncs Beep...

  • Page 33: Battery Setup Menu

    5.6 Ba�ery Setup Menu Ba�ery capacity: it tells Deye hybrid inverter to know Battery Setting your ba�ery bank size. Use Ba� V: Use Ba�ery Voltage for all the se�ngs (V). Batt Mode Use Ba� %: Use Ba�ery SOC for all the se�ngs (%).
  • Page 34 Generator This page tells generator output voltage, frequency, power. And, how much energy is used from generator. Power: 1392W Today=0.0 KWH Total =2.20 KWH L1: 228V Freq:50.0Hz Battery Setting Lithium Mode: This is BMS protocol.Please reference the document(Approved Ba�ery). Lithium Mode Shutdown 10%: It indicates the inverter will shutdown Batt if the SOC below this value.

  • Page 35: System Work Mode Setup Menu

    5.7 System Work Mode Setup Menu System Work Mode Work Mode Selling First: This Mode allows hybrid inverter to sell 8000 back any excess power produced by the solar panels to Selling First Max Solar Power the grid. If �me of use is ac�ve, the ba�ery energy also Work Zero Export To Load Solar Sell...
  • Page 36 Solar Sell: “Solar sell” is for Zero export to load or Zero export to CT: when this item is ac�ve, the surplus energy can be sold back to grid. When it is ac�ve, PV Power source priority usage is as follows: load consump�on and charge ba�ery and feed into grid.

  • Page 37: Grid Setup Menu

    5.8 Grid Setup Menu Grid Setting Unlock Grid Se�ng: before changing the grid parameters, please enable this with password of 7777. Then it is Unlock Grid Setting allowed to change the grid parameters. Grid Mode General Standard 0/16 Grid Grid Mode: General Standard、UL1741 & IEEE1547、 Set1 Grid Frequency INV Output Voltage...

  • Page 38: Generator Port Use Setup Menu

    Grid Setting/V(W) V(Q) V(W): It is used to adjust the inverter ac�ve power according to the set grid voltage. V(Q): It is used to adjust the inverter reac�ve power V(W) V(Q) according to the set grid voltage. Lock-in/Pn Lock-out/Pn This func�on is used to adjust inverter output power Grid (ac�ve power and reac�ve power) when grid voltage Set5...

  • Page 39: Advanced Function Setup Menu

    Smart Load OFF Ba� • Ba�ery SOC at which the Smart load will switch off. Smart Load ON Ba� • Ba�ery SOC at which the Smart load will switch on. Also, the PV input power should exceed the se�ng value (Power) simultaneously and then the Smart load will switch on.

  • Page 40: Device Info Setup Menu

    Advanced Function Ex_Meter For CT: when in Three phase system with CHNT Three phase energy meter (DTSU666), click corresponding phase where hybrid inverter is connected. e.g. when the Modbus SN Parallel A Phase hybrid inverter output connects to A phase, please click A Master B Phase Phase.
  • Page 41 Mode I:Basic AC cable DC cable COM cable Backup Load On-Grid Home Load Solar Battery Grid Mode II: With Generator AC cable DC cable Solar Backup Load On-Grid Home Load Grid Battery Generator Mode III: With Smart-Load AC cable DC cable Solar Backup Load On-Grid Home Load...

  • Page 42: Fault Information And Processing

    On-Load+AC couple AC cable DC cable On-Grid Inverter Backup Load Solar On-Grid Home Load Battery Grid Smart Load On-Grid+AC couple AC cable DC cable Backup Load Solar On-Grid Home Load On-Grid Inverter Battery Grid Smart Load The 1st priority power of the system is always the PV power, then 2nd and 3rd priority power will be the ba�ery bank or grid according to the se�ngs.
  • Page 43 Error code Description Solutions 1. When inverter is in Split phase(120/240Vac) or three-phase GFDI _Relay_Failure system (120/208Vac) system, the backup load port N line needs to connect ground; 2. If the fault still exists, please contact us for help. 1. When the grid type and frequency changed it will report F13; 2.
  • Page 44 Error code Description Solutions 1. Check the backup load connected, make sure it is in allowed power range; AC Overcurrent fault 2. If the fault still exists, please contact us for help. No Utility 1. Please confirm grid is lost or not; No AC grid 2.
  • Page 45 Under the guidance of our company, customers return our products so that our company can provide service of maintenance or replacement of products of the same value. Customers need to pay the necessary freight and other related costs. Any replacement or repair of the product will cover the remaining warranty period of the product.

  • Page 46: Datasheet

    9. Datasheet Model SUN-10K- SUN-12K- SG02LP1-EU-AM3 SG02LP1-EU-AM3 Battery Input Data Ba�ery Type Lead-acid or Li-Ion Ba�ery Voltage Range(V) 40-60 Max. Charging Current(A) Max. Discharging Current(A) Charging Curve 3 Stages / Equaliza�on External Temperature Sensor Charging Strategy for Li-Ion Ba�ery Self-adap�on to BMS PV String Input Data Max.
  • Page 47 Certifications and Standards IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, Grid Regula�on UNE 217002, OVE-Richtlinie R25, G99, G98, VDE-AR-N 4105 EMC / Safety Regula�on IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 General Data Opera�ng Temperature Range(℃) -40 to +60℃, >45℃...
  • Page 48 10. Appendix I Defini�on of RJ45 Port Pin for BMS BMS 485/CAN Pin 1 2 3 4 5 6 7 8 485_B 485_A GND_485 CAN-H CAN-L GND_485 485_A 485_B BMS 485/CAN Port - 46 -...
  • Page 49 Meter Port This port is used to connect the energy meter. Note: some hardware versions hybrid inverter don't support conenc�ng the energy meter Meter Pin 1 2 3 4 5 6 7 8 METERB METERA METERB METERA GND_2 METERA METERB RS232 WIFI/RS232 D-GND...

  • Page 50: Appendix

    11. Appendix II 1. Split Core Current Transformer (CT) dimension: (mm) 2. Secondary output cable length is 4m. Lead Outside Ver: 2.2, 2023-12-01 - 48 -...
