Speco N4JLN User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
N4JLN
N8JLN
N16JLN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N4JLN and is the answer not in the manual?

Questions and answers

Related Manuals for Speco N4JLN

Summary of Contents for Speco N4JLN

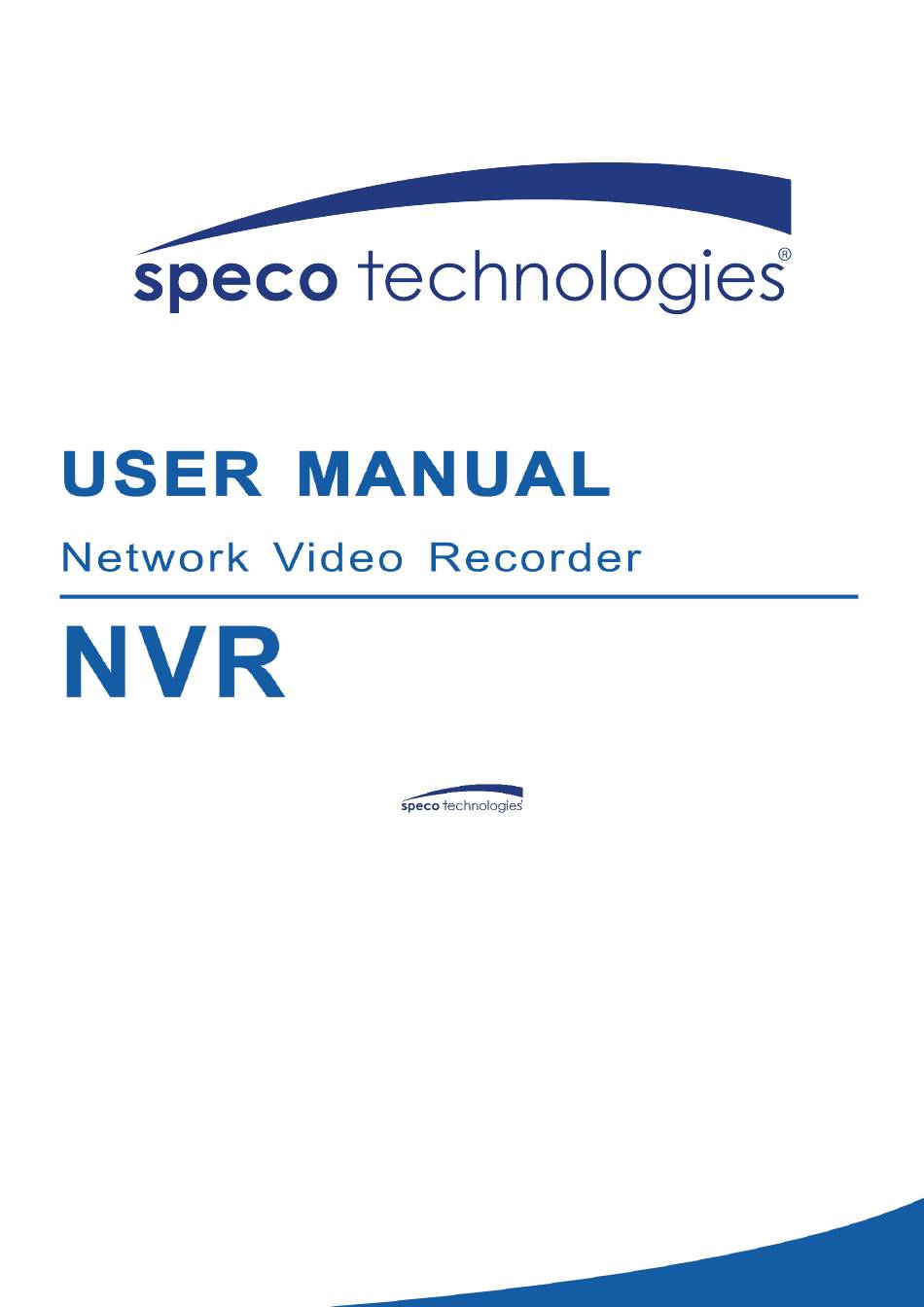

  • Page 1 N4JLN N8JLN N16JLN...

  • Page 2: Table Of Contents

    SAFETY INSTRUCTIONS ........................... 6 CHAPTER 1 PRODUCT OVERVIEW ........................1 ............................... 1 ANEL 1.2 R ) ......................2 EMOTE ONTROL EFERENCE CHAPTER 2 NVR INSTALLATION & CONNECTION ..................... 3 2.1 HDD I ............................3 NSTALLATION 2.2 C ............................4 ONNECTION IAGRAM 2.3 P ..........................
  • Page 3 USER MANUAL 5.1.3 Image Control ............................29 5.1.4 PTZ ............................... 30 5.1.5 Video Cover ............................30 5.1.6 Motion ..............................31 5.1.7 PIR ................................ 32 5.1.8 Deterrence ............................33 5.1.9 Intelligent Analysis ..........................34 5.1.9.1 PID (Perimeter Intrusion Detection) ........................ 34 5.1.9.1.1 Alarm Setup .............................
  • Page 4 USER MANUAL 5.4.2 Recognition ............................67 5.4.2.1 Model Configuration ............................67 5.4.2.2 Database Management ........................... 67 5.4.3 Alarm ..............................69 5.4.3.1 Face Recognition .............................. 69 5.4.3.2 AD (Attribute Detection) ..........................71 5.4.3.3 PD & VD (Human & Vehicle Detection) ......................72 5.4.3.4 PID (Perimeter Intrusion Detection) ........................
  • Page 5 USER MANUAL 5.7.3.3 Upgrade ................................99 5.7.3.4 Parameter Management ..........................99 5.7.3.5 Auto Reboot ..............................100 5.7.4 IP Camera Maintainence ........................100 5.7.4.1 Upgrade IP Camera ............................101 5.7.4.2 Load Default Settings for IP Camera ......................102 5.7.4.3 Reboot IPC ..............................102 5.7.4.4 Parameter Management ..........................
  • Page 6 USER MANUAL 7.3 W ..........................136 LIENT ANAGER 7.3.1 Live Interface ............................136 7.3.2 Playback ............................. 139 7.3.2.1 Playback Control Buttons ..........................140 7.3.3 Remote Setting ..........................141 7.3.4 Local Setting ............................142 CHAPTER 8 VIEWING BACKED UP VIDEO ON PC/MAC ................. 143 CHAPTER 9 REMOTE ACCESS VIA MOBILE DEVICES ..................

  • Page 7: Safety Instructions

    USER MANUAL SAFETY INSTRUCTIONS Please carefully read the following safety instructions so as to avoid personal injuries and prevent your equipment and other connected devices from being damaged. 1. Power sources (note: please use the power supply attached or specified by the manufacturer) Never operate the equipment by using an unspecified power supply.

  • Page 8: Chapter 1 Product Overview

    Chapter 1 Product Overview 1.1 Rear Panel Item Physical Port Connection Method Power Switch Startup and shutdown Power Port Connect the attached power supply AUDIO OUTPUT Audio signal output, RCA interface VGA Port Connect to VGA monitor, such as PC monitor HDMI Port HDMI high-definition port USB Port...

  • Page 9: Remote Control (For Reference Only)

    USER MANUAL *The actual product may be different from the manual, please refer to the actual product. 1.2 Remote Control (For Reference Only) Icon Description Numeric keys Press to display channel 1~8 9、0 Numeric keys Press to display all channels Multiple display mode Menu Press to enter or exit the Main Menu...

  • Page 10: Chapter 2 Nvr Installation & Connection

    NVR case. Note: Above procedures are for reference only. Your unit already has the Hard Drive installed and removing or changing the hard drive without prior approval from Speco Technologies will void your warranty.

  • Page 11: Connection Diagram

    USER MANUAL 2.2 Connection Diagram Speaker Note: Above diagram is for reference only. The practical connection may be different depending on the NVR you purchased. 2.3 Power Supply Connection Caution: Use only the supplied power adapter that came with the NVR Connect one end of the power adapter to the power connector on the back of the NVR.

  • Page 12: Chapter 3 Nvr Common Operations

    USER MANUAL Chapter 3 NVR Common Operations 3.1 Using the Supplied Mouse Left Button: Click to select menu options. During live viewing in split-screen view, double-click on a channel to view it in full-screen. Double-click the channel again to return to split-screen viewing. Click upon a channel on Live Viewing screen to open Camera Quick Toolbar.

  • Page 13: Password

    Enter your user name & password to Login to the NVR system. NOTE: If you forget your password, you will be unable to login to the system, you must contact Speco Technologies Technical Support. There is a fee to recover a password.

  • Page 14: Chapter 4 Nvr Startup

    USER MANUAL Chapter 4 NVR Starting up 4.1 Start Wizard Startup Wizard will help to configure the system and get the NVR up and running quickly. 4.1.1 Start Wizard Click the Start Wizard to proceed to the next step 4.1.2 Network Configuration...
  • Page 15 USER MANUAL If you connect to a router that allows you to use DHCP, please check the DHCP box. The router will assign automatically all the network parameters for your NVR. If the network is manually addressed, use the parameters below: Address: The IP address identifies the NVR to the network.

  • Page 16: Date/Time

    USER MANUAL External Port: Used for WAN / Internet connection. UPNP: If you want to log in remotely to the NVR using Web Client, you need to complete the port forwarding in your router. Enable this option if your router supports the UPnP. In this case, you do not need to configure manual port forwarding on your router.

  • Page 17: Ip Camera

    USER MANUAL DST stands for Daylight Savings Time. DST: Enable if Daylight Saving Time (DST) is observed in your region Time Offset: Select the amount of time to offset for DST Time Mode: Choose to set the daylight saving time in weeks or in days Start Time/End Time: Set the start time and end time for daylight saving 4.1.4 IP Camera...

  • Page 18: Disk

    USER MANUAL For Non-PoE NVR, you need to add the IP cameras from the LAN and/or Internet manually. See more in 5.1.3.2 Non-PoE NVR Connection. 4.1.5 Disk If a HDD is installed in the NVR for the first time, it must be formatted. Select the HDD and then click Format HDD button to format the HDD.

  • Page 19: Resolution

    USER MANUAL 4.1.6 Resolution Choose an output resolution to match your monitor. The NVR can adjust the output resolution automatically to match the best resolution of your monitor when the system is starting up. 4.1.7 Mobile If your NVR come with a P2P ID, you can scan the QR code with your mobile app to view the NVR remotely.

  • Page 20: Live View Screen Overview

    USER MANUAL 4.2 Live View Screen Overview Status Icons This indicates that the NVR is currently recording. This icon appears when the camera has detected motion. The icon indicates that the external I/O alarm device is triggered This icon indicates that the HDD is in error to work This icon indicates the HDD is unformatted This icon indicates the HDD is full.

  • Page 21: Camera Quick Toolbar

    USER MANUAL 4.2.1 Camera Quick Toolbar In live viewing, click the left button of your mouse on a connected camera to display the Camera Quick Toolbar. Click to manually record the channel immediately. If manual recording is in process, the icon will be red.

  • Page 22: Taskbar

    USER MANUAL 4.2.2 Taskbar Click to open the Start Menu Click to choose a different layout for live view Click to choose more layouts for live view Click to start viewing channels in a sequence Quick playback. You can choose to play the latest recording for all channels from the beginning of the day, or you can choose the playback from the latest 5s, 10s, 30s, 1Min, 5Min.

  • Page 23: Unlock And Lock Screen

    USER MANUAL 4.2.3.1 Unlock and Lock Screen The screen will be locked to protect unauthorized OSD operation if the NVR is not in menu operation for 1 minute. If necessary, you can also lock the screen operation manually. To do so, go to Start Menu, and then click the Lock Screen icon to lock the system immediately.

  • Page 24: Chapter 5 Nvr System Setup

    USER MANUAL Chapter 5 NVR System Setup You are able to configure the NVR for Channel, Record, Alarm, Network, Device & System from Start Menu à Setup. 5.1 Channel In this section, you can configure the camera connections, live view display, manage IP cameras, adjust IP camera’s image, PTZ setup, Video Cover, Motion, and more.

  • Page 25: Channel

    USER MANUAL 5.1.1 Channel 5.1.1.1 Channel Config This menu only appears on the JWA/JWN wireless NVRs. A maximum of 4 wireless IP cameras are allowed to connect to the NVR. Click the drop-down arrow next to the channel ID and choose the mode. Choose “Digital”...

  • Page 26: Ip Channels

    USER MANUAL 5.1.1.3 IP Channels In this section, you are able to configure the connection of your wired IP cameras. If your NVR comes with PoE ports, please go to 5.1.3.1 PoE NVR Connection, if your NVR comes without PoE ports, please go to 5.1.3.2.
  • Page 27 USER MANUAL Switch Mode: Auto mode supports Plug & Play connection via PoE port. If you want to add camera(s) manually then change the mode to Manual. Switch Mode: Auto mode limits the maximum bandwidth to 100Mbps, EPOE mode limits the maximum bandwidth to 10Mbps.

  • Page 28: Steps To Connect Plug & Play Poe Cameras

    USER MANUAL Icon with green background color: camera has a good connection. Icon with green grey color: failed to connect camera. Click the icon to show the failure reason. If the failure reason is “User name or password error”, it means the camera user name and password is different from the default user name and password.

  • Page 29: Steps To Connect External Cameras In The Lan

    USER MANUAL 5.1.3.1.2 Steps to Connect External Cameras in the LAN If you want to connect to an IP camera from your LAN, please make sure your NVR is connected to the LAN and the IP camera you want to add is on the same network segment with your NVR. If you want to connect all channels manually, click the drop-down arrow next to Switch Mode, and then select “Manual”.
  • Page 30 USER MANUAL 5.1.3.1.2.1 Add Individual Camera in the LAN 1. Click Search button and all available cameras in the LAN will be displayed. Or click the Add icon in the channel list to add a camera to an individual channel. Click the Search button and all available cameras in the LAN will be displayed.
  • Page 31 USER MANUAL 5.1.3.1.2.2 Add Multiple Cameras from the LAN 1. Click the Search button and all available cameras in the LAN will be displayed. Or click Add All button and the NVR will search & add all available cameras on the LAN. Select the cameras from the search results and then click “Add”.
  • Page 32 USER MANUAL 5.1.3.1.2.3 Add Cameras from Other NVR in the LAN The NVR allows you to add cameras from other NVRs on the local network. 1. Click the Search button and all available devices on the LAN will be displayed. There is an edit icon if the device is an NVR.

  • Page 33: 1.3Add Cameras From Internet

    USER MANUAL 5. The added cameras will be displayed on the channel list. 5.1.3.1.3Add Cameras from Internet If your NVR is connected to the Internet, you can add cameras from the Internet with a WAN IP address. 1. Click button in the search page. 2.

  • Page 34: Non-Poe Nvr Connection

    USER MANUAL 5.1.3.2 Non-PoE NVR Connection For Non-PoE NVR connections, please refer to 5.1.3.1.2 Steps to Connect External Cameras From LAN. 5.1.1.4 POE Power Here you will find the real-time power consumption of each PoE port, total actual power & rated power.

  • Page 35: Live

    USER MANUAL 5.1.2 Live To configure camera parameters, including channel name, color, date & time format, refresh rate, etc. Covert: To hide the camera images in live view. If covert is opened, only live view images will be hidden. Recording images won’t be affected. Channel Name: Give a name to the camera Show...

  • Page 36: Image Control

    USER MANUAL 5.1.3 Image Control This menu allows you to control image settings for supported IP cameras. Third-party ONVIF IP cameras might be not supported for configuration. Setup: Click icon into the setup page. Choose a channel to configure Select the desired built-in IR cut filter mode to ensure the camera works properly both in the day and night.

  • Page 37: Ptz

    USER MANUAL 5.1.4 PTZ This menu allows you to configure the PTZ (Pan-Tilt-Zoom) settings for speed dome cameras. Channel: Channel name Signal Type: If your PTZ camera is connected to the RS485 port, then choose “Analog”, otherwise choose “Digital”. Below items need to be set for Analog PTZ only. Protocol: Choose the communication protocol between a PTZ capable camera and NVR.

  • Page 38: Motion

    USER MANUAL 5.1.6 Motion This menu allows you to configure motion parameters. When motion has been detected by one or more cameras, your NVR will alert you to a potential threat. It does this by sending you an email alert with an attached image from the camera to use as a reference (if this option is enabled) and/or sending push notifications via the mobile app.

  • Page 39: Pir

    USER MANUAL 5.1.7 PIR This menu allows you to configure PIR parameters. When a PIR has been detected by one or more cameras, your NVR will alert to you a potential threat. It does this by sending you an email alert with an attached image from the camera to use as a reference (if this option is enabled) and/or by sending push notifications via the mobile app.

  • Page 40: Deterrence

    USER MANUAL 5.1.8 Deterrence This menu allows you to configure the deterrence parameters. Channel: channel name. Setup: Click icon into the setup page. Deterrence Area: The whole screen is marked for deterrence detection (red blocks) by default. If you want to disable the deterrence detection on a certain area, click the grid cursor and then drag the mouse to highlight the scope to unmark...

  • Page 41: Intelligent Analysis

    USER MANUAL 5.1.9 Intelligent Analytics Line The optional intelligent analytic functions include: Perimeter Intrusion Detection), Crossing Detection) (Stationary Object Detection), (Pedestrian Detection), (Face Detection), and (Cross Counting), (Sound Detection) and Video Tampering. Note: Intelligent Analytic functions are not an AI function. These functions will only work with an analytic enabled camera. 5.1.9.1 PID (Perimeter Intrusion Detection) The Perimeter Intrusion Detection function detects people, vehicle or other objects which enter and loiter in a pre-defined virtual region, and some certain actions can be taken when the alarm is triggered.

  • Page 42: Alarm Setup

    USER MANUAL Rule Switch: Activate or deactivate the rule 1. Choose one of the Rule Numbers to assign a number to a PID area. A maximum of 4 areas can be designated for the PID function. 2. Check the Rule Switch box to enable the detection.
  • Page 43 USER MANUAL On this page you can configure the alarm action when an alert is triggered. Buzzer: Disable or activate the buzzer to emit an alarm tone in 10, 20, 40 or 60 second increments when the detection is triggered. Alarm Out: If your NVR supports connection to an external alarm device, you can configure it here to trigger an alarm tone.

  • Page 44: Lcd (Line Crossing Detection)

    USER MANUAL 5.1.9.2 LCD (Line Crossing Detection) Line Crossing Detection function detects people, vehicle or other objects which cross a pre- defined virtual line, and some certain actions can be taken when the alarm is triggered. Switch: Check the box to enable LCD function. Sensitivity: Set the sensitivity level.

  • Page 45: Sod (Stationary Object Detection)

    USER MANUAL For Alarm setup, please refer to 5.1.9.1.1 Alarm Setup 5.1.9.3 SOD (Stationary Object Detection) Stationary Object Detection function detects objects such as baggage, purses, dangerous materials, etc., left behind or removed from a pre-defined region. A series of actions can be taken if the alarm is triggered. Switch: Check the box to enable SOD function.
  • Page 46 USER MANUAL SOD function. 2. Check the Rule Switch box to enable the detection. 3. Choose a Rule Type. Legacy: NVR will only detect the left-over objects; Lost: NVR will only detect the lost objects; Legacy & Lost: NVR will detect both left-over & lost objects. 4.

  • Page 47: Fd (Face Detection)

    USER MANUAL 5.1.9.4 FD (Face Detection) The Face Detection function detects the faces of people that appear in a pre-defined region. Switch: Check this box to enable the FD function. Click Setup icon to draw a virtual region in the camera image. Channel: Select the channel you want to configure Rule Switch:...

  • Page 48: Cc (Cross Counting Detection)

    USER MANUAL 5.1.9.5 CC (Cross Counting Detection) Cross Counting counts how many times moving objects or people cross a virtual line that you designate. Switch: Check the box to enable CC function. Sensitivity: Set the sensitivity level. Level 1 is the lowest sensitivity level while level 4 is the highest sensitivity level.

  • Page 49: Sd (Sound Detection)

    USER MANUAL 5.1.9.6 SD (Sound Detection) The Sound Detection feature can trigger an alarm and activate certain features when detecting rise or decline in sound. You will need an external microphone (not included) to enable this feature. Switch: enable or disable sound detection. Rise: enable or disable sound rise detection.

  • Page 50: Intelligent Schedule

    USER MANUAL 5.1.9.8 Intelligent Schedule In order to activate any of the intelligent analytics, you need to configure the schedule. The schedule can be active 24 hours x 7 days. To set the schedule, choose one channel then drag the cursor to mark the slots. The sky-blue blocks in the time slots will be active for intelligent detections.

  • Page 51: Record

    USER MANUAL 5.2 Record This menu allows you to configure the recording parameters. 5.2.1 Encode This menu allows you to configure the recording video or network transmission picture quality. Generally, Mainstream defines the recording video quality which will be saved on the HDD; Substream defines the video quality which is being viewed via remote access, for example web client &...

  • Page 52: Record

    USER MANUAL 5.2.2 Record This menu allows you to configure the channel recording parameters. 5.2.2.1 Record Record Switch: Check to enable the recording for this channel. Stream Mode: Choose the recording quality. If you choose Dualstream, the system will record in both Mainstream &...

  • Page 53: Capture

    USER MANUAL Normal: When the time slot is marked green, this indicates the channel performs normal recording for that time slot. Motion: When the time slot is marked yellow, this indicates the channel records when a motion is detected during that time slot. IO: When the time slot is marked red, this indicates the channel records when the sensor is triggered during that time slot.

  • Page 54: Capture Schedule

    USER MANUAL 5.2.3.2 Capture Schedule Channel: Select the channel to set its capture parameters. Normal: When the time slot is marked green, this indicates the channel performs normal capture for that time slot. Motion: When the time slot is marked yellow, this indicates the channel capture images when a motion is detected during that time slot.

  • Page 55: Alarm

    USER MANUAL 5.3 Alarm In this section, you can configure alarm actions when an alert occurs. 5.3.1 Motion Channel: Channel name Buzzer: The NVR can use its internal buzzer to emit an alarm tone. You can set the buzzer duration in seconds when an alarm is triggered.

  • Page 56: Pir

    USER MANUAL 5.3.2 PIR This menu allows you to configure the parameters of a PIR Alarm. Channel: Channel name Buzzer: The NVR can use its internal buzzer to emit an alarm tone. You can set the buzzer duration in seconds when an alarm is triggered. Alarm Out: Optional function.

  • Page 57: I/O

    USER MANUAL 5.3.3 I/O This is an optional function, it will appear if your NVR supports sensor I/O, and you connect external sensor I/O alarm devices to work with the NVR. Alarm In: I/O channel. Alarm Type: There are 3 types for your choice: Normally-Open, Normally-Close, and OFF. Choose the one to match your sensor type, or choose OFF to close the sensor trigger function.

  • Page 58: Intelligent

    USER MANUAL 5.3.4 Intelligent You can configure the PID / LCD/ PD&VD / SOD / FD / Sound Detection / Video Tampering alarm function here. Channel: Channel name Buzzer: The NVR can use its internal buzzer to emit an alarm tone. You can set the buzzer duration in seconds when an alarm is triggered.

  • Page 59: Ptz Linkage

    USER MANUAL 5.3.5 PTZ Linkage If you have connected PTZ cameras, you can set the linkage between PTZ cameras and Motion Alarm and/or external I/O sensor alarm and/or PIR alarm in this menu. With the linkage function, you can turn your PTZ cameras focus to the preset point when a motion, I/O alarm and or PIR alarm happens.

  • Page 60: Alarm Schedule

    USER MANUAL 5.3.7 Alarm Schedule In this menu, you can set several schedules, including Alarm out, Push, FTP Upload, Cloud Upload and Buzzer. Channel: Select the channel to set its capture parameters. To set the schedule, choose one channel and one of the alarm types then drag the cursor to mark the slots. The green blocks in the time slots will be active for an alarm.
  • Page 61 USER MANUAL Local Conversion: The system supports to convert your plain text into audio file by local algorithm. Choose Local Conversion Models, and then input the name of the file & plain text. Click Import button, the system will convert the text you input into a voice file and save to the NVR storage. Internet Server Conversion：The system supports conversion of your plain text into multi-language audio file via internet server.

  • Page 62: Setup

    USER MANUAL It is recommended configure through the Web browser for multi-language input except for English. 5.4 AI You will see this section if your NVR contains AI functionality. EI-Enabled NVRs have AI functions including (Face Detection), PD & VD (Human &...
  • Page 63 USER MANUAL Channel: Channel selection Snap Mode: There are “Optimal Mode” (automatically select & push the best image from all face images of the same person whose faces were captured during his/her duration of stay), “Realtime Mode” (push the first captured face image and push again the last captured face image from the same person) and “Interval Mode”...
  • Page 64 USER MANUAL Roll Range: Set the range of face rotation under the customize mode. Pitch Range: Set the range of face pitch under the customize mode Range: Set the range of face horizontal flipping under the customize mode. Min Pixel: Set the minimum detection pixel box.

  • Page 65: Pd & Vd (Human & Vehicle Detection)

    USER MANUAL 5.4.1.2 PD & VD (Human & Vehicle Detection) Switch：To enable or disable the Human & Vehicle detection. Click to configure the detection conditions. Channel: Channel selection Snap Mode: There are “Optimal Mode” (automatically select & push the best image from all captured images of the same vehicle during its duration of stay), “Realtime Mode”...

  • Page 66: Pid (Perimeter Intrusion Detection)

    USER MANUAL 5.4.1.3 PID (Perimeter Intrusion Detection) Perimeter Intrusion Detection function detects people, vehicle or other objects which enter and loiter in a pre-defined virtual region, and some certain actions can be taken when the alarm is triggered. Switch：To enable or disable the Perimeter Intrusion Detection. Click to configure the detection conditions.

  • Page 67: Lcd (Line Crossing Detection)

    USER MANUAL Notes: 1) The perimeter should not be too close to the edges/corners of the camera picture since it may fail to trigger the detection when a target passes through the edges/corners. 2) The shape of the region should not be too narrow/small since it may fail to trigger the detection when a target passes through outside the perimeter.
  • Page 68 USER MANUAL Channel: Select the channel you want to configure Detection Type: Choose the detection target objects. Rule Number: Max. 4 rules available. Rule Switch: Activate or deactivate the rule Dynamic Marking ： If you enable this option, the border of the detection zone will be displayed in both live view images and recording files.

  • Page 69: Cc (Cross Counting)

    USER MANUAL 5.4.1.5 CC (Cross Counting) Cross Counting function counts the times for moving objects or people across the virtual lines. Switch: Check the box to enable the function. Sensitivity: Set the sensitivity level. Level 1 is the lowest sensitivity level while level 4 is the highest sensitivity level.

  • Page 70: Hm (Heat Map)

    USER MANUAL 3. Check the box next to Rule Switch to enable this detection. 4. Choose a Rule Type. A à B: If a target object is detected moving from side A to side B, the system will add 1 to enter number; if a target object is detected moving from side B to side A, the system will add 1 to exit number.

  • Page 71: Cd (Crowd Density Detection)

    USER MANUAL 5. If you want to remove one of the regions from the camera picture, click the red box in the region and then click the Remove button. Clicking Remove All will delete all regions. 5.4.1.7 CD (Crowd Density Detection) Crowd density detection is used to detect crowd gatherings, which could help maintain order in certain areas.

  • Page 72: Qd (Queue Length Detection)

    USER MANUAL 3. Check the box next to Rule Switch to enable Crown Density Detection. 4. Set the Detection Range to be full screen or customized. 5. If you choose customized detection range, you will need to use your mouse to click 8 points in the camera picture to draw a virtual region.

  • Page 73: Schedule

    USER MANUAL Min Pixel: Set the minimum detection pixel box. A person can be recognized only when he/she is larger than the pixel box. Max Pixel: Set the maximum detection pixel box. A person can be recognized only when he/she is smaller than the pixel box.

  • Page 74: Recognition

    USER MANUAL 5.4.2 Recognition If your NVR supports facial recognition, you would need to configure the face recognition algorithm model and database. 5.4.2.1 Model Configuration Choose the face algorithm model here. Auto select recognition model is recommended. 5.4.2.2 Database Management Here you can create the face database to classify different faces.
  • Page 75 USER MANUAL Import: Click the Import button to import facial images. You’re able to import files from NVR local storage and/or external storage. Click Local Storage Device to import face images which were captured and saved on the NVRs local HDD storage.

  • Page 76: Alarm

    USER MANUAL Click to add images. You can edit the personal information for the faces you want to import. Click Import button to import the face images. Use the same method to add face images from external USB storage devices. 5.4.3 Alarm To configure the alarm action when an AI alert happens.
  • Page 77 USER MANUAL Enable Alarm: To enable or disable the alarm function. Policy: To set the group to be Allow list or Deny list. Similarity: Set the similarity of comparison. Alarm Channel: To choose which channel(s) will be applied to the alarm setting. Alarm: Click to configure the alarm actions.

  • Page 78: Ad (Attribute Detection)

    USER MANUAL Alarm Schedule: Click icon to configure the alarm schedule for each channel. Channel: Select the channel to set its capture parameters. To set the schedule, choose one channel then drag the cursor to mark the slots. The blue blocks in the time slots will be active for alarm.

  • Page 79: Pd & Vd (Human & Vehicle Detection)

    USER MANUAL Voice Prompts: If your NVR or IP camera is connected to a speaker, you can select a customized alert voice when the alarm happens for different time periods. See how to add customized alert voice on 5.3.8 Voice Prompts 5.4.3.3 PD &...

  • Page 80: Pid (Perimeter Intrusion Detection)

    USER MANUAL 5.4.3.4 PID (Perimeter Intrusion Detection) To configure alarm actions for PID alarms. Buzzer: The NVR can use its internal buzzer to emit an alarm tone. You can set the buzzer duration in seconds when an alarm is triggered. Alarm Out: Optional function.

  • Page 81: Lcd (Line Crossing Detection)

    USER MANUAL 5.4.3.4 LCD (Line Crossing Detection) To configure alarm actions for LCD alarms. Buzzer: The NVR can use its internal buzzer to emit an alarm tone. You can set the buzzer duration in seconds when an alarm is triggered. Alarm Out: Optional function.

  • Page 82: Cc (Cross Counting)

    USER MANUAL 5.4.3.4 CC (Cross Counting) To configure alarm actions for CC alarms. Buzzer: The NVR can use its internal buzzer to emit an alarm tone. You can set the buzzer duration in seconds when an alarm is triggered. Alarm Out: Optional function.

  • Page 83: Cd (Crowd Density Detection)

    USER MANUAL 5.4.3.5 CD (Crowd Density Detection) To configure alarm actions for CD alarms. Buzzer: The NVR can use its internal buzzer to emit an alarm tone. You can set the buzzer duration in seconds when an alarm is triggered. Alarm Out: Optional function.

  • Page 84: Qd (Queue Length Detection)

    USER MANUAL 5.4.3.6 QD (Queue Length Detection) To configure alarm actions for QD alarms. Buzzer: The NVR can use its internal buzzer to emit an alarm tone. You can set the buzzer duration in seconds when an alarm is triggered. Alarm Out: Optional function.

  • Page 85: Statistics

    USER MANUAL 5.4.4 Statistics You are able to check and manage the statistics of AI functions in this section. 5.4.4.1 FD (Face Recognition) You can check the face recognition statistics for a selected period. 1. Choose the group(s) and channel(s). 2.

  • Page 86: Cc (Cross Counting)

    USER MANUAL 2. Choose the channel(s). 3. Select the period between day, week, month, quarter and year. 4. Click the calendar icon to choose the date, and click button to move to last or next period. 4. The statistics will be displayed in pie chart and column chart. 5.

  • Page 87: Network

    USER MANUAL 1. Choose the channel & date. 2. Choose the Report Type: Daily, Weekly, Monthly or Annually. 3. Choose the Cross Type: Cross In or Cross Out. 4. Click Search button, the result will be displayed in either Column Chart Line Chart.

  • Page 88: Pppoe

    USER MANUAL 5.5.1.1 PPPoE This is an advanced protocol that allows the NVR to connect to a network more directly via DSL modem. Check the “Enable PPPOE” box, and then enter the User name & Password of the PPPoE. Click Apply to save, system will reboot to activate the PPPoE setting.

  • Page 89: Ddns

    USER MANUAL 5.5.2 DDNS This menu allows you to configure DDNS settings. The DDNS provides a static address to simplify remote connection to your NVR. To use the DDNS, you first need to open an account on the DDNS service provider’s web page.

  • Page 90: Email Configuration

    USER MANUAL 5.5.3.1 Email Configuration Email: Check to enable. Encryption: Enable if your email server requires the SSL or TLS verification. If you are not sure, set to Auto. SMTP Port: Enter the SMTP port of your email server. SMTP Server: Enter the SMTP server address of your email.

  • Page 91: Ftp

    USER MANUAL 5.5.4 FTP This menu allows you to enable FTP function to view and load captured snapshots from your NVR to your storage device over FTP. Enable: Click to enable FTP function. Server IP: Enter your FTP server IP address or domain name. Port: Enter the FTP port for file exchanges.

  • Page 92: Ip Filter

    USER MANUAL 5.5.5 IP FILTER IP filter helps to control remote login devices by using Allow List and Block List to filter the IP address. If you want to activate this function, check the Enable box. Choose either Enable Allow List Enable Block List.

  • Page 93: Device

    USER MANUAL Authentication ： Login authentication type, options including Digest_sha256, Digest, Digest/WSSE, WSSE and None. Choose one of them to match to your 3 party platform. Protocol ： Choose http, https or both of them. User Name ： To set a user name for platform connection. Password ：...
  • Page 94 USER MANUAL Disk Type: Read-write, read-only, and redundant. Read-write mode is the normal status for a HDD to save recording or search recording to play. To prevent important video data from being overwritten during cyclic recording, the HDD can be set as Read-only mode.

  • Page 95: Cloud

    USER MANUAL 5.6.2 Cloud The cloud function allows you to upload pictures and videos to your cloud storage. It supports Dropbox and Google Drive storage. Cloud Type: Choose between Dropbox or Google Drive. Cloud Overwrite: Use this option to overwrite the old recordings on the storage when it is full. For example, if you choose the option 7 days then only the last 7 days recordings are kept on the storage.
  • Page 96 USER MANUAL Login to your email and click the link in the email body. This will send you to the cloud server authorization login page. Input your Dropbox account name and password to login. Input the DVR local IP address and web port, and then click Authorize. Input the DVR user name and password and then click OK.
  • Page 97 USER MANUAL 10. Authorization finished; the webpage will return to your Dropbox. 11. The Cloud has completed the setup if you find a new folder with the name of your NVR device name and MAC address in Dropbox storage. Your alarm pictures and videos will be upload to this folder.

  • Page 98: System

    USER MANUAL 5.7 System Change general system information such as date, time and region, edit passwords and permissions, and more. 5.7.1 General 5.7.1.1 General Device Name: Enter the desired name for your NVR. The name can include both letters and numbers. Device ID: Enter the desired ID for your NVR.

  • Page 99: Date And Time

    USER MANUAL 5.7.1.2 Date and Time Date & Time Date: Click the calendar icon to change the date. Time: Click the dialogue box to change the time. Date Format: Select the preferred date format. Time Format: Select the preferred time format. Time Zone: Select a time zone relevant to your region or city.

  • Page 100: Output Configuration

    USER MANUAL The DST (Daylight Saving Time) function allows you to select the amount of time that Daylight Saving has increased by in your particular time zone or region. Enable DST: If Daylight Savings Time applies to your time zone or region, check this option to enable. Time Offset: Select the amount of time that Daylight Saving has increased by in your time zone.

  • Page 101: Multi-User

    USER MANUAL 5.7.2 Multi-user This menu allows you to configure the user name, password and user permission. The system supports the following account types: • ADMIN — System Administrator: The administrator has full control of the system, and can change both administrator and user passwords and enable/disable password protection. •...

  • Page 102: Add New Users

    USER MANUAL 5.7.2.2 Add New Users Select one of the user accounts that is currently disabled, click the User Edit icon Select Enable from the drop-down next to User Enable. Click the field next to User Name to change the user name for the account. Select Enable from the drop-down next to...

  • Page 103: Setting User Permissions

    USER MANUAL 5.7.2.3 Setting User Permissions The administrator account is the only account that has full control of all system functions. You can enable or disable access to certain menus and functions of each user account. 1. Click the edit icon under Permission tab.

  • Page 104: Maintenance

    USER MANUAL 5.7.3 Maintenance In this section, you will be able to search & view the system log, load default settings, upgrade the system, export & import system parameters and manager system auto reboot. 5.7.3.1 Log The system log shows you important system events, such as motion alarms and system warnings. You can easily create a backup file of the system log for a set time period to a USB flash drive.

  • Page 105: Load Default

    USER MANUAL 2. Click the field next to End Date & End Time to choose the end date & time for your search from the on-screen calendar. 3. Select the type of events you would like to search for from the dropdown next to Type, or select to see the entire system log for the selected time period.

  • Page 106: Upgrade

    USER MANUAL 5.7.3.3 Upgrade 1. Copy the firmware file (.sw file) to your USB drive, and insert the USB flash drive into the NVR’s USB port. 2. Click the Select File button to choose the firmware file in your USB flash drive, then Click OK. 3.

  • Page 107: Auto Reboot

    USER MANUAL 5.7.3.5 Auto Reboot This menu allows the system to auto reboot the NVR regularly. It is recommended to leave this function enabled, as it maintains the operational integrity of your NVR. Auto Reboot: Check to enable. Time: You can set the NVR to reboot by day, week or month. 5.7.4 IP Camera Maintenance This menu allows you to upgrade the IP camera’s firmware and restore default settings of an IP camera.

  • Page 108: Upgrade Ip Camera

    USER MANUAL 5.7.4.1 Upgrade IP Camera 1. Choose one of the IP cameras you want to upgrade firmware on. 2. Click Select File to select the update file from your USB flash drive, then click OK. 3. Click IPC Upgrade button to start upgrading. You will be required to input the Admin password to authenticate.

  • Page 109: Load Default Settings For Ip Camera

    USER MANUAL 5.7.4.2 Load Default Settings for IP Camera 1. Choose the IP cameras you want to restore. 2. Click Load Default to restore settings. You will be required to input the Admin password to authenticate. 5.7.4.3 Reboot IPC To reboot the IP camera you select.

  • Page 110: Parameter Management

    USER MANUAL 5.7.4.4 Parameter Management Select the IP camera, and click Save Settings to export its setting values to your USB drive. Select the IP camera, and click Load Settings to import setting values from your USB drive. 5.7.5 System Information This menu allows you to view the system information, channel information, record information &...

  • Page 111: Channel Information

    USER MANUAL 5.7.5.2 Channel Information View channel information for each connected camera such as alias, mainstream and substream recording specifications, motion detection status & privacy zone. 5.7.5.3 Record Information View recording information for each connected camera such as bitrate, stream type, recording resolution and frame rate (FPS).

  • Page 112: Ai Scenario

    USER MANUAL 5.8 AI Scenario AI Scenario function provides AI applications for different scenarios. Click the submenu title in the main setup page to get into the individual function setup page. 5.8.1 Cross Counting This is an AI application based on cross counting function, which helps to control the attendance number of customers/visitors/vehicles in public places, like restaurants, parks, zoos, theaters, museums, car parks, etc.
  • Page 113 USER MANUAL 2. Real-time data display: Available: Remaining allowed attendance number Inside: Current attendance number inside the control area Enter: Recorded number of total entrants Exit: Recorded number of total leaving attendance. 3. Real-time counting data display: Screen display layout of 4/6/9 channels. To show or hide the real-time data display.
  • Page 114 USER MANUAL 5. Full Screen Button: Click the full screen icon to display the real-time counting data for the selected channel(s) or group(s). If you have enabled Advertise Mode, your advertising pictures will be displayed with the real-time counting data together in the full screen mode. Learn more about Advertise Mode 5.8.1.3 Advise Mode.

  • Page 115: Channel View Setup

    USER MANUAL 5.8.1.1 Channel View Setup Click the add icon or setup icon to get to the configuration page. Channel list will allow you to enable the channel(s) you want to use the counting function on. The Setup & Alarm icon will be blue if the camera in that channel supports AI function;...
  • Page 116 USER MANUAL Switch: Activate or deactivate the detection. Type: Choose the detection target objects. Motion will detect all moving objects, Person will detect human beings only, and Vehicle will detect vehicles only. Sensitivity: Set the sensitivity level. Level 1 is the lowest sensitivity level while level 4 is the highest sensitivity level.

  • Page 117: Group View Setup

    USER MANUAL 5.8.1.2 Group View Setup Click the add icon or setup icon to get to the configuration page. Click the Add IP Camera icon to add channel(s) to the group. Max. of 8 groups can be set, but each individual channel can be added to 1 group only. If a channel is enabled in the Channel View mode, you will be not allowed to add it to another group.
  • Page 118 USER MANUAL Click the Group View icon to view live images & combined counting data of all activated groups. You can choose which group you want to view the real-time live images and counting data. 10. Furthermore, you can display the counting data in Map mode. Click the button to configure the settings.

  • Page 119: Advertise Mode

    USER MANUAL 5.8.1.3 Advertise Mode The system supports the display of advertising or other pictures with the Cross Counting functions. Click the Configuration icon in the Navigation bar to get to the configuration page. Check the Advertise mode toggle in the Image Configuration section. Click the Image button to load advising pictures from your USB drive.

  • Page 120: Search Counting Data

    USER MANUAL Go back to Channel View mode or Group View mode, and click the full screen button on the right upper corner to display your advertising pictures and the real-time counting data for the selected channel(s) or group(s). 5.8.1.4 Search Counting Data Click the Search icon...

  • Page 121: Face Attendance

    USER MANUAL 5.8.2 Face Attendance Face Attendance is an AI application based on Face Detection. You’re able to view and check the real-time statistical data of attendance management visually. 1. Custom title. 2. Overall attendance statistical data of all selected groups. 3.
  • Page 122 USER MANUAL Enable: Check this box if you want to send the attendance statistical data by email. Send Email: Set the time for sending the email. Mode: Choose to send the email once every Day, every Week, or every Month. Day: Send the attendance statistical data of previous day once a day.

  • Page 123: Chapter 6 Search, Playback & Backup

    USER MANUAL Chapter 6 Search, Playback & Backup The Search function gives you the ability to search for and play previously recorded videos as well as snapshots that are stored on your NVRs hard drive. You have the choice of playing video that matches your recording schedule, manual recordings or motion events only.

  • Page 124: Search & Play Video In General

    USER MANUAL Digital Zoom: Click to zoom in then click-and-drag on a camera image during playback to zoom in on the selected area. Right-click to return to regular playback. Video Clip. Quickly save a selection of video to a USB flash drive. View more at 6.1.1.1 Video Clip Backup Save Video Clip.

  • Page 125: Video Clip Backup

    USER MANUAL 1. Select a date to search for video recordings from the calendar. 2. Choose a search type. 3. Check channels you would like to search, or check Channel to search all connected channels. 4. The search result will display on the timeline from 00:00 to 24:00. 5.

  • Page 126: Event Search, Playback & Backup

    USER MANUAL 6.3 Event Search, Playback & Backup Event search lets you view a list of video recordings with the channel, start and end time, and recording type conveniently summarized. You can also quickly back up events to a USB flash drive. To search, play &...
  • Page 127 USER MANUAL 6. Click icons in the bottom-right corner of the menu to browse between pages of events, or input the page you want to browse. 7. You can switch the view of the list form by clicking the following icons which are show at the right bottom corner of your screen: Thumbnails view.

  • Page 128: Event Playback Control

    USER MANUAL 6.3.1 Event Playback Control 1. Event List: you can select events here. 2. Click icon to save your selected event videos to a USB flash drive. Click icon to play video. 3. Control the playback with buttons on Video Playback Controls.

  • Page 129: Playback

    USER MANUAL 6.4 Subperiod Playback Subperiod playback allows you to play multiple normal recordings and motion events simultaneously from a single channel. With normal and event recordings, the video is divided evenly depending on the split- screen mode that has been selected. For example, if the video is an hour long and you have selected Split- screens x 4, each split-screen will play for 15 minutes.

  • Page 130: Smart Search

    USER MANUAL 6.5 Smart Search With Smart search function, you will be able to quickly search and play the motion recording videos which were triggered by human beings. To search & play video in Smart Search: 1. Choose the date & time you want to search. 2.

  • Page 131: Tag Search

    USER MANUAL : select whole image. : clear your selection. : go back to playback interface. : search. Click button to clear all selection, and then use your mouse to select the certain areas you want to search in the image. Click button, the system will search the display the smart search result for the selected areas.

  • Page 132: Play External File

    USER MANUAL 6.7 Play External File The NVR supports to play the videos saved in the external USB memories. Insert your USB drive into the USB port, find out the folder where the video files are saved, and then click the play icon to play the video.

  • Page 133: Picture Preview Control

    USER MANUAL 2. Check the picture capture types you want to search, or check Search Type to choose all. 3. Choose the channels you want to search, or check Channel to choose all channels. 4. Click button to start search. 5.

  • Page 134: Slice Search

    USER MANUAL 1. Picture List: Select pictures here. 2. Click button to save your selected pictures to a USB flash drive. 3. Press button to exit preview control window and go back to picture search window. Press button to pause, press to resume slideshow.

  • Page 135: Ai Search

    USER MANUAL 6.10 AI Search 6.10.1 Face Choose date, time, channel, groups to search all captured faces. 1. Click icon to add customized faces. 2. Choose the Channels you want to search. 3. You can also set search conditions of the facial features in Attributes. 4.

  • Page 136: E-Map

    USER MANUAL 6.10.1.1 E-Map E-Map function helps track a person’s face. Click the icon to set the E-Map function. Click Load Map button to load a map image from your USB drive. Check the Edit box. Click and hold the channel icon and move one by one to adjust the site of your IP cameras on the map.
  • Page 137 USER MANUAL Click icon to select one face image from local storage or external USB storage. Select date & time, group(s), channel(s), set the similarity rate, and then click the Search button. The system will display the results on the e-map. If the person was captured by multiple cameras, the system will display his/her movement track on the map.

  • Page 138: Human & Vehicle

    USER MANUAL 6.10.2 Human & Vehicle The system provides a quick search for humans and vehicles. Select the date & time and channel(s). Choose the detection type: Human and/or Vehicle. Click Search and the results will be displayed on the right side of the window. Click one of the images and the system will show the basic information on the left side of the window, and the video will play on the left bottom side.

  • Page 139: Pid &Lcd

    USER MANUAL 6.10.3 PID &LCD The system provides quick search for Perimeter Intrusion Detection (PID) & Line Cross Detection (LCD). Select the date & time and channel(s). Select PID and/or LCD in Vigilance. Choose the detection type: Human and/or Vehicle. Click Search and the results will be displayed on the right side of the window.

  • Page 140: Repeat Visitors

    USER MANUAL 6.10.4 Repeat Visitors This is a function to quickly search the frequency of occurrence of specific people in a certain time period. Select the date & time, group(s) & channel(s). Set the Attributes. Set the Min. Interval time (second). Click Search, the result will be displayed on the right side of the window.

  • Page 141: Face Attendance

    USER MANUAL 6.10.5 Face Attendance Face Attendance is used to assist in attendance checking by faces. It will help to analyze the absenteeism, coming late and leaving early. Note: With facial recognition still an evolving and improving science, we strongly recommend you do NOT use this face attendance function as your only means of checking attendance.

  • Page 142: Chapter 7 Remote Access Via Web Client

    USER MANUAL Chapter 7 Remote Access via Web Client Use the Web Client to remotely access your NVR at any time via a PC. Before you access the Web Client, you need to ensure that the internet settings of the NVR are configured properly. 7.1 Basic System Environment Requirements The minimum requirements for hardware and OS required to run Web Client are given as below.

  • Page 143: Web Client Manager

    USER MANUAL 3. After installing the plug-in, close & launch again your browser and repeat step 1 to open the login page. Input your user name and password to login the web client. Note : For Microsoft Edge, Firefox, Google Chrome, Mac Safari, etc., you don’t need to install the plug-in, but some functions might be limited.
  • Page 144 USER MANUAL Click button to display the Channel List. Click button to hide the Channel List. Turn the Live video stream on/off. The button will be blue if the live video stream is on. Manual Recording buttons. Click to start manually recording live stream video. Click again to stop recording.
  • Page 145 USER MANUAL 8- PTZ Controls Directional Arrows: Click to move the PTZ camera Automatic line scan. PTZ Speed: Click to set the speed of the PTZ camera’s movement. Zoom: Click –/+ to zoom in or out. Focus: Click –/+ to adjust focus. Iris: Click –/+ to adjust iris.

  • Page 146: Playback

    USER MANUAL 7.3.2 Playback You can search & play recorded videos stored on the HDD inside the NVR, and download the videos to your computer. To search recordings: 1. Click Playback on the top-right corner of the window. 2. Select a day on the calendar to search for recordings from. Days with recordings appear with a red underline.

  • Page 147: Playback Control Buttons

    USER MANUAL 7.3.2.1 Playback Control Buttons Play the recordings Pause Stop Go Forward One Frame: Move frame-by-frame through playback. Only available when the Synchronous playback option is not checked. Click on one of the channels being played and then click the record button to record current video to your computer.

  • Page 148: Remote Setting

    USER MANUAL Choose the files you want to download. Press Start Download button to begin and you will see the download status. Press Stop Download button to stop. Playback Speed. Click to choose the playing speed. Play All Channels: Click to play all channels you have chosen to search. Only available when the Synchronous playback option is not checked.

  • Page 149: Local Setting

    USER MANUAL 7.3.4 Local Setting Set download locations for recordings and snapshots taken using Web Client, and choose file type for video files. Record Path: Click to browse for and select the folder where you would like the manual video recordings to be saved on your computer.

  • Page 150: Chapter 8 Viewing Backed Up Video On Pc/Mac

    USER MANUAL Chapter 8 Viewing Backed Up Video on PC/Mac This section will help you to play backup files with the powerful video player which is attached on the enclosed CD or you can download at http://www.specotech.com For Mac users, please install the app “VideoPlayer_x.x.xx_xxxx_xx_x.dmg”, for example: VideoPlayer_1.0.32.dmg.
  • Page 151 USER MANUAL Video Player Control 1. Play List Add files Remove files To choose play mode: play a single file and stop; play all listed files by sequence; repeat one file; repeat all files. Filter by file name Hide/Show Playlist Click to open files or load a folder.
  • Page 152 USER MANUAL Keep the video player on top Enlarge the video to full screen Advanced Setup Menu allows you to choose the OSD language of the video player, and configure the setting of video player. Basic Settings: Set on-top mode Capture Settings: Set the format and the path to save snapshots.

  • Page 153: Chapter 9 Remote Access Via Mobile Devices

    Chapter 9 Remote Access via Mobile Devices The NVR supports to remote access via mobile devices based on Android & iOS operating system. Search Speco Gray by Speco Technologies from Google Play Store for android devices or App Store for iOS devices and install.

  • Page 154: Usage Maintenance

    USER MANUAL A: Please check if: a) PTZ hardware is powered and functioning properly. b) Settings, connection and installation of PTZ decoder are correct. c) NVR’s PTZ setting is correct. d) The protocol of PTZ decoder matches that of the NVR. e) The IP Address of the PTZ decoder matches that of the NVR.

  • Page 155: Accessories (For Reference Only)

    USER MANUAL 10.3 Accessories (For reference only) Remote Controller Power Adapter Warranty Card USB mouse...
  • Page 156 Speco Technologies is constantly developing and improving products. We reserve the right to modify product design and specifications without notice and without incurring any obligation. Speco Technologies . 200 New Highway . Amityville . NY . 11701 . www.specotech.com Rev. 10/7/2021...
