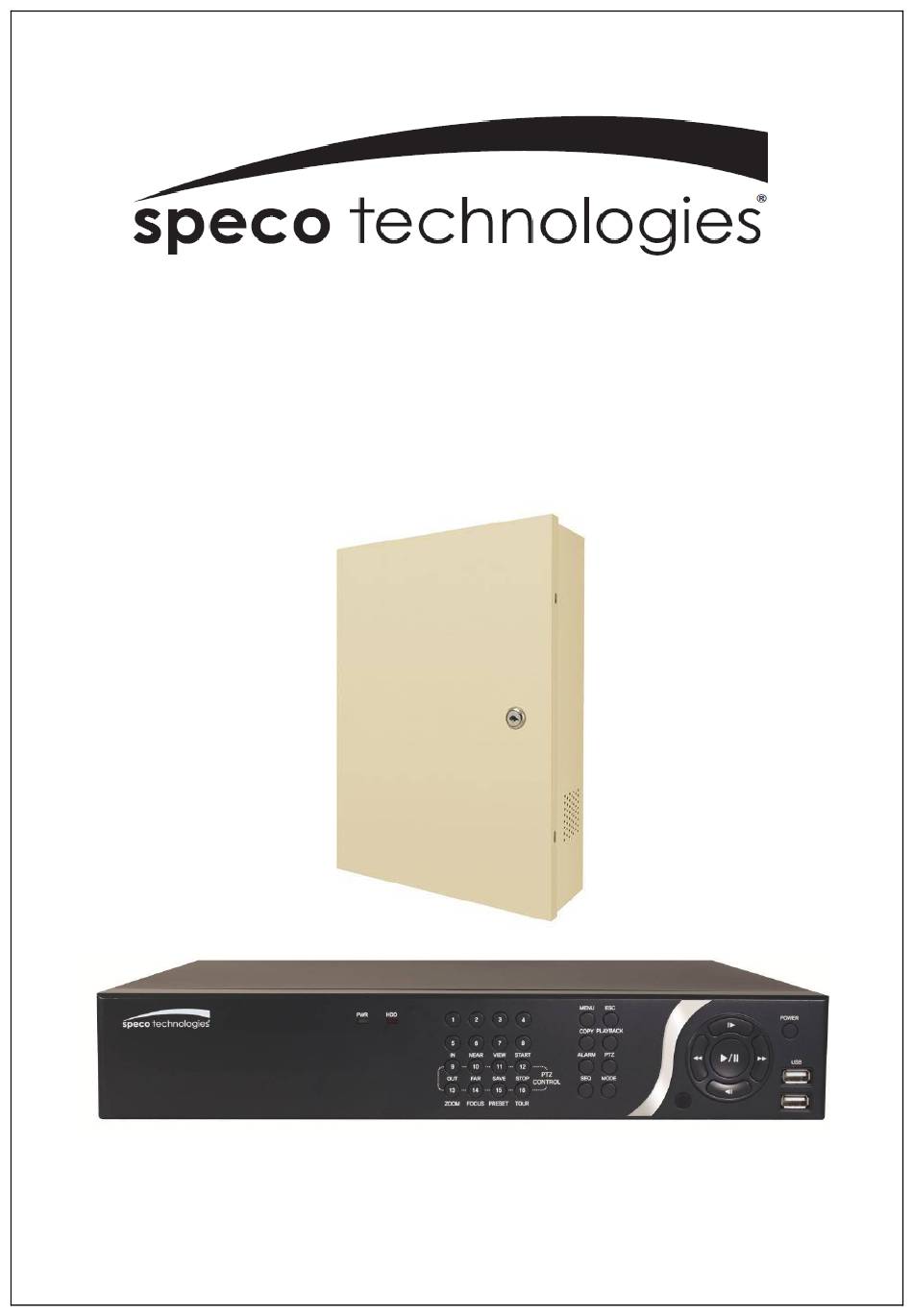

User Guide
(Ver. 2.4)
Models:
Desktop - N4/8/16NS, N4/8/16NSP, N16NSF, N32NS
Wall Mount - N4/8/16WNS, N4/8/16WNSP

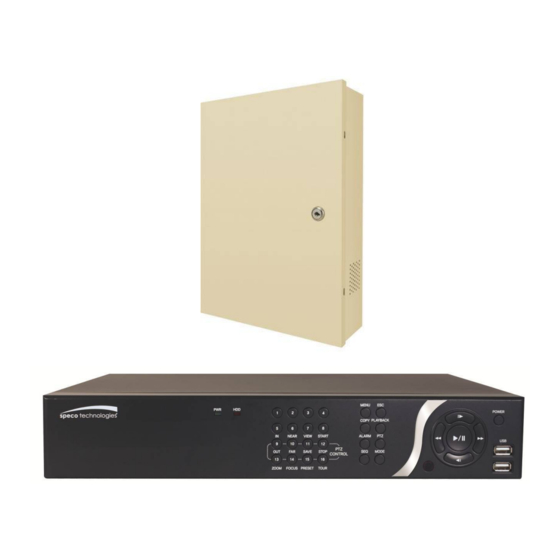

4/8/16/32 Channel Network Video Recorder
About This User's Guide
Before operating the unit, please read this user's guide thoroughly and retain it for future reference.
