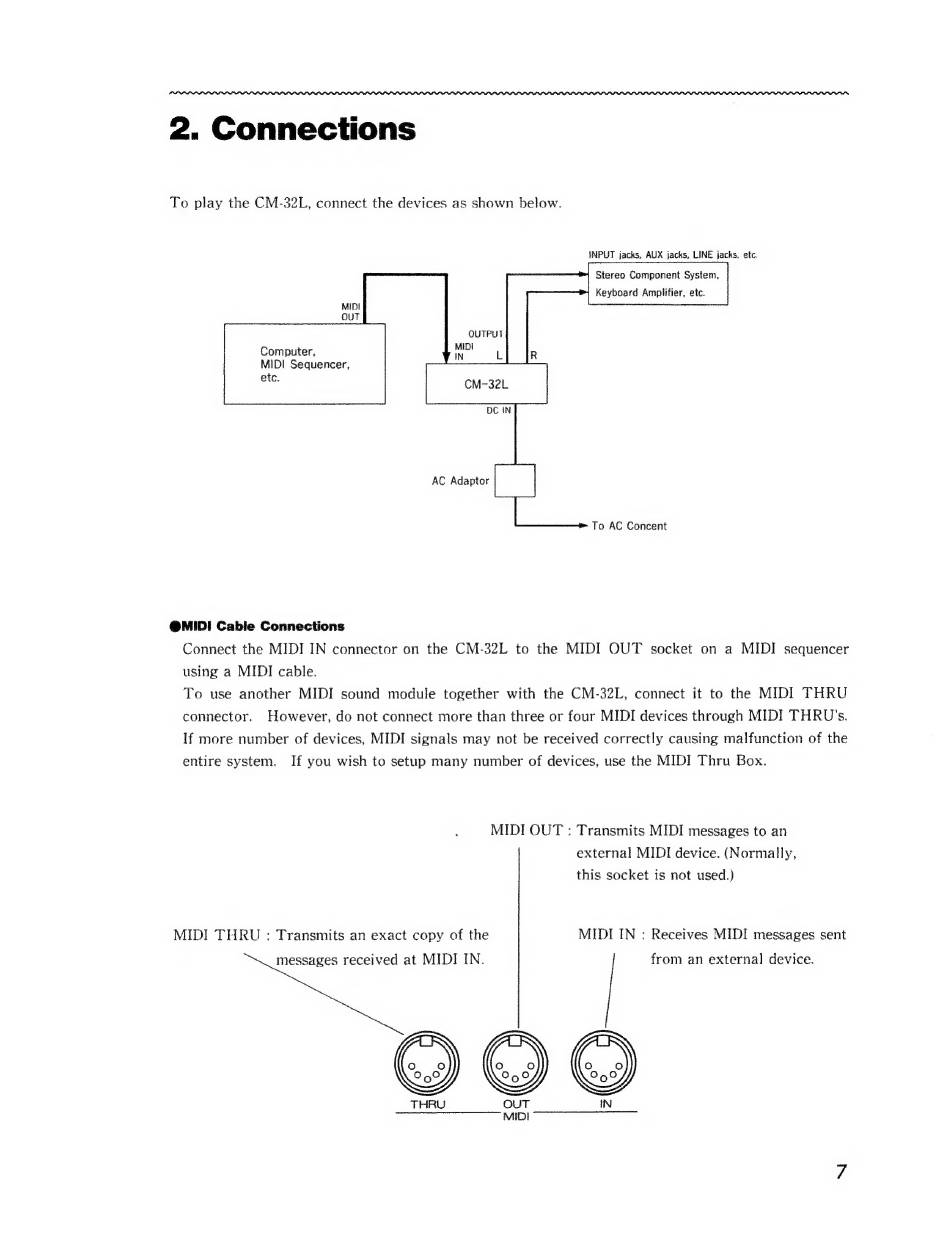

2. Connections
То play the CM-32L, connect the devices as shown below.
INPUT jacks, AUX jacks, LINE jacks. etc.
Stereo Component System,
Keyboard Amplifier, etc.
QUTPUT
MIDI
IN L
Computer,
MIDI Sequencer,
etc.
AC Adaptor
To AC Concent
@MIDI Cable Connections
Connect the MIDI IN connector on the CM-32L to the MIDI OUT socket on a MIDI sequencer
using a MIDI cable.
То use another MIDI sound module together with the CM-32L, connect it to the MIDI THRU
connector. However, do not connect more than three or four MIDI devices through MIDI THRU's.
If more number of devices, MIDI signals may not be received correctly causing malfunction of the
entire system. If you wish to setup many number of devices, use the MIDI Thru Box.
MIDI OUT : Transmits MIDI messages to an
external MIDI device. (Normally,
this socket is not used.)
MIDI THRU : Transmits an exact copy of the MIDI IN : Receives MIDI messages sent
messages received at MIDI IN. from an external device.
a Li
о о о о
ооо о 0
тнки IN
