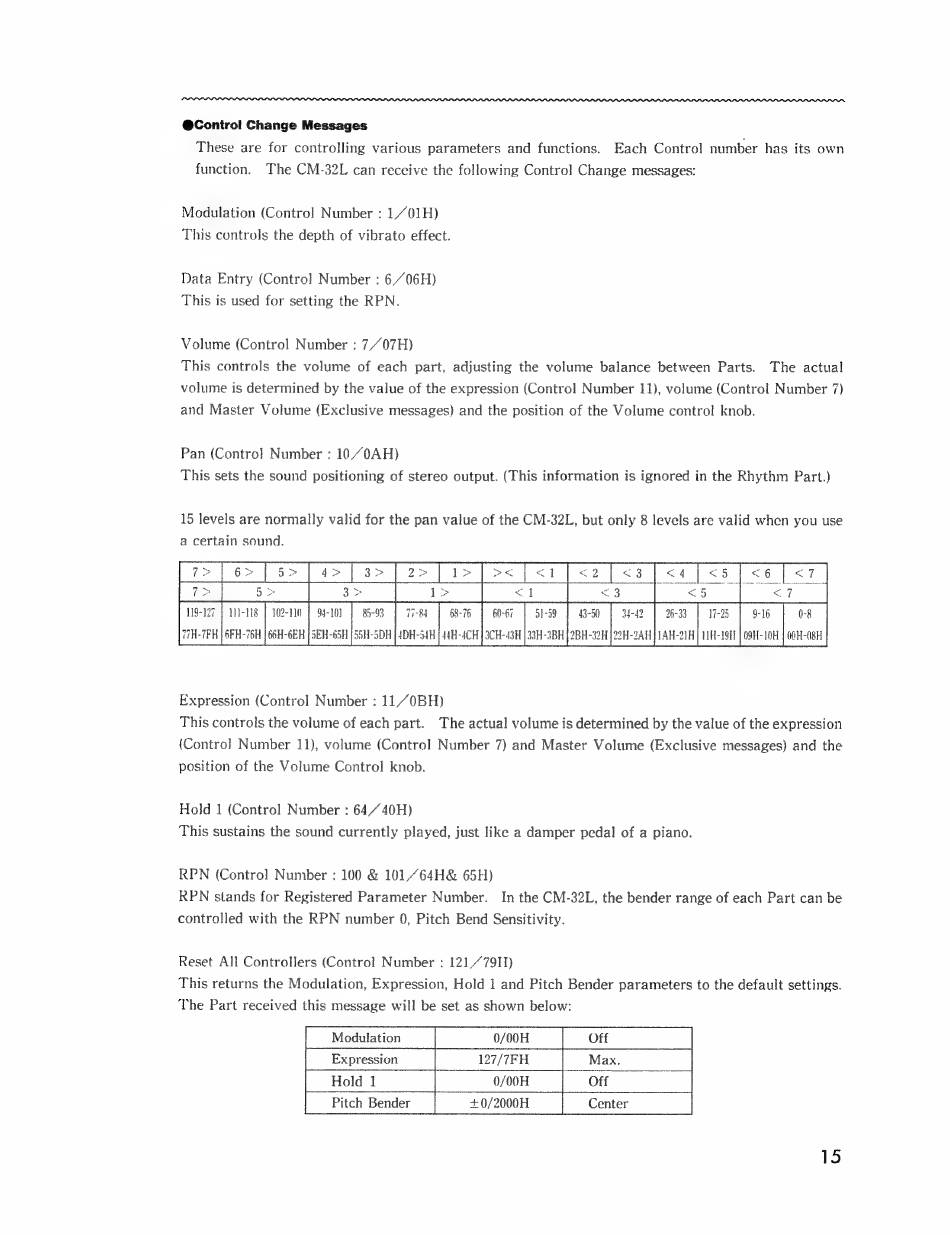

G Control Change Messages
These are for controlling various parameters and functions. Each Control number has its own
function. The CM-32L can receive the following Control Change messages:
Modulation (Control Number : 1,/01H)
This controls the depth of vibrato effect.
Data Entry (Control Number : 6//06H)
This is used for setting the RPN.
Volume (Control Number : 7//07H)
This controls the volume of each part, adjusting the volume balance between Parts. The actual
volume is determined by the value of the expression (Control Number 11), volume (Control Number 7)
and Master Volume (Exclusive messages) and the position of the Volume control knob.
Pan (Control Number : 10/0АН)
This sets the sound positioning of stereo output. (This information is ignored in the Rhythm Part.)
15 levels are normally valid for the pan value of the CM-32L, but only 8 levels are valid when you use
a certain sound.
119-127 | 11- = 102-110 | 94- uu 85-93 = M | 68-76 | 60-67 | 51-59 | 43-50 | 3432 | 2&3 | 17-25 9-16 (-8
T7H-7PH | 6FH-76H | 66Н-бЕН | SEH-65H | 58H-5DH | HDH-54H | 44H-4CH | 3CH-43H |33H-3BH | 2BH-32H ]22H-2AH | AH-21H | HH-191E | 09H-10H | 06H-08H
Expression (Control Number : 11/0BH)
This controls the volume of each part. The actual volume is determined by the value of the expression
(Control Number 11), volume (Control Number 7) and Master Volume (Exclusive messages) and the
position of the Volume Control knob.
Hold 1 (Control Number : 647 40H)
This sustains the sound currently played, just like a damper pedal of a piano.
КРМ (Control Number : 100 & 101/64H& 65H)
RPN stands for Registered Parameter Number. In the CM-32L, the bender range of each Part can be
controlled with the RPN number 0, Pitch Bend Sensitivity.
Reset All Controllers (Control Number : 1217911)
This returns the Modulation, Expression, Hold 1 and Pitch Bender parameters to the default settings.
The Part received this message will be set as shown below:
vi
Expression 127/7FH
Hold 1 0/00H
Pitch Bender +0/2000H
15
