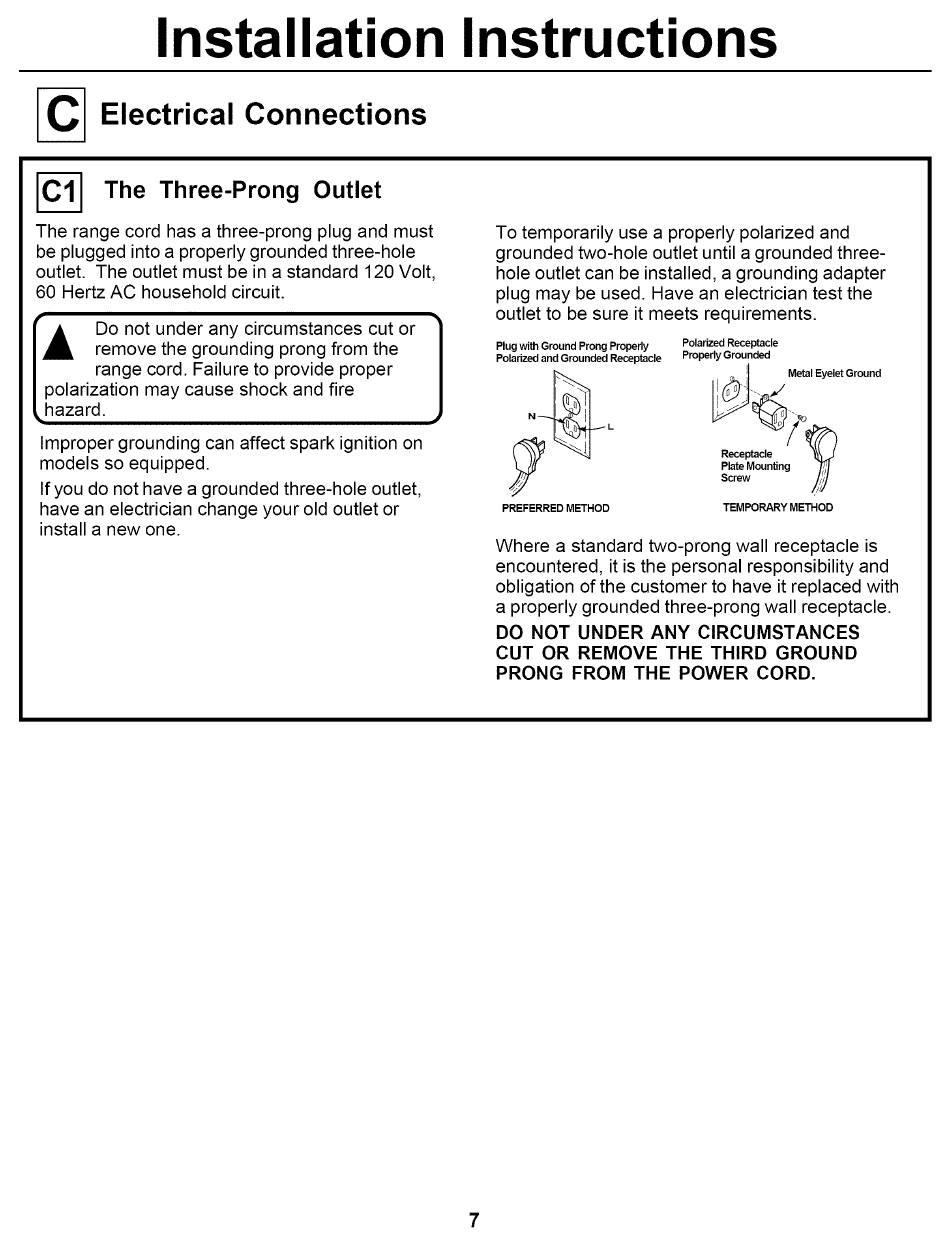

Installation Instructions
C| Electrical Connections
C1} The Three-Prong Outlet
The range cord has a three-prong plug and must
be plugged into a properly grounded three-hole
outlet. The outlet must be in a standard 120 Volt,
60 Hertz AC household circuit.
Do not under any circumstances cut or
A remove the grounding prong from the
range cord. Failure to provide proper
polarization may cause shock and fire
hazard.
improper grounding can affect spark ignition on
models so equipped.
if you do not have a grounded three-hole outlet,
have an electrician change your old outlet or
install a new one.
To temporarily use a properly polarized and
grounded two-hole outlet until a grounded three-
hole outlet can be installed, a grounding adapter
plug may be used. Have an electrician test the
outlet to be sure it meets requirements.
Plug with Ground Prong Properly Polarized Receptacle
Polarized and Grounded Receptacle Properly Grounded
Metal Eyelet Ground
|?
Receptacle
Plate Mounting i
/; Screw i
4, Y
il
PREFERRED METHOD TEMPORARY METHOD
Where a standard two-prong wall receptacle is
encountered, it is the personal responsibility and
obligation of the customer to have it replaced with
a properly grounded three-prong wall receptacle.
DO NOT UNDER ANY CIRCUMSTANCES
CUT OR REMOVE THE THIRD GROUND
PRONG FROM THE POWER CORD.
