GE 30" Slide-In Gas Range with Self-Cleaning Oven
®

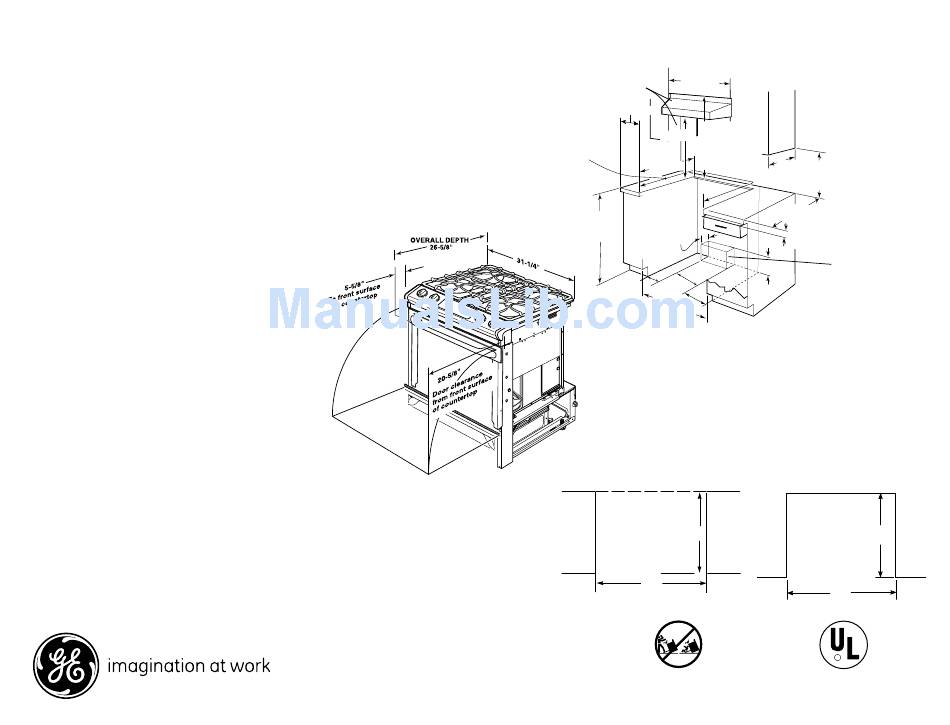

Dimensions and Installation Information (in inches)
Rear filler strip or backguard are available for
these ranges
Note: Door handle protrudes 3" from door face. Cabinets
and drawers on adjacent 45° and 90° walls should be
placed to avoid interference with the handle
Note: Cabinets installed adjacent to slide-in ranges must
have an adhesion spec of at least 194° temperature rating.
Optional Kits for Slide-In Gas Ranges:
(Available at additional cost)
Lower/Side Trim Kits
JXS56WW - Lower Trim Kit (White)
JXS56BB - Lower Trim Kit (Black)
Accessory Backguards
JXS32BB - Black Accessory Backguard
JXS37BB - Black Glass Accessory Backguard
JXS32WW - White Accessory Backguard
JXS37WW - White Glass Accessory Backguard
JXS37CC - Bisque Accessory Backguard
Rear Filler Strip
WB07T10680 - Black Filler Strip Assembly
WB07T10681 - White Filler Strip Assembly
WB07T10682 - Bisque Filler Strip Assembly
Installation Information: Before installing, consult
installation instructions packed with product for current
dimensional data.
For answers to your Monogram, ® GE Profile
GE ® appliance questions, visit our website at
ge.com or call GE Answer Center ®
800.626.2000.
™ or
service,
interference
with drawer
15"
3"
12"
Follow instructions
packaged with
29-15/16" min.
alternate appliance
30-1/16" max.
6" min. from walls
For optimum
installation these
surfaces must be
flat and level
35-7/8"–38" from
floor to countertop
If you are NOT using the
optional Filler or Backguard:
to top of drawer
7"
Acceptable Gas Line &
Electrical Outlet Area
30" min.
30" min. from
24" min. cooking surface
to bottom of
overhead
cabinets
13" max.
23-3/16"
depth
Max. depth
of cord, plug,
recept. box &
gas hookup
3.5" to prevent
interference
with drawer
7"
15"
3"
12"
29-15/16" min.
30-1/16" max.
Counter Cutout Dimensions (in inches)
If you are using the optional
Filler or Backguard:
23-3/16
30
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Revised 7/09
18" min. vertical distance
from the bottom of the
adjacent overhead cabinets
Countertop depth
25" (typical)
1-1/4" min. countertop
to top of drawer
Acceptable Gas Line &
Electrical Outlet Area
25
30
