Cameo OTOS SP6 User Manual

USER MANUAL
OTOS SP6 GOBOS
®

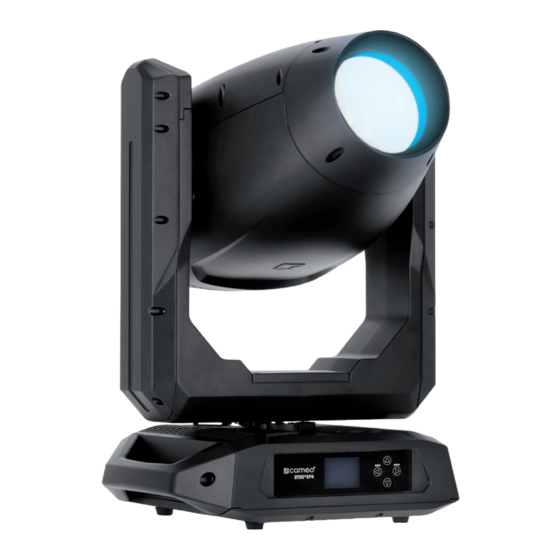

IP65 SPOT PROFILE MOVING HEAD - GOBO
NOTES ON GOBOS AND GOBO REPLACEMENT
These installation instructions do not replace the user manual of the associated product!
The gobos in both gobo wheels of the spotlight are interchangeable. Below are images of the gobos in both gobo wheels.
ATTENTION:
Gobos may only be replaced by qualified specialist personnel. If you are not qualified to do this, do not try to replace gobos yourself. Refer instead to professional companies.
When replacing gobos, pay close attention to each step in the OTOS SP6 Moving Head User Manual under REPLACING GOBOS.
GOBO WHEEL 1, ROTATING GOBOS
Gobo 1 Gobo 2
GOBO WHEEL 2, FIXED GOBOS
Gobo 1 Gobo 2
GOBO HOLDER FOR ROTATING GOBOS
COATED GLASS GOBO
Insert a coated glass gobo into the corresponding gobo holder so
that the more reflective side of the gobo faces the light source. The
less reflective side of the gobo absorbs less heat in this way.
MANUFACTURER GUARANTEE & LIMITATION OF LIABILITY
Our current warranty conditions and limitation of liability are available under:
https://cdn-shop.adamhall.com/media/pdf/MANUFACTURERS-DECLARATIONS_CAMEO.pdf
In the event of service requirements, please contact Adam Hall GmbH, Adam Hall-Str. 1,
61267 Neu-Anspach, Germany. E-mail: Info@adamhall.com / +49 (0)6081 / 9419-0
CORRECT DISPOSAL OF THIS PRODUCT
(Valid in the European Union and other European countries with waste separation)
This symbol on the product or associated documents indicates that the device must not be disposed of together with normal household waste at the end of the product's service life, in order to prevent
environmental damage or personal injury due to uncontrolled waste disposal. Please dispose of this product separately from other waste and recycle it to promote sustainable commercial activity. As a private
customer, you can obtain information on environmentally-friendly disposal options from the seller of the product or the appropriate regional authorities. As a commercial user, please contact your supplier and
check for any contractually agreed conditions on disposing of the equipment. This product must not be disposed of with other commercial waste.
SUBJECT TO MISPRINTS AND ERRORS, AS WELL AS TECHNICAL OR OTHER MODIFICATIONS!
Gobo 3
Gobo 3
GOBO HOLDER FOR FIXED GOBOS
TEXT OR GRAPHIC GOBOS MADE OF METAL
Gobos with a defined orientation (e.g. text gobos) are correctly dis-
played in the projection if they are correctly displayed when viewed
from the side facing the light source.
Cameo ® is a registered brand of the Adam Hall Group
Adam Hall GmbH | Adam-Hall-Str. 1 | 61267 Neu-Anspach | Germany
Phone: +49 6081 9419-0 | adamhall.com
Gobo 4 Gobo 5
Gobo 4 Gobo 5
ALIGN THE GOBO CORRECTLY
When replacing a gobo, make sure that the gobos are inserted in the corresponding holder in
the correct orientation and that there is sufficient heat resistance; otherwise heat damage to the
gobos and gobo holders may occur. For proper orientation of the gobo, refer to the drawings and
descriptions below. However, if there is any doubt about the orientation and heat resistance of a
particular gobo type, please contact the gobo manufacturer.
GLASS GOBO WITH SURFACE STRUCTURE
Glass gobos with surface structure are generally aligned with the
structured side towards the light source. In most cases, the gobo is
glued into the gobo holder with the help of a heat-resistant special
adhesive, as the uneven surface prevents secure installation with a
retaining spring.
TECHNICAL DATA
Product type: Gobo wheel 1, rotating gobos
Outer Ø: 23 mm (+0 / - 0,2)
Ø motif: 19 mm (+0 / - 0,2)
Material: Borosilicate glass
Material thickness: 1.5mm
Heat resistance: 600°C
Gobo 6 Gobo 7
Gobo 6 Gobo 7
Gobo wheel 2, fixed gobos
30 mm (+0 / - 0,2)
19 mm (+0 / - 0,2)
Borosilicate glass
1.5 mm
600°C
