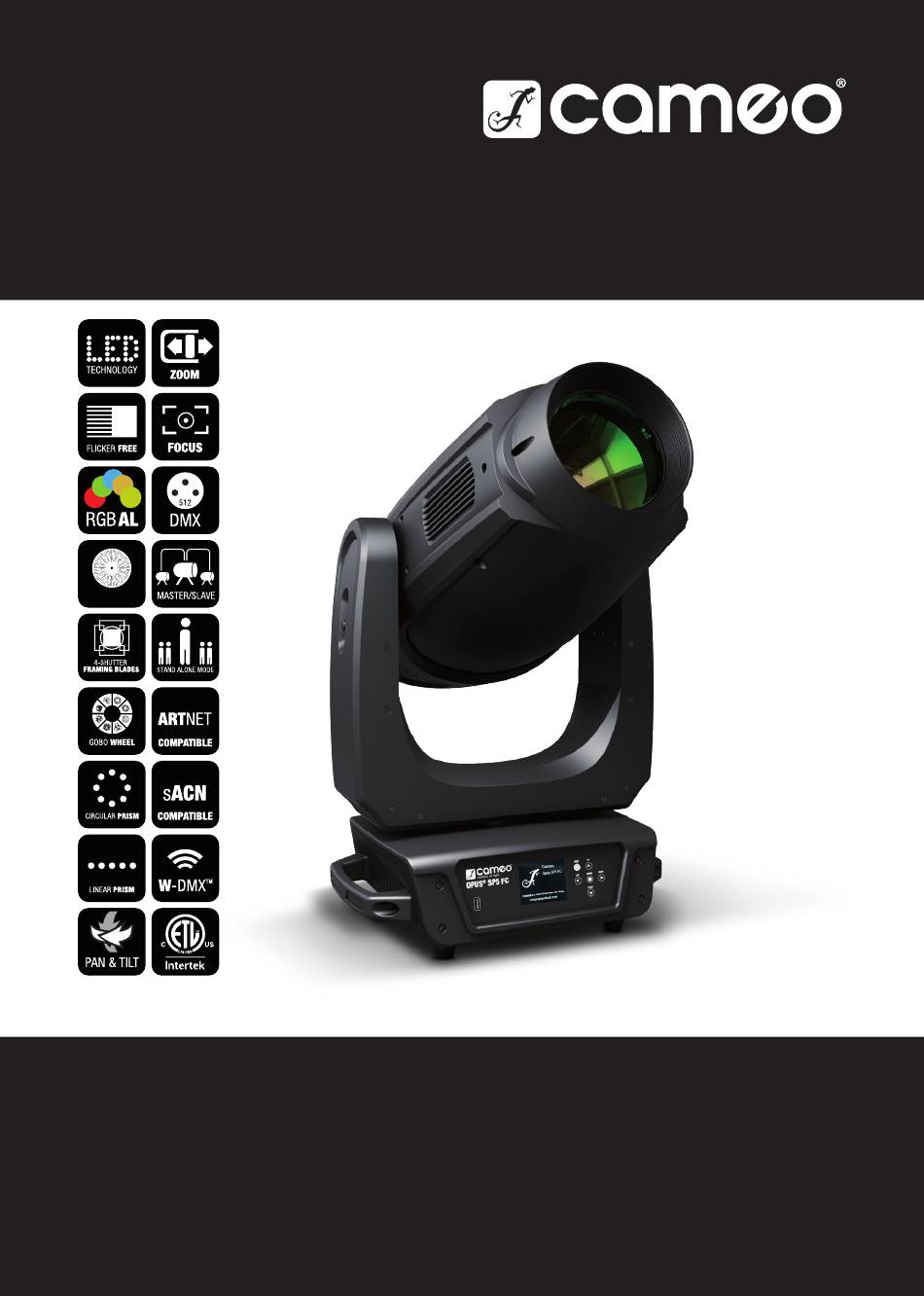

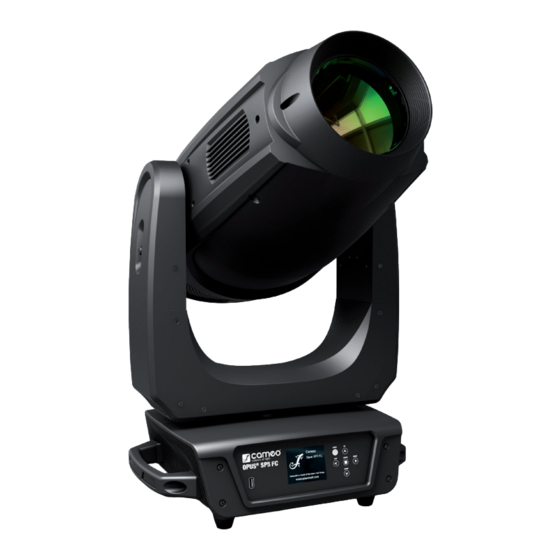

- Page 1 USER´S MANUAL BEDIENUNGSANLEITUNG MANUEL D´UTILISATION MANUAL DE USUARIO INSTRUKCJA OBSŁUGI MANUALE D´USO ANIMATION WHEEL OPUS SP5 FC ® PROFILE SPOT MOVING HEAD CLOSP5FC...
- Page 2 CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO ENGLISH ESPAÑOL PREVENTIVE MEASURES MEDIDAS DE SEGURIDAD INTRODUCTION INTRODUCCIÓN CONNECTIONS, CONTROL AND DISPLAY ELEMENTS CONEXIONES, ELEMENTOS DE MANEJO Y ELEMENTOS OPERATION DE VISUALIZACIÓN CONTROL MENU (CONTROL) FUNCIONAMIENTO SYSTEM SETTINGS (SETTINGS) MENÚ...
- Page 3 We have designed this product to operate reliably over many years. Please read this User‘s Manual carefully, so that you can begin making optimum use of your Cameo Light product quickly. Learn more about Cameo Light on our website WWW.CAMEOLIGHT.COM.
- Page 4 36. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. 37. Children must be instructed not to play with the device. 38. If the power cord of the device is damaged, do not use the device. The power cord must be replaced by an adequate cable or assembly from an authorized service center.
- Page 5 POWER OUT Neutrik powerCON TRUE1 mains output socket. Provides power to additional CAMEO spotlights. Ensure that the total power consumption of all devices connected to the device does not exceed the given ampere (A) value.
- Page 6 PRESSURE-SENSITIVE LC-DISPLAY WITH BACKLIGHTING Thanks to the pressure-sensitive LC display, the device can be operated directly from the display (can be used with gloves). The display shows the currently active operating mode (main display), the menu options in the Options menu, and the numerical values or operating status for certain menu options.
- Page 7 NOTE As soon as the spotlight is connected correctly to the power, “Software Update Please Wait...” and the Cameo logo with information on the device model will display while the device starts up and the motor resets. The spotlight is ready after this process, and the operating mode that was previously selected will activate.
- Page 8 MAIN DISPLAY The upper line of the display shows whether and which control signal is present on the device. The line below shows the currently active control mode (HSI-Std, HSI-Ext, Direct-Std, Direct-Ext, Static, Auto, Slave), and clearly visible in the middle is the DMX start address or the corresponding operating mode (e.g., DMX start address 001).
- Page 9 NETWORK SETTINGS (Network) Starting from the main display, press ENTER to go to the main menu. Use the UP and DOWN control keys to select the Control menu and press ENTER. Using the UP and DOWN buttons, now select the “Network” menu option and confirm via ENTER. Network settings information can be found in the following table.
- Page 10 Link Link Link with W-DMX devices. W-DMX must be active for all devices and the link with a transmitter must be suspended (Receive Reset) UnLink Unlink all devices Receive Reset Do not suspend link with a transmitter Suspend link with a transmitter STAND-ALONE MODES (Stand Alone) Starting from the main display, press ENTER to go to the main menu.
- Page 11 SLAVE MODE (Slave) Select Slave mode as described previously under “STAND-ALONE MODES”. Connect the slave and master unit (same model, same software version) using a DMX cable (Master DMX OUT—Slave DMX IN), and activate one of the stand-alone modes, Auto or Static, on the master unit.
- Page 12 LED Frequency Sets the LED PWM 650 Hz, 1530 Hz, frequency 3600 Hz, 12 KHz, 25 KHz Pan/Tilt Configures the device Pan Reverse Pan movement direction does not reverse head Pan movement direction reverses Tilt Reverse Tilt movement direction does not reverse Tilt movement direction reverses Pan Angle Pan angle 630°...
- Page 13 USB Update—Firmware update via USB interface. OFF = Block firmware update via USB interface. ON = Allow firmware update via USB interface. Factory Reset—Reset to factory settings. DEVICE INFO (Info) Starting from the main display, press ENTER to go to the main menu. Use the UP and DOWN control keys to select the Infomenu and press ENTER. This will take you to the submenu to view the device information (select via UP and DOWN, confirm with ENTER).
- Page 14 SETUP AND INSTALLATION Thanks to the integrated rubber feet, the spotlight can be placed in a suitable location on a flat and solid surface. Install on a crossbeam us- ing two omega brackets that are attached to the base of the device (A). Two omega brackets are included in the scope of delivery; suitable crossbeam clamps are available as needed.
- Page 15 The Adam Hall 3 STAR, 4 STAR, and 5 STAR product ranges include an extensive selection of suitable cables. DMX CABLES When fabricating your own cables, always observe the illustrations on this page. Never connect the shielding of the cable to the ground contact of the plug, and always make certain that the shielding does not come into contact with the housing of the XLR plug.
- Page 16 Network connectors: RJ45 IN and OUT (lockable) DMX mode: HSI-Standard 36-channel, HSI-Extended 49-channel, Direct-Standard 39-channel, Direct-Ex- tended 56-channel DMX functions: Pan/Tilt, Pan/Tilt fine, Dimmer, Dimmer fine, multifunctional strobe, RGBAL, RGBAL fine, Hue, Hue fine, Saturation, CTC, Shade, Color macros, Color macros Crossfade, Gobo Wheel 1, Gobo 1 Rotation, Gobo 1 Rotation fine, Gobo Wheel 1 Rotation, Gobo 1 Shake, Gobo Wheel 2, Gobo Wheel 2 Rotation, Gobo 2 Shake, Zoom, Zoom fine, Focus, Focus fine, Iris, Prism 1/2, Prism Rotation, Frost, Animation Wheel, Diaphragm Slide 1–4, Diaphragm Slide Rotation, Dia-...
- Page 17 MANUFACTURER´S DECLARATIONS MANUFACTURER‘S WARRANTY & LIMITATIONS OF LIABILITY You can find our current warranty conditions and limitations of liability at: https://cdn-shop.adamhall.com/media/pdf/MANUFACTU- RERS-DECLARATIONS_CAMEO.pdf. To request warranty service for a product, please contact Adam Hall GmbH, Adam-Hall-Str. 1, 61267 Neu Anspach / Email: Info@adamhall.com / +49 (0)6081 / 9419-0. CORRECT DISPOSAL OF THIS PRODUCT (valid in the European Union and other European countries with a differentiated waste collection system) This symbol on the product, or on its documents indicates that the device may not be treated as household waste.
- Page 18 CAMEOLIGHT.COM Adam Hall GmbH | Adam-Hall-Str. 1 | 61267 Neu-Anspach | Germany Phone: +49 6081 9419-0 | adamhall.com REV: 01...
