3.2 Connections

3.2.1 Front Panel of KEB Motor Controller:
Five metal bars and a 14pin rugged connector are provided for connecting to the battery,
motor and control signals in the front of the controller shown as Figure 2.
B+: battery positive
B-: battery negative
A: Output U/1/A phase
B: Output V/2/B phase
C: Output W/3/C phase

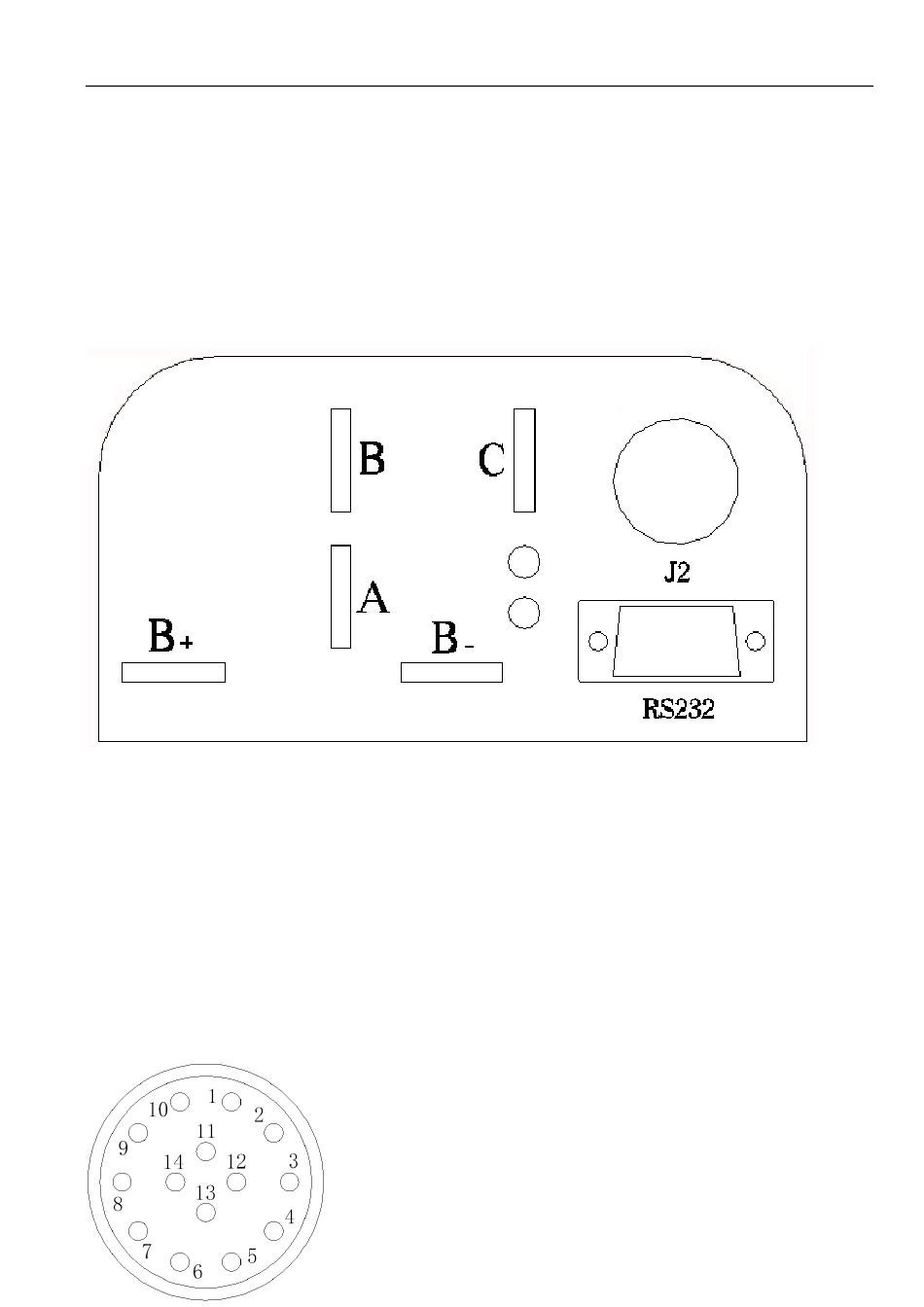

Figure 3: The connecting diagram of J2
J2 Pin Definition
Page 7
Height: 62 millimeters
mounting holes‟ dimensions (dimensions in millimeters)
Figure 2: Front panel of
1.
PWR: Controller power supply
2.
RTN: Signal return, or power supply ground
3.
RTN: Signal return
4.
12V high-level brake and motor temperature input
5.
Throttle analog input, 0-5V
6.
Brake analog input, 0-5V
KEB
motor controller
V 3.3
