Insignia MXOS2000 Installation Manual

Insignia MXOS2000 Installation Manual

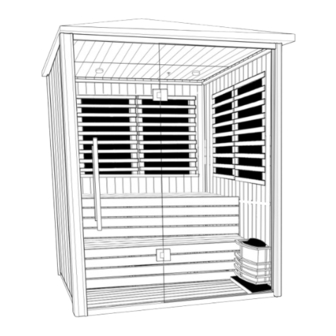

3rd generation hybrid sauna
Hide thumbs Also See for MXOS2000:

Advertisement

Quick Links

Download this manual
www.insigniashowers.com
Last Modified: 18/12/2023
INSTALLATION MANUAL
MXOS2000—3rd Generation
Hybrid Sauna
30 Day Technical Support:
Call 01908 317512 and request technical support for aiding your
installation.
Replacements Parts:
Inside of your warranty period visit:
https://www.insigniashowers.com, click support and make a
warranty claim.
Spares/Replacements Parts:
Outside of your warranty period visit
https://www.insigniashowers.com/replacement-parts.html
ATTENTION INSTALLERS:
These instructions must be
left with the customer
CHECK ALL CONTENTS BEFORE BUILD COMMENCES. NO RETURNS CAN BE MADE
ONCE THE BUILD HAS STARTED AS IT IS DEEMED ACCEPTANCE OF PRODUCT!

Advertisement

loading

Related Manuals for Insignia MXOS2000

Summary of Contents for Insignia MXOS2000

  • Page 1 Last Modified: 18/12/2023 INSTALLATION MANUAL MXOS2000—3rd Generation Hybrid Sauna 30 Day Technical Support: Call 01908 317512 and request technical support for aiding your installation. Replacements Parts: Inside of your warranty period visit: https://www.insigniashowers.com, click support and make a warranty claim.
  • Page 2 www.insigniashowers.com Last Modified: 18/12/2023 Contents Thank you for your purchase Installing the inner roof Electrical & Tool requirements Installing the wall lamp Box contents Connecting the Roof Electrics Installation Instruction Installing the big roof Creating the base Installing the door Installing the back left upright Installing the Door Handle Installing the back panel...
  • Page 3 Last Modified: 18/12/2023 Thank you for your recent purchase of an Insignia Sauna. Please read this booklet with great care to ensure you get the best out of your build and have a Sauna that will last for many years to come! Like everything, in order to obtain a first class product that will serve you well for many years, the effort and correctness put into the assembly will reflect in the quality of your finish.
  • Page 4 CONTRACTOR AND ENSURE LEGAL CERTIFICATION IS GIVEN ON COMPLETION The MXOS2000 has provision for 240 volts. The 6kW stove has facility for the connecting options. Your qualified electrician will advise on the method they feel bests suits your situation and electrical supply along...
  • Page 5 Sauna Heater Screw Pack Heater Stand VERY IMPORTANT Have you got everything? If not please contact the Insignia directly on 01908 317 512. Remember NEVER book your tradesman until everything has arrived, been checked and is present. No replacement/missing parts can be obtained free of charge during or after the build.
  • Page 6 www.insigniashowers.com Last Modified: 18/12/2023 Installation Instructions Please note : Must be installed on a solid and level base. Use bearers to allow gap to prevent damp transfer. Maintenance Instructions Please note : Like all timber products, such as garden sheds and fencing, garden saunas require full exterior wood weatherproofing treatment after installation to ensure long life and prevention of water ingress.
  • Page 7 www.insigniashowers.com Last Modified: 18/12/2023 Step 1 — Creating the base Create a square using the 4 bottom struts. Note: The front strut has a groove cut out for the front fixed glass panel. Make sure this strut is at the front of the square.
  • Page 8 www.insigniashowers.com Last Modified: 18/12/2023 Step 2 — Installing rear left upright There will be 3 screw connections on two faces of the upright. They should face towards the back bottom strut and left bottom strut.
  • Page 9 www.insigniashowers.com Last Modified: 18/12/2023 Step 3 — Installing the back panel Place the back panel onto the base and slot the left post beam down to lock in position.
  • Page 10 www.insigniashowers.com Last Modified: 18/12/2023 Step 4 — Installing the back right upright Tilt the back panel up in order to get the back right upright to slot into the brackets. Connect and push the right back upright down and secure into position. There will be 3 screw connections on two faces of the upright.
  • Page 11 www.insigniashowers.com Last Modified: 18/12/2023 Step 5 — Installing the right side panel Lift the side panel and slide the brackets up the screw fixings and lock into position. Also ensure you push the panel down onto the right bottom strut and ensure they lock together.
  • Page 12 www.insigniashowers.com Last Modified: 18/12/2023 Step 6 — Installing the left side panel Lift the left side panel and slot up onto the back left upright and locking in place on the bottom left strut.
  • Page 13 www.insigniashowers.com Last Modified: 18/12/2023 Step 7 — Placing the floor in position Note: The diagrams on the following pages will show the left side panel & left front upright not in position for optimal visuals of the install diagrams. Please be advised it is crucial the left side panel is in position for the following pages.
  • Page 14 www.insigniashowers.com Last Modified: 18/12/2023 Step 8 — Placing the floor in position—continued Note: The diagrams on the following pages will show the left side panel & left front upright not in position for optimal visuals of the install diagrams. Please be advised it is crucial the left side panel is in position for the following pages.
  • Page 15 www.insigniashowers.com Last Modified: 18/12/2023 Step 9 — Installing the front beams Slot the front left and right upright onto the side panel and push down to secure in position.
  • Page 16 www.insigniashowers.com Last Modified: 18/12/2023 Step 9 — Installing the electric box Place the electric box on the floor of the sauna and position where the bench will enclose it. Drill hole in the sauna wall to accommodate the electric box cable. Connect all electrics within the sauna.
  • Page 17 www.insigniashowers.com Last Modified: 18/12/2023 Step 10 — Fitting the top post Locate the top framework into position. Do not tighten until the next step as you need to lift the framework slightly.
  • Page 18 www.insigniashowers.com Last Modified: 18/12/2023 Step 11 — Installing the fitted glass Overhead view (right) With the framework in position tighten the nut and washer from above. Note: Be careful not to drop the hex nut and washer down the upright. Insert the fixed glass into the groove cut-outs in the framework, lift the top...
  • Page 19 www.insigniashowers.com Last Modified: 18/12/2023 Step 12 — Installing the bench Start by placing the upper back support piece into the sauna and holding in position while the other parts are fitted.
  • Page 20 www.insigniashowers.com Last Modified: 18/12/2023 Step 13 — Installing the bench—continued Start by placing the upper back support piece into the sauna and holding in position while the bench frame is screwed in to secure the back piece.
  • Page 21 www.insigniashowers.com Last Modified: 18/12/2023 Step 14 — Installing the bench—continued...
  • Page 22 www.insigniashowers.com Last Modified: 18/12/2023 Step 15 — Installing the bench—continued Screw the bench support frame using the screws provided in the screw pack.
  • Page 23 www.insigniashowers.com Last Modified: 18/12/2023 Step 16 — Installing the bench seats Locate the two upper and lower benches and place into position.
  • Page 24 www.insigniashowers.com Last Modified: 18/12/2023 Step 17 — Installing the inner roof Pre-assemble the roof before installing on top of the sauna. Ensure that the speakers are positioned towards the back. Please note insulation will Locate the thermo probe and feed through the inner need to be cut to allow bolts to secure.
  • Page 25 www.insigniashowers.com Last Modified: 18/12/2023 Step 18 — Installing the wall lamp Secure the wall lamp cover by screwing into the 4 holes. Step 1: With a plumb line, guide it down the cavity of the left side panel to access the pre drilled hole on the inside.
  • Page 26 www.insigniashowers.com Last Modified: 18/12/2023 Step 19 — Connecting the Roof Electrics Ensure ALL connections are made, matching up the varying wires and connections. You will need to connect both speakers, the control panel, LED Lights, Infra-red panels. Please Note: There is an end connection you leave unplugged as it is not in use.
  • Page 27 www.insigniashowers.com Last Modified: 18/12/2023 Step 20 — Installing the big roof Lift the roof into position and position the square locaters into the top of all uprights. Caution: Roof is heavy, Minimum 3 person lift advised. Please note : On the big roof, 3 curved cutouts are positioned to allow the inner roof connections to avoid being flattened.
  • Page 28 www.insigniashowers.com Last Modified: 18/12/2023 Step 21 — Installing the door Unscrew bolts and separate Side View Lift the door into position and then fix the door into the hinges. To realign Front View the door, loosen the bolts slightly, reposition and then retighten. Repeat this process until alignment is perfect.
  • Page 29 www.insigniashowers.com Last Modified: 18/12/2023 Step 22 — Door Handle Install Locate the door handle and separate before attaching it to the door. The metal handle is designed to be on the outside of the sauna. The door will be positioned here.
  • Page 30 www.insigniashowers.com Last Modified: 18/12/2023 Step 23 — Accessories 40mm Screws Use two screws through the backplate and position anywhere within the Sauna. Place a screw into the back wall and hang the hygrometer.
  • Page 31 www.insigniashowers.com Last Modified: 18/12/2023 Step 24 — Stove Installation Please refer to the stove’s installation manual to correctly fit the stove and tray. Once stove is installed, screw in the wooden cover. Ensure the larger gap is positioned on the top so the controls can be accessed with ease.
  • Page 32 www.insigniashowers.com Last Modified: 18/12/2023 Control Panel Instructions Button 1 (Lights) Turn the 12V light on or off. Button 2 (Return) Press to return to the menu after a change is made. Button 3 (Mode button/Scroll) Press and hold for 3 seconds to power the panel on or off. Press to change the control panel function, then scroll left or right to change settings.
  • Page 33 www.insigniashowers.com Last Modified: 18/12/2023 Coloured Lights FM Radio Volume To operate the lights, press To operate the FM Scroll (Button 3) until you (Button 3), scroll until you Radio, Scroll (Button see the interface (left). Once see the interface (left). Press 3) until you see the here, press (Button 3) to (Button 3) and the lights will...
  • Page 34 www.insigniashowers.com Last Modified: 18/12/2023 Settings Scroll (Button 3) until you see the interface (left). Once here, press (Button 3) to enter the settings mode. Here you can set the clock which operates on a 24 hour system. You can also change the temperature display to Celsius or Fahrenheit.
  • Page 35 www.insigniashowers.com Last Modified: 18/12/2023 BEFORE FIRST USE — IMPORTANT  Ensure the rocks have been thoroughly washed before loading in to the heater.  Ensure you place the rocks loosely between the heating elements.  Don’t over fill the heater, ensure sufficient airflow can be achieved for maximum output. ...
  • Page 36 www.insigniashowers.com Last Modified: 18/12/2023 Sauna Usage & Safety Guide 1. When turning the heating stove on, you MUST pour water over the rocks as it’s the vapour that creates the heat not the rocks. The rocks alone will never heat up the sauna. Failure to do this could cause the rocks to split and break 2.
  • Page 37 (EEE) have to fulfil certain obligations. Under the WEEE directive Insignia is considered the producer of certain products we supply and in line with the demands of the legislation we are pleased to offer the op- portunity to return these products to us for treatment and recycling.
