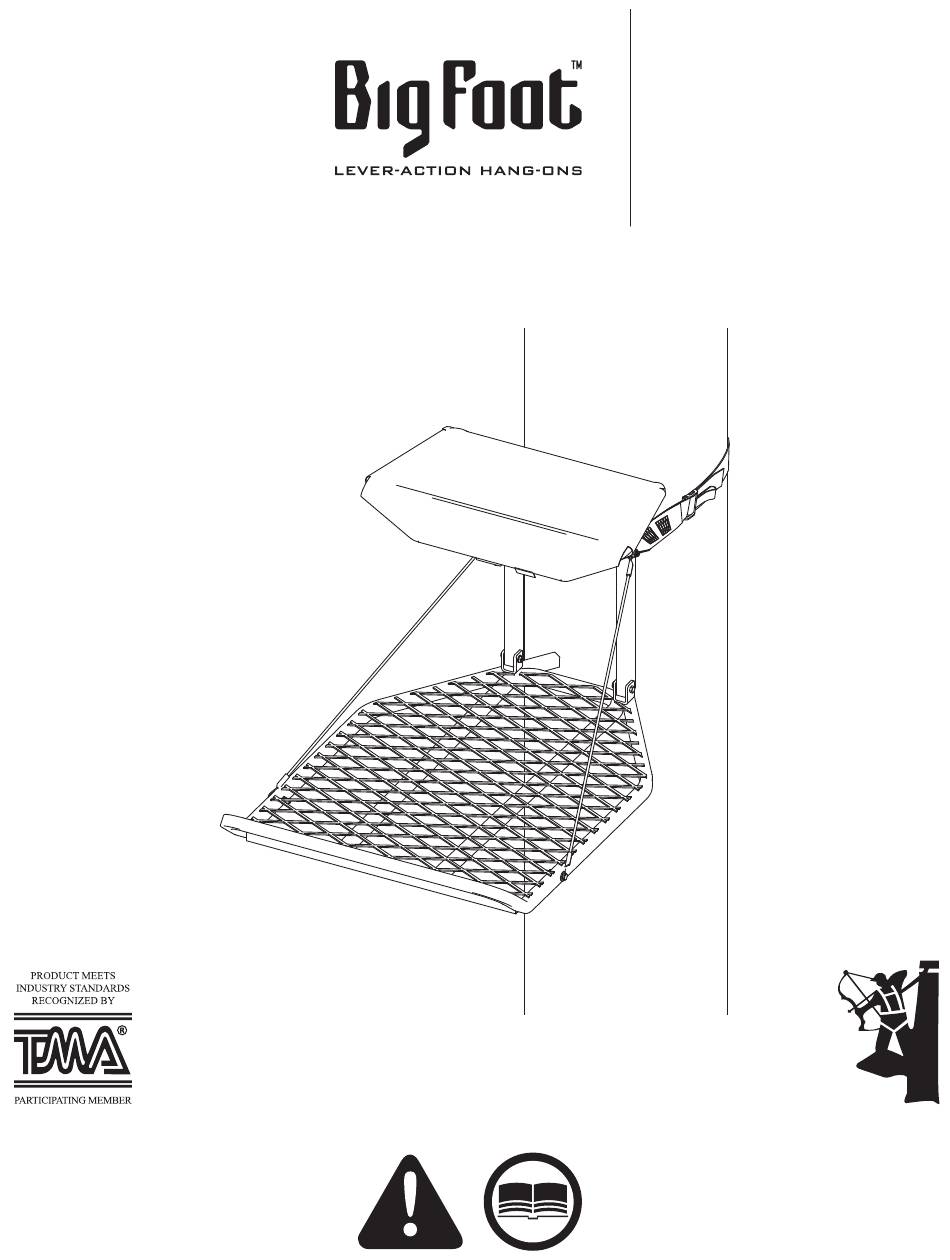

- Page 1 Operator's Manual RE551 BIG FOOT™ XL Maximum Field Rating - 300 lb Tree Diameter Range - 8" to 20" Wear Your Harness! GAS/OIL RATIO 50:1 P/N: 18059 REV4: 04/04/16 Get parts online at © 2016 RETI www.HuntRiversEdge.com All Rights Reserved...
-
Page 2: Table Of Contents
Instructions should be kept in a safe place and reviewed at least annually. If for any reason you have a problem with your product, DO NOT return to the retailer, contact the Rivers Edge® customer service department at 800-450-EDGE (3343) for assistance. -
Page 3: Warnings
Operator's Manual RE551 - BIG FOOT™ XL MODEL RE551 WARNING MAXIMUM OCCUPANCY - ONE (1) Pull up a bow, backpack, or firearm or other equipment only after being secure in the treestand and a firearm TOTAL WEIGHT LIMIT - 300 LB must be pulled up with it unloaded, chamber open, and TREE DIAMETER RANGE - 8"... -
Page 4: Inspection And Maintenance
Operator's Manual RE551 - BIG FOOT™ XL INSPECTION AND MAINTENANCE SCHEDULE WARNING BEFORE EACH USE PERFORM THE FOLLOWING: Climbing aids (stick ladders, sectional ladders, steps, etc.) must extend above the platform to allow the user to step • Inspect all webbing, rope, cord, and strap assemblies for down onto the platform. -
Page 5: Assembly Instructions
Operator's Manual RE551 - BIG FOOT™ XL ASSEMBLY INSTRUCTIONS WARNING Tools needed: two 1/2" wrenches. Double check assembly steps to be certain you have correctly assembled this product. All assembly must be done in this order at ground level. Practice installing, adjusting and using your treestand at Do not remove labels/warnings from product, they are ground level prior to using it at elevated positions. -
Page 6: Setup And Use Instructions
1 by sliding sewn loop completely over the oval mount. 3. It is critical that you secure the sewn loops of Big Foot XL strap to the oval mounts properly and securely, your life depends on it! DO NOT... - Page 7 Operator's Manual RE551 - BIG FOOT™ XL TREE ATTACHMENT INSTRUCTIONS 1. At desired height, attach by following instructions - a,b,c,d,e,f. NOTE: Stand should be attached to tree with platform folded in excess end an upright position! of strap a. Lengthen strap by pulling float buckle away from strap - this will allow strap to slide around float buckle roller bar.
-
Page 8: Threading The Float Buckle
Operator's Manual RE551 - BIG FOOT™ XL THREADING THE FLOAT BUCKLE Always check the condition of your Big Foot strap before use. If strap becomes twisted or if you need to replace a worn or damaged strap, make sure to follow these instruction to ensure proper assembly. 1. -
Page 9: Notes Page
Operator's Manual RE551 - BIG FOOT™ XL NOTES Check for parts online at www.HuntRiversEdge.com or call 800-450-EDGE (3343) M-F 8-5... -
Page 10: Parts Explosion And Parts List
Operator's Manual RE551 - BIG FOOT™ XL PARTS EXPLOSION Check for parts online at www.HuntRiversEdge.com or call 800-450-EDGE (3343) M-F 8-5... - Page 11 Operator's Manual RE551 - BIG FOOT™ XL PARTS LIST KEY # PART # DESCRIPTION QTY. 17444 WELDMENT PLATFORM 17815 WELDMENT SEAT POST 17446 ASSEMBLY SEAT TEARTUFF 48212 CABLE - 28 INCH BROWN VINYL 18063 STRAP ASSEMBLY BIGFOOT XL 48250B BOLT 1/4-20 X 1-3/4 48752B LOCKNUT 1/4-20 98930A142 BOLT M8-1.25 X 65...
- Page 12 Rivers Edge® Treestands, Inc. 1160 Eighth Avenue, PO Box 755 Cumberland, WI 54829 800-450-EDGE (3343) | Fax 715-822-2124 Email: info@huntriversedge.com *All weights, specifications and features are approximate and are subject to change without notice. Due to continuous product improvements, product images may not be exact. Warning labels in some product images...
