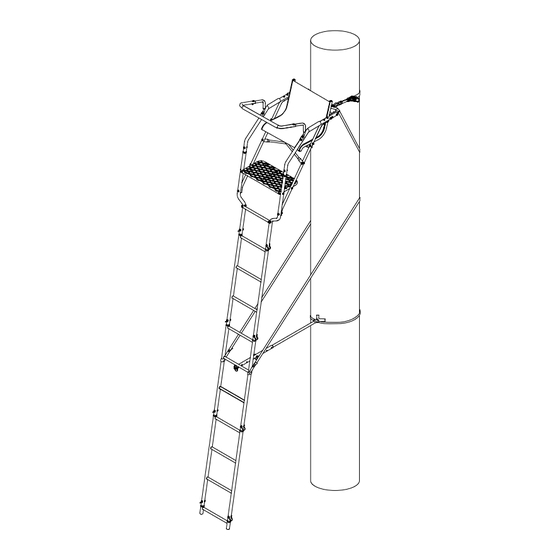

Operator's Manual
RELAX
WIDE
™
Ladder Stand
MODEL RE631
Maximum Height
16' 8" to shooting rail
Maximum Field Rating
300 lbs
Tree Diameter Range
12" to 20"
Wear Your Harness!
© 2018 RETI
P/N: 24199
All Rights Reserved
REV5: 01/22/18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rivers Edge RELAX WIDE RE631
Summary of Contents for Rivers Edge RELAX WIDE RE631
- Page 1 Operator's Manual RELAX WIDE ™ WE ARE HUNTERS Ladder Stand MODEL RE631 Maximum Height 16' 8" to shooting rail Maximum Field Rating 300 lbs Tree Diameter Range 12" to 20" Wear Your Harness! PRODUCT MEETS INDUSTRY STANDARDS RECOGNIZED BY Get parts online at ©...
-
Page 2: Table Of Contents
Instructions should be kept in a safe place and reviewed at least annually. If for any reason you have a problem with your product, DO NOT return to the retailer, contact the Rivers Edge® customer service department at 800-450-EDGE (3343) for assistance. -
Page 3: Warnings
Operator's Manual RELAX WIDE Ladder Stand READ AND UNDERSTAND THE FOLLOWING WARNINGS BEFORE ASSEMBLY STOP MODEL RE631 WARNING MAXIMUM USE HEIGHT - 16' 8" TO SHOOTING RAIL Never jump or bounce on a treestand to seat it to the tree. MAXIMUM OCCUPANCY - ONE (1) PERSON Pull up a bow, backpack, or firearm or other equipment only after being secure in the treestand and a firearm... -
Page 4: Inspection And Maintenance
Operator's Manual RELAX WIDE Ladder Stand WARNING INSPECTION AND MAINTENANCE Always lean forward as you climb and attach your harness to the tree before securing the platform to the tree and BEFORE EACH USE PERFORM THE FOLLOWING: stepping onto the platform. Never exceed the stated maximum use height. -
Page 5: Hardware Identification Chart
Operator's Manual RELAX WIDE Ladder Stand Bolts shown are for size reference. HARDWARE IDENTIFICATION CHART Extra hardware may be included in the parts bag. 1/4-20 X 1-1/2 IN Bolt - Qty 8 1/4-20 X 1-3/4 IN Bolt - Qty 4 1/4-20 Nut M6 Yellow Washer Qty 32... -
Page 6: Assembly Instructions
Operator's Manual RELAX WIDE Ladder Stand ASSEMBLY INSTRUCTIONS IMPORTANT ASSEMBLY TIP: All assembly must be done in this order at ground Do not tighten any nut and bolt combinations completely level before uprighting. until all parts are assembled together! Finger tighten plus one turn of a wrench only! This will temporarily hold the Do not remove labels/warnings from product, they are lock- nut on the bolt while helping alignment of all parts! - Page 7 Operator's Manual RELAX WIDE Ladder Stand 4. Attach the ends with two holes of the upper ladder support tubes (1) to the bottom side of main side rails (2) using four 1/4-20 x 2-1/4 IN bolts (18), locknuts (21) and steel washers (19).
- Page 8 Operator's Manual RELAX WIDE Ladder Stand 9. Attach shooting rail posts (8) to the main side rails (2) using four 1/4-20 x 1-3/4 IN bolts (17) and locknuts (21). SEE FIGURE 5. 10. Insert the shooting rail J-pipes (15) into the shooting rail rim (9).
- Page 9 Operator's Manual RELAX WIDE Ladder Stand 11. Attach the factory assembled mesh seat with seat rails (30) to the previously assembled upper ladder stand assembly. 12. Using two 1/4-20 x 2-1/2 IN bolts (24), locknuts (21) and steel washers (19), attach upper portion of each seat rail to the main side rails (2).
- Page 10 Operator's Manual RELAX WIDE Ladder Stand 17. Sections are assembled on the ground in the following order; base extension (14); middle section (10); middle ladder section with stabilizer slot (11); Base middle section (10); top section (assembled top Extension platform section). SEE FIGURE 9 AND 9A. 18.
- Page 11 Operator's Manual RELAX WIDE Ladder Stand . Attach the two long ends of the 16’ criss-cross straps (30) to the tree blade (5). These long stabilizer straps should be attached by pulling the free end of the strap through the loop end of the strap to create a cinch knot around the frame tube.
-
Page 12: Warnings
Operator's Manual RELAX WIDE Ladder Stand READ AND UNDERSTAND THE FOLLOWING WARNINGS BEFORE SETUP AND USE STOP WARNING WARNING Double check assembly steps to be certain you have Bring ratchet strap(s) up with you in a pocket - Do Not correctly assembled this product. -
Page 13: Setup And Use Instructions
Operator's Manual RELAX WIDE Ladder Stand SETUP AND USE INSTRUCTIONS FIGURE 12 WARNING Never use a treestand on a dead, leaning, diseased or loose barked tree, or a utility pole. Always avoid electrical power lines. Bring ratchet strap(s) up with you in a pocket - Do Not carry in your hands! During installation and removal of ladder treestands, you must always and properly use the included Full Body Harness... - Page 14 Operator's Manual RELAX WIDE Ladder Stand 5. a. Loop the D-loop end of the two 16' criss cross straps (30) through the loop end to form a cinch knot around the ladder rail tube. Secure beneath a step rung, at the stabilizer bar height location.
-
Page 15: Finished Ladder
Operator's Manual RELAX WIDE Ladder Stand FINISHED LADDER ASSEMBLED RATCHET STRAP PLATFORM SECTION CRISS CROSS STRAPS FOURTH LADDER SECTION STABILIZER BAR CAM STRAP THIRD LADDER SECTION STABILIZER BAR SECOND LADDER SECTION LOCKPINS BOTTOM LADDER SECTION Check for parts online at www.HuntRiversEdge.com or call 800-450-EDGE (3343) M-F 8-5... -
Page 16: Illustrated Parts Breakdown
Operator's Manual RELAX WIDE Ladder Stand ILLUSTRATED PARTS BREAKDOWN 18 19 Check for parts online at www.HuntRiversEdge.com or call 800-450-EDGE (3343) M-F 8-5... - Page 17 Operator's Manual RELAX WIDE Ladder Stand PARTS LIST ITEM # PART # DESCRIPTION QTY. ITEM # PART # DESCRIPTION QTY. TUBE BRACE UPPER LADDER 48240B BOLT 1/4-20 X 1 1/2 IN 10336 SUPPORT 48250B BOLT 1/4-20 X 1-3/4 IN 10346 TUBE RAIL SIDE LADDER 48271B BOLT 1/4-20 X 2-1/4 IN...
-
Page 18: Notes
Operator's Manual RELAX WIDE Ladder Stand NOTES: Check for parts online at www.HuntRiversEdge.com or call 800-450-EDGE (3343) M-F 8-5... - Page 19 Operator's Manual RELAX WIDE Ladder Stand OTHER GREAT PRODUCTS BY RIVERS EDGE TREESTANDS Portable ground blinds take a beating from the sun, wind, rain and snow. Col- ors fade, materials rot, poles break and fabric tears. The Landmark Permanent Blind was designed and constructed to resist the elements year after year. The durable steel frame is covered in marine-grade reinforced synthetic tarpaulin, made from the same rugged materials used in pick-up truck tonneau covers.
- Page 20 WE ARE HUNTERS Rivers Edge® Treestands, Inc. Phone: 800-450-EDGE (3343) 1160 Eighth Avenue, PO Box 755 Fax: 715-822-2124 Cumberland, WI 54829 www.HuntRiversEdge.com *All weights, specifications and features are approximate and are subject to change without notice. Due to continuous product improvements, product images may not be exact. Warning labels in some product...
