WE ARE HUNTERS
PRODUCT MEETS
INDUSTRY STANDARDS
RECOGNIZED BY
PARTICIPATING MEMBER
Get parts online at
www.HuntRiversEdge.com
Operator's Manual
DELUXE

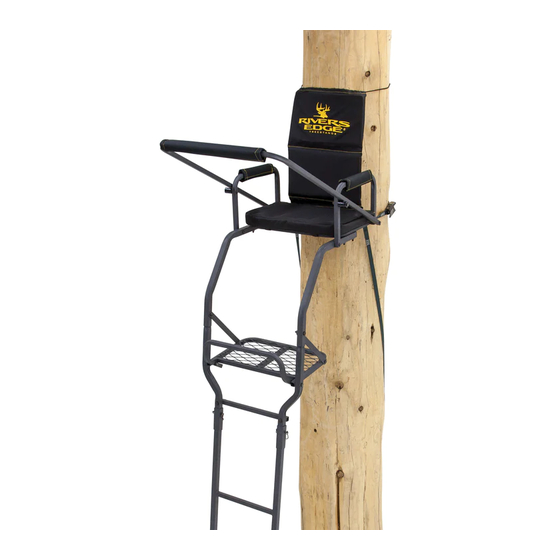

Ladder Stand
MODEL RE647
Maximum Height
16' 5" to shooting rail
Maximum Field Rating
300 lbs
Tree Diameter Range
12" to 20"
Wear Your Harness!
© 2018 RETI
All Rights Reserved
REV4: 12/10/18
™
P/N: 23712
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rivers Edge DELUXE RE647
Summary of Contents for Rivers Edge DELUXE RE647
- Page 1 Operator's Manual DELUXE ™ WE ARE HUNTERS Ladder Stand MODEL RE647 Maximum Height 16' 5" to shooting rail Maximum Field Rating 300 lbs Tree Diameter Range 12" to 20" Wear Your Harness! PRODUCT MEETS INDUSTRY STANDARDS RECOGNIZED BY Get parts online at ©...
-
Page 2: Table Of Contents
Instructions should be kept in a safe place and reviewed at least annually. If for any reason you have a problem with your product, DO NOT return to the retailer, contact the Rivers Edge® customer service department at 800-450-EDGE (3343) for assistance. -
Page 3: Warnings
Operator's Manual DELUXE Ladder Stand READ AND UNDERSTAND THE FOLLOWING WARNINGS BEFORE ASSEMBLY STOP MODEL RE647 WARNING MAXIMUM USE HEIGHT - 16' 5" TO SHOOTING RAIL Never jump or bounce on a treestand to seat it to the tree. MAXIMUM OCCUPANCY - ONE (1) PERSON Pull up a bow, backpack, or firearm or other equipment only after being secure in the treestand and a firearm TOTAL WEIGHT LIMIT - 300 LB... -
Page 4: Inspection And Maintenance
Operator's Manual DELUXE Ladder Stand WARNING INSPECTION AND MAINTENANCE Always lean forward as you climb and attach your harness to the tree before securing the platform to the tree and BEFORE EACH USE PERFORM THE FOLLOWING: stepping onto the platform. Never exceed the stated maximum use height. -
Page 5: Hardware Identification Chart
Operator's Manual DELUXE Ladder Stand Bolts shown are for size reference. HARDWARE IDENTIFICATION CHART Extra hardware may be included in the parts bag. 1/4-20 X 1-1/4 IN Bolt - Qty 1 1/4 IN Nut 5/16 IN Nut Qty 7 Qty 12 1/4-20 X 2-1/4 IN Bolt - Qty 2 1/4-20 X 2-3/4 IN Bolt - Qty 2 1/4-20 X 3 IN Bolt - Qty 2... -
Page 6: Assembly Instructions
Operator's Manual DELUXE Ladder Stand ASSEMBLY INSTRUCTIONS IMPORTANT ASSEMBLY TIP: All assembly must be done in this order at ground Do not tighten any nut and bolt combinations completely level before uprighting. until all parts are assembled together! Finger tighten plus one turn of a wrench only! This will temporarily hold the lock nut Do not remove labels/warnings from product, they are there for your safety. - Page 7 Operator's Manual DELUXE Ladder Stand 4. Attach the front of the other amrest (11) to the opposite side rail (4) using one 1/4-20 X 2-1/4 IN bolt (19), one yellow washer (30) and one 1/4 IN nut (25). SEE FIGURE 3. 5.
- Page 8 Operator's Manual DELUXE Ladder Stand 10. Attach the footrest (10) and the square ends of the foot platform (6) to the flared platform rails (2) using two 5/16 X 18 X 3-1/4 IN bolts (23), six yellow washers (31) and two 5/16 IN nuts (26).
- Page 9 Operator's Manual DELUXE Ladder Stand 13. Slide the stabilizer bar (8) into the stabilizer support bar (9) and secure using a lockpin (24). Make sure the lockpin passes through the support bar (9) and the stabilizer bar (8) at the appropriate hole to achieve the desired distance from the tree.
-
Page 10: Warnings
Operator's Manual DELUXE Ladder Stand READ AND UNDERSTAND THE FOLLOWING WARNINGS BEFORE SETUP AND USE STOP WARNING WARNING Double check assembly steps to be certain you have Bring ratchet strap(s) up with you in a pocket - Do Not correctly assembled this product. carry in your hands! Study your new stand to become familiar with all of its features and design. -
Page 11: Setup And Use Instructions
Operator's Manual DELUXE Ladder Stand SETUP AND USE INSTRUCTIONS FIGURE 9 WARNING Never use a treestand on a dead, leaning, diseased or loose barked tree, or a utility pole. Always avoid electrical power lines. Bring ratchet strap(s) up with you in a pocket - Do Not carry in your hands! During installation and removal of ladder treestands, you must always and properly use the included Full Body Harness... - Page 12 Operator's Manual DELUXE Ladder Stand 4. a. Loop the d-loop end of the two 16' criss cross straps (35) through the loop end to form a cinch knot around the ladder rail tube. Secure beneath a step rung, at the stabilizer bar height location.
-
Page 13: Finished Ladder
Operator's Manual DELUXE Ladder Stand FINISHED LADDER ASSEMBLED PLATFORM RATCHET STRAP SECTION CRISS-CROSS STRAPS THIRD LADDER SECTION STABILIZER BAR CAM STRAP SECOND LADDER SECTION STABILIZER BAR LOCKPINS BOTTOM LADDER SECTION Check for parts online at www.HuntRiversEdge.com or call 800-450-EDGE (3343) M-F 8-5... -
Page 14: Illustrated Parts Breakdown
Operator's Manual DELUXE Ladder Stand ILLUSTRATED PARTS BREAKDOWN Check for parts online at www.HuntRiversEdge.com or call 800-450-EDGE (3343) M-F 8-5... - Page 15 Operator's Manual DELUXE Ladder Stand PARTS LIST ITEM # PART # DESCRIPTION QTY. ITEMS BELOW ARE NOT SHOWN 23704 LADDER SECTION SAFETY HARNESS / FALL 10531 ARREST SYSTEM 23702 FLARED PLATFORM RAIL MK021-1401 6' CAM BUCKLE STRAP 23701 SUPPORT BAR MK011-1601 6' RATCHET STRAP 23700...
- Page 16 WE ARE HUNTERS Rivers Edge® Treestands, Inc. Phone: 800-450-EDGE (3343) 1160 Eighth Avenue, PO Box 755 Fax: 715-822-2124 Cumberland, WI 54829 www.HuntRiversEdge.com *All weights, specifications and features are approximate and are subject to change without notice. Due to continuous product improvements, product images may not be exact. Warning labels in some product...
