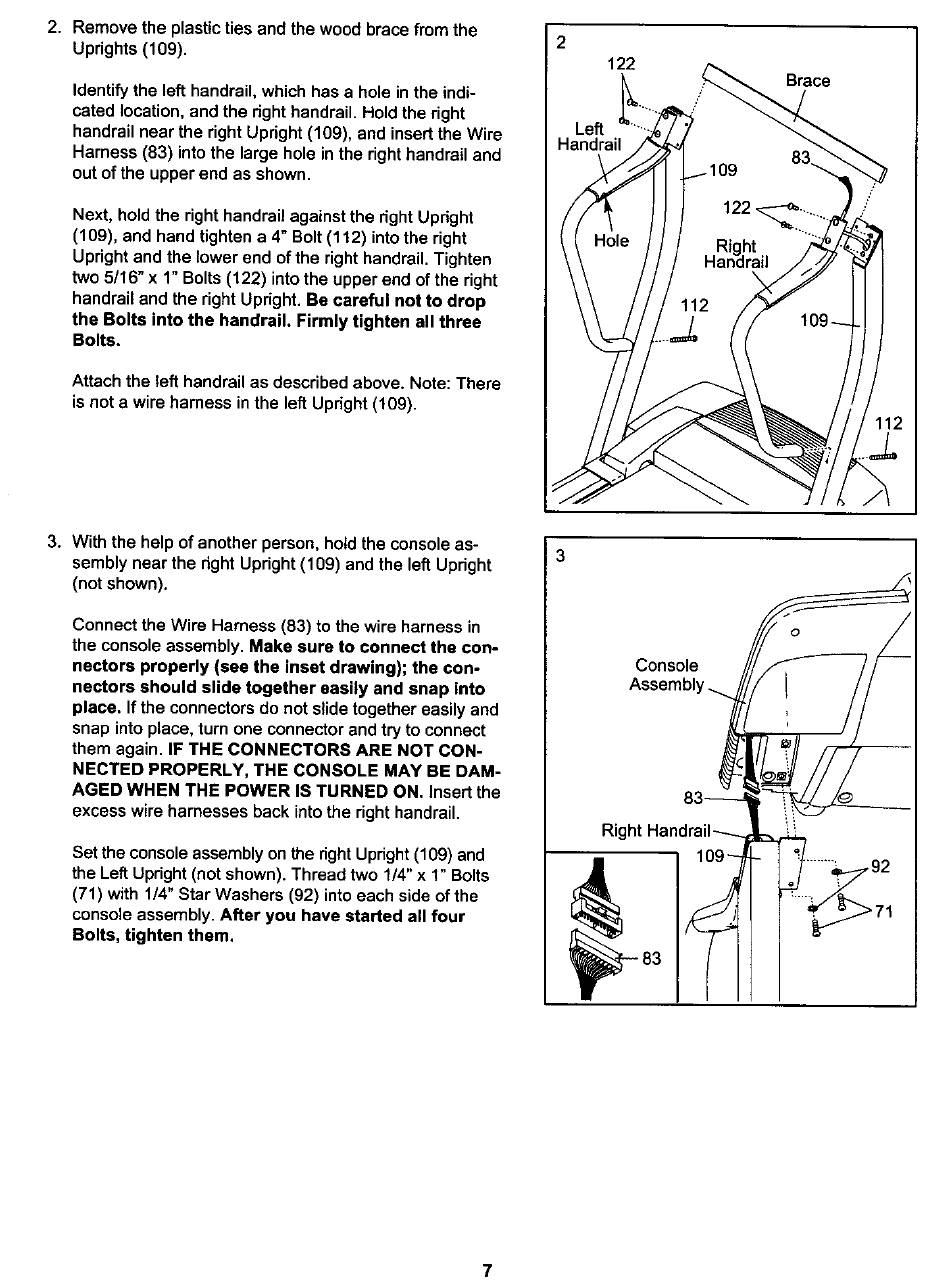

2. Remove the plastic ties and the wood brace from the
Uprights (109).
Identify the left handrail, which has a hole in the indi-
cated location, and the right handrail. Hold the right
handrail near the right Updght (109), and insert the Wire
Harness (83) into the large hole in the right handrail and
out of the upper end as shown.
Next, hold the right handrail against the right Upright
(109), and hand tighten a 4" Bolt (112) into the right
Upright and the lower end of the right handrail. Tighten
two 5/16" x 1° Bolts (122) into the upper end of the right
handrail and the right Updght. Be careful not to drop
the Bolts into the handrail. Firmly tighten all three
Bolts.
Attach the left handrail as described above. Note: There
is not a wire harness in the left Upright (109).
I2 122
Left
Brace
3. With the help of another person, hold the console as-
sembly near the right Updght (109) and the left Upright
(not shown).
Connect the Wire Harness (83) to the wire harness in
the console assembly. Make sure to connect the con-
nectors properly (see the inset drawing); the con-
hectors should slide together easily and snap into
place. If the connectorsdo not slide together easily and
snap into place, turn one connectorand try to connect
them again. IF THE CONNECTORS ARE NOT CON-
NECTED PROPERLY, THE CONSOLE MAY BE DAM-
AGED WHEN THE POWER IS TURNED ON. Insert the
excess wire harnesses back into the right handrail.
Set the consoleassembly on the right Upright (109) and
the Left Upright (not shown). Thread two 1/4" x 1" Bolts
(71) with 1/4" Star Washers (92) into each side of the
console assembly. After you have started all four
Bolts, tighten them,
Console
Assembl
Rig
109-
7
