HOMCOM 370-239V70 Manual page 9

4 wheels dump truck battery powered ride-on

Advertisement

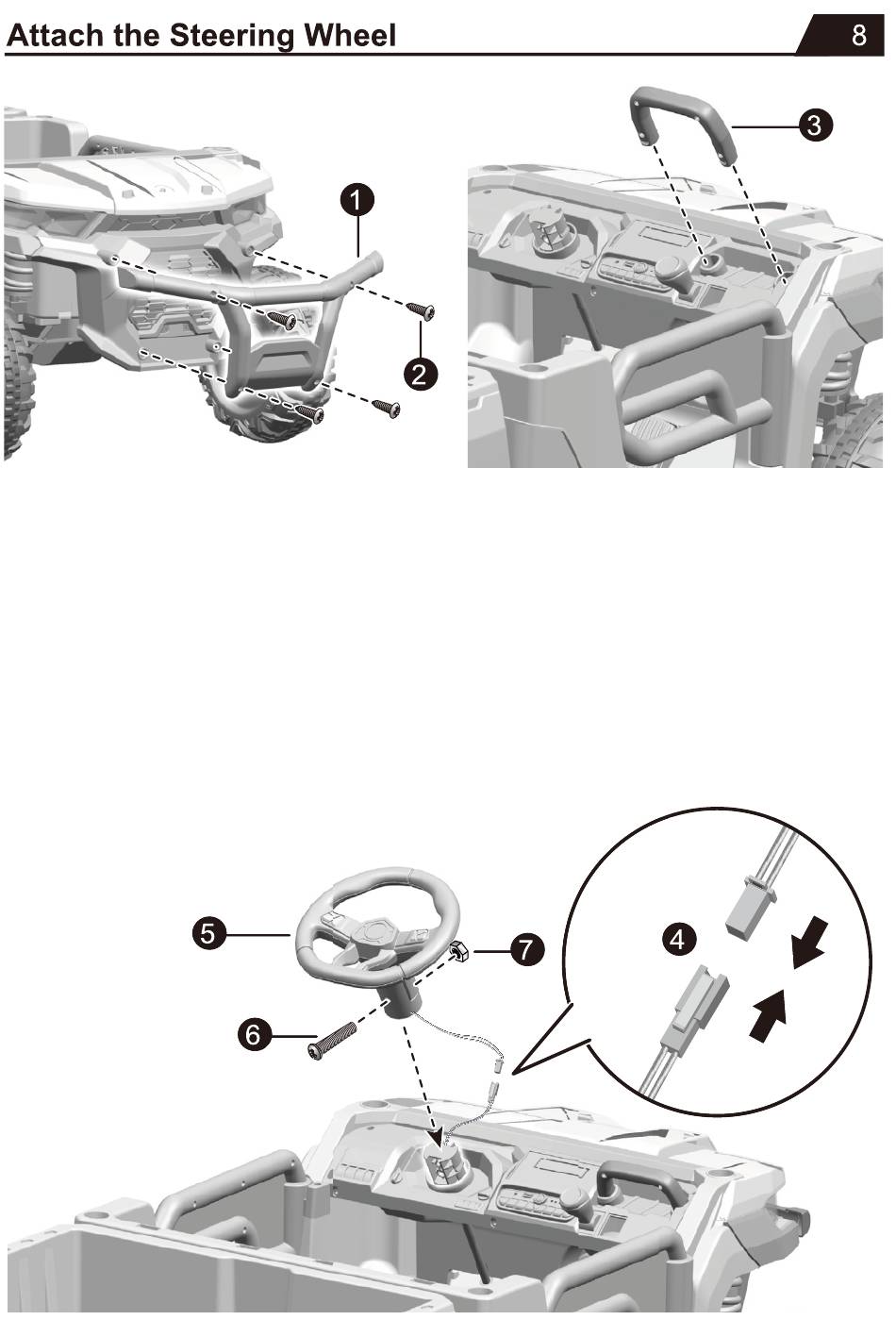

1-2. Fit the front bumper to the vehicle body, then insert four 4x14 black
screws and tighten.
3. Insert the handle into the holes on the dash.
4. Plug the sound unit connector on the steering wheel into the
connector on the body. Hide the connectors and wires into the
steering wheel.
5. Fit the steering wheel to the steering wheel base on the body.
6-7. Line up the holes on the steering wheel with the holes on the
steering wheels base, then insert the M5x40 machine screw. Fasten a
nut on the opposite end of the screw with a screwdriver.
