Summary of Contents for Chauvet DJ HURRICANE 1000
- Page 1 User Manual...
- Page 2 Edition Notes The Hurricane 1000 User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the Hurricane 1000 as of the release date of this edition. Trademarks Chauvet, Chauvet DJ, the Chauvet logo, and Hurricane are registered trademarks or trademarks of Chauvet &...
-
Page 3: Table Of Contents
FC-M Wired Manual Remote ................ FC-W Wireless Remote ................FC-T Wired Timer Remote................Wired Timer Remote Operation................5. Maintenance................Product Maintenance ..................Fog Machine Maintenance................Storage......................General Troubleshooting................6. Technical Specifications ............Contact Us ..................Warranty & Returns..................Hurricane 1000 User Manual Rev. 3... -
Page 4: Before You Begin
Important installation or configuration information. The product may not function correctly if this information is not used. Useful information. Hurricane 1000 User Manual Rev. 3... -
Page 5: Safety Notes
Add perfume, alcohol, gasoline or any other chemical to the fluid. ♦ Use for space-heating purposes. ♦ Overfill. Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document. Hurricane 1000 User Manual Rev. 3... -
Page 6: Fcc Statement Of Compliance
This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and the user. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Hurricane 1000 User Manual Rev. 3... -
Page 7: Introduction

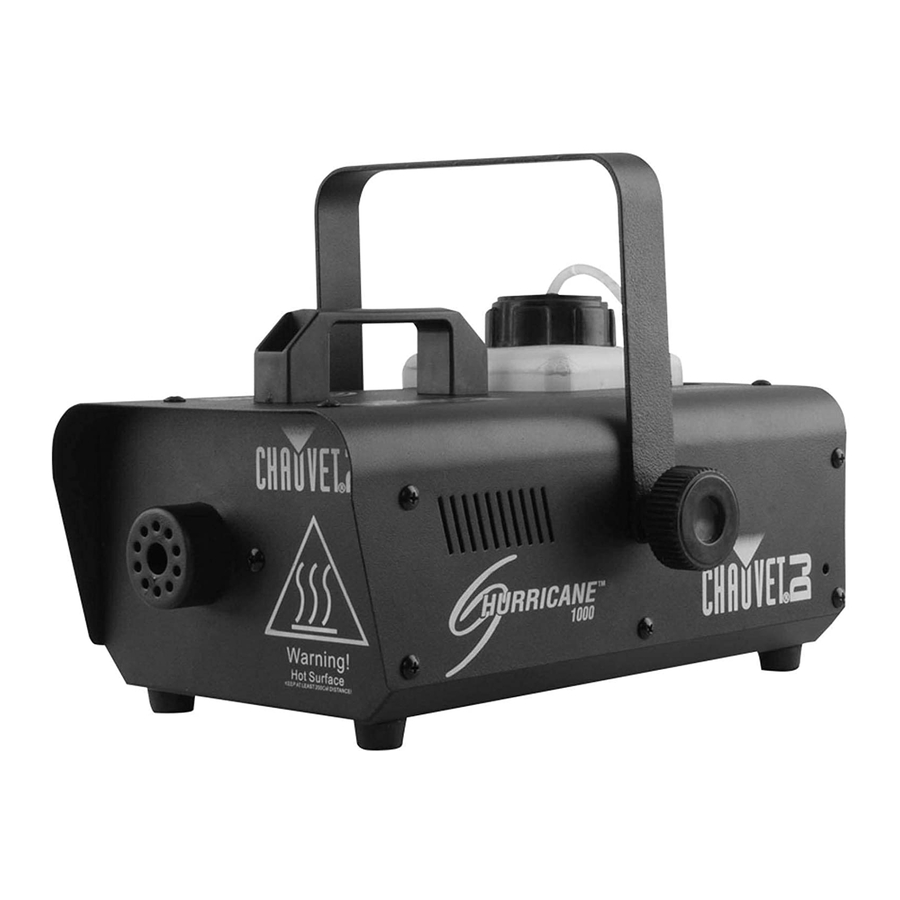

Carry handle Nozzle Feet for surface mounting (x4) Fluid tank Controller in Manual button Fuse holder Fluid level indicator Fixed power cable Product Dimensions 8.2 in 208 mm 8.9in 11.9 in 225 mm 301 mm Hurricane 1000 User Manual Rev. 3... -
Page 8: Setup
3. Setup AC Power The Hurricane 1000 has a fixed voltage power supply, and it can work with an input voltage range of either 120 VAC, 60 Hz or 220 VAC, 50 Hz, depending on the specific model. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 9: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation It is possible to mount the Hurricane 1000 in any position; however, make sure to provide adequate ventilation around the product. Rigging • Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming. -
Page 10: Operation
FC-W Wireless Remote The FC-W wireless remote allows the user to trigger the Hurricane 1000 to produce fog from up to 100 ft away. No extra receiver is required, as the product has an internal receiver for the wireless remote. -
Page 11: Fc-T Wired Timer Remote
• In order for Continuous mode to run uninterrupted, without the Hurricane 1000 stopping to reheat, set the OUTPUT knob no higher than 7. At Output levels above 7, the fog machine will cycle through intermittent bursts of fog during its reheating program. -
Page 12: Maintenance
1 through 5. Do not refill the tank with fog fluid if storing the Hurricane 1000. Cleaning the system prior to storage will help prevent any particles from condensing inside the pump or heater while not in use. -
Page 13: General Troubleshooting
Internal problem Send product for repair. Product stops pumping Low / no fluid Refill with Chauvet water-based fog fluid. Loud noise If problems persist after attempting the solutions above, contact Chauvet Technical Support. Hurricane 1000 User Manual Rev. 3... -
Page 14: Technical Specifications
20 ml/min 10,000 cfm Thermal Maximum External Temperature Cooling System 104 °F (40 °C) Convection Ordering Product Name Item Code UPC Number Hurricane 1000 (120 V) 09071071 781462214197 Hurricane 1000 (230 V) 09071072 781462214203 Hurricane 1000 User Manual Rev. 3... -
Page 15: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Hurricane 1000 User Manual Rev. 3...
