Chauvet DJ Hurricane 1000 Manual

BEFORE YOU BEGIN

What Is Included

• Hurricane 1000
• FC-M Wired Remote Control
• FC-W Wireless Remote
• Warranty Card
• Quick Reference Guide

Unpacking Instructions

Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condition.

Claims
If the box or the contents (the product and included accessories) appear damaged from shipping, or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection.
For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with Chauvet within 7 days of delivery.

Text Conventions

Symbols

Symbol	Meaning
	Critical installation, configuration, or operation information. Not following these instructions may make the product not work, cause damage to the product, or cause harm to the operator.
	Important installation or configuration information. The product may not function correctly if this information is not used.

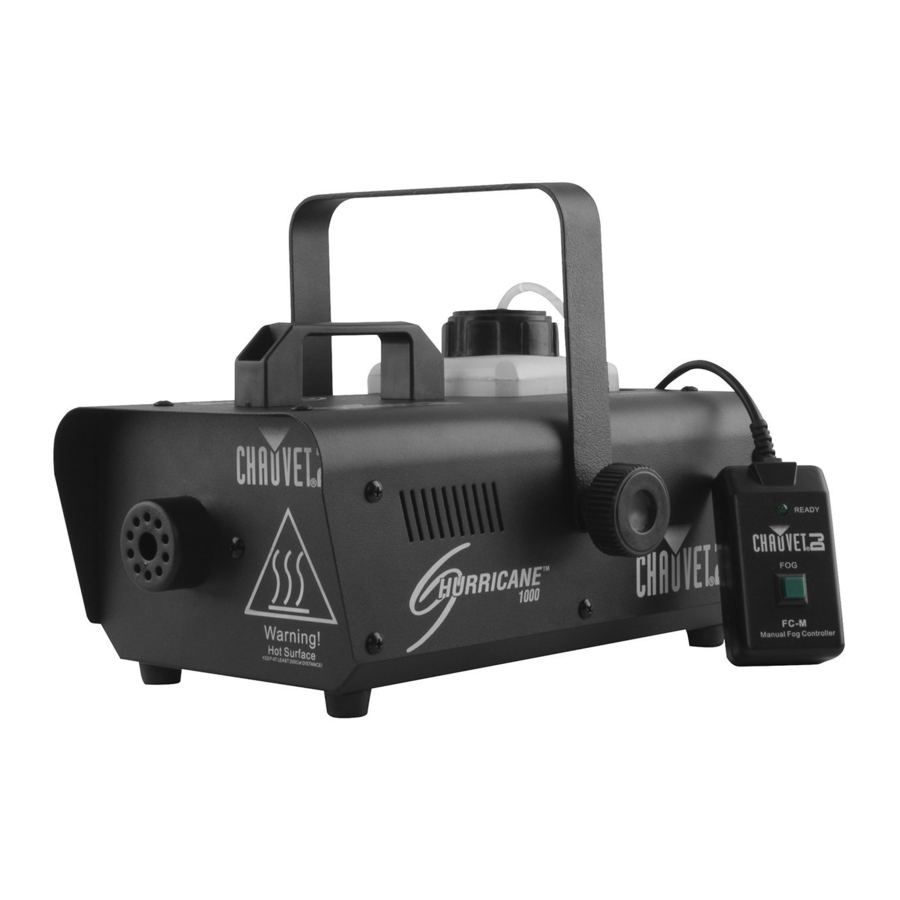

Product at a Glance

INTRODUCTION

Overview

Dimensions

SETUP

AC Power

This Hurricane 1000 has a fixed voltage power supply and it can work with an input voltage of either 120 VAC, 60 Hz or 230 VAC, 50 Hz, depending on the specific model.
To determine the product's power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product's back panel, or refer to the product's specifications chart. The listed current rating indicates the product's average current draw under normal conditions.

•
  Always connect the product to a protected circuit (circuit breaker or fuse). Make sure the product has an appropriate electrical ground to avoid the risk of electrocution or fire.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Never connect the product to a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel serves only as a 0 to 100% switch.

Fuse Replacement

1. Disconnect the product from power.
2. Twist the fuse holder cap counterclockwise to loosen the fuse holder and pull straight out.
3. Remove the blown fuse.
4. Replace with a fuse of the same type and rating.
5. Screw the fuse holder cap back in place and reconnect power.

• Disconnect the product from power before replacing the fuse.
• Always replace a blown fuse with another of the same type and rating.

Mounting

Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes.

Orientation

This product may not be tilted. This product should only be mounted/used on a level surface.

Rigging

• Before deciding on a location, always make sure there is easy access to the product for maintenance and fluid replenishment.
• Make sure that the structure or surface onto which you are mounting the product can support the product's weight (see theTechnical Specifications).
• When mounting the product overhead, always use a safety cable. Mount the product securely to a rigging point, such as an elevated platform or a truss.
• When rigging the product onto a truss, you should use a mounting clamp of appropriate weight capacity. The bracket has 13-mm holes, which are appropriate for this purpose.
• The rubber feet also serve as floor supports and allow for surface mounting. When mounting the product on the floor, make sure that the product and cables are away from people and vehicles.

Mounting Diagram

While operating the Hurricane 1000, make sure there is adequate fog fluid in the machine to prevent pump and heater damage. When the fog fluid level becomes low, simply add more fog fluid to continue using the Hurricane 1000.

REMOTE OR MANUAL OPERATION

FC-M Wired Manual Remote Control

FC-M Manual Remote Control Overview

The Hurricane 1000 can be operated manually, or with the included wired manual remote control (FC-M). The Manual button is located on the rear of the unit. See the product Overview. Additionally, the product can be operated with the included wireless remote (FC-W) or the optional wired timer controller (FC-T).
The FC-M wired manual remote control allows the user to start and stop the fog output. It operates the same as the Manual button on the product, with the addition of a READY indicator LED.

1. Plug in the fog machine to power.
2. Plug in the wired manual remote control to the Remote Connector socket on the back of the fog machine. (See the product Overview.)
3. Wait for the READY indicator LED to light up, indicating the Hurricane 1000 is heated enough to produce fog.
4. Press and hold the <FOG> button on the wired manual remote control.
5. Release the button to stop the fog output.

• The Hurricane 1000 unit may start producing fog intermittently to allow for fluid reheating after a period of continuous fog output. This is a normal occurrence.
• The duration of manual fog output is based on the capability of the fog machine.

FC-W Wireless Remote

FC-W Wireless Remote Overview

The FC-W wireless remote allows the user to trigger the Hurricane 1000 to produce fog from up to 100 ft away. No extra receiver is required, as the product has an internal receiver for the wireless remote.

1. Plug in the fog machine to power.
2. Allow the Hurricane 1000 up to 3-4 minutes to heat up.
3. Press and hold the <1> button on the wireless remote.
4. Release the button to stop the fog output.

• Ensure the FC-W has an unobstructed view of the product for maximum performance.
• The <2>, <3>, and <4> buttons are reserved for future use.

FC-T Wired Timer Controller Setup

FC-T Wired Timer Controller Overview

The FC-T wired timer controller allows you to automatically trigger fog output by setting interval and duration times. LED indicator lights display the machine and controller's current state. Rotary knobs set interval time, output, and duration time, while manual and continuous buttons allow overriding control.

1. Plug in the fog machine to power.
2. Plug in the wired timer controller to the Manual Remote Connector socket on the back of the fog machine. (See the product Overview.)
3. Allow the Hurricane 1000 three to four minutes to heat up before continuing.

FC-T Wired Timer Controller Operation

The FC-T wired timer controller has three modes of operation: timer, continuous, and manual.

Timer Mode

To trigger the Hurricane 1000 with the timer function, follow the instructions below:

1. Set the desired output level with the OUTPUT knob.
2. Set the INTERVAL and DURATION knobs to the desired positions.
   • The INTERVAL knob sets the amount of time in between bursts of fog.
   • The DURATION knob sets the length of time that the fog machine will run during the burst.
3. Press the <TIMER ON/OFF> latching button. The LED indicator above the button will light up. The timer will now run as set by the INTERVAL, DURATION, and OUTPUT knobs.
4. Press the <TIMER ON/OFF> button again to turn off the timer.

The <MANUAL> button will override the timer.

Continuous Mode

To trigger the Hurricane 1000 to continuously output fog, follow the instructions below:

1. Set the desired output level with the OUTPUT knob.
2. Press the <CONTINUOUS> latching button. The LED indicator above the button will light up. The fog machine outputs fog until the <CONTINUOUS> button is pressed again.
3. Press the <CONTINUOUS> button again to stop the fog output.

DO NOT run the product in Continuous mode for longer than 15 minutes.
Continuous mode must be followed by an equal amount of time without output (For example: follow 8 minutes of Continuous operation with 8 minutes of no output).
DO NOT trigger the product to output fog during that time.

• In order for Continuous mode to run uninterrupted, without the Hurricane 1000 stopping to reheat, set the OUTPUT knob no higher than 7. At Output levels above 7, the fogger will cycle through intermittent bursts of fog during its reheating program.
• The duration of Continuous fog output is based on the capacity of the tank.
• Fluid consumption will be significantly increased during Continuous mode.

TECHNICAL INFORMATION

Product Maintenance

Do not allow the fogger to become clogged. After every 40 hours of continuous operation, use CHAUVET Fog Cleaner Quart (FCQ) through the system to prevent the accumulation of particulate matter in the heating element.

The recommended cleaning procedure is as follows.

1. Unplug the product from power.
2. Empty all fog fluid from the machine.
3. Add cleaning solution to the tank.
4. Connect the product to power and allow it to warm up.
5. Run the unit in a well-ventilated area until the tank is almost empty.Do not allow the pump to run dry.
6. Refill with fogger fluid to continue using the fogger. Run the machine briefly to clear any remaining cleaning solution from the pump and heater.

Do Not operate the machine without fluid at any time.

Fog Cleaner Quart (FCQ) was specifically developed by Chauvet to clean your Hurricane 1000. Make sure you use FCQ regularly, no longer than 90 days between cleanings, to increase the life of your product.

Storage

Before storing the fogger, run FCQ through the system as described in the cleaning procedure above; however, only follow steps 1 through 5. Do not refill the tank with fog fluid if storing the fogger. Cleaning the system prior to storage will help prevent any particles from condensing inside the pump or heater while not in use.

Test-run your Hurricane 1000 on a monthly basis to achieve the best performance.

GENERAL TROUBLESHOOTING

If you still experience problems after trying the solutions presented here, contact Chauvet Technical Support. See Contact Us.

TECHNICAL SPECIFICATIONS

SAFETY NOTES

These notes include important information about the mounting, usage, and maintenance of this product; read before using the product.

• Always connect the product to a grounded circuit to avoid the risk of electrocution.
• Always disconnect the product from the power source before cleaning or replacing the fuse.
• Make sure the power cord is not crimped or damaged.
• Never disconnect the product from power by pulling or tugging on the cord.
• If mounting the product overhead, always secure to a fastening device using a safety cable.
• Make sure there are no flammable materials close to the product when operating.
• Do not touch the product's housing when operating because it may be very hot.
• Do not mount the product on a flammable surface (linoleum, carpet, wood, paper, carton, plastic, etc.).
• The product's nozzle is very hot during operation and it remains hot for a long time after operation has stopped.
• The fog exits the nozzle at a very high temperature. Keep a minimum distance of 6.5 ft (2 m) from the nozzle to the nearest object. · Do not use the product as a space heater.
• Do not drink or come in contact with the fog fluid. If you do, call your local emergency service (911 in the US) for help.
• Do not add perfume, alcohol, gasoline, or any other flammables to the fog fluid.

• Always make sure that the voltage of the outlet to which you are connecting the product is within the range stated on the decal or rear panel of the product.
•
  The product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose the product to rain or moisture.
• Always install the product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• Be sure that no ventilation slots on the product's housing are blocked.
• Never connect the product to a dimmer or rheostat. Make sure to replace the fuse with another of the same type and rating.
• Never carry the product from the power cord or any moving part. Always use the hanging/mounting bracket.
• The maximum ambient temperature (Ta) is 104°F (40°C). Do not operate the product at higher temperatures.
• In the event of a serious operating problem, stop using the product immediately.
• Never try to repair the product. Repairs carried out by unskilled people can lead to damage or malfunction. Contact the nearest authorized technical assistance center.
• This product is not intended for permanent installation.
• Use only CHAUVET water-based fog fluid.
• Drain the tank before transporting or storing the product.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Keep this User Manual for future use. If you sell the product to another user, be sure to give this document to the next owner.

FCQ (Fog Cleaner Quart) was specifically developed by Chauvet to clean your Hurricane 1000. Make sure you use FCQ regularly, no longer than 90 days between cleanings, to increase the life of your fogger.
