SAFETY AND OPERATING MANUAL
Oscillating Spindle Sander
OSS500
ORIGINAL INSTRUCTIONS
OSS500

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OSS500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lumberjack OSS500

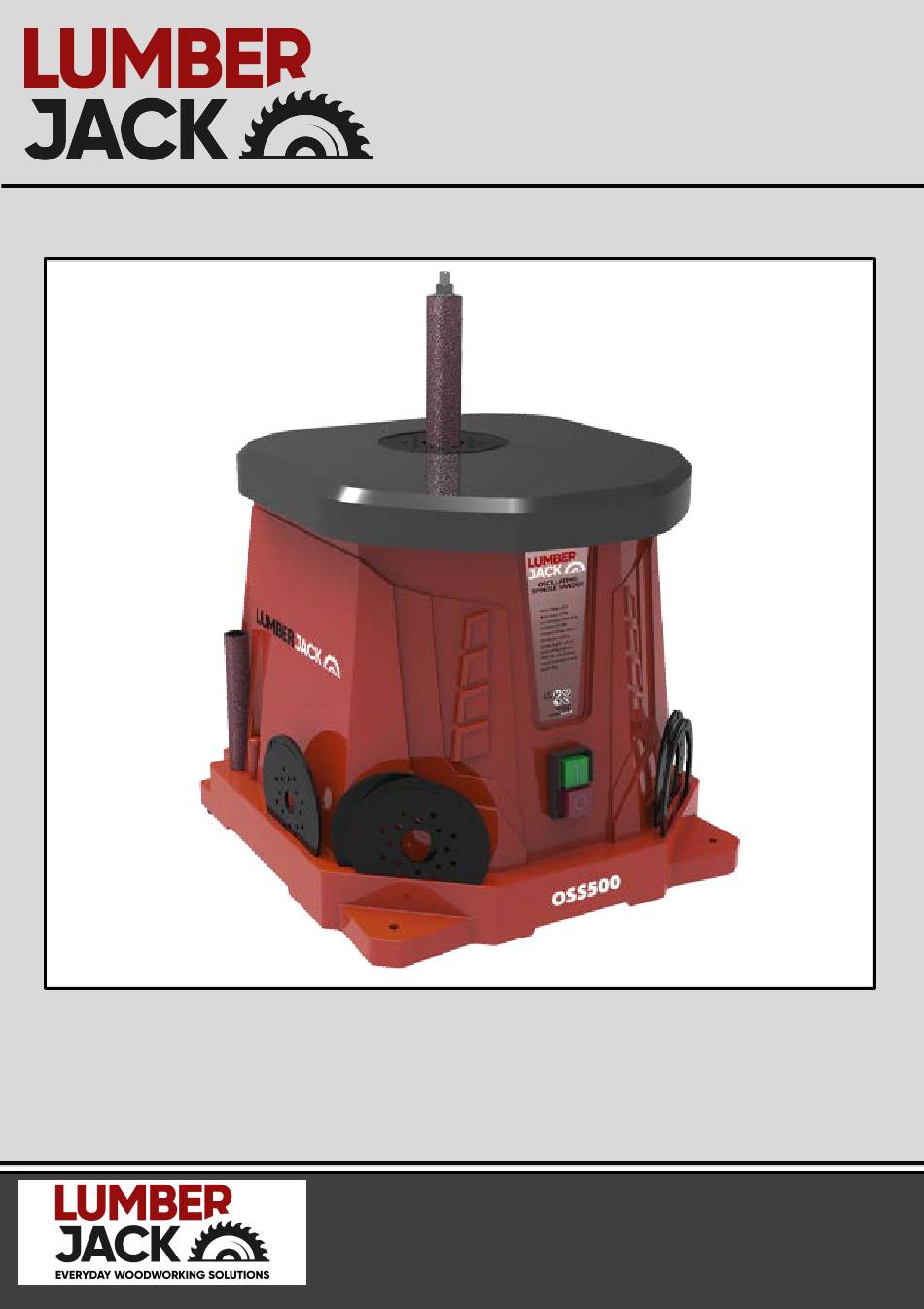

  • Page 1 SAFETY AND OPERATING MANUAL Oscillating Spindle Sander OSS500 ORIGINAL INSTRUCTIONS OSS500...
  • Page 2: Environmental Recycling Policy

    INTRODUCTION Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
  • Page 3: General Safety Rules

    GENERAL SAFETY RULES WARNING: READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND/ OR SERIOUS INJURY. 1. Keep work area clear 7. Do not force the tool • Cluttered areas and benches •...
  • Page 4 13. Do not overreach 19. Stay alert • Keep proper footing and • Watch what you are doing, use balance at all times. common sense and do not operate the tool when you are 14. Maintain tools with care tired. •...
  • Page 5: Electrical Connections

    ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch. If the plug has to be changed because it is not suitable for your socket, or because of damage, it must be removed and a replacement fitted, following the wiring instructions shown below.
  • Page 6: Safety Symbols

    CONTENTS The following items should be supplied in the carton. If any parts are missing, do not operate until the missing parts are replaced. Failure to follow this instruction could result in serious injury. 1 x Bobbin Sander 1 x 15 mm Ø Sanding Sleeve 1 x 18 mm Ø...
  • Page 7: Specifications

    SPECIFICATIONS OSS500 Model Number Operating Temperature Range 0-40°C Bobbin Speed 2000 rpm Oscillations per min Oscillation Travel 16 mm 320 x 300 mm Sanding Table Dimensions: (Length x Width) Sanding Height Bonnin Length 115 mm Max Bobbin Working Height 110 mm...
  • Page 8: Parts Identification

    PARTS IDENTIFICATION Description Description Spindle Spindle Disc Aluminium Cast Table Dust Collector Port Housing Rubber Sanding Roll Table Inlay Slot Sanding Sleeves ON-OFF Switch Sanding Roll Slot Table Inlays...
  • Page 9 ASSEMBLY FITTING THE SANDPAPER SLEEVE ONTO THE BOBBIN 1. Fit the sandpaper sleeve on to the bobbin as shown. NOTE: The 13mm sanding sleeve does not fit onto a bobbin, it simply slides directly onto the spindle. PARTS STORAGE 1. The storage slots on the front are used to store the table inserts.
  • Page 10 SETUP 1. Put the support washer on the spindle. • Grooved side must face up. 2. Slide the bobbin on to the spindle. 3. Secure the bobbin using the correct washer, and nut supplied. • Use the largest washer that does not overlap the edge of the sanding sleeve.
  • Page 11: Dust Collection

    DUST COLLECTION Connect a suitable dust collector to the dust chute. USING THE SANDER WARNING: CONTACT WITH OR INHALATION OF DUST FROM LEAD BASED PAINTS CAN ENDANGER THE HEALTH OF THE OPERATOR AND BYSTANDERS, ALWAYS WEAR A SUITABLE DUST MASK WHEN USING THE SANDER.
  • Page 12: Maintenance

    MAINTENANCE WARNING: REMOVE THE PLUG FROM THE MAINS POWER SUPPLY BEFORE CARRYING OUT ANY ADJUSTMENT, SERVICING OR MAINTENANCE PERIODICALLY • Keep the ventilation holes clear and free from blockages. • Wipe the unit with a damp cloth, do not use abrasive chemicals to clean the sander.
  • Page 13: Exploded Diagram

    EXPLODED DIAGRAM...
  • Page 14 Description Description Backpanels Foot Cross recessed tapping screws Cross recessed tapping screws 4 Cross recessed screw + washer Tension frame assembly Baseplate Motor wheel Tension wheel assembly Install wire Cable Joint Hexagon lock nuts M5 Switch Work table plate Base Sand cylinder roller Sand cylinder Ply-yarn drill...
  • Page 15: Declaration Of Conformity

    TOOLSA VE LTD Unit C, Manders Ind. Est., Old Heat h Road, Wolverhampton, WV1 2RP. Declare that the product: Designation: OSCILLATING SPINDLE SANDER Model: OSS500 Standards & technical specifications referred to: Authorized Technical File Holder: Bill Evans 14/08/2023 The Director...
