Summary of Contents for Lumberjack OS125

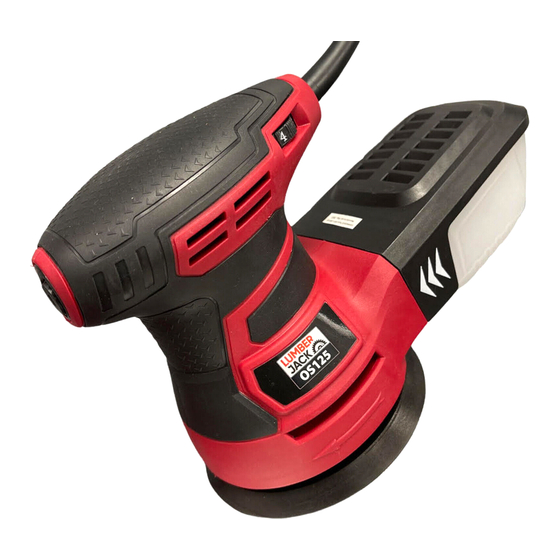

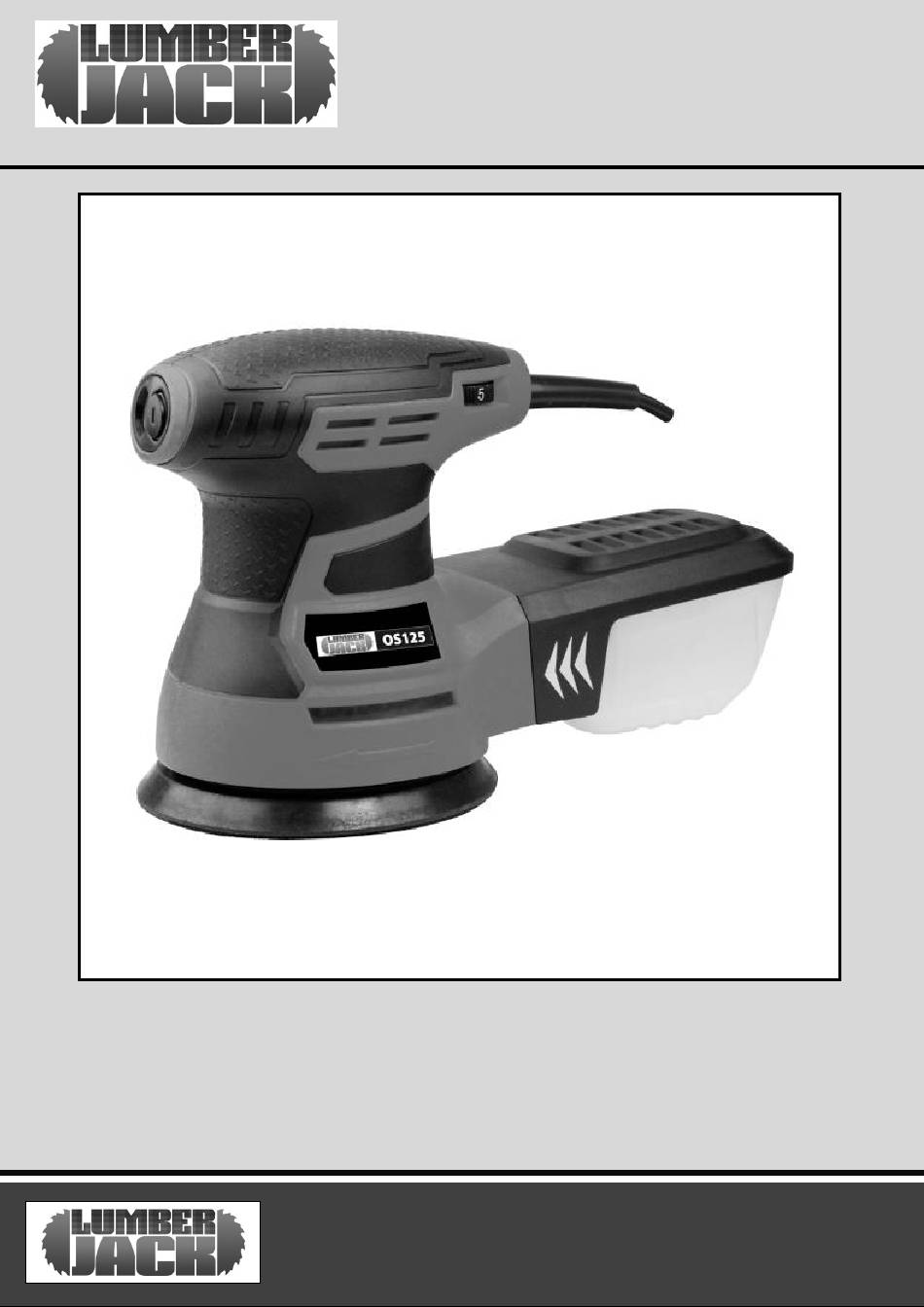

- Page 1 SAFETY AND OPERATING MANUAL Random Orbital Palm Sander OS125 ORIGINAL INSTRUCTIONS OS125...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Welcome to Lumberjack! Dear customer, Congratulations on your purchase. Before using the product for the first time please be sure to read these instructions for use. They provide you with all information necessary for using the product safely and to ensure its long service life. -
Page 3: General Power Tool Safety Warnings
A wrench or a key left c) Do not expose power tools to rain or wet attached to a rotating part of the power tool may conditions. Water entering a power tool will result in personal injury. increase the risk of electric shock. OS125... - Page 4 Materials containing asbestos may only be operate the power tool. Power tools are worked by specialists. Observe the relevant dangerous in the hands of untrained users. regulations in your country for the materials to be worked. OS125...
- Page 5 8.5. When using a cable reel, always unwind the cable completely. 7.12 Your sander is a hand held tool, do not clamp your sander. 7.13 Before sanding, check the area is free of nails, screws, etc. OS125...
-
Page 6: Symbols & Cable Rating Chart
Caution! Wear a dust mask. Amperes 7.5M 0 – 2.0 2.1 – 3.4 3.5 - 5.0 5.1 – 7.1 7.1 – 12.0 12.1 – 20.0 OS125... -
Page 7: Machine Details And Product Features
Power Consumption - 350W Product Features No load Speed- 0-13000rpm 1. Power cord Pad Size - 125mm 2. Dust collector 3. Sanding pad Package Contents: 4. ON/OFF Switch Sander 5. Handle Dust collection box 6. Speed control OS125 AIR6V AIR6V AIR6V AIR6V... -
Page 8: Assembly
- Insert the dust collector(A) into the slots in the Warning: Do not use the dust collector when dust extraction outlet(B) as shown. sanding metal. The hot metal particles could cause - Pull the dust collector to remove it from the any residual dust or machine. OS125... - Page 9 - Sanding performance is determined largely by the choice of abrasive and properties of the NOTE: Holes in sanding disc must line up with material surface. holes in the backing pad in order for the dustless feature of your sander to function properly. OS125...
-
Page 10: Operation
Max=high). Flush sanding can be performed with your sander. The front edge of Excessive pressure does not increase sanding your sander allows flush sanding. Upon performance! completion of sanding operation, turn sander off and wait until sanding disc comes to a complete. OS125... -
Page 11: Maintenance And Service
- Remove dust bag from sander and shake out CAUTION: Never use caustic agents to dust. clean plastic parts. If dry cleaning is not sufficient, using a mild detergent on a damp cloth is recommended. OS125... - Page 12 WARNING: Always wear safety goggles or safety glasses with side shields during power tool operation or when blowing dust. If operation is dusty, also wear a dust mask. OS125...
-
Page 13: Lumberjack Guarantee
If a return is requested by the Authorised Dealer or 1.2.3 If asked to do so by Lumberjack or its Lumberjack, you will be provided with a Returns Authorised dealer, you return the product at Material Authorisation number which must be your own cost to Lumberjack’s or supplying... - Page 14 Lumberjack. If you include a contact number with this it will speed your claim 2.4 Please note that it is essential that the letter of claim reaches Lumberjack on the last day of this Guarantee at the latest. Late claims will not be considered.
-
Page 15: Declaration Of Conformity
Is in compliance with the regulations included in the Directives:2006/42/EC EC DECLARATION OF CONFORMITY Certificate for EC-type examination delivered by Intertek Testing Services Ltd.,Shanghai,ETL Semko Building No.86,1198 Qinzhou Road(North),Caohejing Development Zone,Shanghai 200233,China. (Verification No.:150300747SHA-V1) Person who declares: Bill Evans 01.04.2018 The Director OS125... -
Page 16: Parts List
Rubber backing pad Cord Spring washer 5 Stator Special screw M5X14 Dust collection box cover Filter paper Filter paper clamp Rotor Bearing6000 2RS Washer Dust box Counter balance O type ring Eccentric seat Dustproof washer Bearing block OS125 AIR6V AIR6V AIR6V... -
Page 17: Parts Diagram
Parts Diagram OS125...
