Summary of Contents for Lumberjack PS240

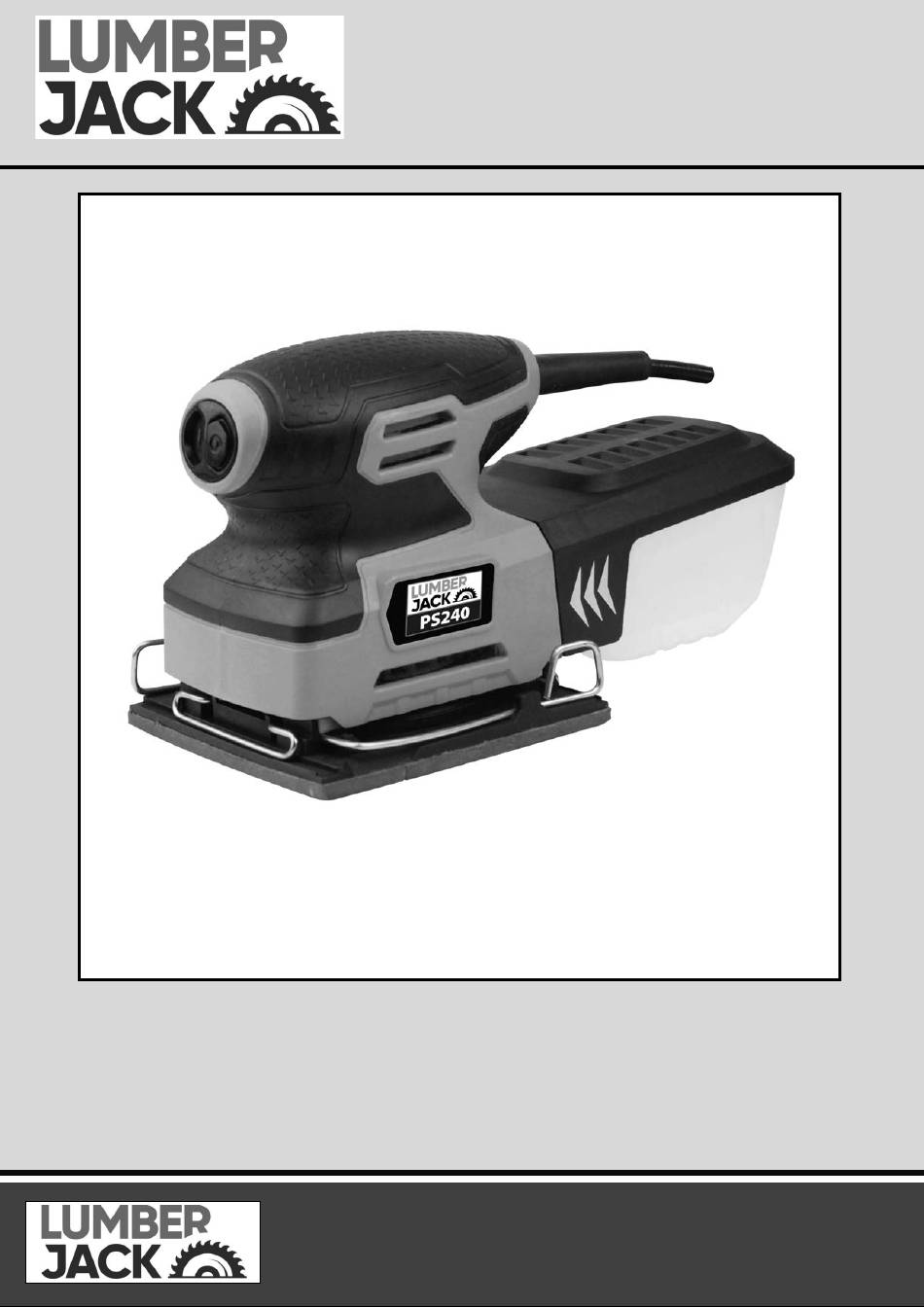

- Page 1 SAFETY AND OPERATING MANUAL 1/4” Sheet Palm Sander PS240 ORIGINAL INSTRUCTIONS PS240...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Welcome to Lumberjack! Dear customer, Congratulations on your purchase. Before using the product for the first time please be sure to read these instructions for use. They provide you with all information necessary for using the product safely and to ensure its long service life. -
Page 3: General Power Tool Safety Warnings
A wrench or a key left c) Do not expose power tools to rain or wet attached to a rotating part of the power tool may conditions. Water entering a power tool will result in personal injury. increase the risk of electric shock. PS240... - Page 4 Materials containing asbestos may only be operate the power tool. Power tools are worked by specialists. Observe the relevant dangerous in the hands of untrained users. regulations in your country for the materials to be worked. PS240...
- Page 5 If possible, ensure the work-piece is firmly clamped to prevent movement. l) Your sander is a hand held tool, do not clamp your sander. m) Before sanding, check the area is free of nails, screws, etc. PS240...
- Page 6 Caution! Risk of Injury! Do Caution! Wear ear defenders. The not reach into the running impact of noise can cause damage saw blade to hearing. Class II Double Insulated Caution! Wear a dust mask. PS240...
-
Page 7: Machine Details And Product Features
2. Soft Grip Surface 3. Power Cable Package Contents: 4. Dust Extraction Outlet Sheet Sander 5. Paper Clamp Dust Collection Box 6. Cushion X3 sanding sheets 7. Tab 8. Lever 9. Dust Collection Box 10. Sandpaper PS240 AIR6V AIR6V AIR6V AIR6V... -
Page 8: Assembly
Insert one end of the new sandpaper sheet under Caution: Always wear a suitable breathing mask the paper clamp and lift the lever back into place when operating this tool. All wood and paint over the tab. dust is hazardous to health and may also be toxic. PS240... - Page 9 TO maintain performance of the sander the dust collection box(9) and filter will need cleaning regularly. To access the filter pull the top part of the dust collection box away from the bottom. Rinse the bottom half under clean running water and dry thoroughly. PS240...
- Page 10 CAUTION: Never touch a moving sanding sheet. Grip the soft grip handle and switch on the sander using the ON/OFF switch(1). Move the tool in a circular motion over the surface of the workpiece, applying an even, moderate pressure until the desired surface is achieved. PS240...
- Page 11 Clean the body of the tool with a soft brush or dry cloth. We recommend using compressed air when possible to clean down the sander. This aids the products longevity. PS240...
-
Page 12: Lumberjack Guarantee
If a return is requested by the Authorised Dealer or 1.2.3 If asked to do so by Lumberjack or its Lumberjack, you will be provided with a Returns Authorised dealer, you return the product at Material Authorisation number which must be your own cost to Lumberjack’s or supplying... - Page 13 Purchasing Lumberjack. If you include a contact number with this it will speed your claim up. 2.4 Please note that it is essential that the letter of claim reaches Lumberjack on the last day of this Guarantee at the latest. Late claims will not be considered.
-
Page 14: Declaration Of Conformity
Old Heath Road, Wolverhampton, WV1 2RP. Tel: 01902 450 470 Declares that the Sheet Palm Sander (PS240) Is in compliance with the regulations included in the Directives:2006/42/EC EC DECLARATION OF CONFORMITY Certificate for EC-type examination delivered by TÜV Rheinland LGA Product GmbH– Tillystraße 2 - 90431 Nürnberg (Registration No.:AM 50439976 0001 ) -
Page 15: Parts List
Cross recessed pan head tapping Eccentic seat screws ST3.9X14 Counterbalance Cord guard Housing Cord Stator Deep groove ball bearing 607-2RS Rotor Deep groove ball bearing 627-2RS Dust box cover Filter paper Filter paper clamp O type ring PS240 AIR6V AIR6V AIR6V... -
Page 16: Parts Diagram
Parts Diagram PS240...
