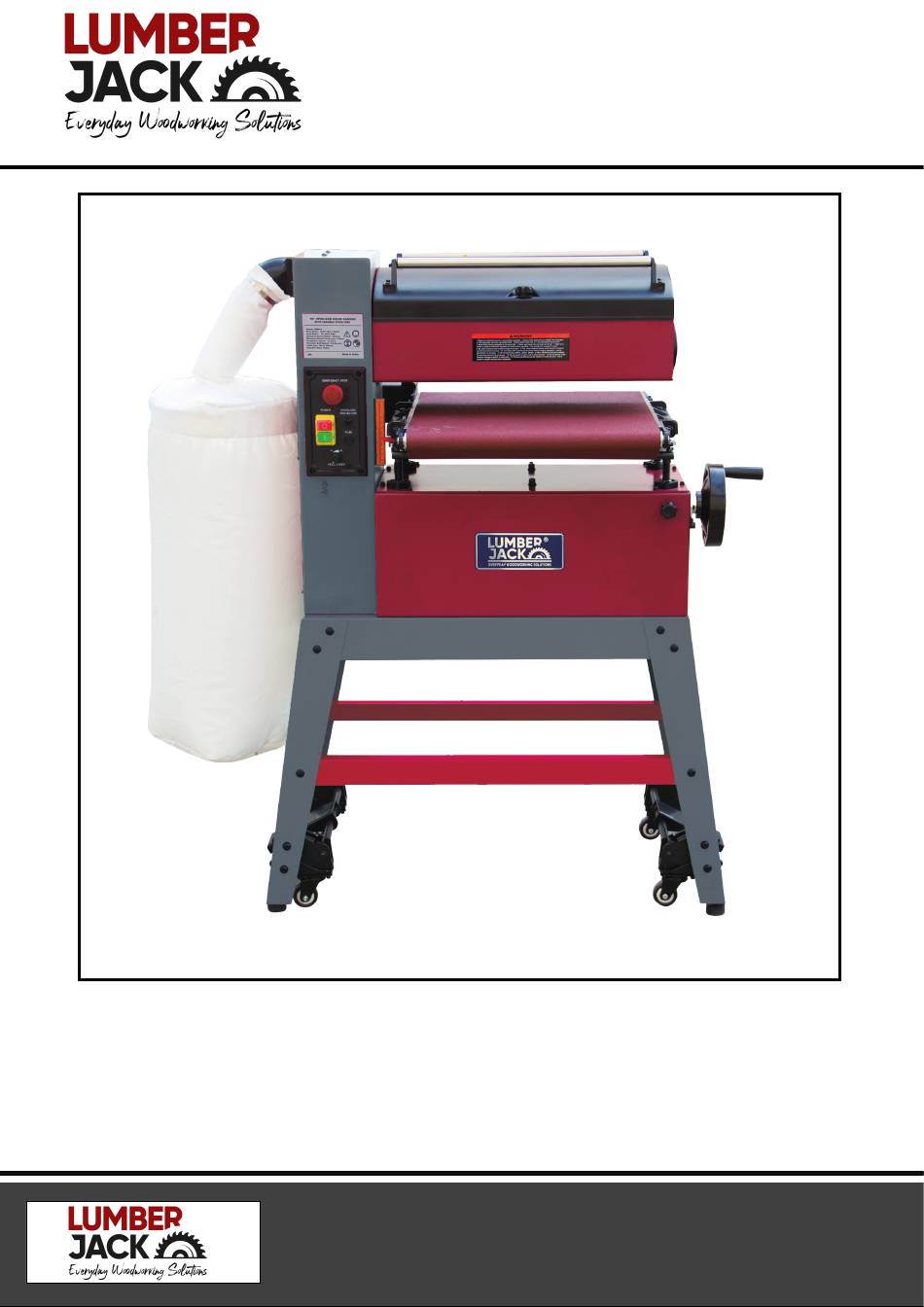

- Page 1 SAFETY AND OPERATING MANUAL Heavy Duty Drum Sander DS460VS ORIGINAL INSTRUCTIONS DS460VS...
-
Page 2: Product Specification
PRODUCT SPECIFICATION Drum Sander DS460VS Main Motor 230V 50Hz 1800W Feed Motor 230V 50Hz 80W Maximum Board Width 460mm ( 18″) Minimum Board Width 25mm (1″) Maximum Board Thickness 115mm (4-1/2″) Minimum Board Thickness 3mm (1/8″) 50Hz 950m/min Sandpaper Speed... -
Page 3: Accessories And Attachments
SPECIFIC SAFETY INSTRUCTIONS FOR THE MACHINE 1.Do not place your hands or any part of your body between the cutting head and the conveyor belt while the machine is running. It is very dangerous. 2.Do not place fingers under bottom of workpiece while feeding it into sander. It can result in pinching injuries, or possibly getting trapped and pulled into sanding area of machine. - Page 4 TABLE OF LOOSE PARTS Check your machine to see parts listed below: A. Drum Sander B. Dust Chute C. Hose Clamp D. Filter Bag Support E. Filter Bag F. Short Top Frame G. Short Brace H. Long Top Frame I. Long Brace J.
- Page 5 ASSEMBLY Assemble the stand. 1. Assemble stand with M8x16 carriage bolts, 8mm flat washers and M8 hex nuts. Attach the four feet to the bottom of the leg and fix them by using the 8mm flat washers and M8 hex nuts. Place the stand on a flat surface, making sure there is no wobbling or tilting in the stand after fully tightening the nuts.
- Page 6 3. Place the drum sander onto the stand, secure them by using six M8X16 hex head bolts and washers. M8X16 hex head bolt Install the filter bag Align the slot of the filter bag with the circular support and rotate it into place.
- Page 7 IDENTIFICATION Become familiar with the names and locations of the controls and features shown below to have a better understanding of the instructions in this manual. Return roller Head frame cover Filter bag Emergency stop Hand wheel Switch Conveyor belt Caster assembly Foot pedal...
- Page 8 ADJUSTMENTS Warning: Turn off the machine and disconnect from the power supply before doing any adjustments. 1. Table Adjustment The height of the conveyor table can be adjusted by turning the hand wheel. Each full turn of the hand wheel raises the conveyor table 2mm. Maximum depth for most sanding conditions is 0.5mm (1/4 turn=0.3mm).
- Page 9 2. Tension & tracking conveyor belt The conveyor belt will stretch when new and will eventually need to be tensioned. This is most obvious if the conveyor belt starts slipping on the rollers. When you tension the conveyor belt, focus on adjusting the tensioning bolts in even increments. Adjusting one side more than the other will cause tracking problems。...
-
Page 10: Feed Rate Adjustment
3. Feed rate adjustment The potentiometer allows you to increase the feed rate from 2-12FPM. The correct speed to use depends on the type of stock you are using (hardwood vs. softwood) and the stage of finish with that workpiece As a general rule, a slower feed rate will sand the surface smoother, but runs the risk of burning the wood;... -
Page 11: Operation
OPERATION To complete a typical sanding operation, the operator does the following: 1. Examine the workpiece to verify it is suitable for sanding and to determine which sanding belt grit size to use. 2. Verify the workpieces out-feed clearance and support. If workpiece is wider than conveyor table, operator supports workpieces full width. -
Page 12: Maintenance
DO NOT sand boards less than 6" long or less than 1/8" thick to prevent damage to the workpiece and the drum sander. When sanding workpieces with irregular surfaces, such as cabinet doors, take very light sanding passes to prevent gouges. When the drum moves from sanding a wide surface to sanding a narrow surface, the load on the motor will be reduced and the drum will speed up causing a gouge. -
Page 13: Replacing Conveyor Belt
Left sand Set screw belt clamp Left disc Right sand belt clamp Replacing Conveyor belt Replacing the conveyor belt is a relatively simple process, but it will require re-tensioning and tracking once the new conveyor belt is installed. To replace conveyor belt: DISCONNECT MACHINE FROM POWER! Loosen the roller lock bolts. -
Page 14: Machine Care
Machine care Usually check the condition of the power supply cords and replace them if they are broken, or internal wires are showing. Use a brush and a shop vacuum to remove chips and other debris from the machine. ... - Page 15 Grinding, screeching, or Drum bearings are worn and Replace Drum Bearings Rubbing noise when Need Replacing sanding drum is powered Machine lacks power; V-belt loose. Tighten V-belt 2. drum stops turning under Too much pressure on Lower conveyor table.
- Page 16 PARTS LIST...
-
Page 20: Assembly Diagram
ASSEMBLY DIAGRAM... - Page 22 We Importer: TOOLSA VE LTD Unit C, Manders Ind. Est., Old Heat h Road, Wolverhampton, WV1 2RP. Declare that the product: Designation: Drum Sander Model: DS460VS Standards & technical specifications referred to: Authorized Technical File Holder: Bill Evans 20/09/2023 The Director...
