Summary of Contents for Lumberjack OBS500

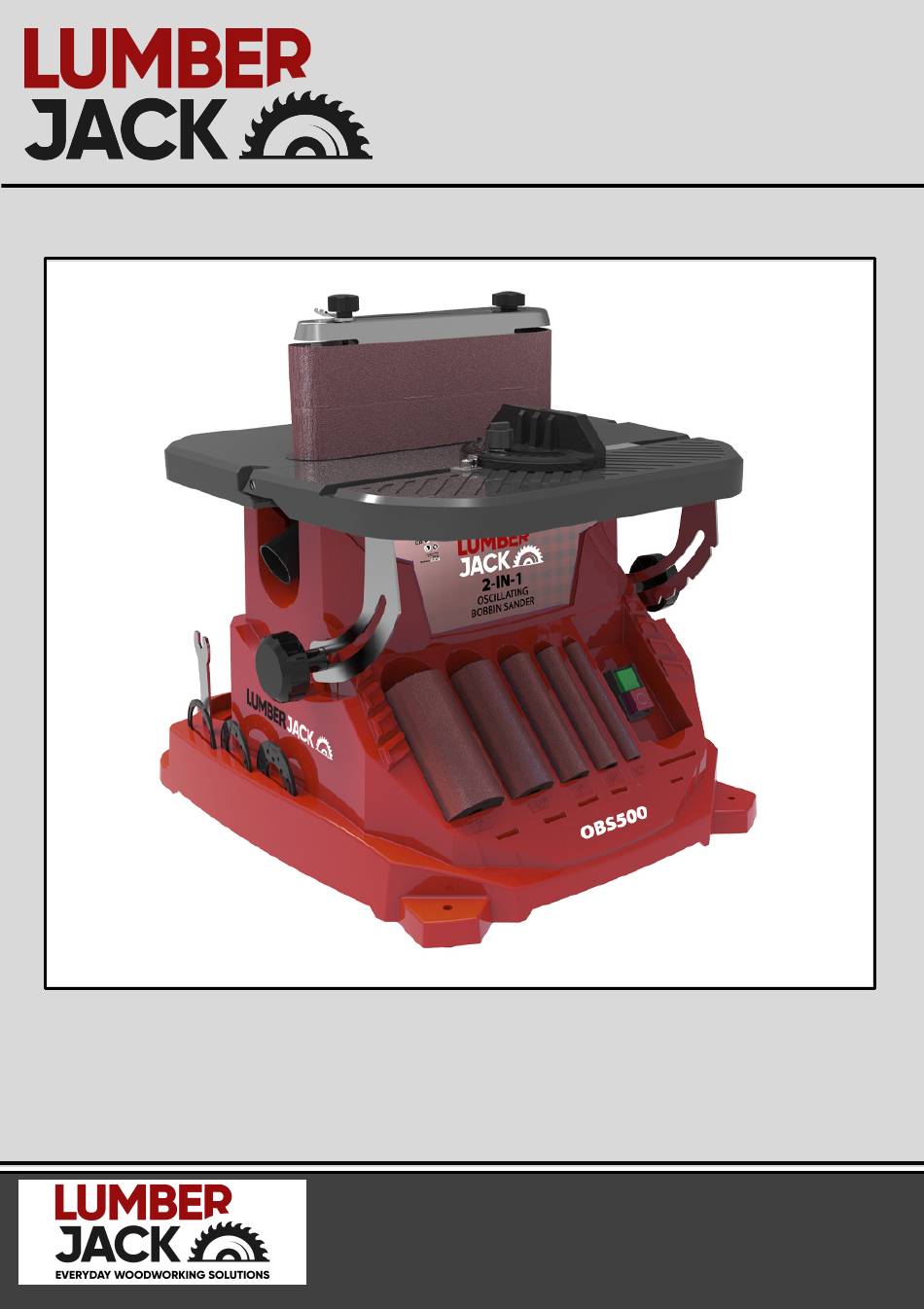

- Page 1 SAFETY AND OPERATING MANUAL Oscillating Bobbin Sander OBS500 ORIGINAL INSTRUCTIONS OBS500...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: General Safety Rules
GENERAL SAFETY RULES WARNING: READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND/ OR SERIOUS INJURY. 1. Keep work area clear 7. Do not force the tool • Cluttered areas and benches •... - Page 4 13. Do not overreach 19. Stay alert • Keep proper footing and • Watch what you are doing, use balance at all times. common sense and do not operate the tool when you are 14. Maintain tools with care tired. •...
-
Page 5: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch. If the plug has to be changed because it is not suitable for your socket, or because of damage, it must be removed and a replacement fitted, following the wiring instructions shown below. -
Page 6: Safety Symbols
CONTENTS The following items should be supplied in the carton. If any parts are missing, do not operate until the missing parts are replaced. Failure to follow this instruction could result in serious injury. 1 x Bobbin Sander 1 x 15 mm Ø Sanding Sleeve 1 x 18 mm Ø... -
Page 7: Specifications
SPECIFICATIONS OBS500 Model Number Operating Temperature Range 0-40°C Bobbin Speed 2000 rpm Oscillations per min Oscillation Travel 16 mm 400 x 407 mm Sanding Table Dimensions: (Length x Width) Sanding Height Max Bobbin Working Height 115 mm Dust Extraction Outlet Diameter... -
Page 8: Parts Identification
PARTS IDENTIFICATION Description Description Sanding belt tensioner Mitre gauge Fence Sanding belt attachment Sanding belt setting Belt fixing screw Table inlay slot Sanding belt Fence fixing screw aluminum Sanding roll slot Fixing screw table Aluminum cast table Housing Dust collector port Angle lock Spindle Spindle disc... - Page 9 ASSEMBLY 1. Mark out the position of the holes. 2. Secure using suitable bolts, washers, and nuts (not supplied). SECURING THE SANDER TO A WORKBENCH If sander is to be used in a permanent location, it should be fastened securely to a workbench via the four securing holes (one on each corner).
- Page 10 EDGE SANDING SETUP If fitted, remove the fan and table insert from the sander. • Clear the recess of any debris. Slide the fan onto the motor shaft (vanes face down). • You may need to rotate the fan to get it to locate properly, (when correctly fitted the fan rotates with the spindle).
-
Page 11: Removing/Installing The Sanding Belt
REMOVING/INSTALLING THE SANDING BELT WARNING: MAKE SURE THAT THE TOOL IS UNPLUGGED BEFORE INSTALLING/REMOVING THE SANDING BELT. 1. Move the belt tension lever fully to the right as shown. 2. Slide the belt over the rollers and centralise the belt. •... -
Page 12: Sanding Belt Tracking
SANDING BELT TRACKING 1. Plug in the power cable. Turn the switch ON and immediately turn the switch OFF again. Note if the belt tends to slide off the drums. • If it did not tend to slide off, it is tracking properly. - Page 13 FITTING THE BOBBIN TO THE SANDER WARNING: TO REDUCE THE RISK OF INJURY FROM ACCIDENTAL STARTING, MAKE SURE THE SANDER IS UNPLUGGED BEFORE REMOVING OR REPLACING THE SPACER RING INSERTS, SLEEVES AND DRUMS. If fitted, remove the fan and table insert from the sander. Clear the recess of any debris.
-
Page 14: Using The Sander
USING THE SANDER CAUTION: BEFORE TURNING THE SWITCH ON, MAKE SURE THE BELT OR DRUM AND SLEEVE ARE PROPERLY INSTALLED. WARNING: ALWAYS WEAR SAFETY GOGGLES OR SAFETY GLASSES WITH SIDE SHIELDS WHEN OPERATING POWER TOOLS. FAILURE TO DO SO COULD RESULT IN OBJECTS BEING THROWN INTO YOUR EYES, RESULTING IN POSSIBLE SERIOUS INJURY. -
Page 15: Adjusting The Table Angle
ADJUSTING THE TABLE ANGLE WARNING: BEFORE PERFORMING ANY ADJUSTMENT, MAKE SURE THE SANDER IS SWITCHED OFF AND UNPLUGGED FROM THE POWER SUPPLY. FAILURE TO HEED THIS WARNING COULD RESULT IN SERIOUS PERSONAL INJURY. 1. Loosen the table adjustment knobs (one each side) and move the table to the required angle. -
Page 16: Maintenance
MAINTENANCE WARNING: REMOVE THE PLUG FROM THE MAINS POWER SUPPLY BEFORE CARRYING OUT ANY ADJUSTMENT, SERVICING OR MAINTENANCE PERIODICALLY • Keep the ventilation holes clear and free from blockages. • Wipe the unit with a damp cloth, do not use abrasive chemicals to clean the sander. -
Page 17: Exploded Diagram
EXPLODED DIAGRAM... -
Page 19: Declaration Of Conformity
TOOLSA VE LTD Unit C, Manders Ind. Est., Old Heat h Road, Wolverhampton, WV1 2RP. Declare that the product: Designation: OSCILLATING BOBBIN SANDER Model: OBS500 Standards & technical specifications referred to: Authorized Technical File Holder: Bill Evans 14/08/2023 The Director...
