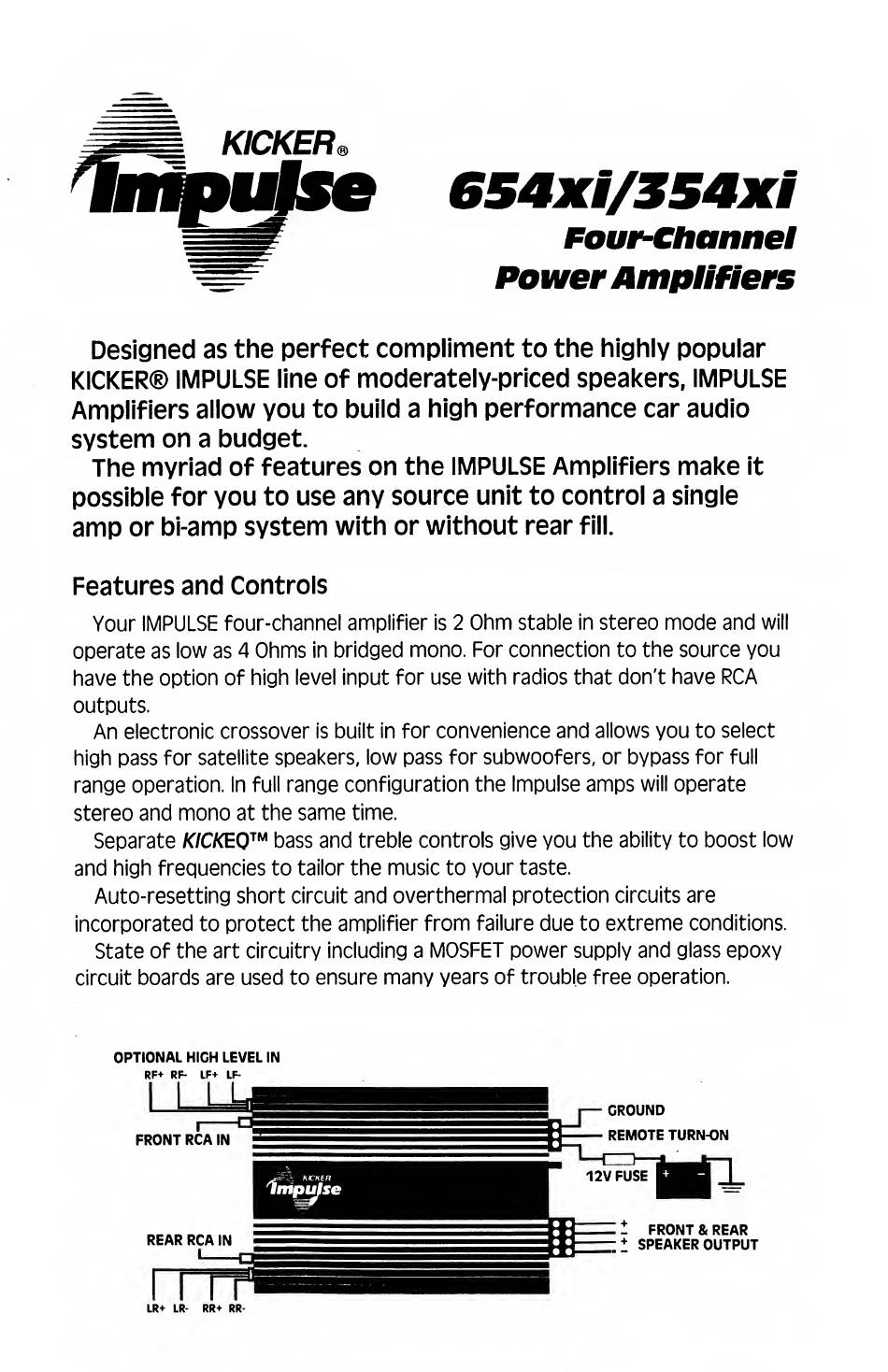

Kicker Impulse 654xi Quick Start Manual

G54xi/354xi
Four-Channel
Power Amplifiers
Designed as the perfect compliment to the highly popular
KICKER® IMPULSE line of moderately-priced speakers, IMPULSE
Amplifiers allow you to build a high performance car audio
system on a budget.
The myriad of features on the IMPULSE Amplifiers make it
possible for you to use any source unit to control a single
amp or bi-amp system with or without rear fill.
Features and Controls
Your IMPULSE four-channel amplifier is 2 Ohm stable in stereo mode and will
operate as low as 4 Ohms in bridged mono. For connection to the source you
have the option of high level input for use with radios that don't have RCA
outputs.
An electronic crossover is built in for convenience and allows you to select
high pass for satellite speakers, low pass for subwoofers, or bypass for full
range operation. In full range configuration the Impulse amps will operate
stereo and mono at the same time.
Separate KICKEQ™ bass and treble controls give you the ability to boost low
and high frequencies to tailor the music to your taste.
Auto-resetting short circuit and overthermal protection circuits are
incorporated to protect the amplifier from failure due to extreme conditions.
State of the art circuitry including a MOSFET power supply and glass epoxy
circuit boards are used to ensure many years of trouble free operation.
OPTIONAL HIGH LEVEL IN
RF+ RF- LF+ LP
LR+ LR- RR+ RR-
