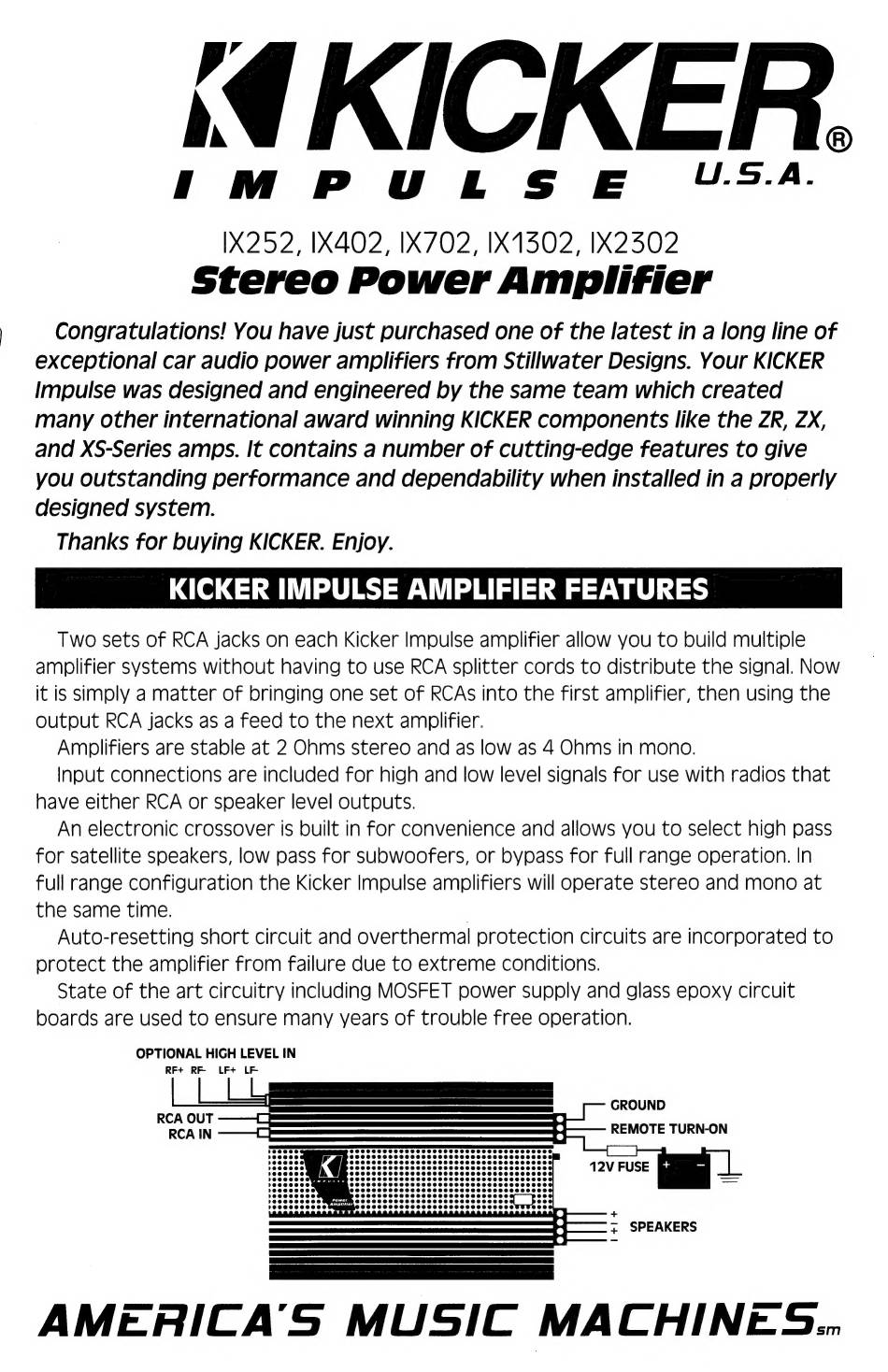

Kicker Impulse IX252 Manual

IM PULS Ẹ U-3-A.
IX252, 1X402, IX702, IX1302, IX2 302
Stereo Power Amplifier
| Congratulations! You have just purchased one of the latest in a long line of
exceptional car audio power amplifiers from Stillwater Designs. Your KICKER
Impulse was designed and engineered by the same team which created
many other international award winning KICKER components like the ZR, ZX,
and XS-Series amps. It contains a number of cutting-edge features to give
you outstanding performance and dependability when installed in a properly
designed system.
Thanks for buying KICKER. Enjoy.
KICKER IMPULSE AMPLIFIER FEATURES
Two sets of RCA jacks on each Kicker Impulse amplifier allow you to build multiple
amplifier systems without having to use RCA splitter cords to distribute the signal. Now
it is simply a matter of bringing one set of RCAs into the first amplifier, then using the
output RCA jacks as a feed to the next amplifier.
Amplifiers are stable at 2 Ohms stereo and as low as 4 Ohms in mono.
Input connections are included for high and low level signals for use with radios that
have either RCA or speaker level outputs.
An electronic crossover is built in for convenience and allows you to select high pass
for satellite soeakers, low pass for subwoofers, or bypass for full range operation. In
full range configuration the Kicker Impulse amplifiers will operate stereo and mono at
the same time. |
Auto-resetting short circuit and overthermal protection circuits are incorporated to
protect the amplifier from failure due to extreme conditions.
State of the art circuitry including MOSFET power supply and glass epoxy circuit
boards are used to ensure many years of trouble free operation.
OPTIONAL HIGH LEVEL IN
RF+ RF- LF+ LF-
GROUND
REMOTE TURN-ON
RCA OUT
RCA IN
E aescesccatccescacteccscecesestesces 12V FUSE
OPEET
FiitHm SOCOCOCOOOOOOOSOCOCCOCCSCCCES pee
SPOHOOHSOHSOSHSOHOOOCOOEOOEOOCTETCOS
Yy
SPEAKERS
[+t +
AMERICA'S MUSIC MACHINES..
