RH20330AS
Model number:
Serial Number:
DEC19.0201

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RH20330AS and is the answer not in the manual?

Questions and answers

Related Manuals for LuxeAir RH20330AS

Summary of Contents for LuxeAir RH20330AS

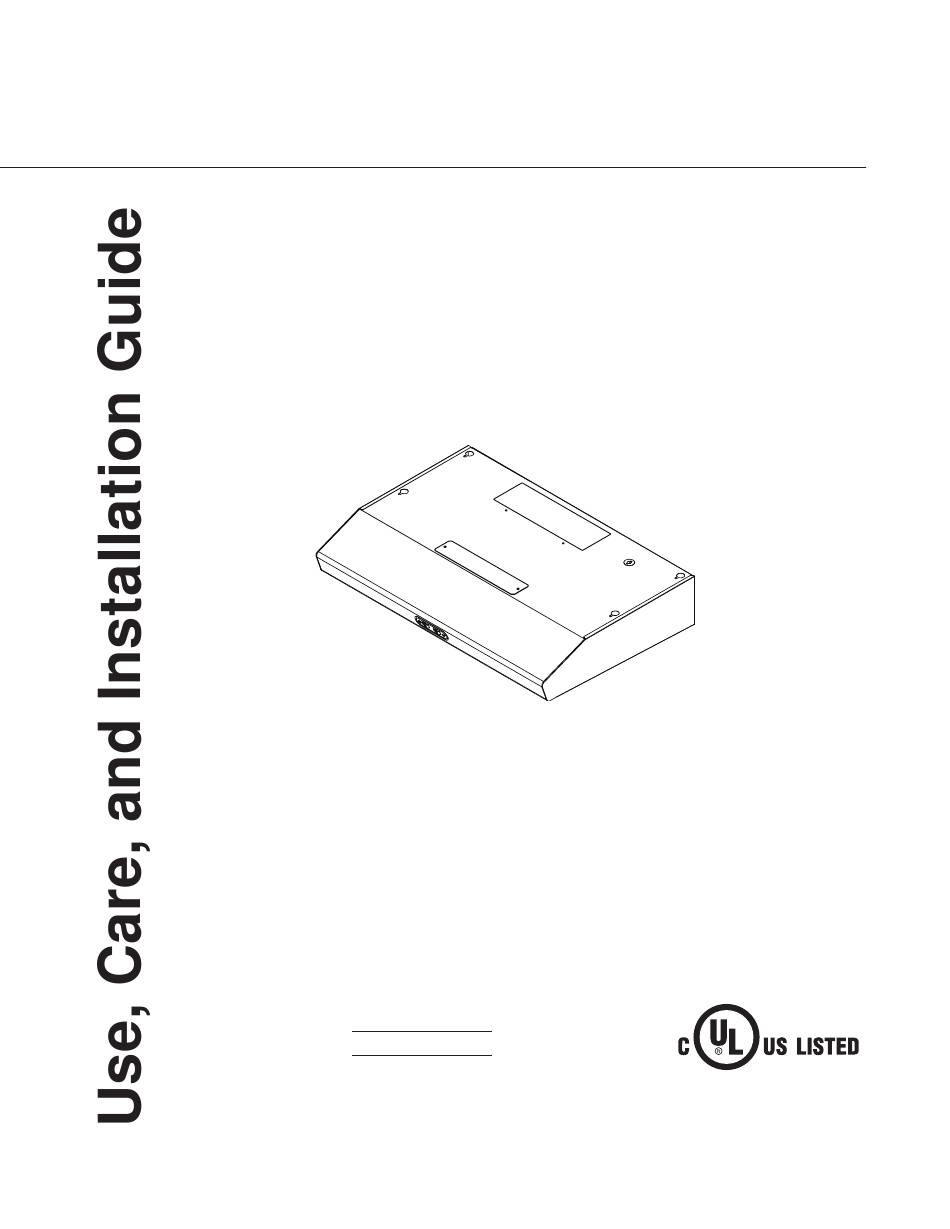

  • Page 1 RH20330AS Model number: Serial Number: DEC19.0201...
  • Page 3 SAFETY NOTICE ..............LIST OF MATERIALS ............INSTALLATION Ducting Calculation Sheet ........Mounting Height & Clearance ........ Ducting Options ............Specifications ............... Preparing Electrical ............ Preparing Electrical and Ducting ......Converting to Air Recirculating Mode 11-12 ....Mounting the Range Hood ......13 FEATURES &...
  • Page 4 READ AND SAVE THESE INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE. WARNING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a.

  • Page 5: Operation

    15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram on product. A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and install appropriate connector if necessary. RH20330AS - 142 Watts, 1.3 Amps Prop. 65 Warning for California Residents WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov...

  • Page 6: Hardware Package Contents

    MODELS: RH20330AS PARTS SUPPLIED 1 - Hood 2 - Aluminum Mesh Filters 2 - Halogen Light Bulbs (GU10, 35W) 1 - 6” Round starting collar 1 - 3-1/4”x10” Rectangular starting collar with damper 1 - Hardware package HARDWARE PACKAGE CONTENTS M6 x 2” (4) M6 x 1-1/2” (4) M6 x 1”...
  • Page 7 Equivalent number Duct pieces Equivalent number Duct pieces length x used T otal T otal length x used 3-1/ 4” x 10” 1 Ft. 6” Round 30 Ft. Rect., wall cap straight with damper 6” Round, 1 Ft. 6” Round, 30 Ft.
  • Page 8 Minimum mount height between range top to hood bottom should be no less than 24”. Maximum mount height should be no higher than 32”. It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fire hazard; while hoods 5-1/2”...
  • Page 9 WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside, unless using the recirculating option. Use single wall rigid metal ductwork only. Fasten all connections with sheet metal screws and tape all joints with certified Silver Tape or Duct Tape.
  • Page 10 3 1/4”x10” Rect. Ducting 6” Round Ducting 27 13/16” 27 13/16” 10” 10” elec. C/L of elec. 6” duct 5 7/8” 5 7/8” 6” 2” 2” Air Recirculating Louver Plate Air Recirculating Louver Plate BACK SIDE 20 3/16” 10” 14 3/8” 5 7/8”...

  • Page 11: Electrical Warning

    ELECTRICAL WARNING All Electrical work must by performed by qualified electrician or person with similar technical know how and background. For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance. Follow national electrical codes or prevailing local codes and ordinances.
  • Page 12 2. Remove cover from junction box to 1. Remove filters gain access to electrical wiring. 3. If using a cable lock, pry open the 4. If using hood in air recirculating desired electrical knockout either on mode skip steps 4 and 5. top or back of hood.
  • Page 13 NOTE: Skip the recirculating preparation pages if you are ducting the air out of your home. 1. Secure each of the (2) spring clips to the An air recirculating kit (optional) must be safety grille body (A). Do this by inserting purchased before using hood in recirculat- the screw through the spring and into the ing mode.
  • Page 14 NOTE: Skip this page if you are ducting the air out of your home. 5. Remove each of the 5 screws holding 6. Remove (2) interior recirculating panels. the (2) interior recirculating panels. 7. Place louvered recirculating plate over top opening and secure using the screws previously removed.
  • Page 15 For Mounting Under a Kitchen Cabinet (Fig 1) electrical 1. Select preferred duct location (vertical or horizontal) if ducting air out of kitchen. Refer to page 10 for details. 2. Begin installation by removing the filters (if installed). Duct 3. Reinforce cabinet with 1”x2” wood strips if additional opening cutout strengthening is required or if cabinets are framed.
  • Page 16 Blower On/Off/Speed Selection Lights Off/Dim/Bright This switch turns the blower on and o and controls the speed selection. is o , is low speed and is high speed . Lights Off/Dim/Bright is o , is dim and is bright.

  • Page 17: Surface Maintenance

    SURFACE MAINTENANCE: Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent, or steel wool/scouring pads which will scratch and damage surface. Do not use products containing chlorine bleach or orange cleaners. For heavier soil use liquid degreaser. After cleaning, you may use non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain. Always scrub lightly using a micro fiber or clean cotton cloth and with grain.

  • Page 18: Replacing Light Bulbs

    REPLACING LIGHT BULBS CAUTION: Light bulb becomes extremely hot when turned on. DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns. Make sure all power is turned off and bulbs are not hot. Remove by turning bulb counter clockwise. Note: Bulb does not unscrew; it turns 60 degrees, stops and falls out.
  • Page 19 TROUBLESHOOTING PROCEDURES FOR RH203 Issue Cause What to do After installation, 1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s the unit doesn’t power is ON. work. 2. The power line and the cable locking connector 2.
  • Page 20 RH20330AS...
  • Page 21 DESCRIPTION PART # Replacement Parts Light Bulb, MR16 GU10, 35W (each) Z0B0023 Aluminum Meh Filter (each) 50200012 Optional Accessories Recirculating Kit RHRK203S Replacement Charcoal Filters (2pk) RHCF002 Order replacement parts from us by calling 1.888.750.1698...
  • Page 22 STAPLE YOUR RECEIPT HERE Proof of the original purchase Limited Warranty date is needed to obtain service under warranty TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS, please call: 1-888-750-1698 Venting Services (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you”...
